Just stuff I'm scratching my head over, Please ignore :-)
Posted: Wed May 22, 2013 7:44 pm

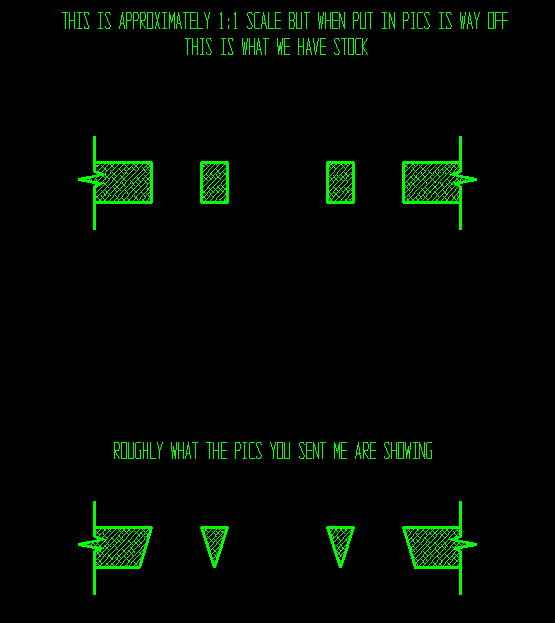

- motorrads porting.PNG (13.05 KiB) Viewed 16431 times
- motorrads porting 2.PNG (10.44 KiB) Viewed 16431 times
KX Guru Racing
KXGURU Discussion Forum for KX dirt and dual sport bikes, others welcome!
https://oem-cycle.com/forum/
Just stuff I'm scratching my head over, Please ignore :-)
Page 1 of 6
Re: Just stuff I'm scratching my head over
Posted: Wed May 22, 2013 9:21 pm
No, those were wrong.

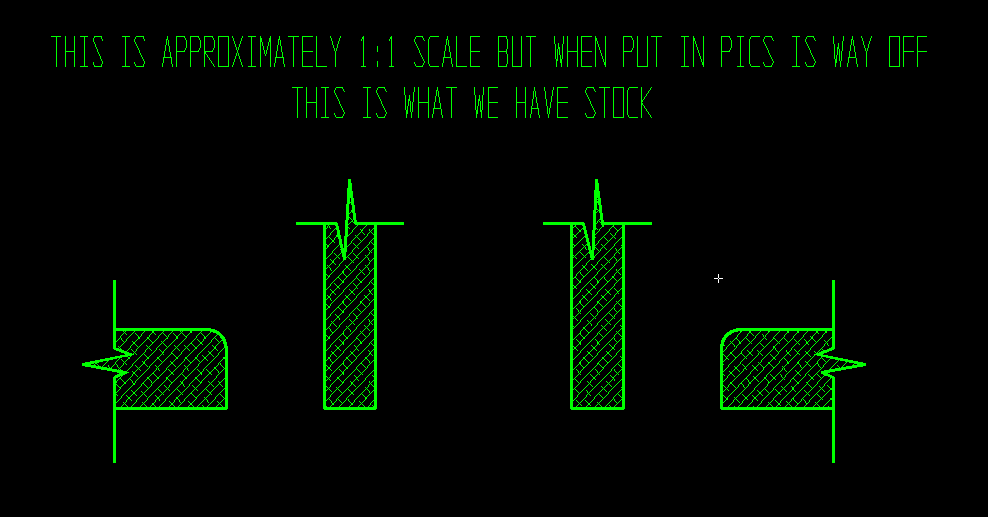

This is a better representation..
This is a better representation..
- motorrads porting 3.PNG (23.55 KiB) Viewed 16427 times
- motorrads porting 4.PNG (30.5 KiB) Viewed 16427 times
Re: Just stuff I'm scratching my head over
Posted: Wed May 22, 2013 9:26 pm
I dont even know what im looking at.
Re: Just stuff I'm scratching my head over
Posted: Wed May 22, 2013 10:05 pm

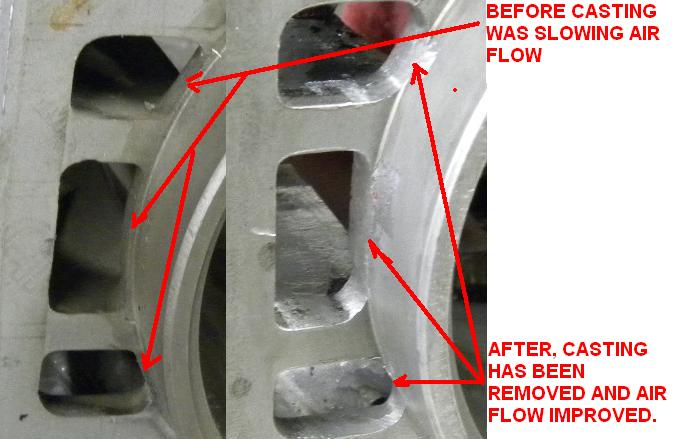

This is the area I'm looking at but in a section view and at 90 degrees to what is shown.
- BEFOREAND AFTER 2.JPG (44.04 KiB) Viewed 16426 times
Re: Just stuff I'm scratching my head over
Posted: Thu May 23, 2013 6:08 pm

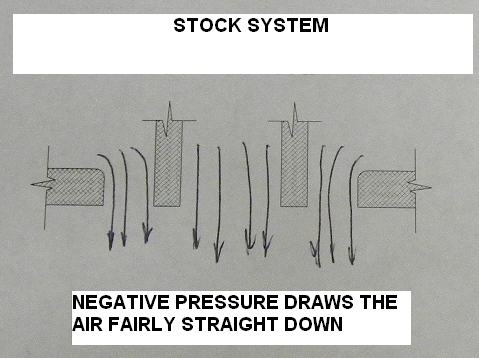

Vacuum is different.....
- motorrad quiz 4.PNG (169.17 KiB) Viewed 16407 times
- motorrad quiz 5.PNG (233.28 KiB) Viewed 16407 times
Re: Just stuff I'm scratching my head over
Posted: Thu May 23, 2013 11:59 pm
love the picture title
Re: Just stuff I'm scratching my head over
Posted: Fri May 24, 2013 12:58 am
I thought you might appreciate it
Re: Just stuff I'm scratching my head over
Posted: Wed May 29, 2013 9:50 pm
- TRANSFER PORTS.JPG (72.5 KiB) Viewed 16373 times
Re: Just stuff I'm scratching my head over
Posted: Thu May 30, 2013 8:21 pm

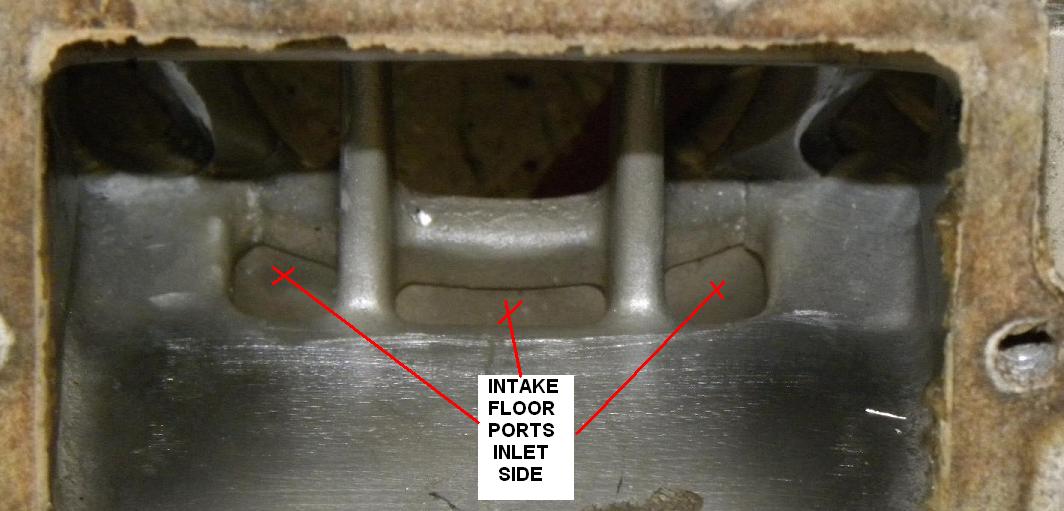

- INTAKE FLOOR PORTS.JPG (66.62 KiB) Viewed 16365 times

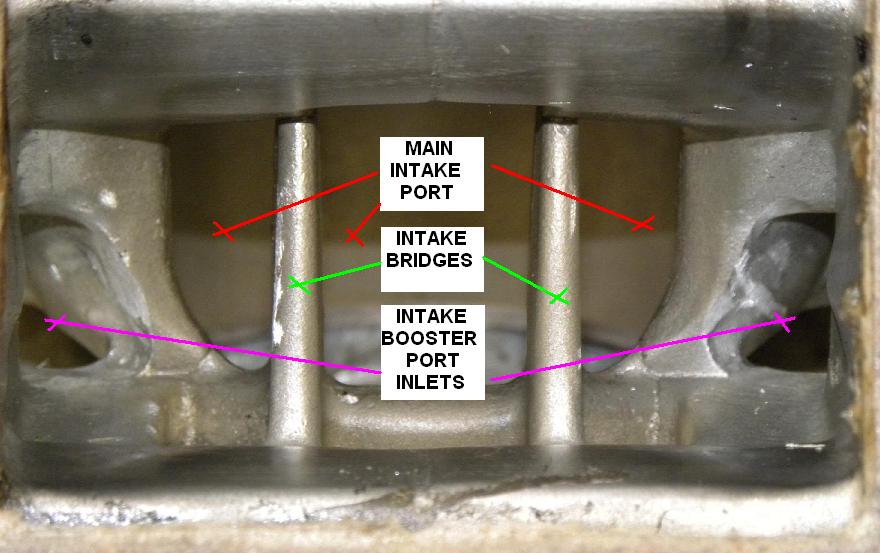

- Intake ports.JPG (65.17 KiB) Viewed 16365 times
- rear intake booster port.JPG (82.06 KiB) Viewed 16365 times
Re: Just stuff I'm scratching my head over
Posted: Sun Jun 02, 2013 4:49 am
- porting.png (109.78 KiB) Viewed 16314 times
