Removing the KX500 Auxiliary exhaust port walls
Posted: Thu Aug 06, 2015 9:30 pm
by Sandblaster
I always wanted to try this but never had the correct tools to try it.
Now that I dumped a wad of cash at CC Specialties I'm ready to give it a go.
While this is a practice cylinder I don't want to ruin it as there is some interesting plans for it...

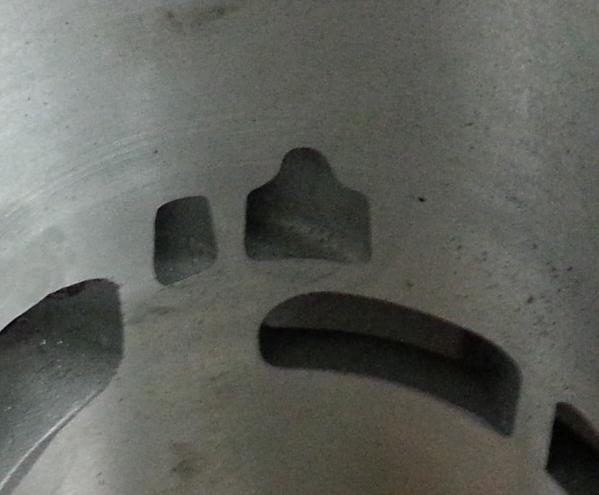

Test subject
- KX500 AUXILLARY EXHAUST PORT WALL REMOVAL WWW.OEM-CYCLE.COM 101.JPG (29.17 KiB) Viewed 7050 times
Here's goes nothing...
- KX500 AUXILLARY EXHAUST PORT WALL REMOVAL WWW.OEM-CYCLE.COM 102.JPG (26.35 KiB) Viewed 7050 times

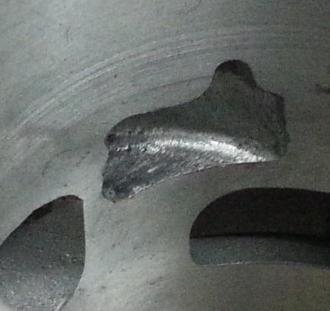

Making progress
- KX500 AUXILLARY EXHAUST PORT WALL REMOVAL WWW.OEM-CYCLE.COM 103.JPG (13.57 KiB) Viewed 7050 times
Re: Removing the KX500 Auxiliary exhaust port walls
Posted: Thu Aug 06, 2015 9:33 pm
by Sandblaster

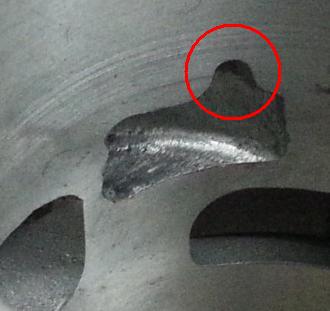

Since I run a decompression head I don't need the little decompression reliefs so on my person version I will weld them in and blend them in.
That way I will be able to have a greater trapped volume
- KX500 AUXILLARY EXHAUST PORT WALL REMOVAL WWW.OEM-CYCLE.COM 104.JPG (14.23 KiB) Viewed 7049 times
Re: Removing the KX500 Auxiliary exhaust port walls
Posted: Thu Aug 06, 2015 9:45 pm
by Sandblaster
When I'm done they should look like this only smoother
- KX500 AUXILLARY EXHAUST PORT WALL REMOVAL WWW.OEM-CYCLE.COM 105.JPG (22.65 KiB) Viewed 7049 times
Re: Removing the KX500 Auxiliary exhaust port walls
Posted: Sun Aug 09, 2015 1:14 am
by Sandblaster

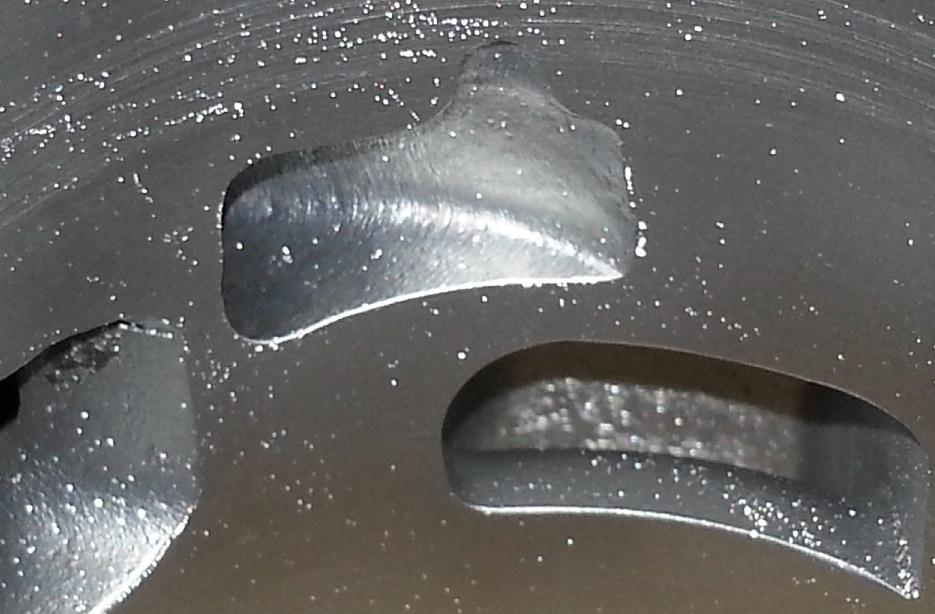

This is all for now.
Still gotta weld up the compression reliefs so no sense getting carried away.
- KX500 AUXILLARY EXHAUST PORT WALL REMOVAL WWW.OEM-CYCLE.COM 106.JPG (164.58 KiB) Viewed 7044 times
Re: Removing the KX500 Auxiliary exhaust port walls
Posted: Sat Jul 23, 2016 1:26 am
by Sandblaster
When welded, bored, and plated, the exhaust port will look like this
Re: Removing the KX500 Auxiliary exhaust port walls
Posted: Sat Jul 23, 2016 1:27 am
by Sandblaster
Looking from the main exhaust port, this is what the stock sub ports look like
Re: Removing the KX500 Auxiliary exhaust port walls
Posted: Sat Jul 23, 2016 1:30 am
by Sandblaster

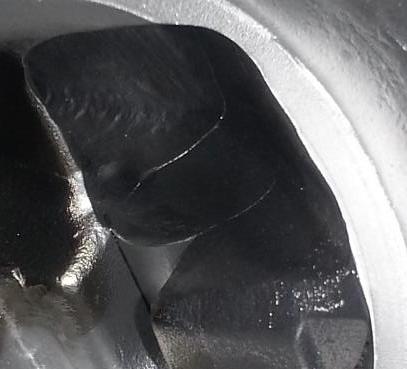

When we are done, they look like this
Although this is looking at the opposite side from the last pic...
- valves.JPG (18.62 KiB) Viewed 6794 times
