Re: Making a KX500 2 piece clutch cover :-)
Posted: Fri Feb 07, 2014 12:42 am
by Sandblaster

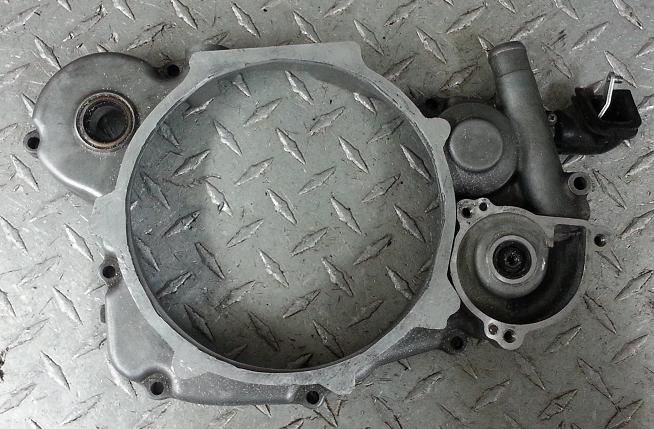

- kx500 2 piece clutch cover 9-5.png (313.84 KiB) Viewed 25215 times
- kx500 2 piece clutch cover 9-1.png (1004.05 KiB) Viewed 25215 times
- kx500 2 piece clutch cover 9-2.png (330.33 KiB) Viewed 25215 times
Re: Making a KX500 2 piece clutch cover :-)
Posted: Tue Feb 11, 2014 12:09 am
by Sandblaster
Ok, enough monkey business.
The following pics are of a 89 kx250 clutch cover sitting on top of my cut down kx500 inner clutch cover.
As you can see, you can make an adapter for it but then you are stuck buying a used clutch cover any time you break yours...
- 89 kx250 clutch cover on a kx500 inner clutch cover 1.jpg (282.07 KiB) Viewed 25208 times
- 89 kx250 clutch cover on a kx500 inner clutch cover 2.jpg (246.44 KiB) Viewed 25208 times
Re: Making a KX500 2 piece clutch cover :-)
Posted: Tue Feb 11, 2014 12:10 am
by Sandblaster

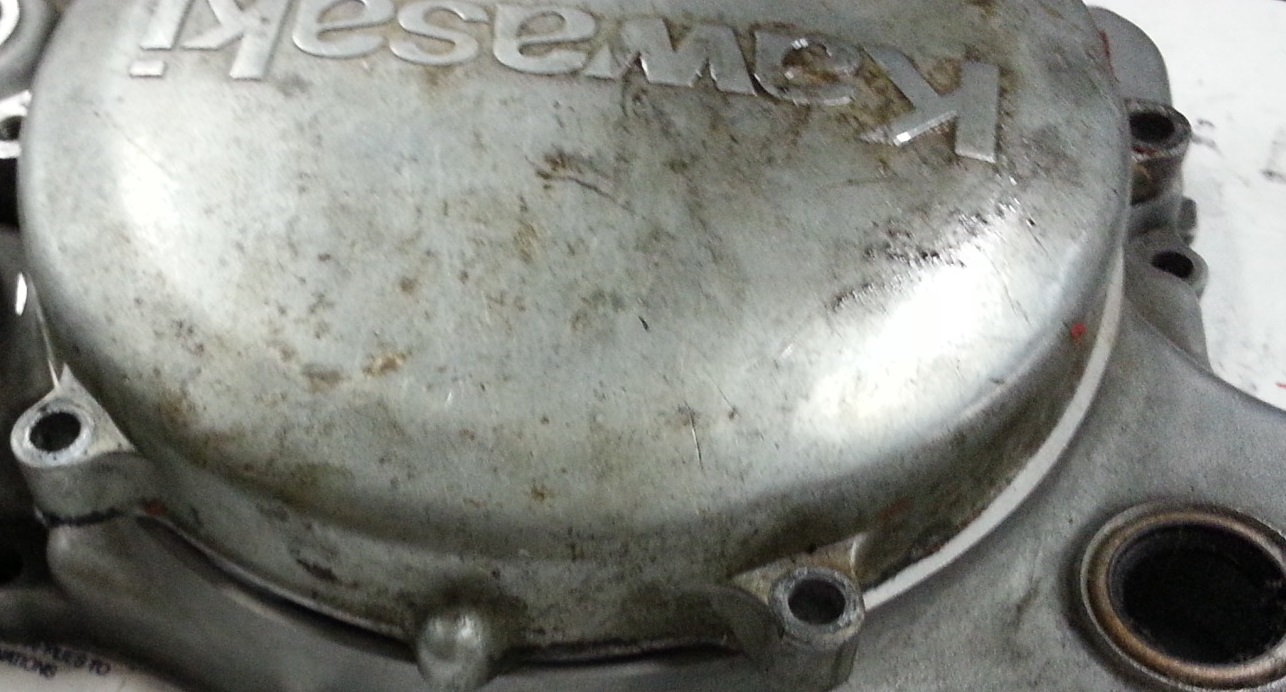

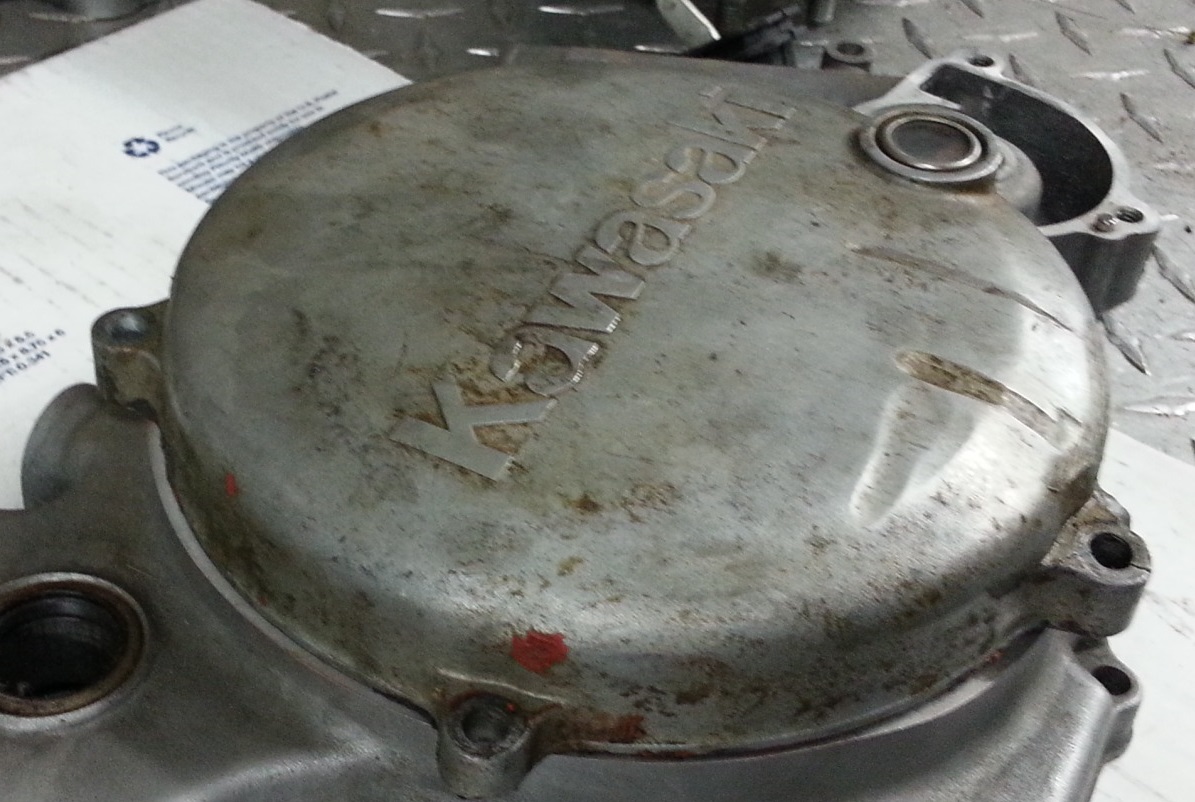

- 89 kx250 clutch cover on a kx500 inner clutch cover 3.jpg (265.68 KiB) Viewed 25208 times
- 89 kx250 clutch cover on a kx500 inner clutch cover 4.jpg (255.4 KiB) Viewed 25208 times
Re: Making a KX500 2 piece clutch cover :-)
Posted: Tue Feb 11, 2014 12:12 am
by Sandblaster
- 89 kx250 clutch cover on a kx500 inner clutch cover 5.jpg (255.91 KiB) Viewed 25208 times
Looking close at the pics, you can see that the 89 kx250 clutch cover is slightly smaller then the KX500 inner clutch cover.
Making a adapter for it is doable as stated above but it somewhat negates a big reason for doing a adapter and using a newer kx450f clutch cover.
Re: Making a KX500 2 piece clutch cover :-)
Posted: Tue Feb 11, 2014 9:45 pm
by Sandblaster
About 2 days before Roost volunteered to machine some of the adapters I had started making a adapter by hand.
Since I don't have a mill I used the next best thing.
Poor mans milling machine....
- poor mans milling machine 2.jpg (62.57 KiB) Viewed 25205 times
Re: Making a KX500 2 piece clutch cover :-)
Posted: Wed Feb 12, 2014 11:20 pm
by Sandblaster
Done with the poor mans water jet and milling machine.

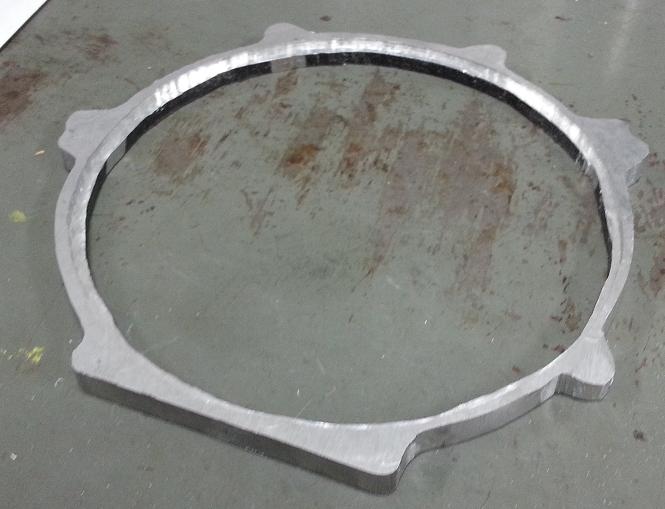

- KX500 2 PIECE CLUTCH COVER ADAPTER 1.JPG (37.22 KiB) Viewed 25204 times

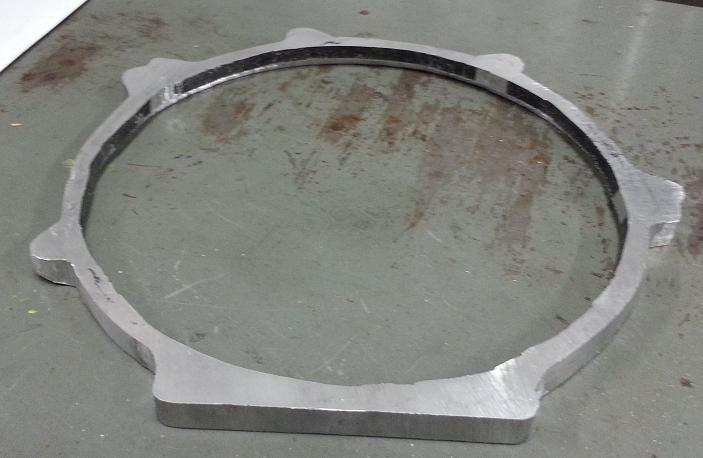

- KX500 2 PIECE CLUTCH COVER ADAPTER 2.JPG (36.31 KiB) Viewed 25204 times
Re: Making a KX500 2 piece clutch cover :-)
Posted: Thu Feb 13, 2014 1:40 am
by Sandblaster
Re: Making a KX500 2 piece clutch cover :-)
Posted: Thu Feb 13, 2014 6:06 am
by Sandblaster
There is a lot of chatter and it has a tendency to jump out of your grip,
This only happened once and I didn't like it
http://www.youtube.com/watch?v=X-gkWTEL ... e=youtu.be
If your gonna try it, just be careful
This is still rough but it is taking shape.
Re: Making a KX500 2 piece clutch cover :-)
Posted: Fri Feb 14, 2014 11:25 pm
by Sandblaster
Now I'm waiting for my KX450f clutch cover to come in so I can confirm the geometry and then get it polished, drilled, tapped, and welded on.
- KX500 2 PIECE CLUTCH COVER ADAPTER 3.JPG (61.49 KiB) Viewed 25196 times
Re: Making a KX500 2 piece clutch cover :-)
Posted: Wed Feb 19, 2014 10:31 pm
by Sandblaster
More progress

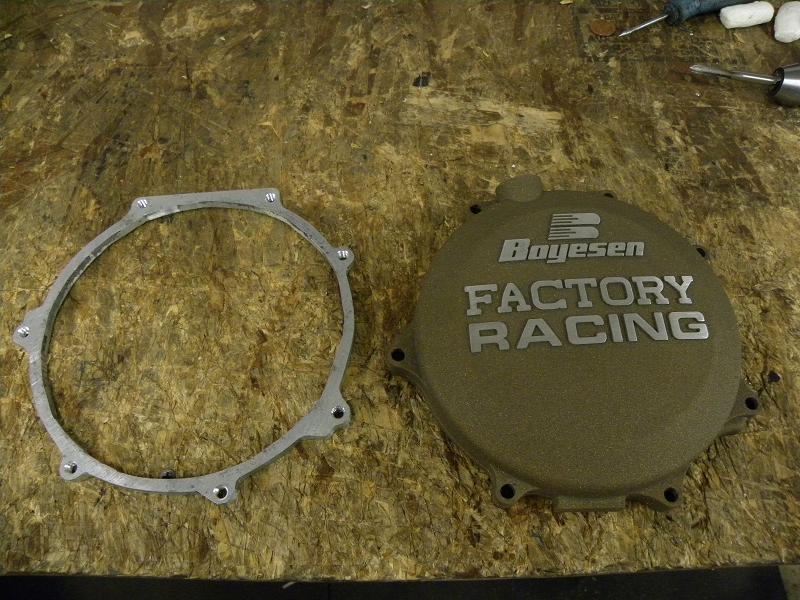

- KX500 2 PIECE CLUTCH COVER ADAPTER 4.JPG (107.76 KiB) Viewed 25191 times
- KX500 2 PIECE CLUTCH COVER ADAPTER 5.JPG (104.88 KiB) Viewed 25191 times
