Re: UPDATING KX500 SUSPENSION.
Posted: Thu Oct 01, 2015 9:29 pm

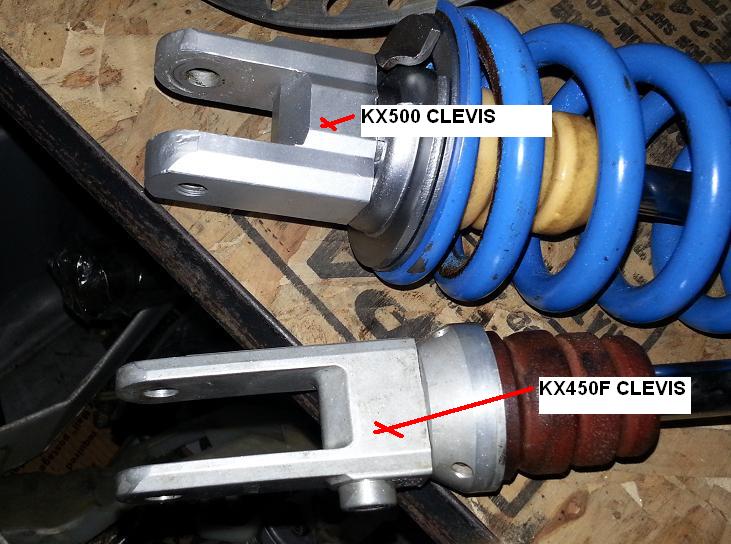

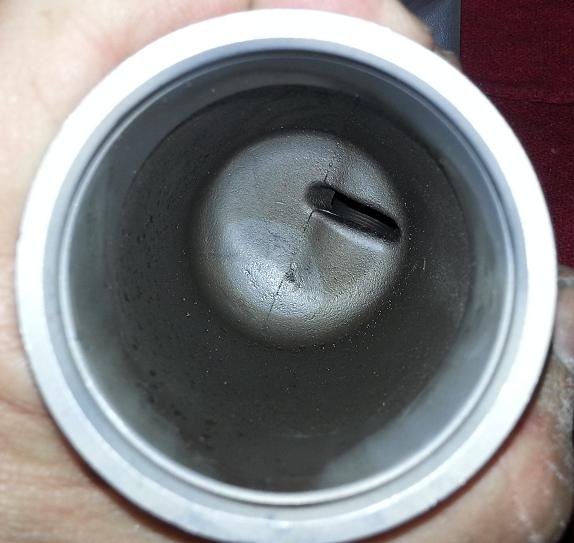

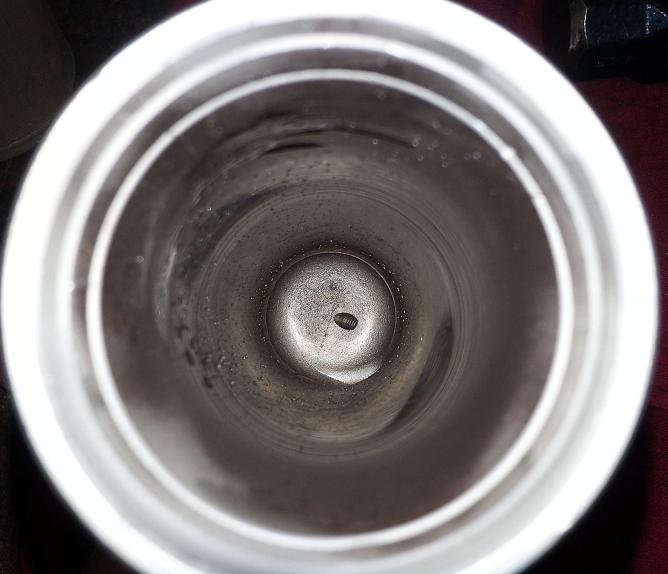

Here is the issue with the clevis..
- KX500 WITH A KX450F REAR SHOCK 106.JPG (71.83 KiB) Viewed 45790 times
Re: UPDATING KX500 SUSPENSION.
Posted: Thu Oct 01, 2015 10:01 pm
OK... Sometimes you feel like a dummy...

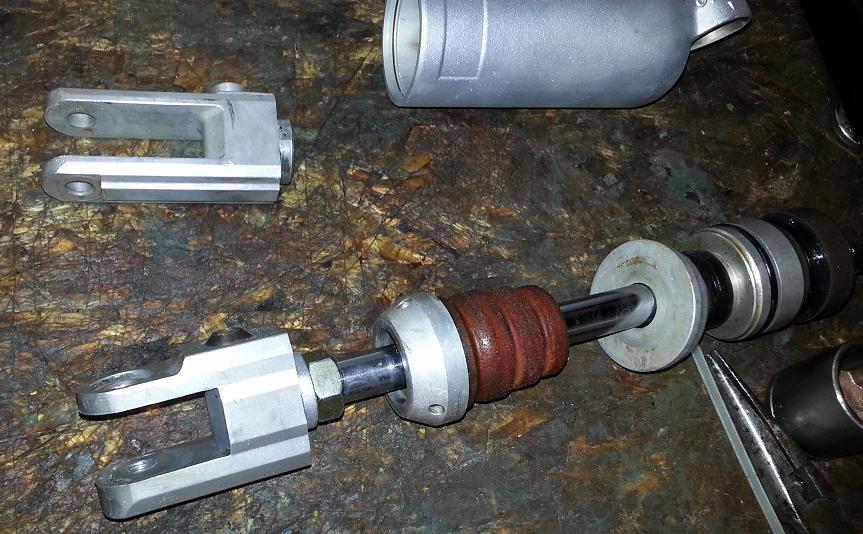

I unscrewed the clevis off a 92 kx250 shock (Same as the KX500 clevis) and screwed it right on the KX450F shock..
I unscrewed the clevis off a 92 kx250 shock (Same as the KX500 clevis) and screwed it right on the KX450F shock..
- KX500 WITH A KX450F REAR SHOCK 107.JPG (99.24 KiB) Viewed 45788 times
Re: UPDATING KX500 SUSPENSION.
Posted: Sat Dec 05, 2015 3:55 am

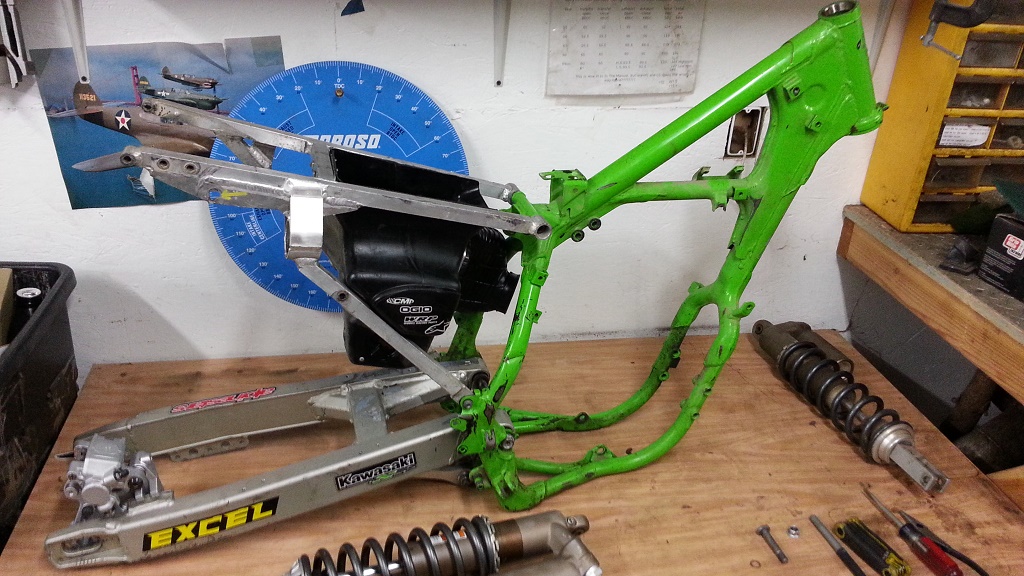

Before I go any further, I need a mock up.
Turns out I just happen to have a few spares laying around...
Except for the stupid swingarm that I had to buy on eBay
Turns out I just happen to have a few spares laying around...
Except for the stupid swingarm that I had to buy on eBay
- WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 101.jpg (284.55 KiB) Viewed 45656 times
Re: UPDATING KX500 SUSPENSION.
Posted: Sat Dec 19, 2015 5:47 pm
Why not bolt the KX450F shock to the 88 chassis and be done with it?
It is simply too long.
Here is a pic using the kx450f shock with it's stock clevis and bolted to the Uni Trak linkage
It is simply too long.
Here is a pic using the kx450f shock with it's stock clevis and bolted to the Uni Trak linkage
- WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 103.jpg (414.73 KiB) Viewed 45627 times
Re: UPDATING KX500 SUSPENSION.
Posted: Sat Dec 19, 2015 5:50 pm

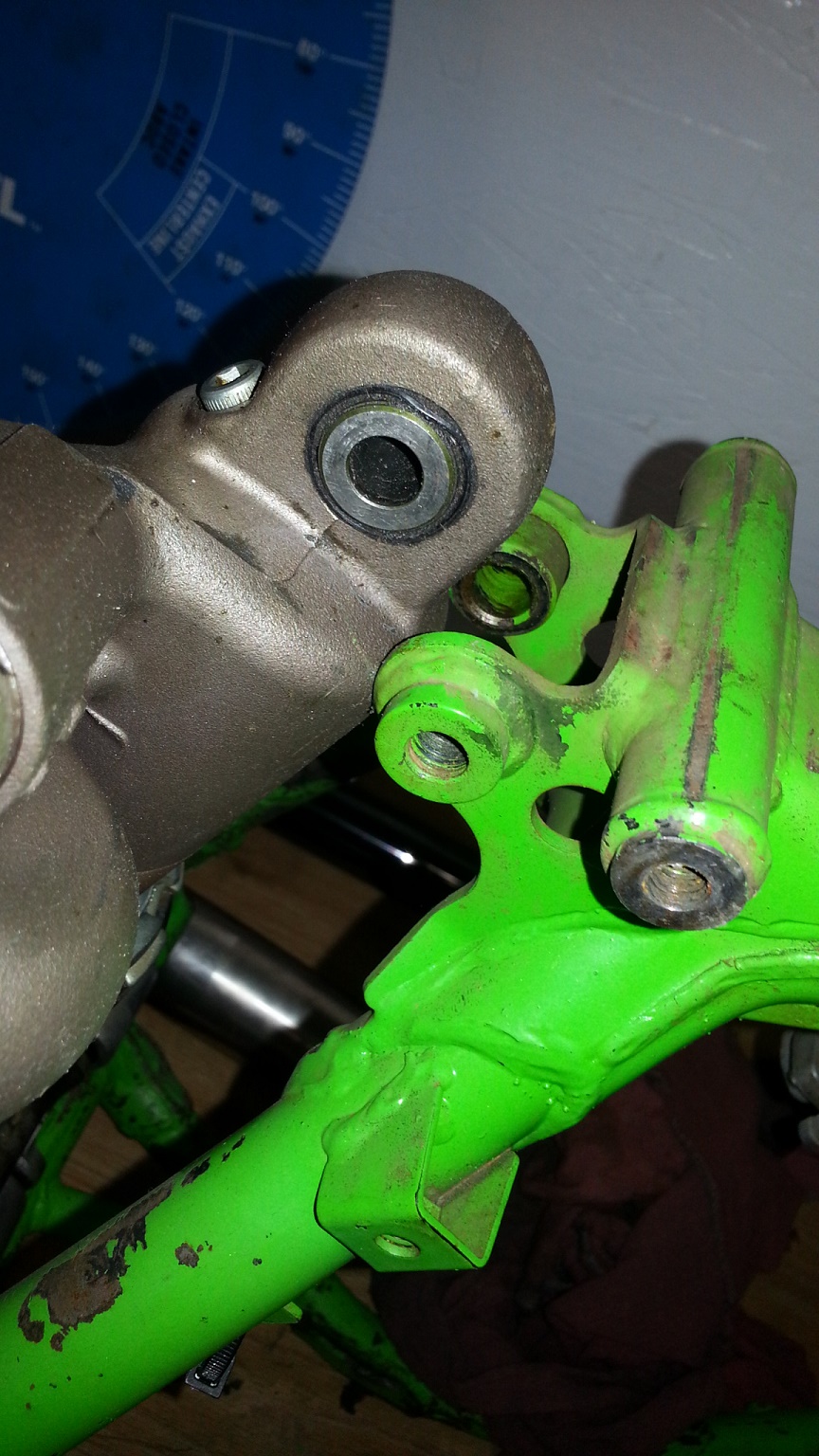

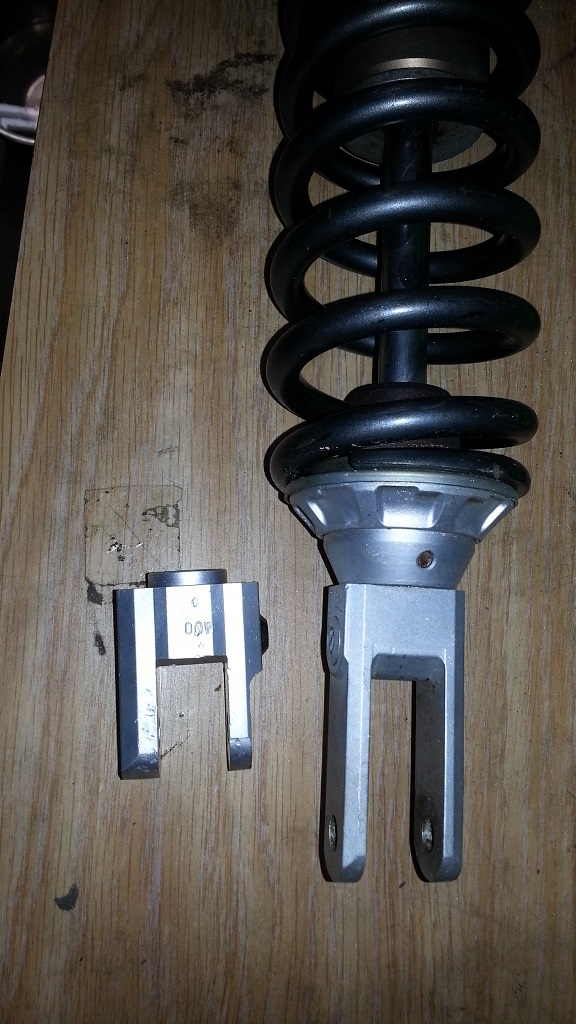

Again, note the difference in the clevis length
- WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 104.jpg (229.42 KiB) Viewed 45627 times
Re: UPDATING KX500 SUSPENSION.
Posted: Sat Dec 19, 2015 5:58 pm
After swapping the clevis everything lines up perfectly
Looks great!
But it does not work

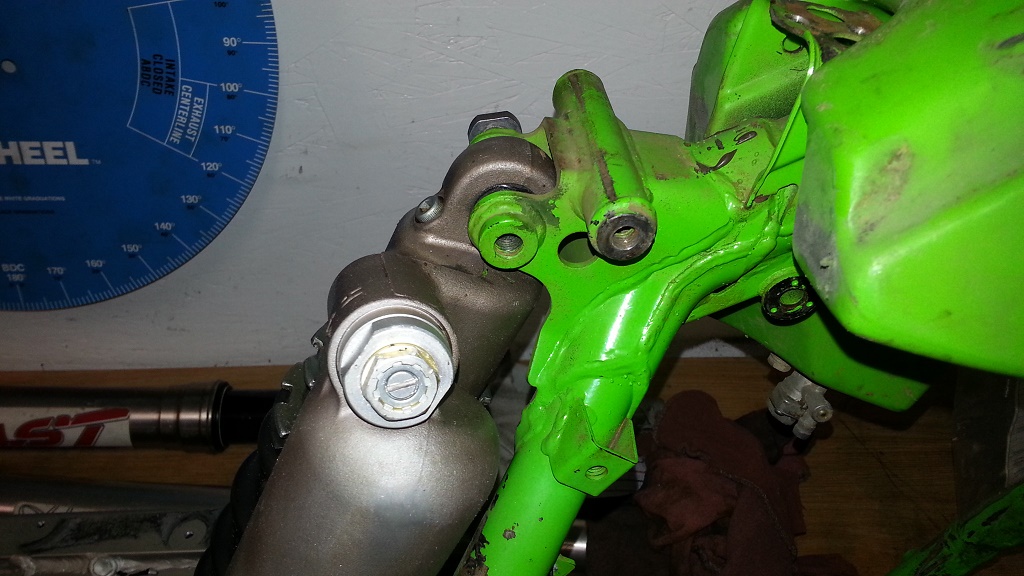

Note the location of the shock reservoir.
Note that the reservoir goes right through the middle of where the pipe is suppose to go.
- WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 105.jpg (208.76 KiB) Viewed 45627 times
- WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 106.jpg (263.3 KiB) Viewed 45627 times
- WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 107.jpg (282.35 KiB) Viewed 45627 times

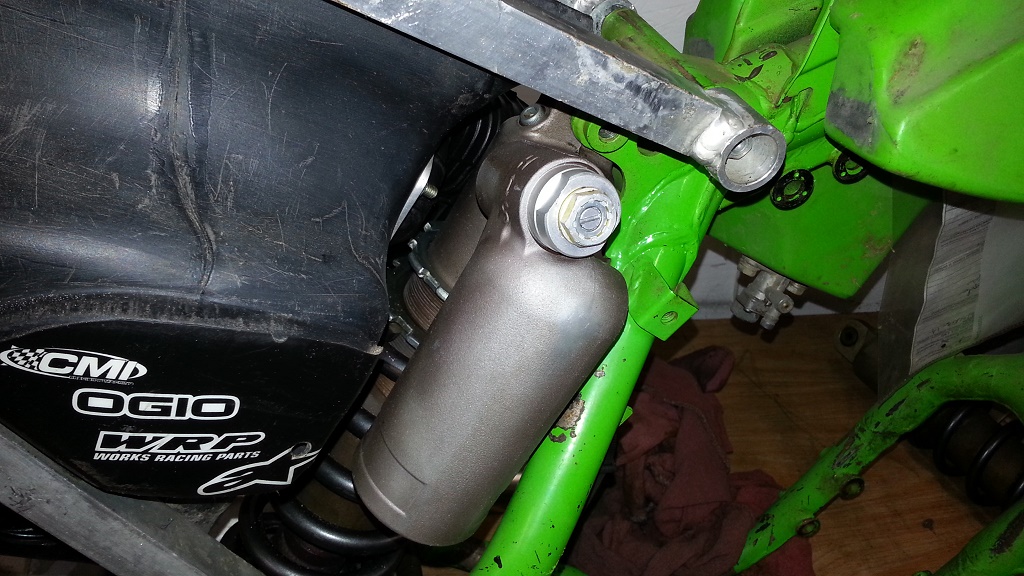

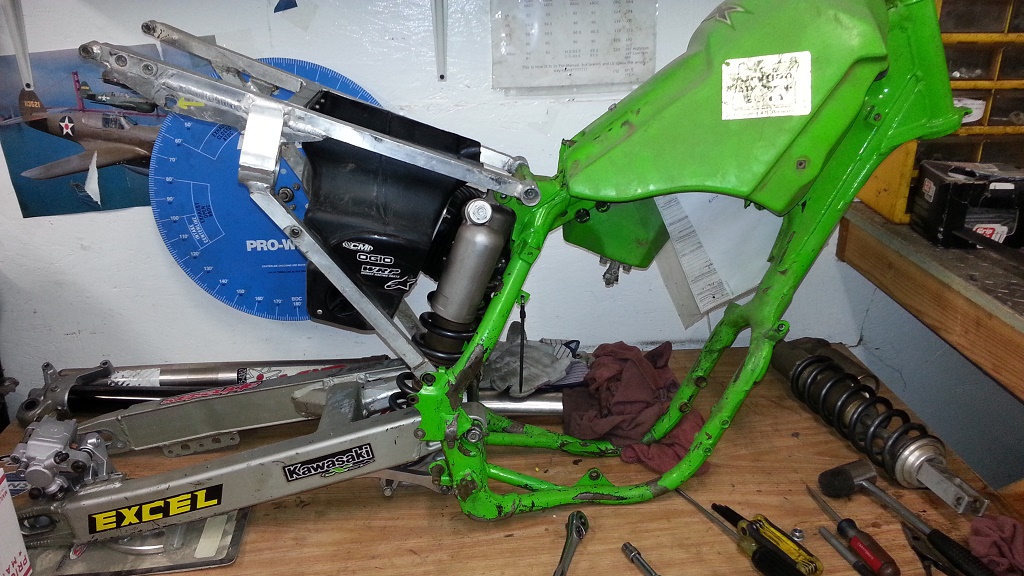

But it does not work
Note the location of the shock reservoir.
Note that the reservoir goes right through the middle of where the pipe is suppose to go.
Re: UPDATING KX500 SUSPENSION.
Posted: Sat Dec 19, 2015 5:59 pm
So the two choices I see is to reroute the pipe or move the reservoir...
More to come
More to come
Re: UPDATING KX500 SUSPENSION.
Posted: Sun Dec 20, 2015 1:46 am
Here is a quick vid to help you better understand what I'm running into:
https://youtu.be/IKh9uMr2l8Y
https://youtu.be/IKh9uMr2l8Y
Re: UPDATING KX500 SUSPENSION.
Posted: Sun Jan 24, 2016 6:23 pm
Can I do this on my 91 KX 500 frame? Why does it look like the top bearing isn't pressed in? Can I use a shock from a KX 250F of the same year?
