Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Fri Jul 25, 2014 4:06 am

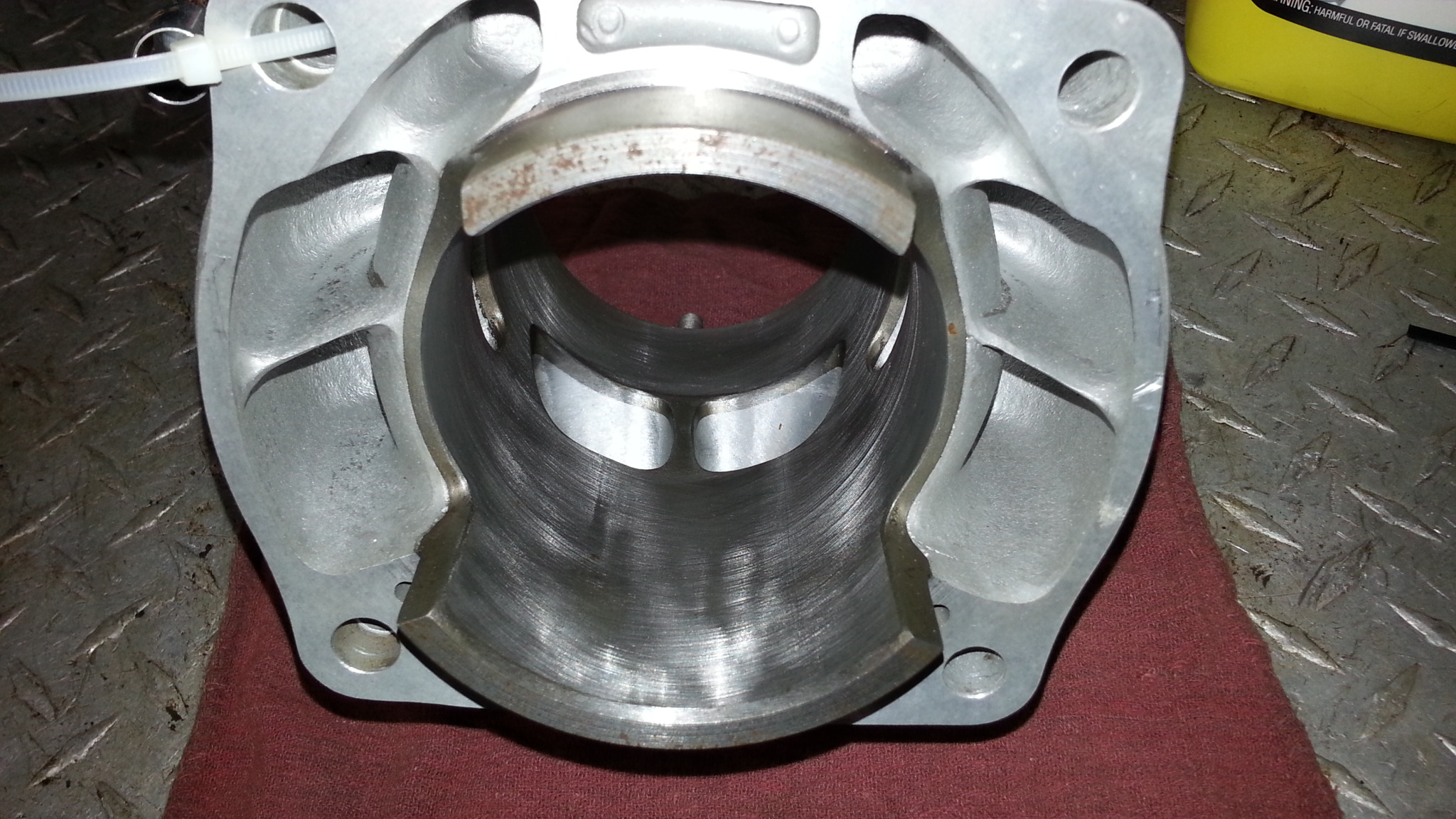

- 20140724_163705.jpg (614.08 KiB) Viewed 9958 times

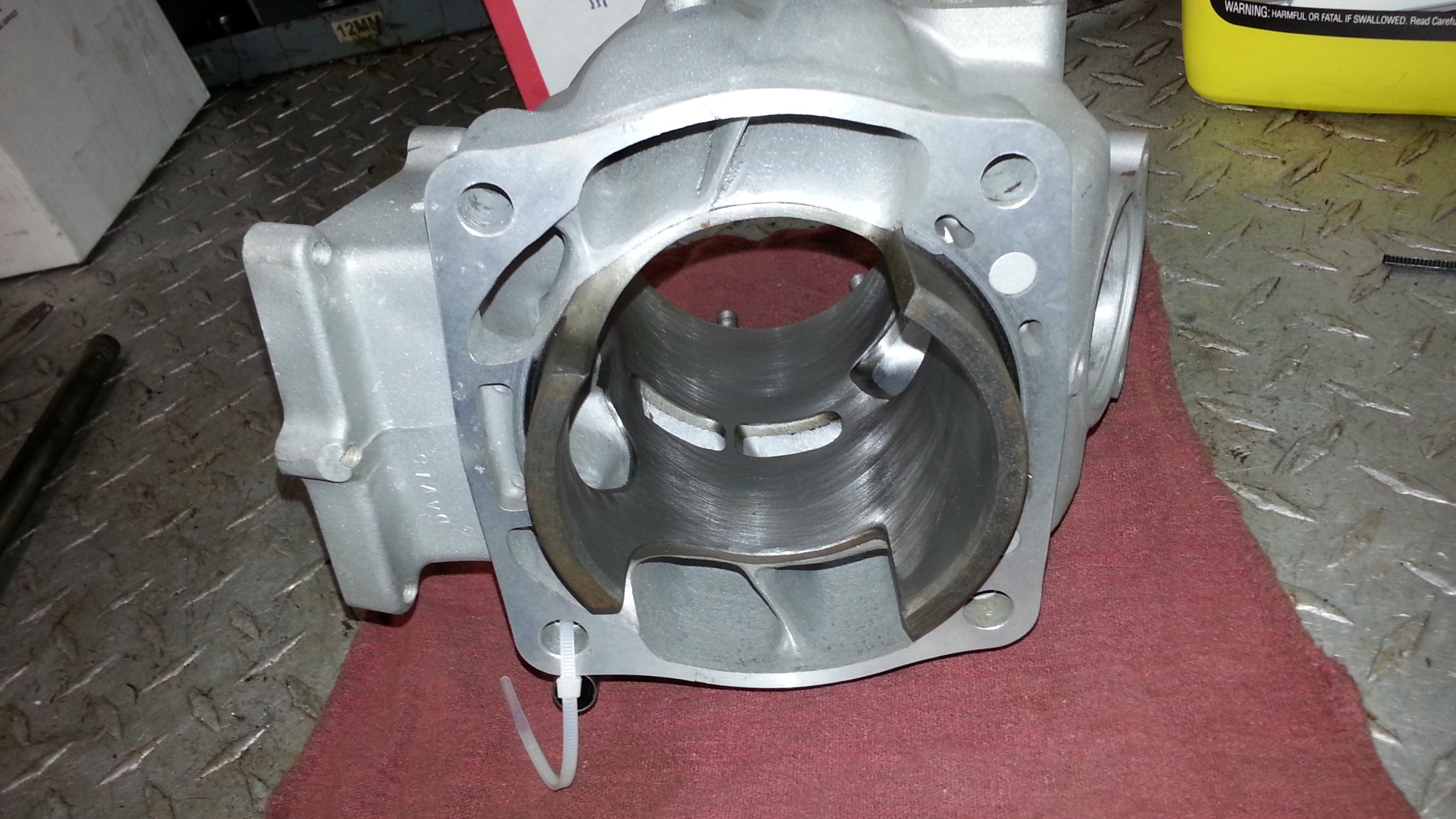

- 20140724_163713.jpg (551.18 KiB) Viewed 9958 times
KX Guru Racing
KXGURU Discussion Forum for KX dirt and dual sport bikes, others welcome!
https://oem-cycle.com/forum/
CR500 CYLINDER PORT WORK DEGREED
Page 2 of 4
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Fri Jul 25, 2014 4:07 am

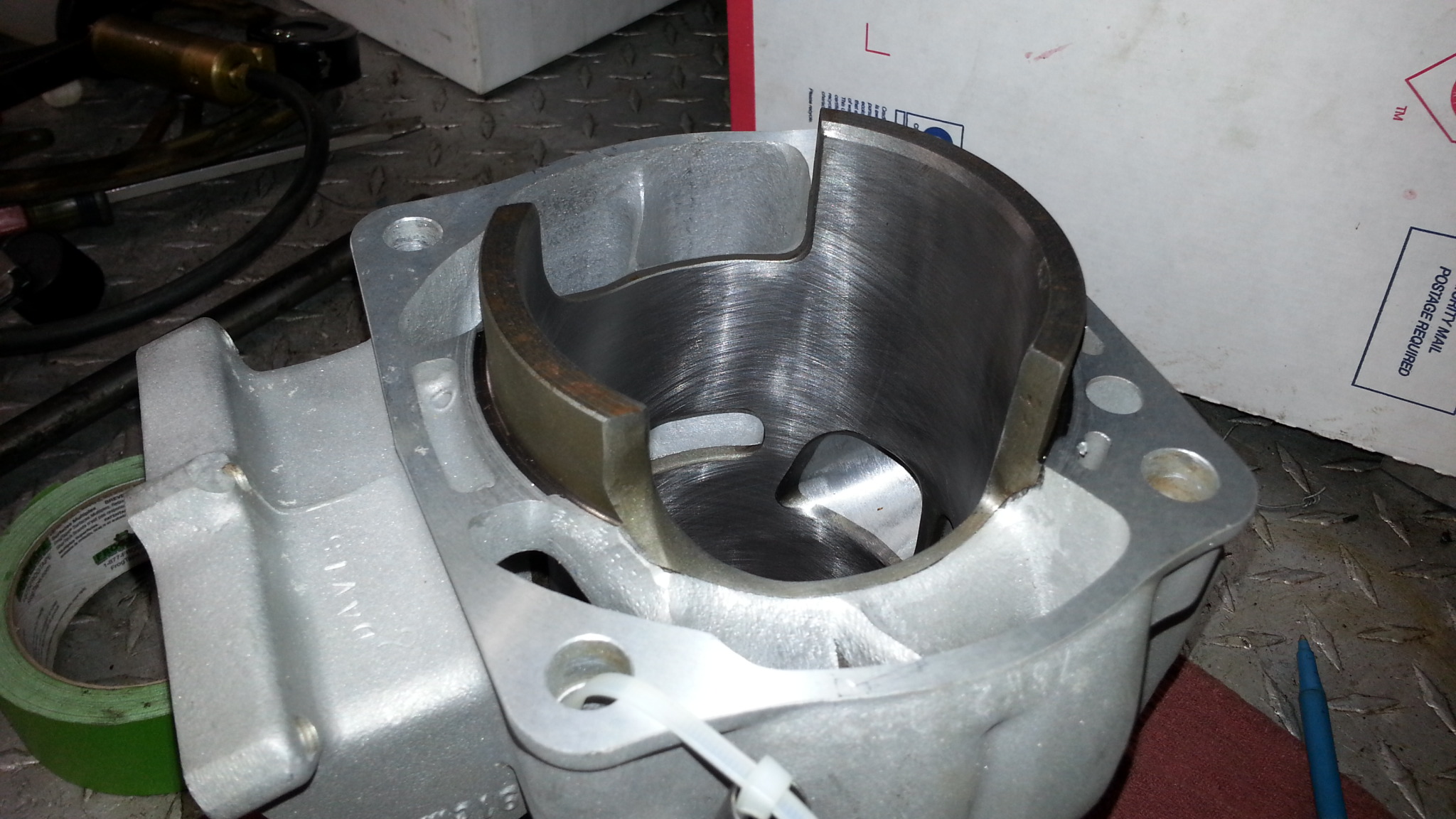

- 20140724_180038.jpg (485.59 KiB) Viewed 9958 times

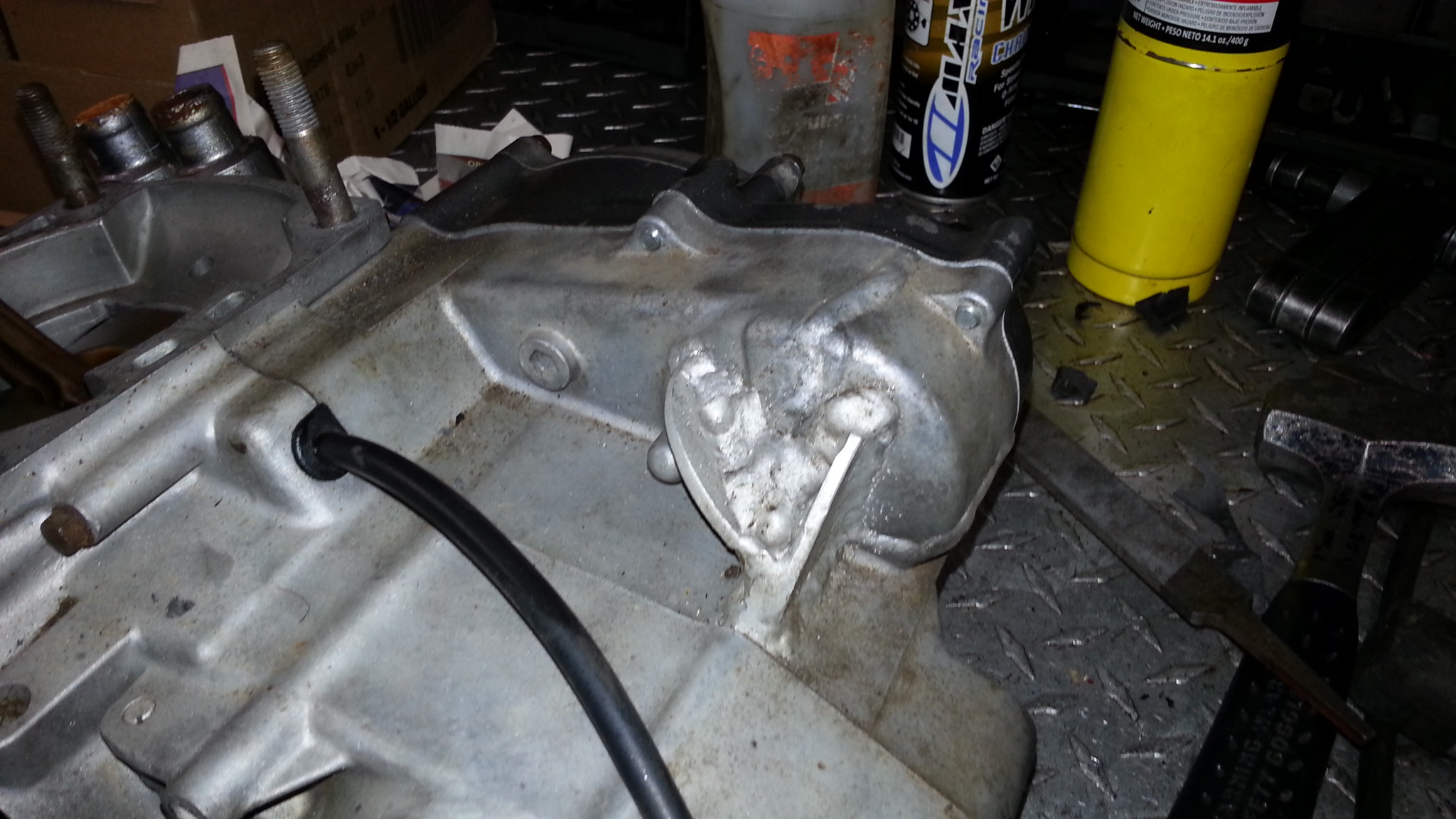

- 20140724_184533.jpg (461.85 KiB) Viewed 9958 times
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Fri Jul 25, 2014 4:07 am

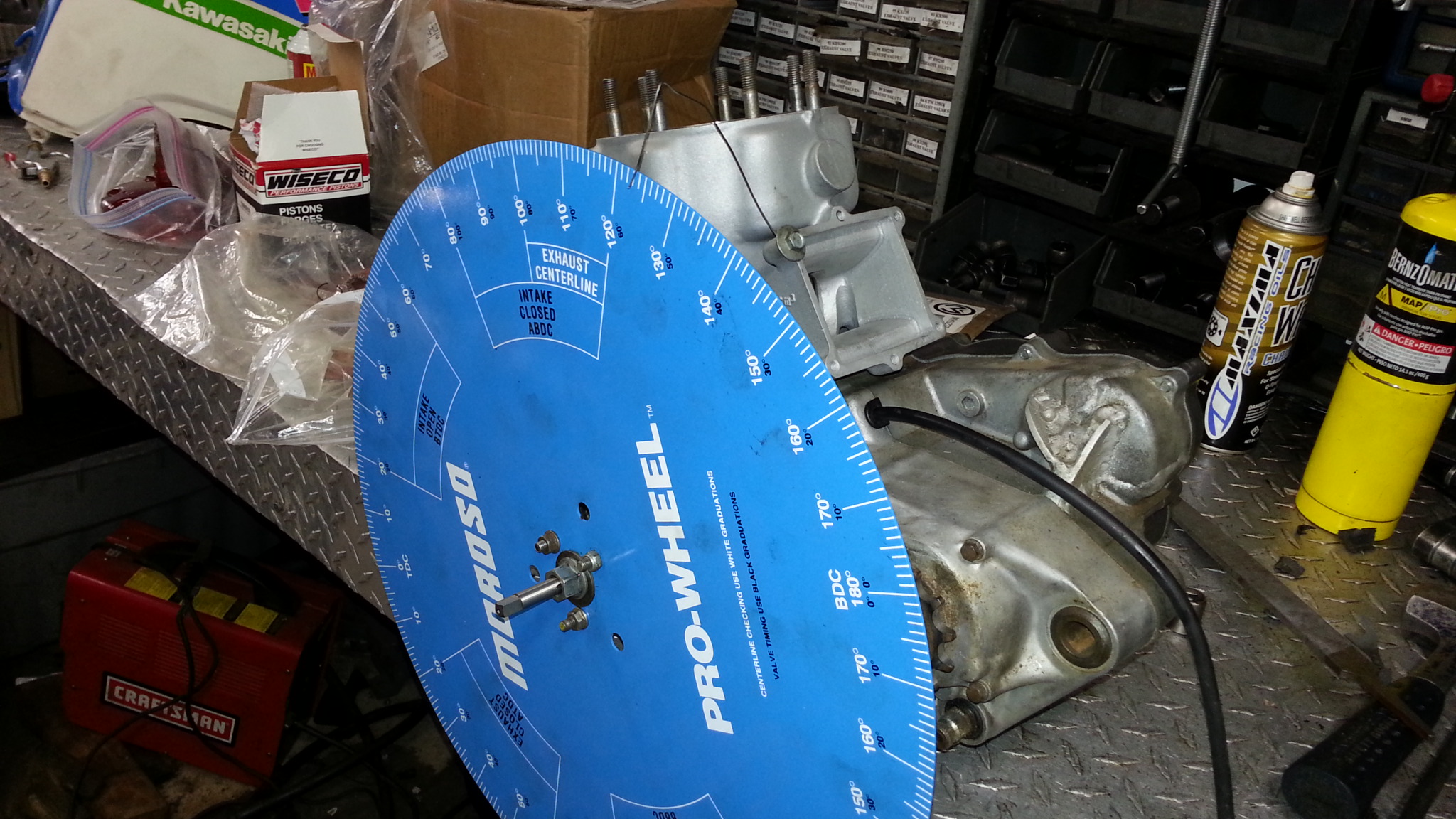

Guess whats coming next
- 20140724_190604.jpg (619.38 KiB) Viewed 9958 times
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Wed Jul 30, 2014 10:44 pm

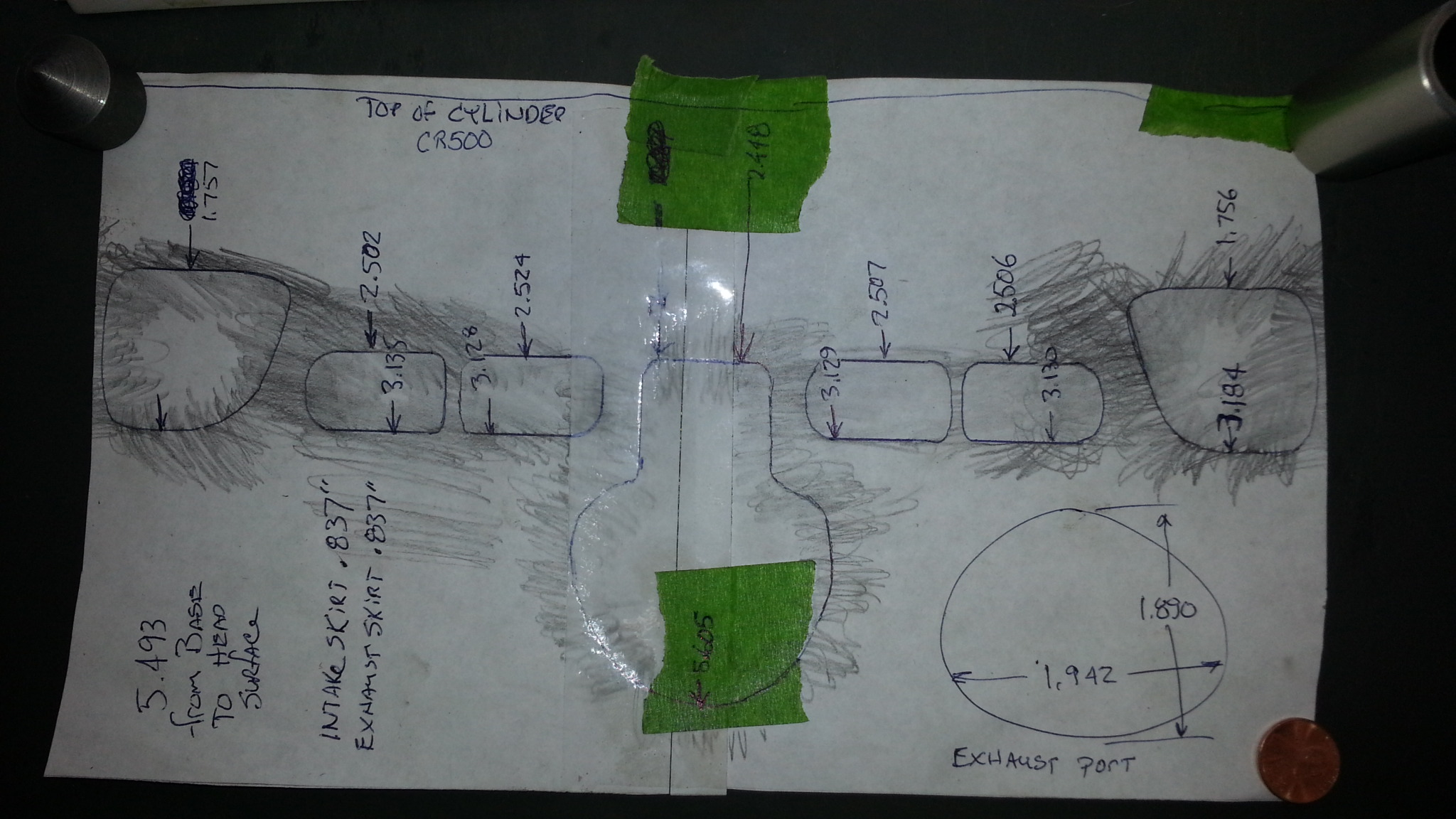

Here is my tracing and some sloppy notes
- 20140730_153918.jpg (452.36 KiB) Viewed 9948 times
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Wed Jul 30, 2014 10:49 pm
Port specs
Bottom of transfers 123 degrees
Top of transfers 156 degrees
Top of exhaust 181 degrees
The bottom of the exhaust port was actually a little below the piston height at bottom dead center.
Bottom of transfers 123 degrees
Top of transfers 156 degrees
Top of exhaust 181 degrees
The bottom of the exhaust port was actually a little below the piston height at bottom dead center.
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Thu Jul 31, 2014 4:11 am
Hmmm.
Doesn't look that much different then stock... In fact, I think it is a little under stock on the transfers..
More research is required.
Doesn't look that much different then stock... In fact, I think it is a little under stock on the transfers..
More research is required.
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Thu Jul 31, 2014 4:21 am
I found some unverified stock cr500 port numbers.
Transfers 122 degrees
Exhaust 180 degrees
Hmmm...
My conclusions on this cylinder is that it is basically stock.
It's had the base machined and possibly the head.
There is no scallops for helping to start it easier... not really an issue for me.
But my big gripe is there is no exhaust port relieving.
I guess someone will be drilling some holes in their Wiseco piston
The ports have been cleaned up but that's about it.
The guy I received the cylinder said he paid $225 USD to have it done.
Seems a bit steep to me
Transfers 122 degrees
Exhaust 180 degrees
Hmmm...
My conclusions on this cylinder is that it is basically stock.
It's had the base machined and possibly the head.
There is no scallops for helping to start it easier... not really an issue for me.
But my big gripe is there is no exhaust port relieving.
I guess someone will be drilling some holes in their Wiseco piston
The ports have been cleaned up but that's about it.
The guy I received the cylinder said he paid $225 USD to have it done.
Seems a bit steep to me
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Thu Jul 31, 2014 9:16 pm

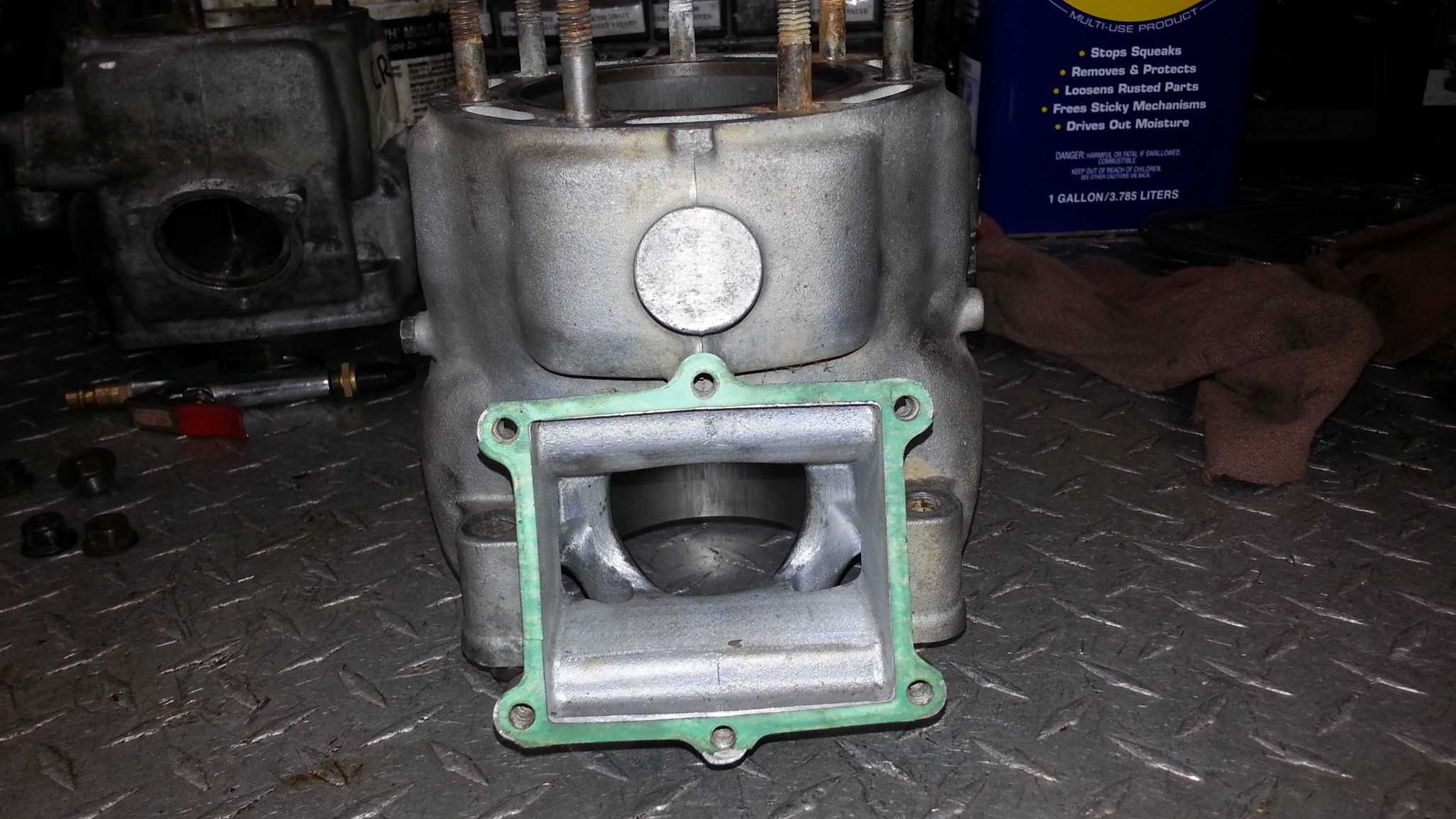

Here is more pics of another CR500 cylinder from another unnamed but well known engine builder.

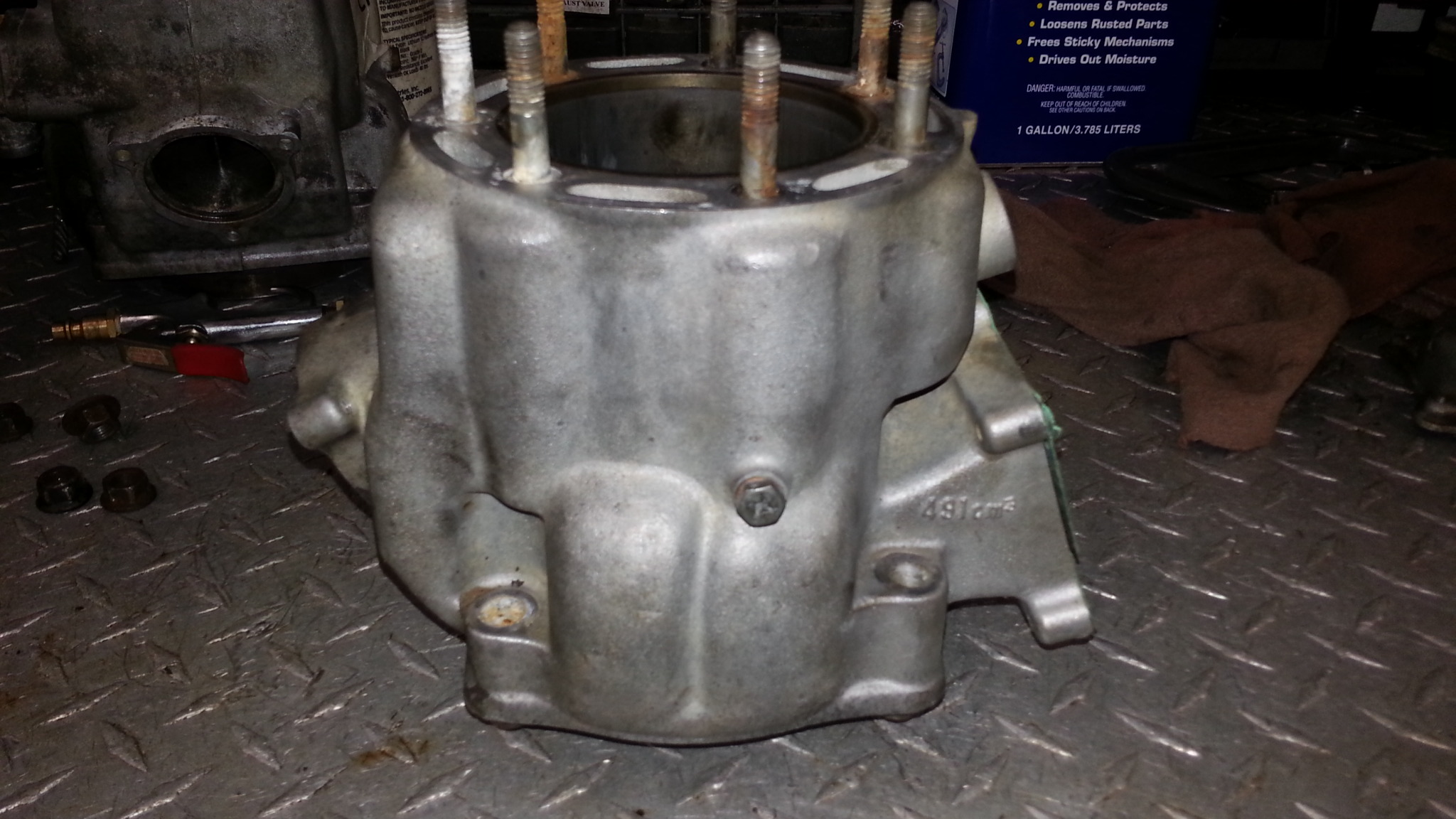

- 20140731_115931.jpg (438.36 KiB) Viewed 9945 times
- 20140731_115936.jpg (572.45 KiB) Viewed 9945 times
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Thu Jul 31, 2014 9:21 pm

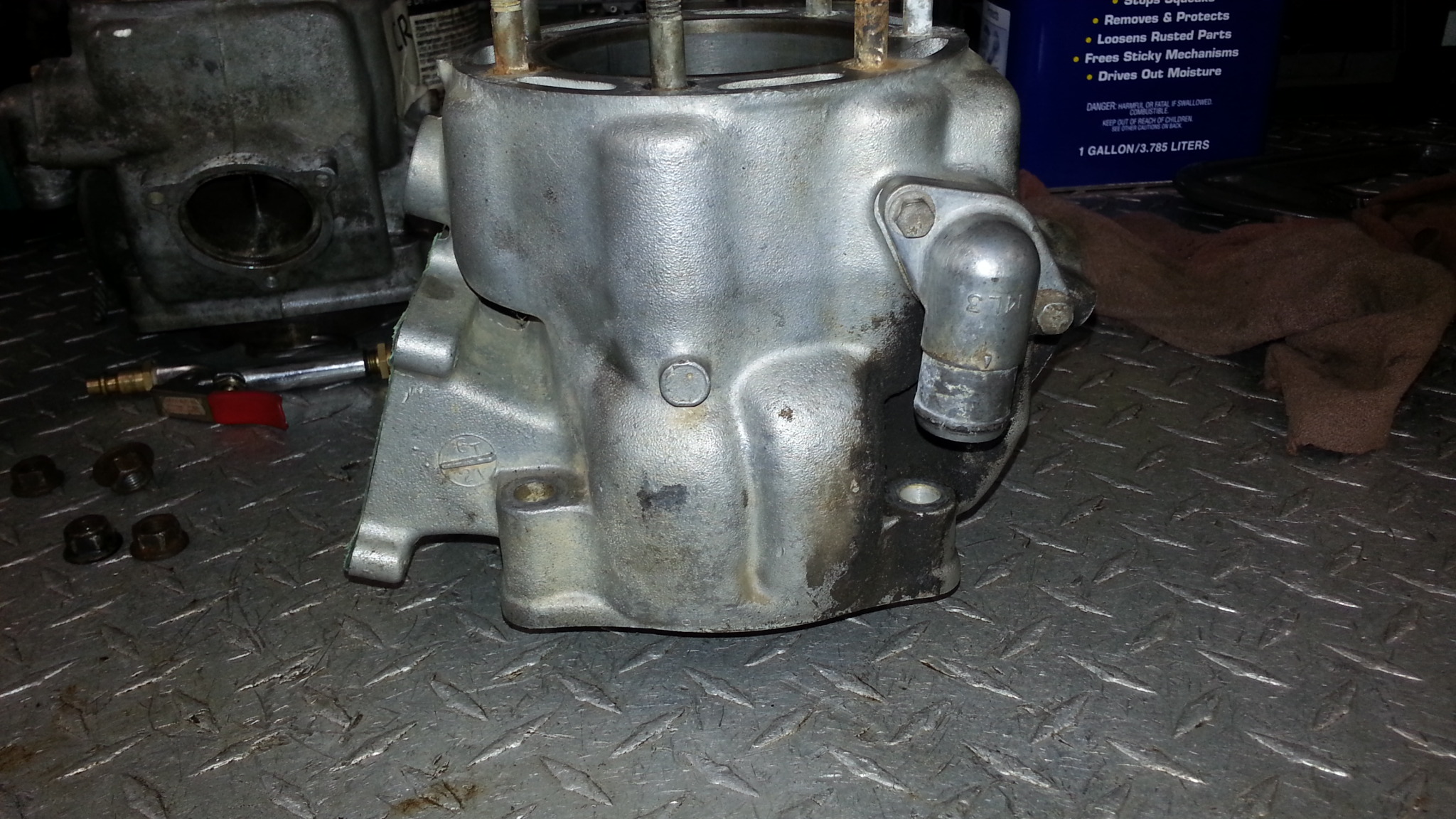

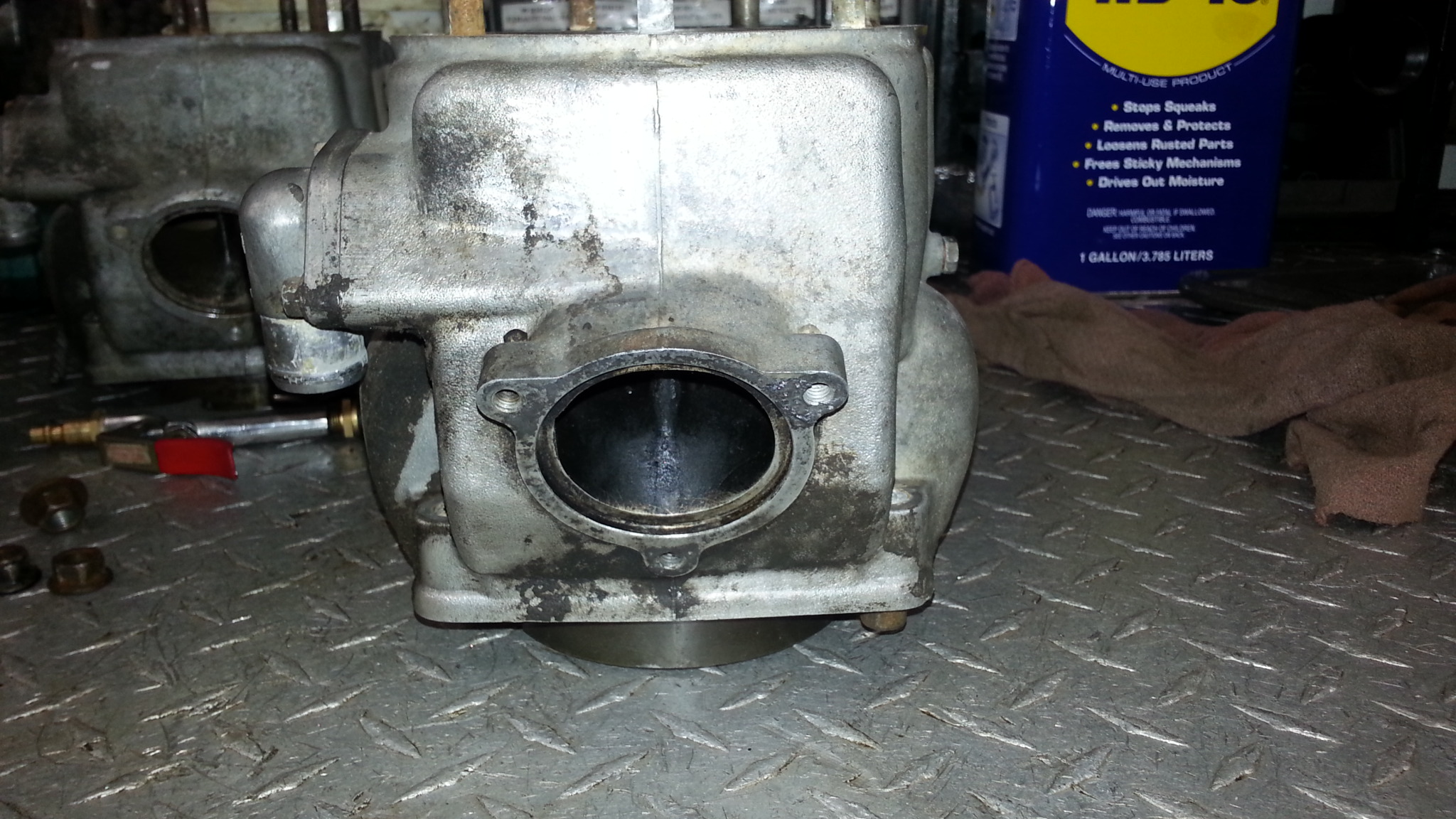

- 20140731_115941.jpg (621.39 KiB) Viewed 9945 times
- 20140731_115947.jpg (597.41 KiB) Viewed 9945 times
Re: CR500 CYLINDER PORT WORK DEGREED
Posted: Thu Jul 31, 2014 9:22 pm

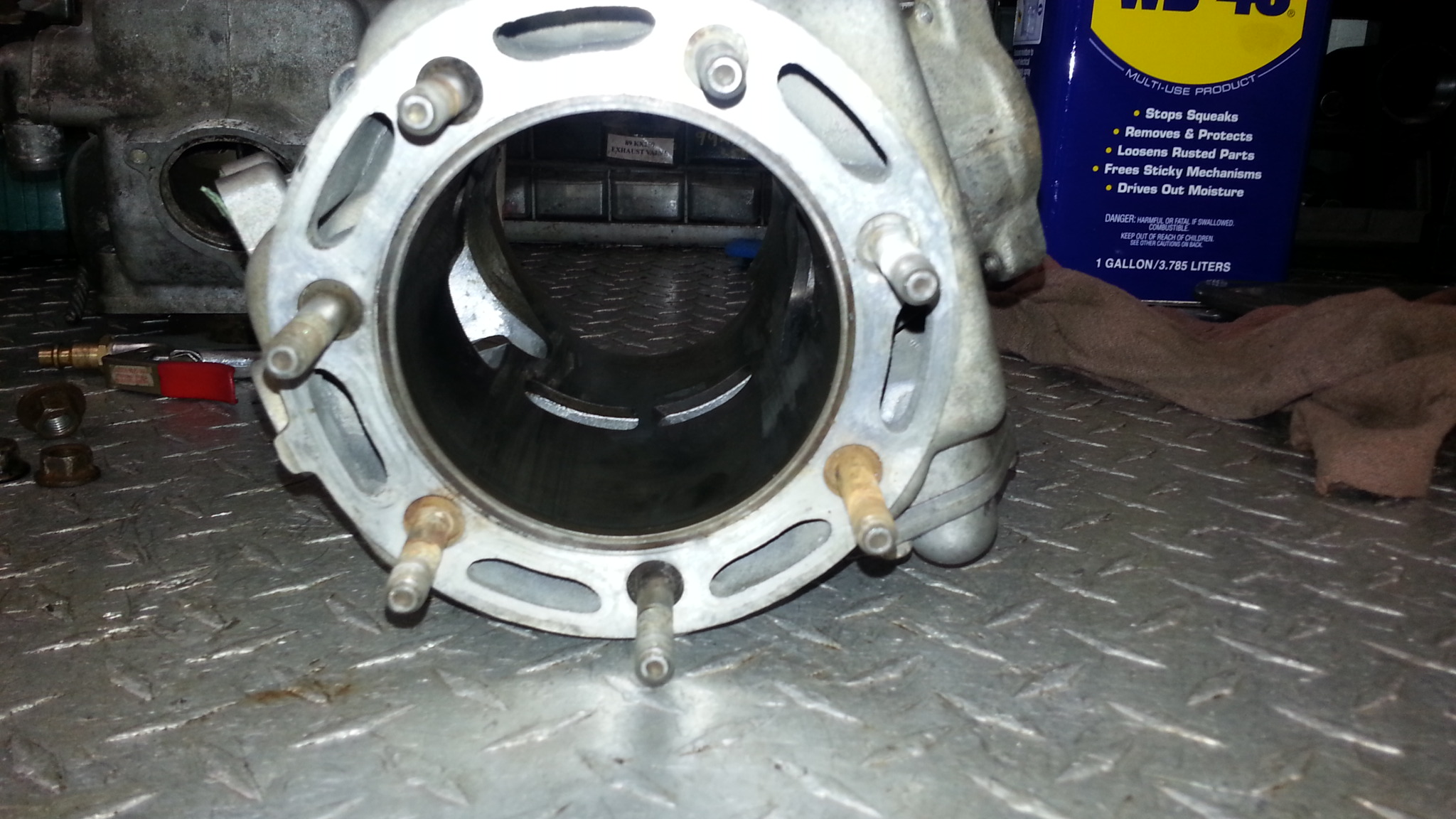

- 20140731_115953.jpg (470.11 KiB) Viewed 9945 times

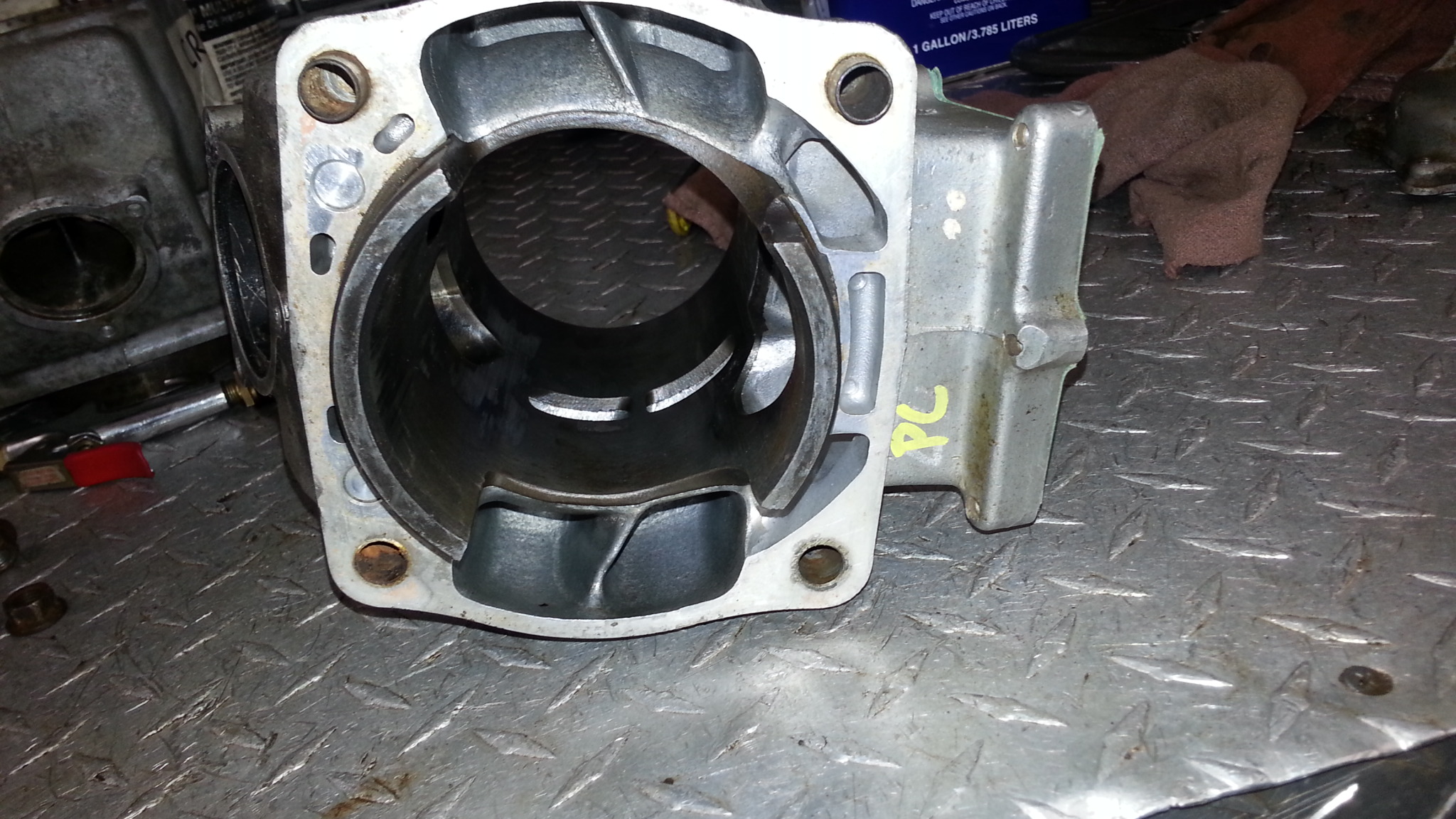

- 20140731_115959.jpg (607.37 KiB) Viewed 9945 times
