Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Wed May 11, 2016 4:03 am
by Sandblaster
Bearings and seals are in.... Just waiting for the replacement transmission....
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 130.JPG (102.31 KiB) Viewed 8542 times
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 131.JPG (105.76 KiB) Viewed 8542 times
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Wed May 11, 2016 4:45 am
by Sandblaster
Scot just sent me this... Anodized and ready for bearings..
- 13183132_1015007245256584_1240504894_n.jpg (79.53 KiB) Viewed 8539 times
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Thu May 12, 2016 4:15 am
by Sandblaster
Stripped the trans, cleaned every part, inspected everything, replaced every cir-clip, washer, and bushing..
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 132.JPG (174.14 KiB) Viewed 8534 times
Fresh out of the oven..
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 133.JPG (175.47 KiB) Viewed 8534 times
Drop in the crank while it is hot..
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 135.JPG (163.64 KiB) Viewed 8534 times
Oh yeah...
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 134.JPG (154.1 KiB) Viewed 8534 times
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Thu May 12, 2016 4:16 am
by Sandblaster
Tomorrow we will button up everything except for the flywheel because it isn't here yet
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 136.JPG (151.99 KiB) Viewed 8532 times
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Thu May 12, 2016 11:56 pm
by Sandblaster
A bit more progress..
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 138.JPG (214.55 KiB) Viewed 8518 times
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 139.JPG (146.18 KiB) Viewed 8518 times
This basket had been filed on before and the tangs were angled instead of inline with the clutch plates so it was going to wear out very quickly.
So, Jason files them square again.
While filing on a clutch basket really should not be done, the basket can be replaced relatively easily.
And, with a new bottom end you don't want the customer to have shifting issues so.. File away..
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 140.JPG (244.93 KiB) Viewed 8518 times
On our KX500 builds we replace all the goodies in the governor... Bearings, spring, washers, ect..
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Fri May 13, 2016 9:09 pm
by Sandblaster
The flywheel came in today..

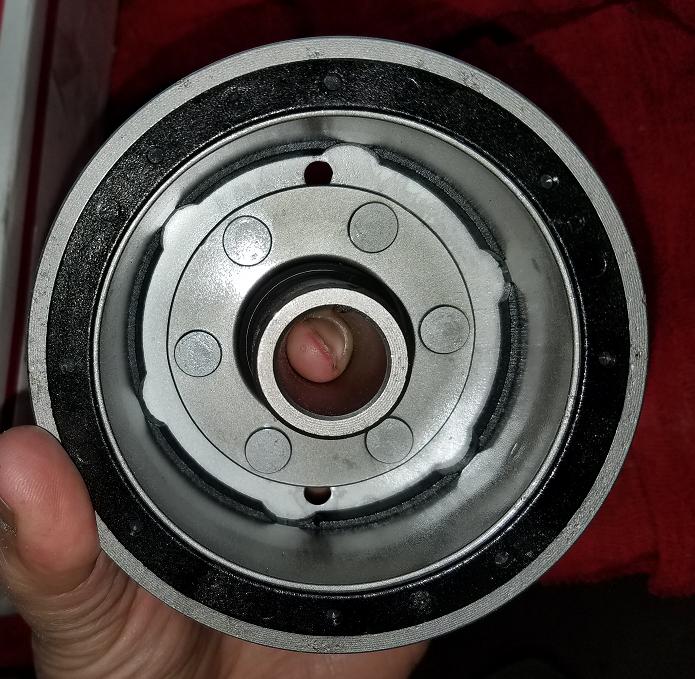

It cleaned up pretty good..
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 141.JPG (68.12 KiB) Viewed 8506 times
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 142.JPG (95.25 KiB) Viewed 8506 times
It's baking in the oven right now for an hour at 200F
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Thu May 19, 2016 1:53 am
by Sandblaster
- 13250336_1019490718141570_272844023_n.jpg (109.09 KiB) Viewed 8492 times
This is going to be a sweet build...
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Sat May 21, 2016 2:47 pm
by Sandblaster

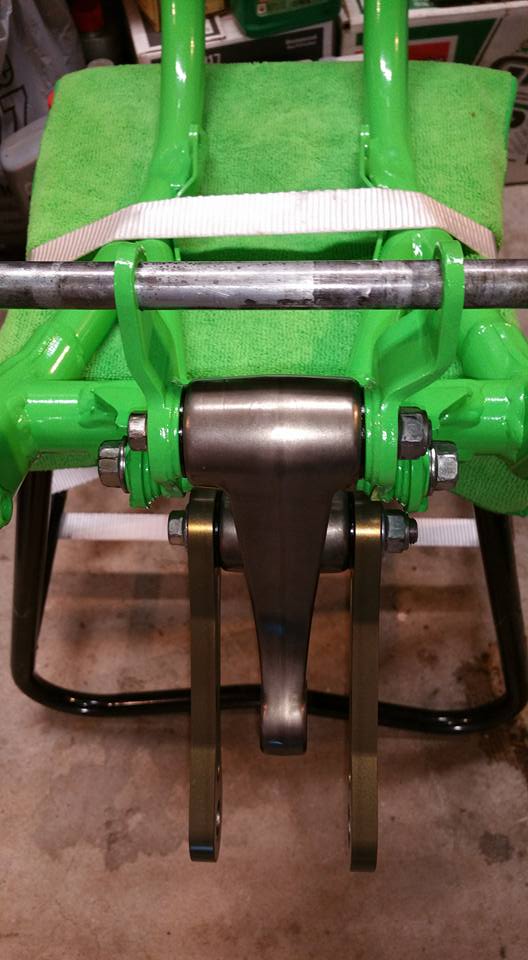

A bit more progress
- 13254046_1020806924676616_2829059425570075883_n.jpg (61.32 KiB) Viewed 8482 times
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Tue May 24, 2016 5:01 am
by Sandblaster
Little bit more progress tonight on the KX500. Ran into a couple of snags, but we're in no hurry. Still waiting on a few parts and I need to make a call or two tomorrow. This beast is gonna be new from the ground up.
- 13240153_1022698784487430_3529743008820546270_n.jpg (42.55 KiB) Viewed 8477 times
Re: KX500 BOTTOM END REBUILD FOR SCOT By JT Engine Works & OEM-CYCLE
Posted: Mon May 30, 2016 2:28 am
by Sandblaster

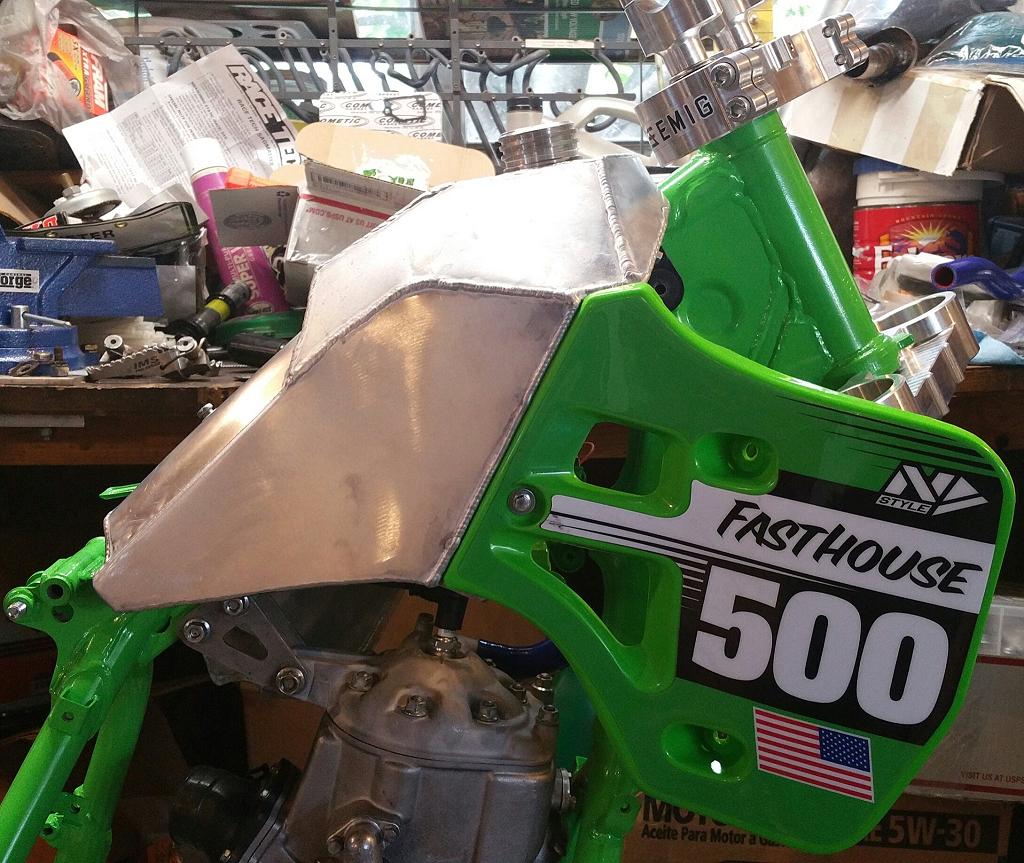

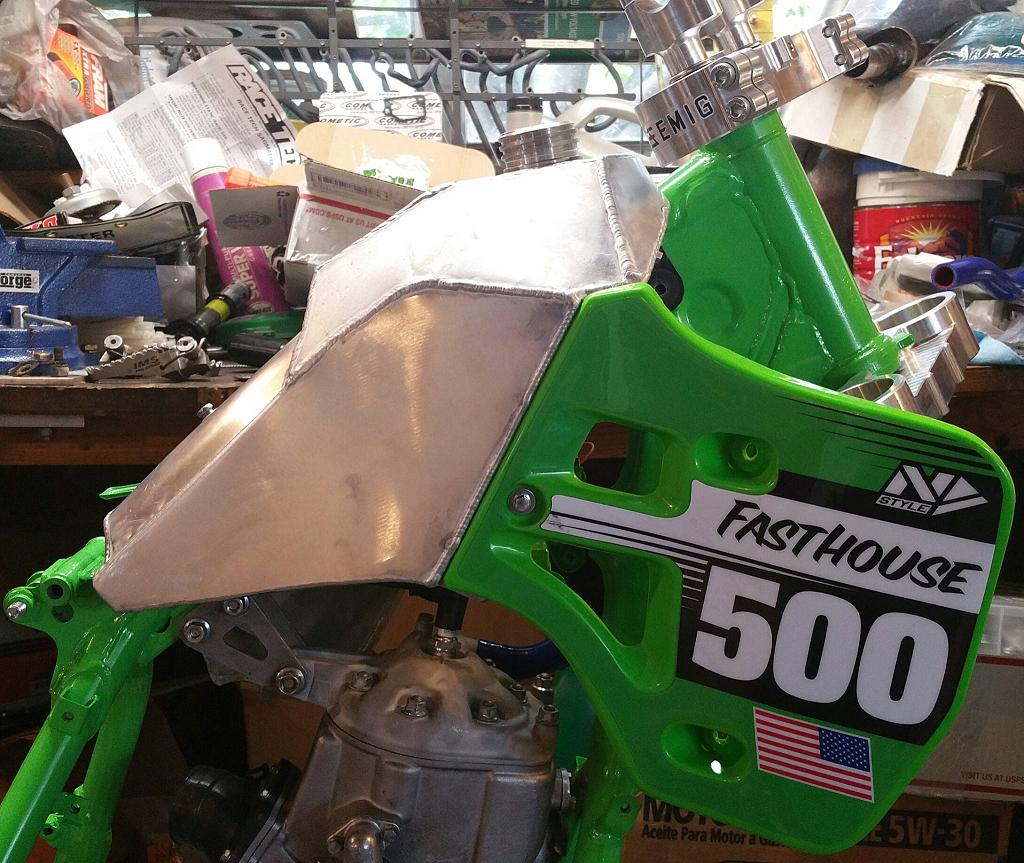

Oh man... I'm jealous
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 123.JPG (67.59 KiB) Viewed 8465 times
- JT ENGINE WORKS AND OEM-CYCLE KX500 BOTTOM END REBUILD 122.JPG (157.74 KiB) Viewed 8465 times
