Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 18, 2016 3:40 pm
by Sandblaster

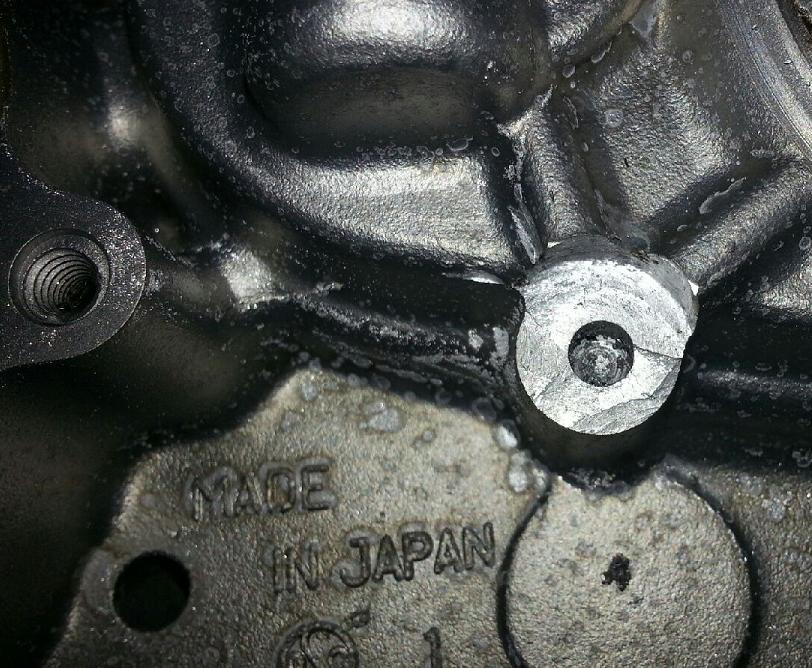

Getting ready to repair the counter sprocket guard post or tower..
- repairing counter sprocket guard post 2.jpg (119.1 KiB) Viewed 8150 times
- repairing counter sprocket guard post 1.jpg (151.92 KiB) Viewed 8150 times
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Wed Feb 24, 2016 2:29 am
by Sandblaster

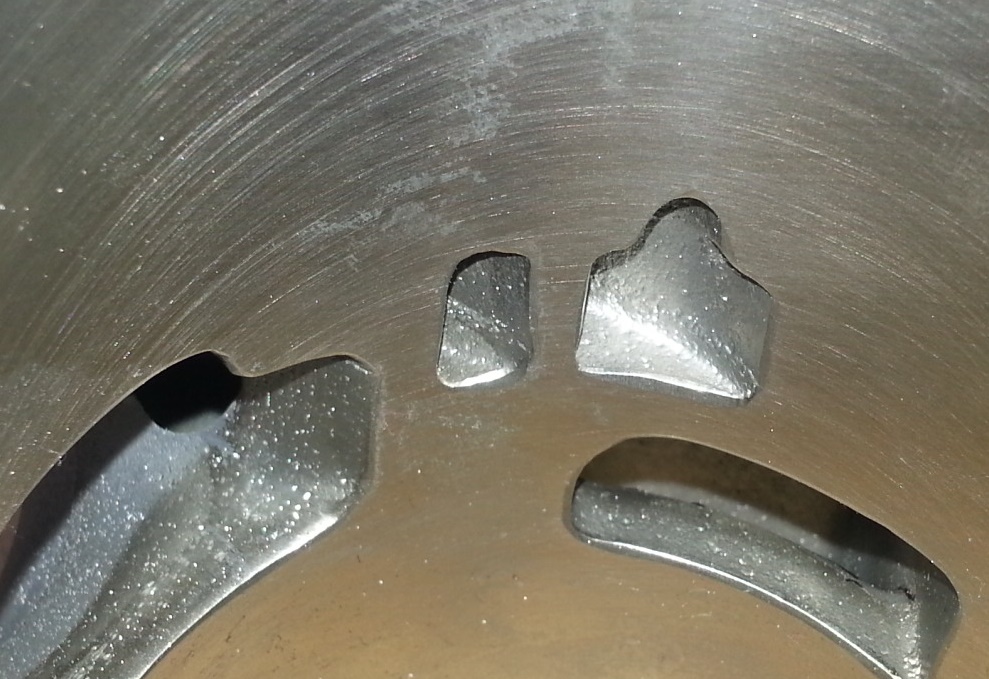

So here I have a beautifully ported and plated cylinder that has zero hours on it...
- 20160223_154055.jpg (231.07 KiB) Viewed 8145 times

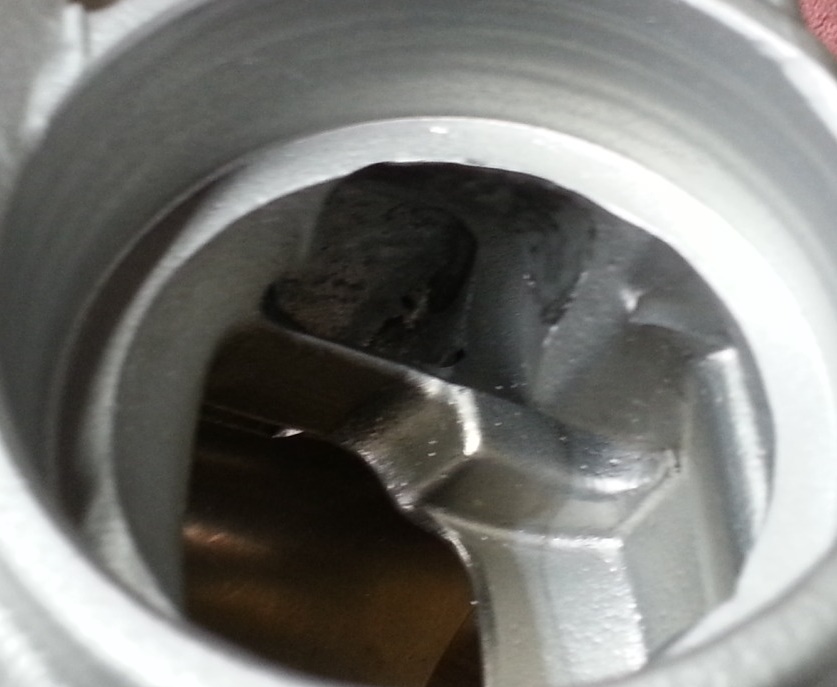

And what am I gonna do?
- 20160223_163836.jpg (117.07 KiB) Viewed 8145 times
I almost cried
This is gonna be a rocket...
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 25, 2016 12:44 am
by Sandblaster
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 25, 2016 12:44 am
by Sandblaster

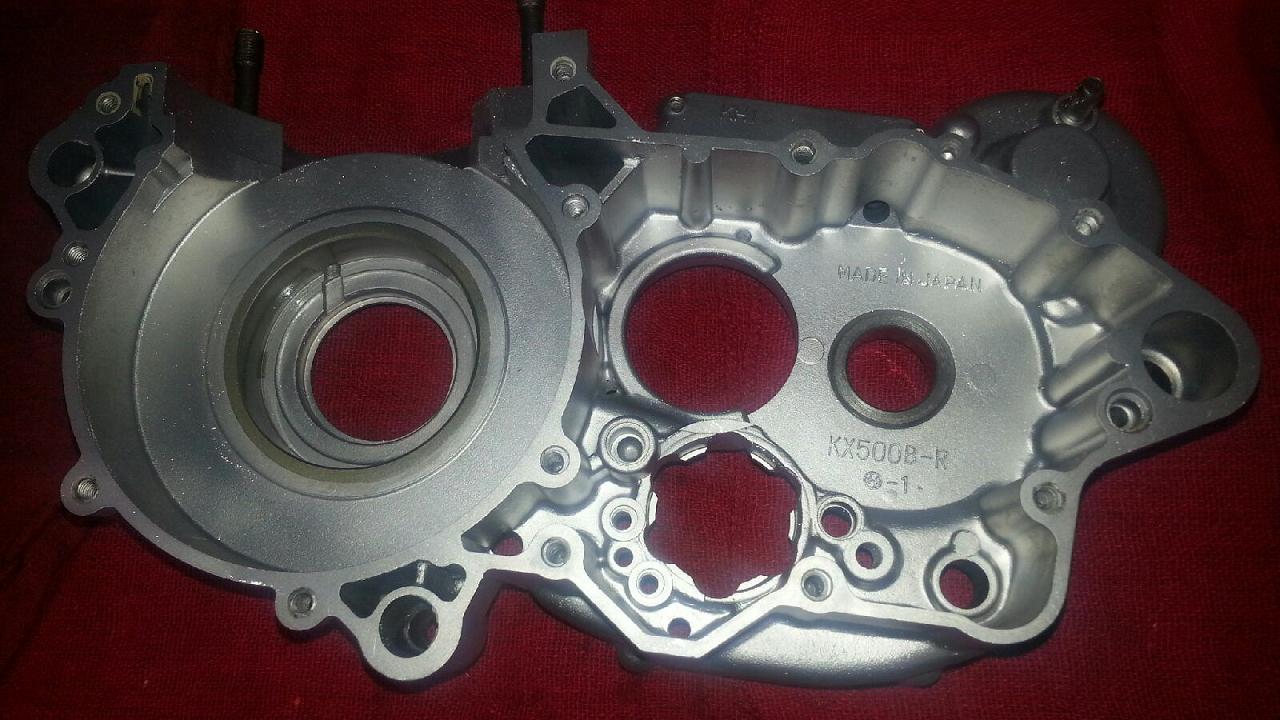

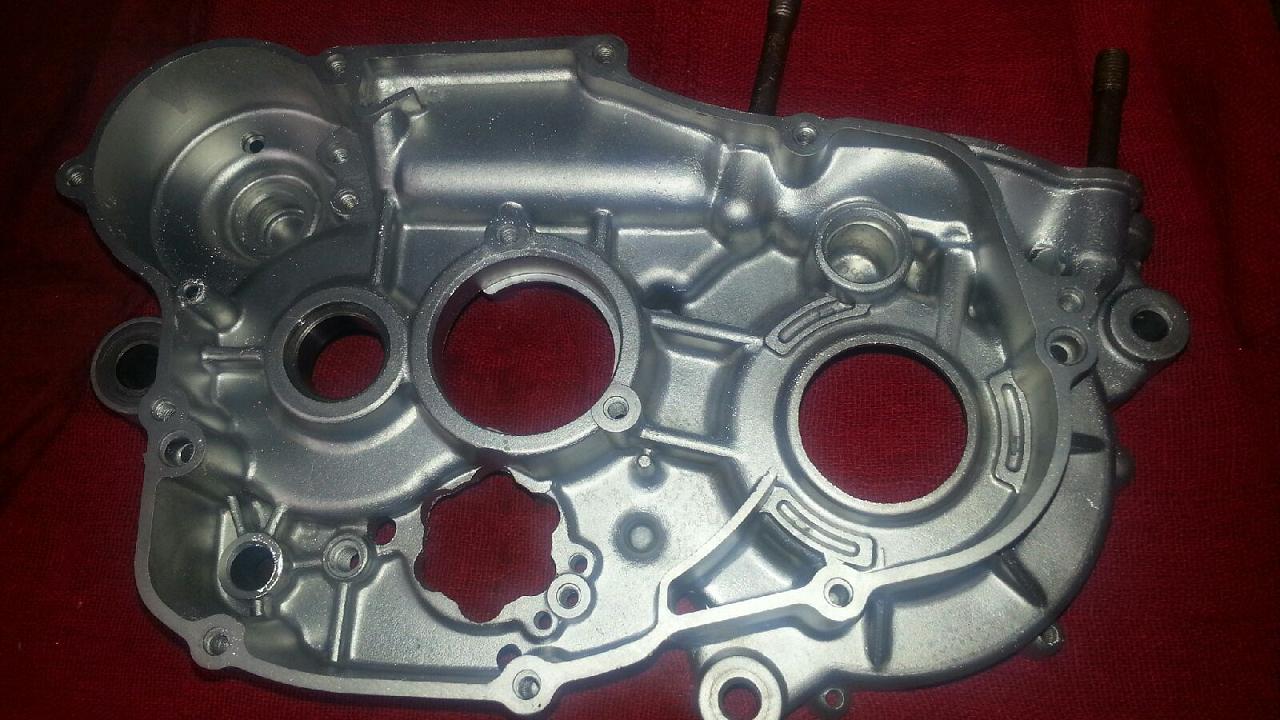

- !cid_20160224_130649.jpg (128.54 KiB) Viewed 8141 times
- !cid_20160224_130626.jpg (135.5 KiB) Viewed 8141 times

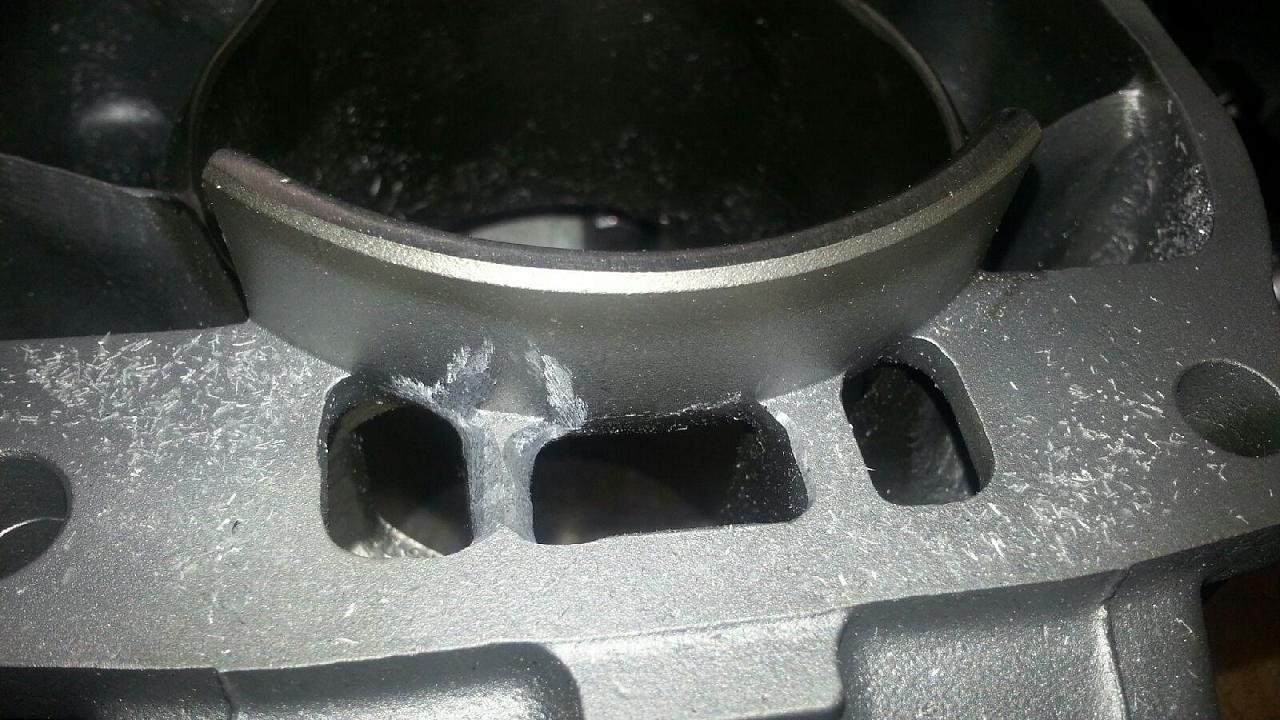

- !cid_20160224_133607.jpg (147.56 KiB) Viewed 8141 times
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 25, 2016 12:45 am
by Sandblaster
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 25, 2016 12:46 am
by Sandblaster

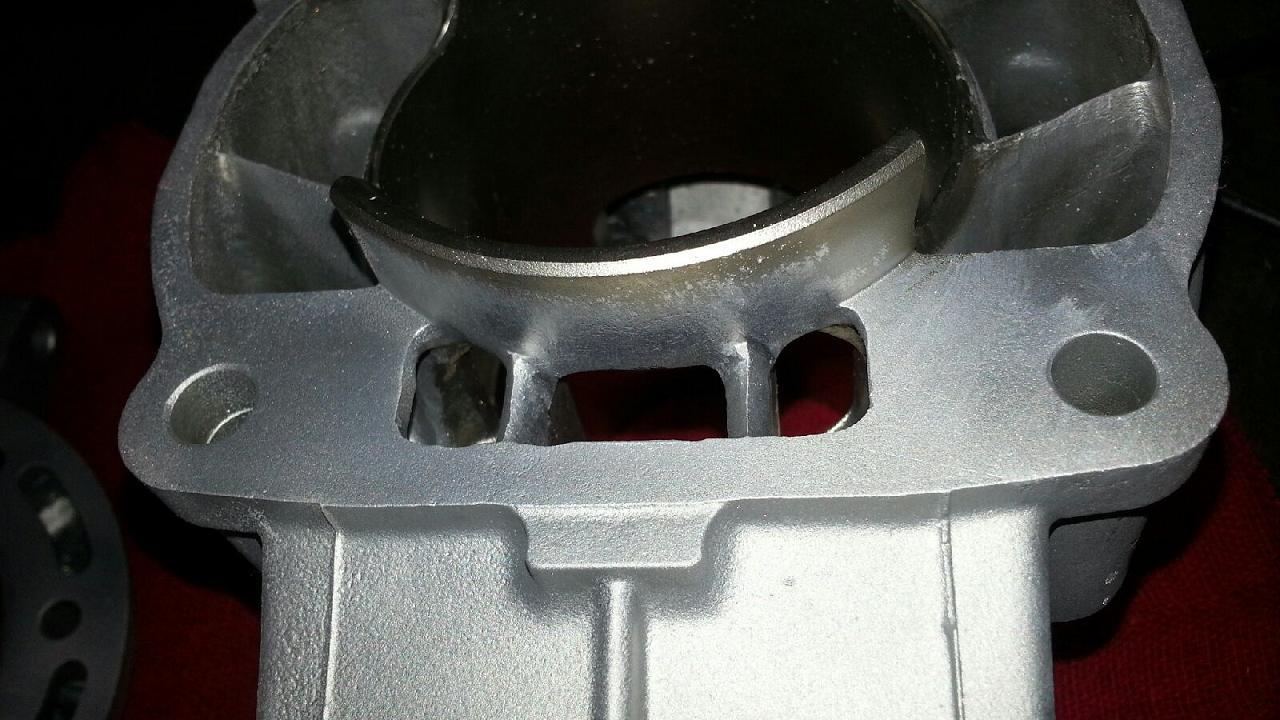

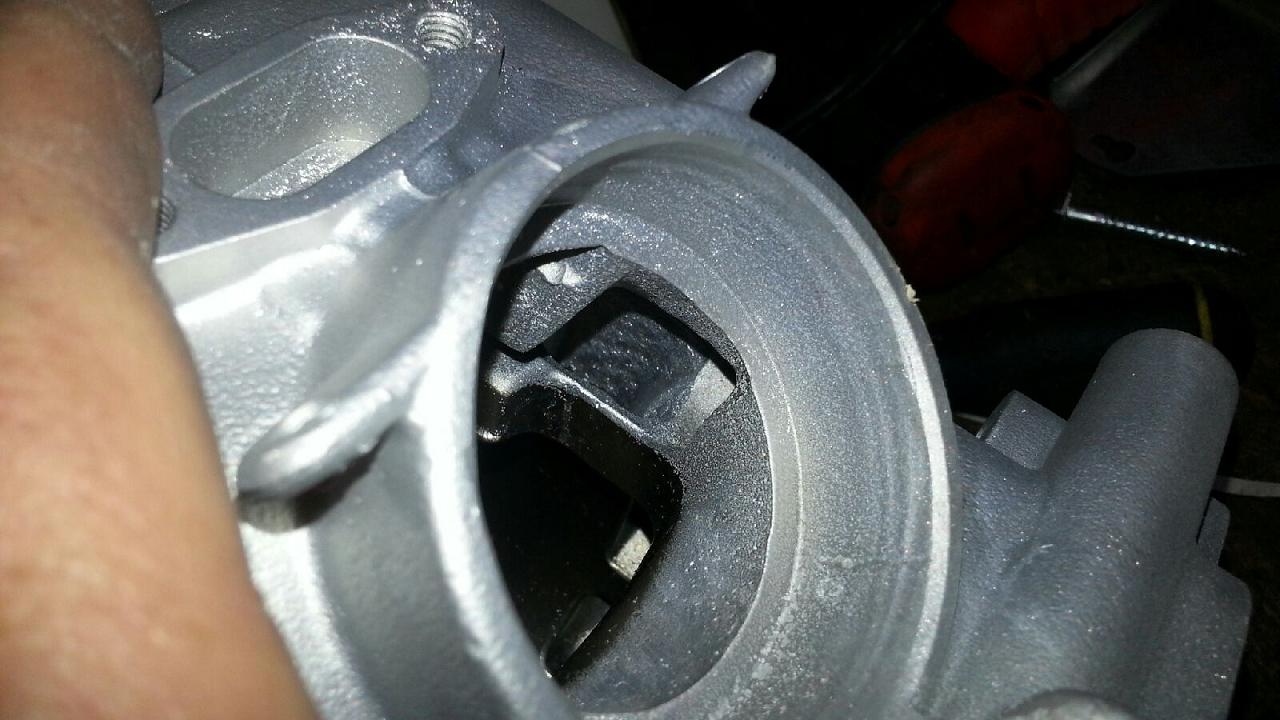

- !cid_20160224_162558.jpg (100.33 KiB) Viewed 8141 times
- !cid_20160224_162547.jpg (128.09 KiB) Viewed 8141 times
- !cid_20160224_162603.jpg (106.92 KiB) Viewed 8141 times
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 25, 2016 12:47 am
by Sandblaster
It's all roughed out and waiting for the bottom end to get assembled.
As soon as that is done we will assemble the top end, get the finish dimensions, and send it off for machine, weld, and final plating
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Thu Feb 25, 2016 11:07 pm
by Sandblaster

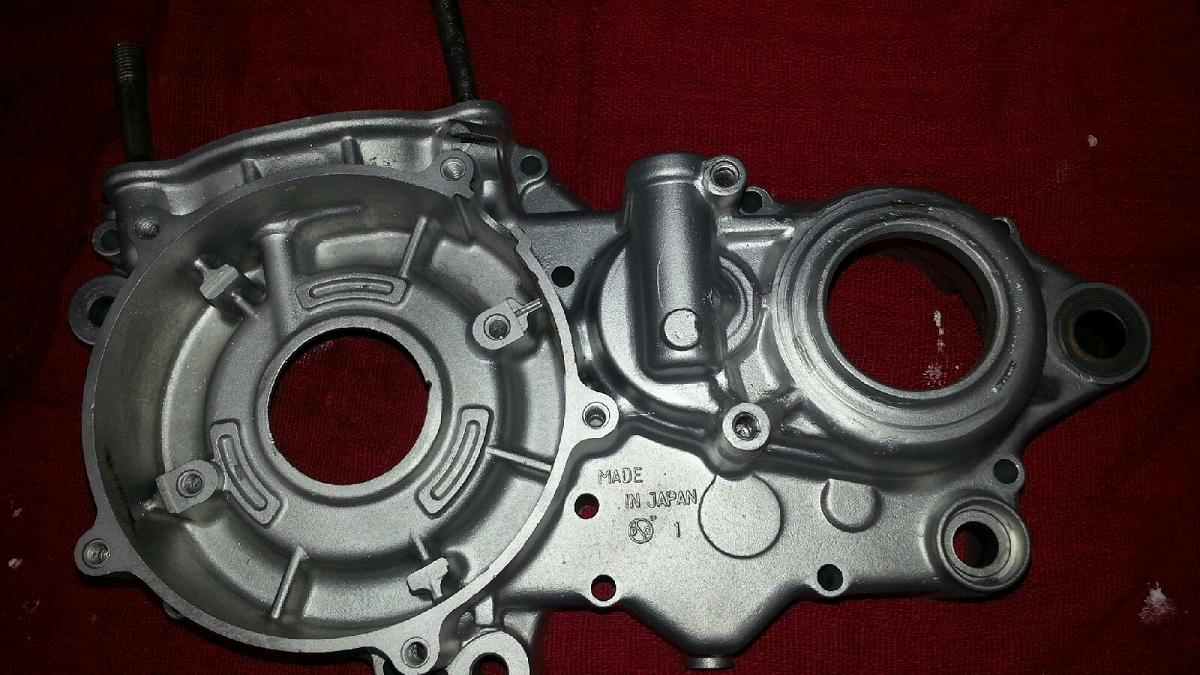

Counter sprocket bolt tower is done.
I didn't like how the 6mm tap job came out so I used two helicoil's to get the thread engagement all the way to the bottom.
It wasn't really necessary but why not?
- OEM-CYCLE.COM 1999 KX500 KAWASAKI BUILD FOR KEVIN 107.JPG (132.6 KiB) Viewed 8136 times
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Sat Feb 27, 2016 2:34 am
by Sandblaster
So, you think those cases are clean?
Not so fast buddy....
There is many little places for the old seal;ant to hide.
- 20160226_105542.jpg (278.05 KiB) Viewed 8131 times
This is from one case
- 20160226_110817.jpg (457.9 KiB) Viewed 8131 times
So, the cases are well prepped.
Jason is washing them with soap and water right now as well as chasing all the bolt holes.
The idea is to have not one spec of debris left in the engine...
Re: 1999 KX500 KAWASAKI ENGINE BUILD FOR KEVIN
Posted: Mon Feb 29, 2016 12:51 am
by Sandblaster

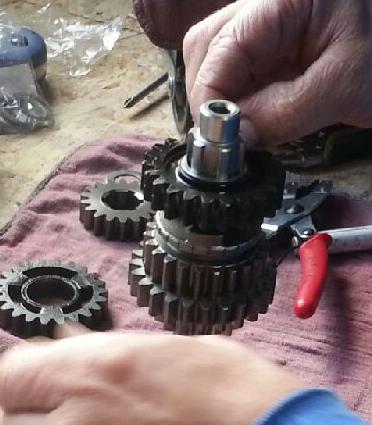

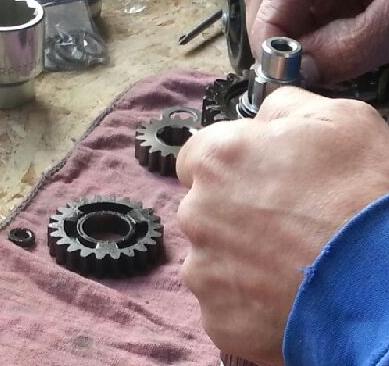

All the transmission parts have been cleaned including the clips and all the new gears.
This one has many new gears including both 3rds and 4ths.
- OEM-CYCLE.COM 1999 KX500 KAWASAKI BUILD FOR KEVIN 160.JPG (27.89 KiB) Viewed 8126 times
- OEM-CYCLE.COM 1999 KX500 KAWASAKI BUILD FOR KEVIN 161.JPG (25.99 KiB) Viewed 8126 times
