KX500 ENGINE PARTS DIAGRAMS
Posted: Tue Mar 03, 2015 6:51 am

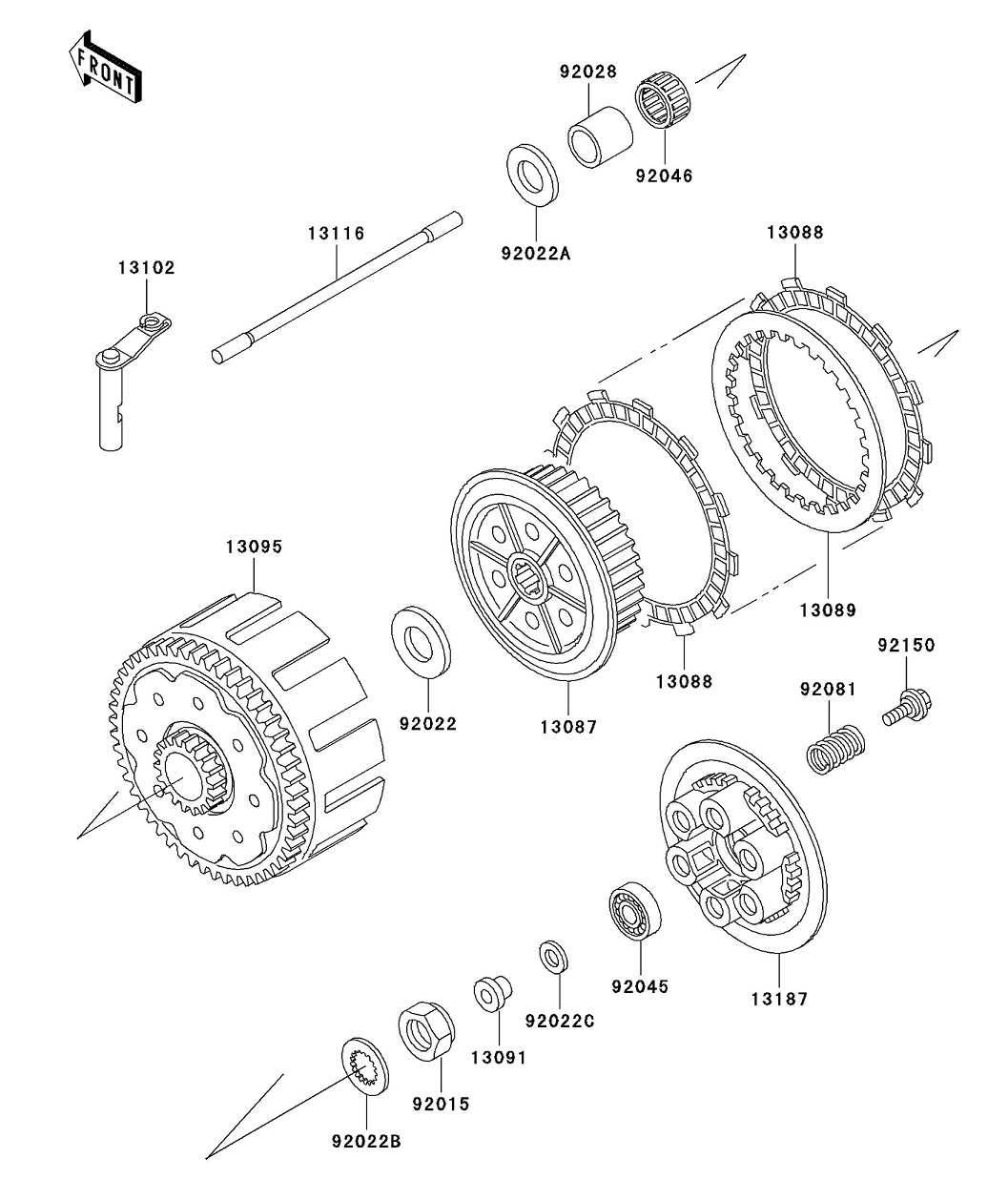

- WWW.OEM-CYCLE.COM KX500 CLUTCH ASSEMBLY PICS.jpg (230.05 KiB) Viewed 14859 times
- WWW.OEM-CYCLE.COM KX500 CLUTCH ASSEMBLY PARTS NUMBERS.jpg (156.07 KiB) Viewed 14859 times
KX Guru Racing
KXGURU Discussion Forum for KX dirt and dual sport bikes, others welcome!
https://oem-cycle.com/forum/
KX500 ENGINE PARTS DIAGRAMS
Page 1 of 2
Re: KX500 PARTS DIAGRAMS
Posted: Tue Mar 03, 2015 6:56 am
- WWW.OEM-CYCLE.COM KX500 CRANK SHAFT AND PISTON PICS.jpg (155.94 KiB) Viewed 14858 times
- WWW.OEM-CYCLE.COM KX500 CRANK SHAFT AND PISTON PARTS NUMBERS.jpg (158.2 KiB) Viewed 14858 times
Re: KX500 PARTS DIAGRAMS
Posted: Tue Mar 03, 2015 7:01 am

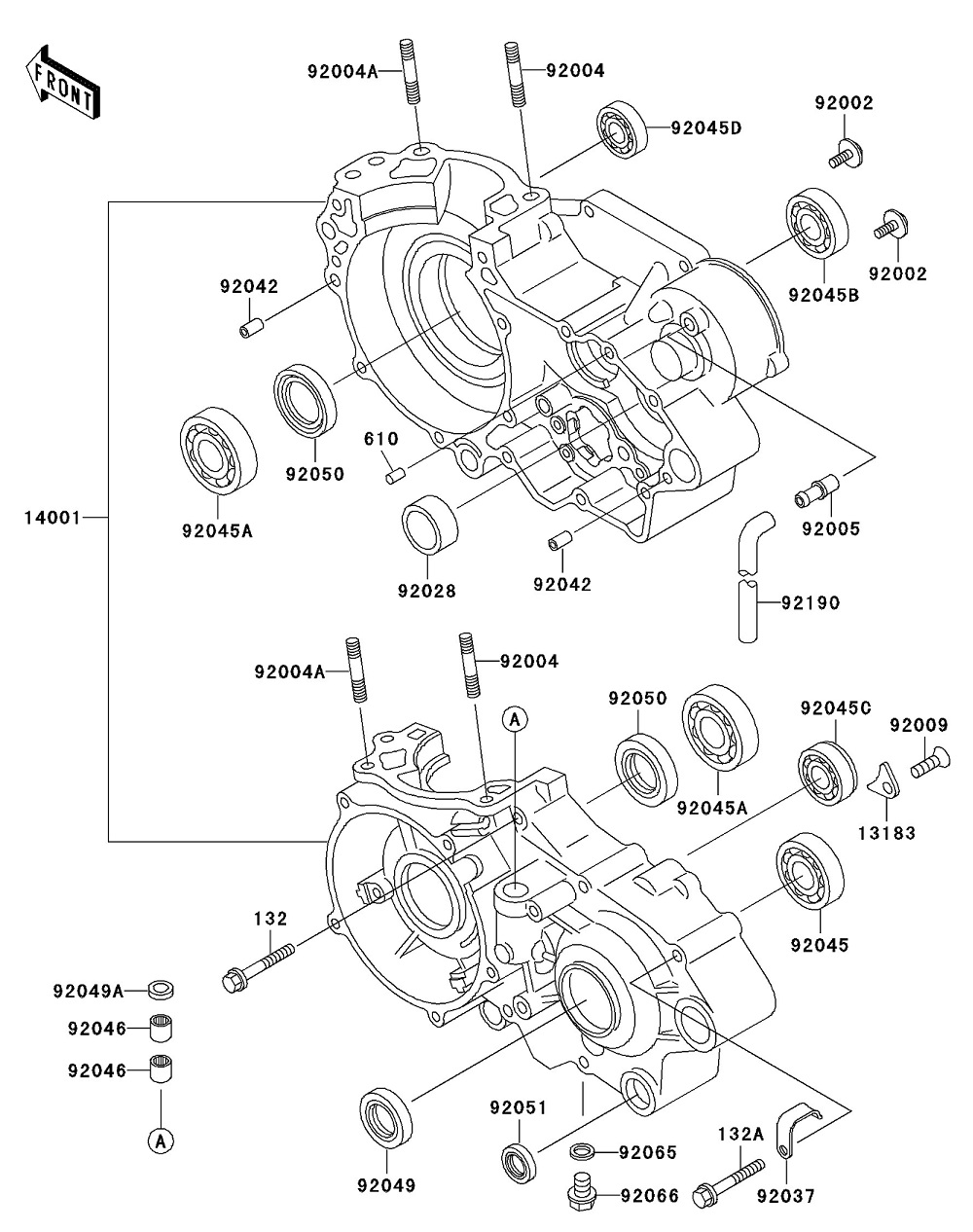

- WWW.OEM-CYCLE.COM KX500 CRANKCASE ASSEMBLY PIC.jpg (285.33 KiB) Viewed 14858 times
- WWW.OEM-CYCLE.COM KX500 CRANKCASE ASSEMBLY PARTS NUMBERS.jpg (221.53 KiB) Viewed 14858 times
Re: KX500 PARTS DIAGRAMS
Posted: Wed Mar 04, 2015 6:53 am
- WWW.OEM-CYCLE.COM KX500 CYLINDER AND HEAD pics.jpg (186.19 KiB) Viewed 14854 times
- WWW.OEM-CYCLE.COM KX500 CYLINDER AND HEAD parts numbers 1.jpg (243.75 KiB) Viewed 14854 times
- WWW.OEM-CYCLE.COM KX500 CYLINDER AND HEAD parts numbers 2.jpg (144.24 KiB) Viewed 14854 times
Re: KX500 PARTS DIAGRAMS
Posted: Thu Mar 05, 2015 6:11 am

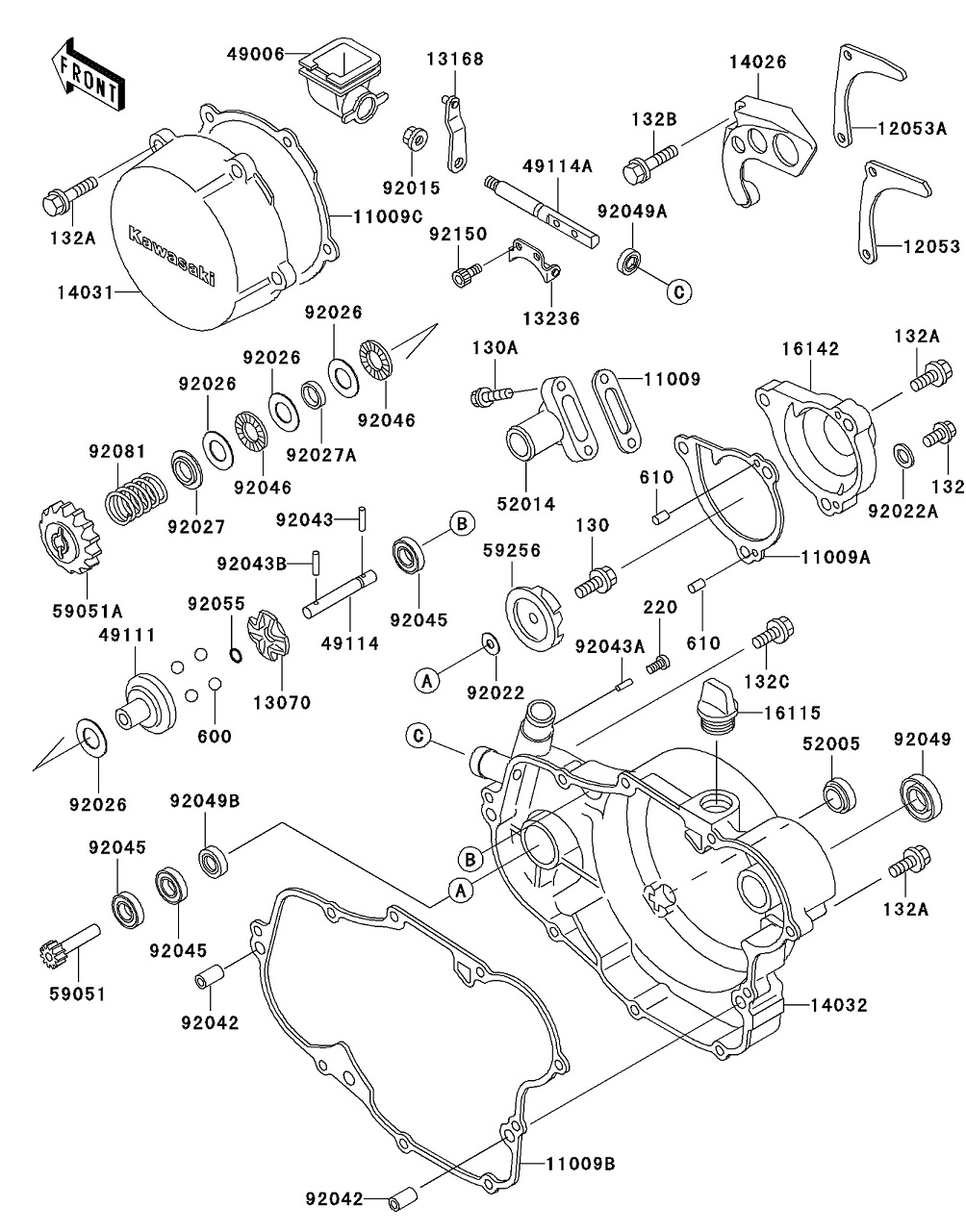

- WWW.OEM-CYCLE.COM KX500 ENGINE COVERS picture.jpg (310.37 KiB) Viewed 14853 times
- WWW.OEM-CYCLE.COM KX500 ENGINE COVERS parts numbers.jpg (229.17 KiB) Viewed 14853 times

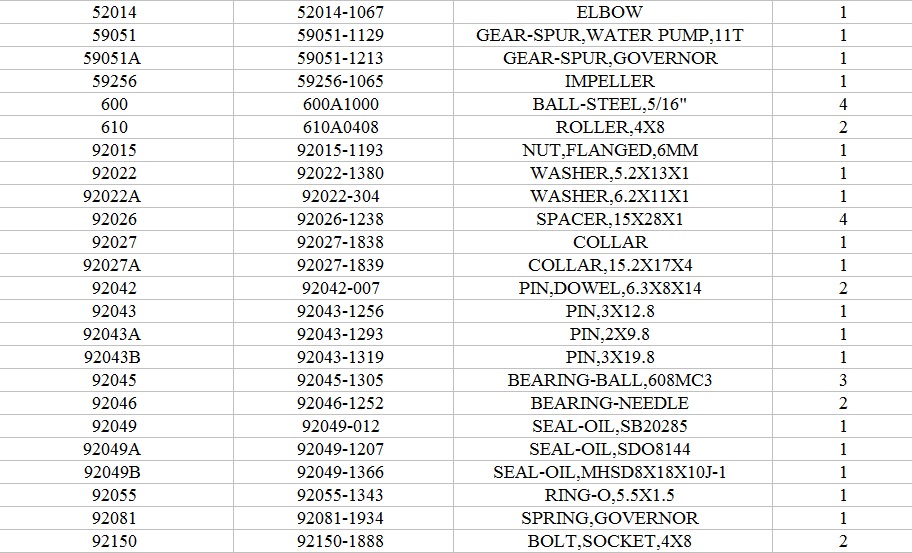

- WWW.OEM-CYCLE.COM KX500 ENGINE COVERS parts numbers 2.jpg (196.33 KiB) Viewed 14853 times
Re: KX500 PARTS DIAGRAMS
Posted: Sat Mar 07, 2015 4:26 pm

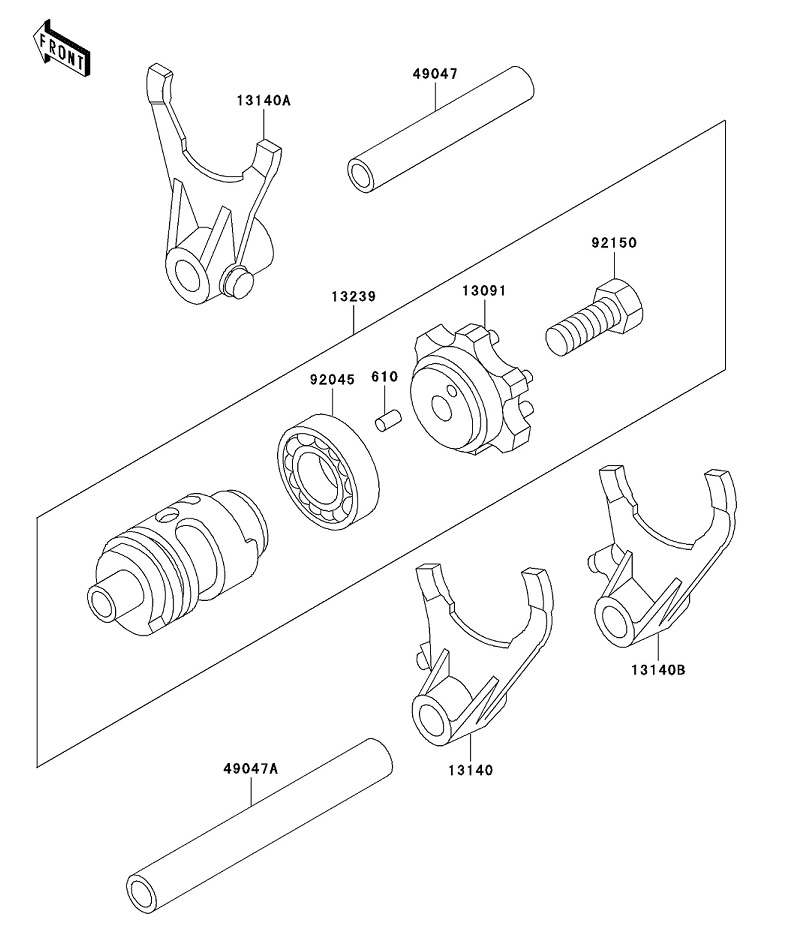

- WWW.OEM-CYCLE.COM KX500 GEAR CHANGE FORKS AND DRUM picture.jpg (112 KiB) Viewed 14849 times

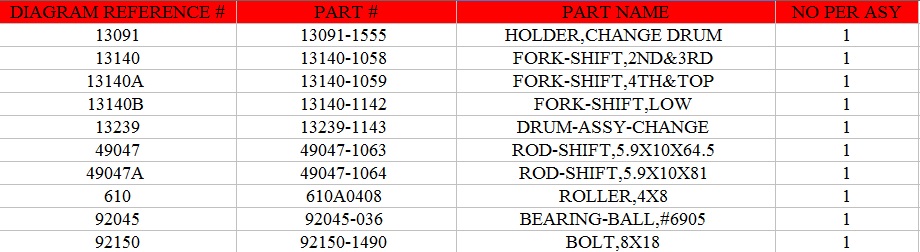

- WWW.OEM-CYCLE.COM KX500 GEAR CHANGE FORKS AND DRUM part numbers.jpg (97.61 KiB) Viewed 14849 times
Re: KX500 PARTS DIAGRAMS
Posted: Sat Mar 07, 2015 4:28 pm

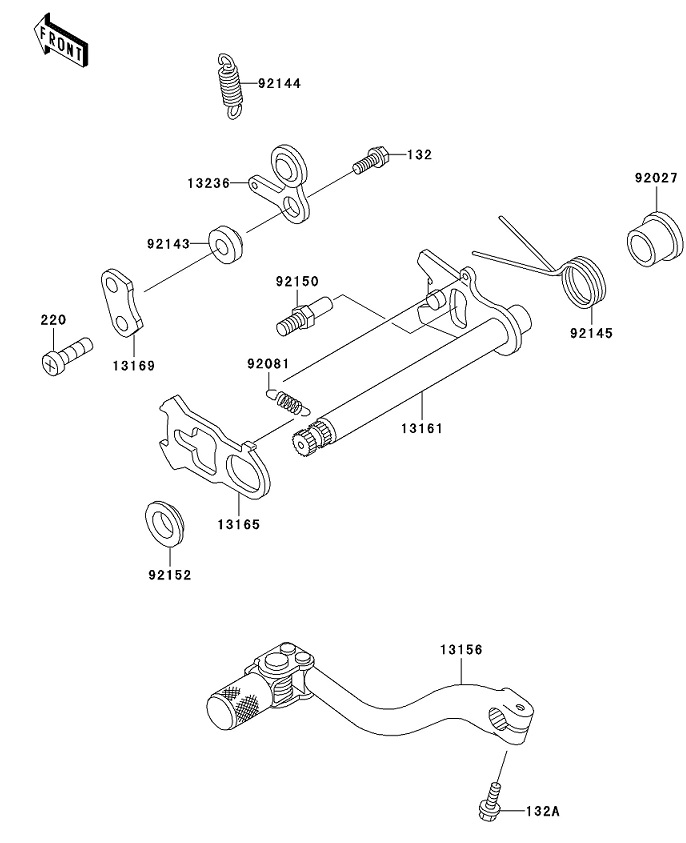

- WWW.OEM-CYCLE.COM KX500 GEAR CHANGE SHAFT picture.jpg (73.09 KiB) Viewed 14849 times

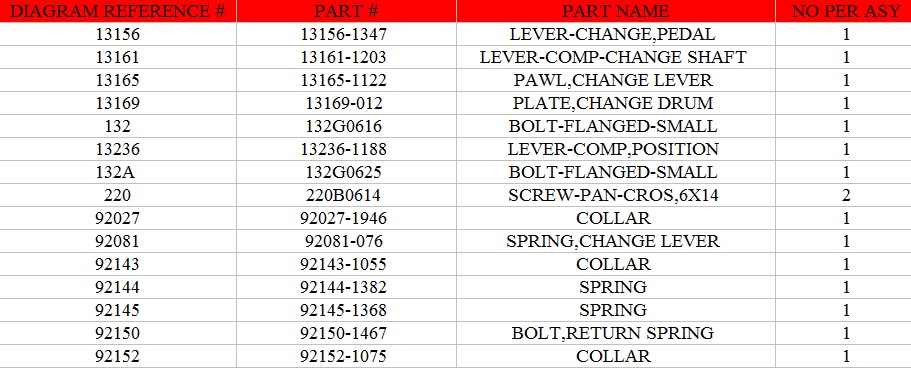

- WWW.OEM-CYCLE.COM KX500 GEAR CHANGE SHAFT PART NUMBERS.jpg (136.32 KiB) Viewed 14849 times
Re: KX500 PARTS DIAGRAMS
Posted: Sat Mar 07, 2015 4:46 pm

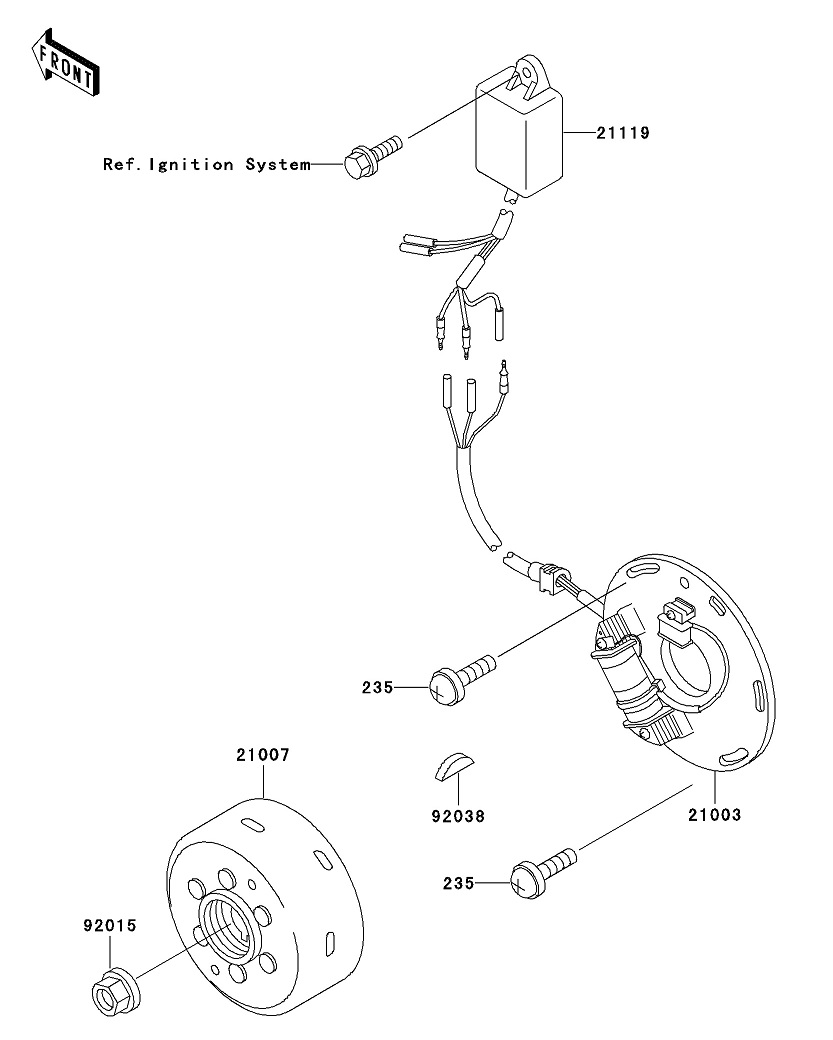

- WWW.OEM-CYCLE.COM KX500 GENERATOR DIAGRAM.jpg (91.7 KiB) Viewed 14849 times
- WWW.OEM-CYCLE.COM KX500 GENERATOR PARTS NUMBERS.jpg (61.34 KiB) Viewed 14849 times
Re: KX500 PARTS DIAGRAMS
Posted: Sat Mar 07, 2015 4:57 pm
- WWW.OEM-CYCLE.COM KX500 IGNITION SYSTEM.jpg (91.75 KiB) Viewed 14848 times

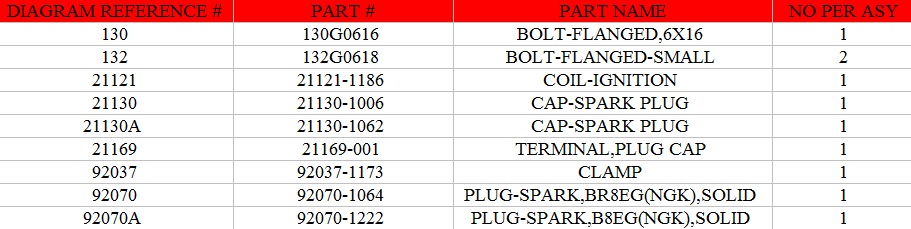

- WWW.OEM-CYCLE.COM KX500 IGNITION PARTS NUMBERS.jpg (88.31 KiB) Viewed 14848 times
Re: KX500 ENGINE PARTS DIAGRAMS
Posted: Sat Mar 07, 2015 10:47 pm

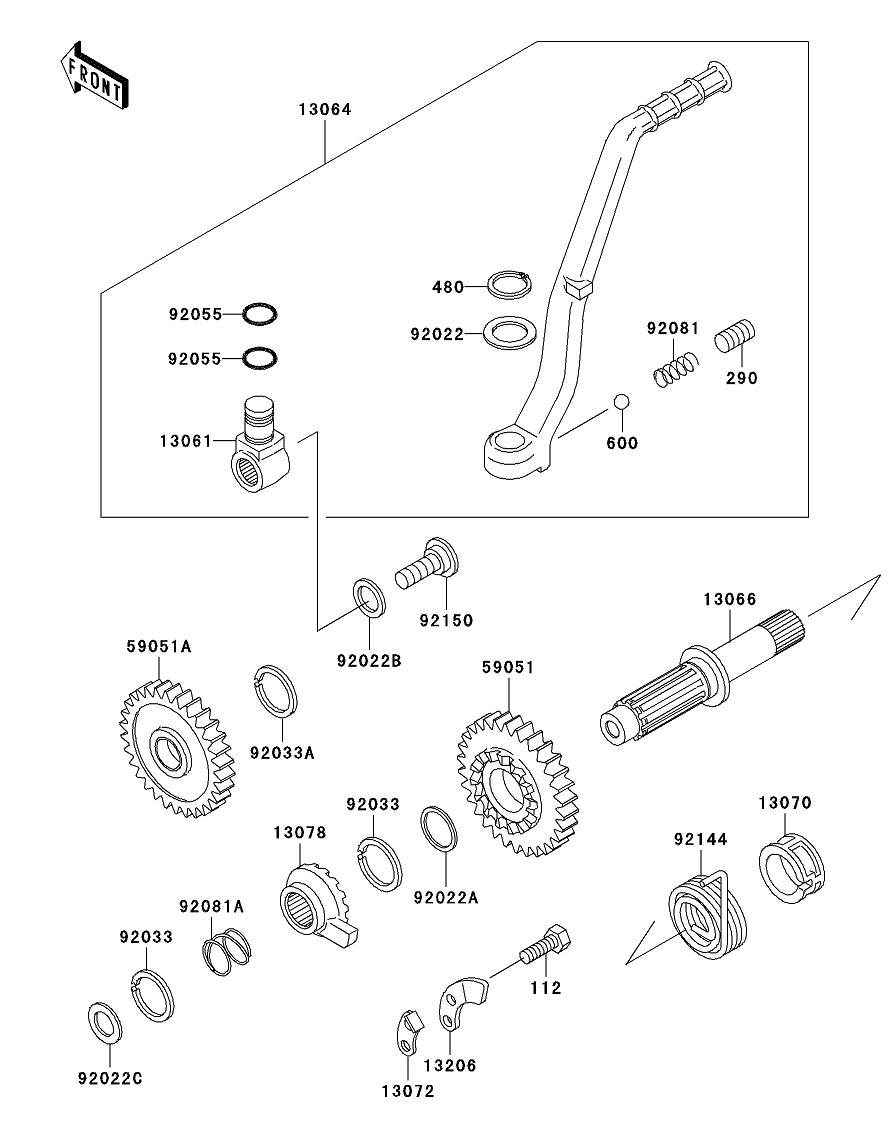

- WWW.OEM-CYCLE.COM KX500 KICK STARTER MECHANISM PICURE.jpg (149.35 KiB) Viewed 14847 times

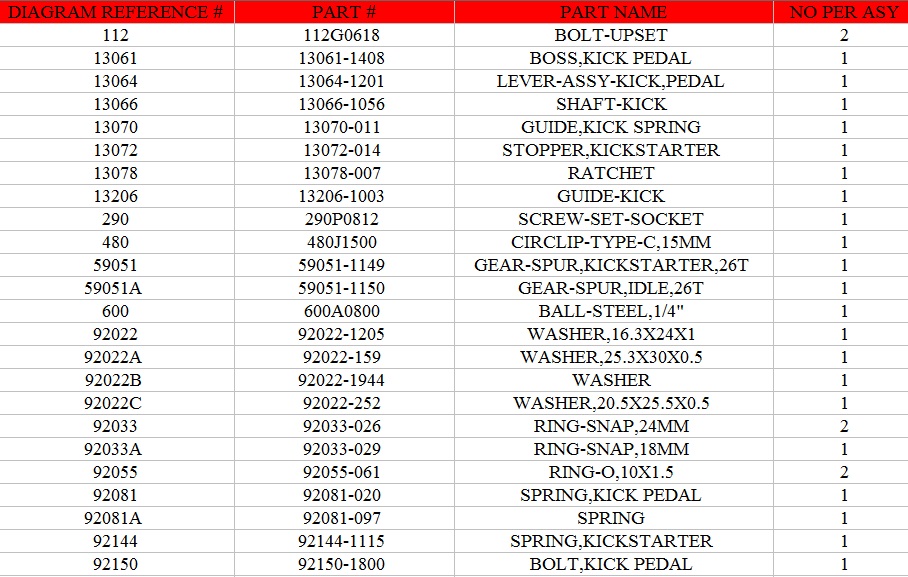

- WWW.OEM-CYCLE.COM KX500 KICK STARTER MECHANISM PARTS NUMBERS.jpg (211.29 KiB) Viewed 14847 times
