KYB -
CHROME OD 16MM -
SPRING THICKNESS: 11.9MM OD -
SPRING DIAMETER: 89MM -
SPRING LENGTH AS MOUNTED: 270MM -
UPPER MOUNT TAB WIDTH: 20MM WITH NO BEARINGS -
UPPER MOUNT TAB HOLE ID: 10MM -
LOWER MOUNT OUTSIDE WIDTH: 37.2MM -
LOWER MOUNT INSIDE WIDTH 22.7MM -
LOWER MOUNT HOLE ID: 10MM -
EYE TO EYE: 454MM

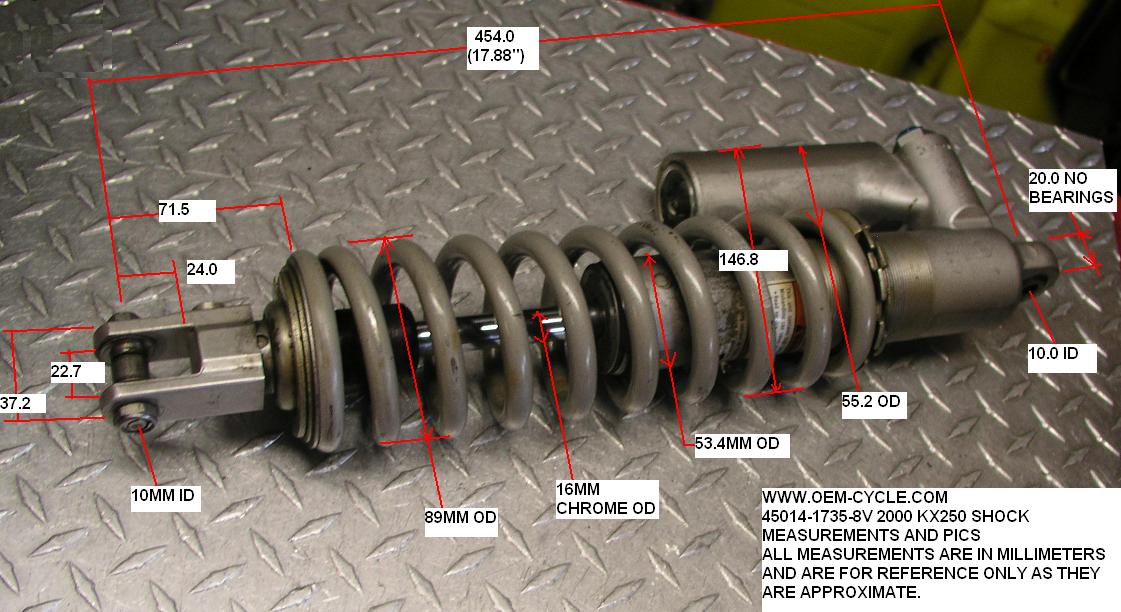

- 45014-1735-8V 2000 KX250 SHOCK MEASUREMENTS AND PICS.JPG (121.71 KiB) Viewed 9699 times
