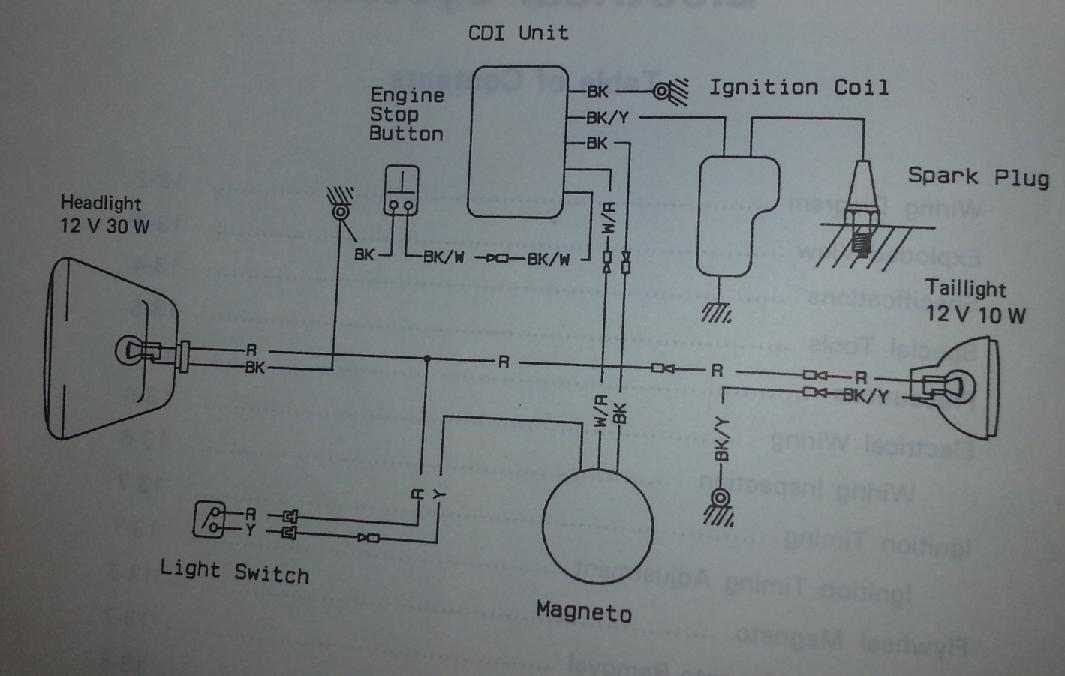

WIRING DIAGRAM FOR 89-94 KDX200 PICS
CDI P/N 21119-1257
FITS 89-94 KDX200 -
- BLACK MALE BULLET,
BLACK EYE RING,
BLACK/WHITE FEMALE BULLET,
BLACK/YELLOW FLAT FEMALE,
WHITE/RED FEMALE BULLET

89-94 KDX200 CDI Ohm specs
Black (Ground) to Black/White 3.0-3.9K ohms
Black (Ground) to White/red 2.9-3.9K ohms
Black/Yellow to Black/white 9.2-14.5K ohms
Black/Yellow to Black (Ground) 2.8-3.7K ohms
Black/Yellow to White/red 9.0-14.5K ohms

89-94 KDX200 stator coil resistance
White/red to black 304-456 ohms
Yellow to Black 1.76-2.64 Ohms

89-94 kdx200 coil resistance
Primary winding 1.0 ohms +/- 15%
Secondary Winding resistance 5.9K ohms +/- 15%

Spark plug NGK B9ES and BR9ES Gapped at .7-.8mm or .028" to .031"

Ignitions timing 21 degrees BTDC @ 6000RPM
