5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREM

Post by Sandblaster »

5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS

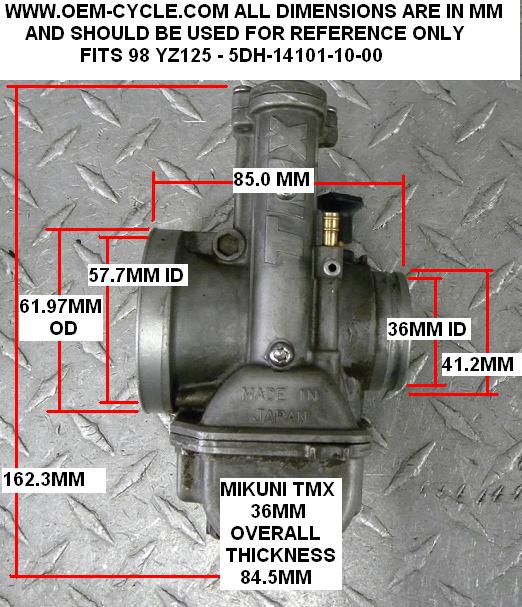

98 YZ125 MIKUNI CARBURETOR - 5DH-14101-10-00 PICS AND MEASUREMENTS.JPG
98 YZ125 MIKUNI CARBURETOR - 5DH-14101-10-00 PICS AND MEASUREMENTS.JPG (76.09 KiB) Viewed 8329 times

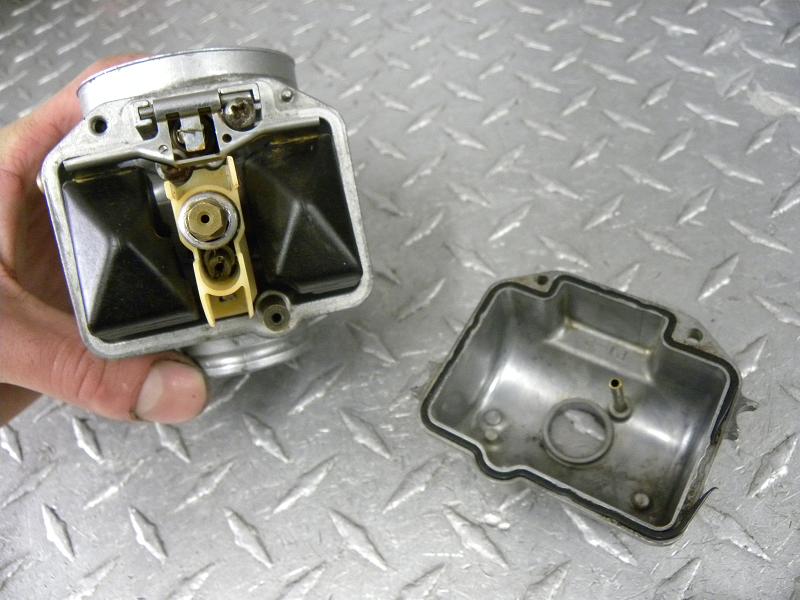

5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 1.JPG
5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 1.JPG (75.87 KiB) Viewed 8329 times
5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 2.JPG
5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 2.JPG (40.12 KiB) Viewed 8329 times

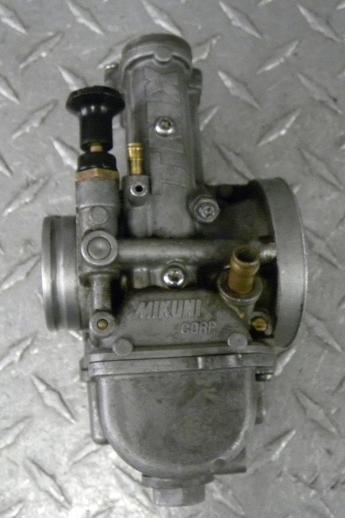

5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 3.JPG
5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 3.JPG (24.11 KiB) Viewed 8329 times

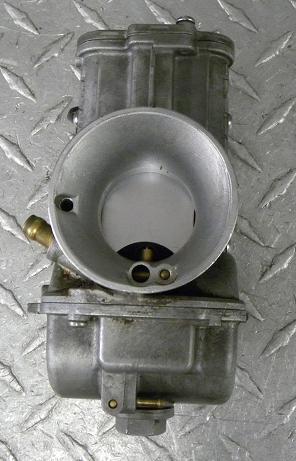

5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 4.JPG
5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 4.JPG (25.57 KiB) Viewed 8329 times

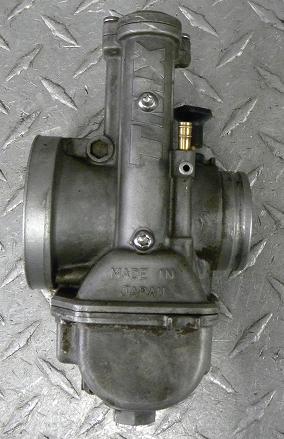

5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 5.JPG
5DH-14101-10-00 98 YZ125 MIKUNI CARBURETOR PICS AND MEASUREMENTS 5.JPG (25.96 KiB) Viewed 8329 times
If bikes are for kids I'll never grow up.
