KX500 TIMING MARKS

Posted: Wed Aug 07, 2013 12:11 am

by Sandblaster

KX500 TIMING MARKS

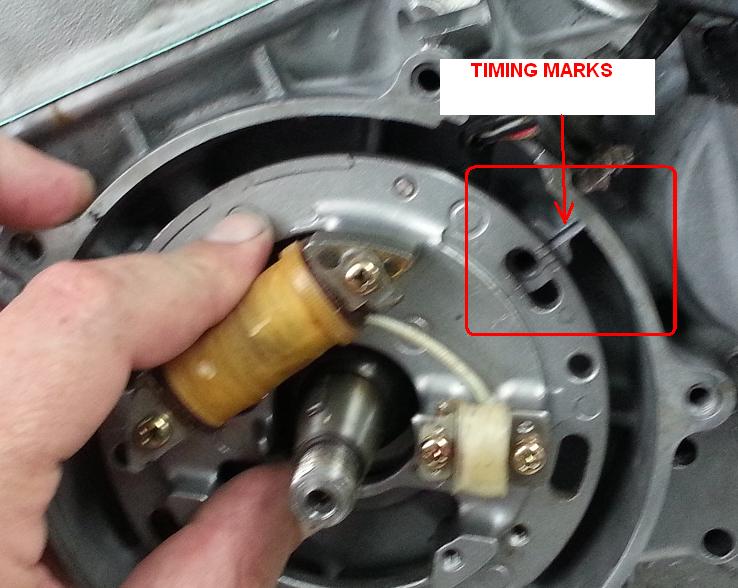

: KX500 STATOR TIMING MARKS.JPG (60.51 KiB) Viewed 8817 times

Re: KX500 TIMING MARKS

Posted: Wed Aug 07, 2013 11:50 pm

by Sandblaster

Here is a better pic...

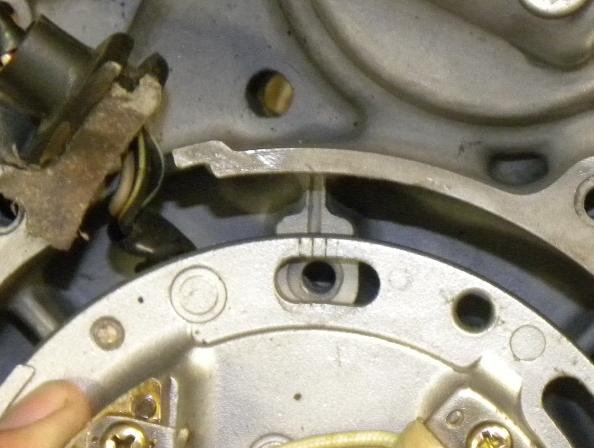

: KX500 STATOR TIMING MARKS 2.JPG (37.25 KiB) Viewed 8809 times

Re: KX500 TIMING MARKS

Posted: Sun Aug 21, 2016 10:35 pm

by Sandblaster

Moving the stator plate clockwise advances timing and moving Counter clockwise retards timing.
