28221-MN1-670 - KICK IDLER GEAR FITS 86-00 XR600R, 89-90 GB500
ALL DIMENSIONS ARE IN MM AND APPROXIMATE

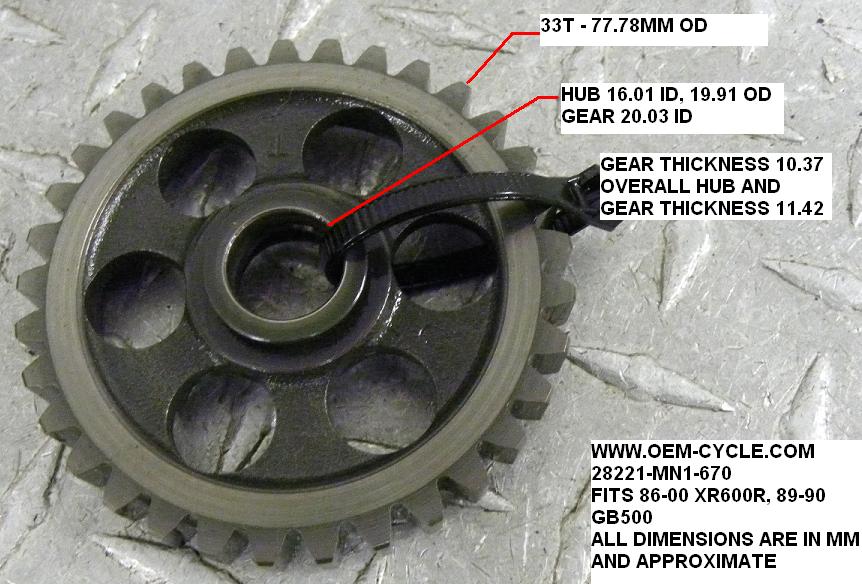

- KICK IDLER GEAR MEASUREMENTS AND PICS.JPG (95.2 KiB) Viewed 6441 times
28221-MN1-670 - KICK IDLER GEAR - MEASUREMENTS AND PICS
XR600R HONDA MEASUREMENTS, SPECS, PICS
XR600R HONDA MEASUREMENTS, SPECS, PICS
Need measurements for that special project?
XR600R HONDA MEASUREMENTS, SPECS, PICS
Need measurements for that special project?
-
Sandblaster
- Posts: 6319
- Joined: Thu Jun 07, 2012 3:50 pm
- Location: Eugene, OR
- Contact:
28221-MN1-670 - KICK IDLER GEAR - MEASUREMENTS AND PICS
Post by Sandblaster »
28221-MN1-670 - KICK IDLER GEAR - MEASUREMENTS AND PICS
28221-MN1-670 - KICK IDLER GEAR FITS 86-00 XR600R, 89-90 GB500
ALL DIMENSIONS ARE IN MM AND APPROXIMATE
28221-MN1-670 - KICK IDLER GEAR FITS 86-00 XR600R, 89-90 GB500
ALL DIMENSIONS ARE IN MM AND APPROXIMATE
If bikes are for kids I'll never grow up.
