Cleaning up my KX500 cylinder before plating

[Sandblaster]

Cleaning up my KX500 cylinder before plating.
I am not an expert as I have NEVER tried this before.
I am enlisting the help of Motorrad to help me do this without too much damage
Starting....


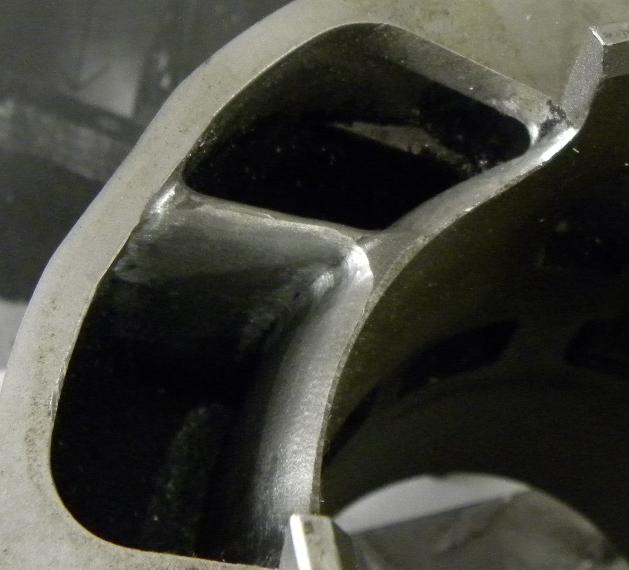

Working...
I know the edge looks sharp but it is rounded...


Way more work to come on this...

[Motorrad]

needs more work

[Sandblaster]

Just afraid to take too much as this is my first attempt..

[Sandblaster]

More nail biting...

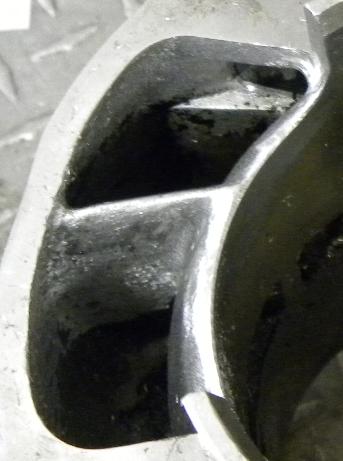

more clean up.JPG (20.54 KiB) Viewed 14730 times

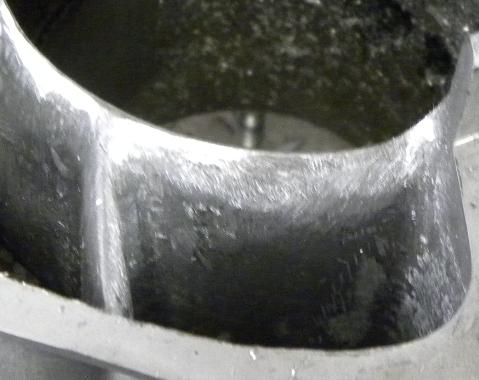

more clean up 2.JPG (24.09 KiB) Viewed 14730 times

[Sandblaster]

Since it's hard to see in the photo's I thought this might help

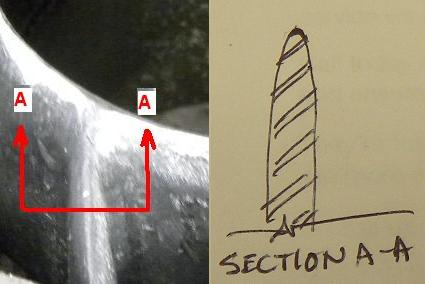

CROSS SECTION A.JPG (16.98 KiB) Viewed 14729 times

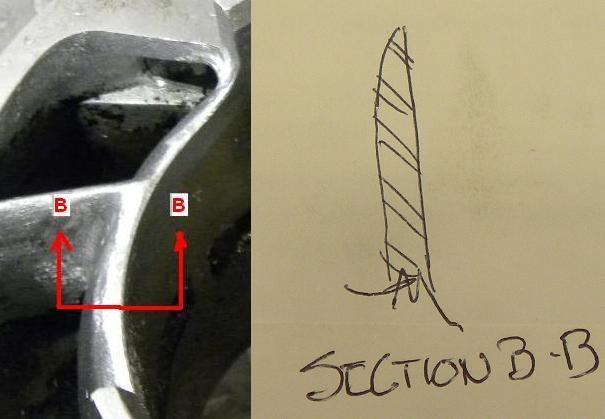

CROSS SECTION B.JPG (27.4 KiB) Viewed 14729 times

[Sandblaster]

Perhaps this needs more work as well...

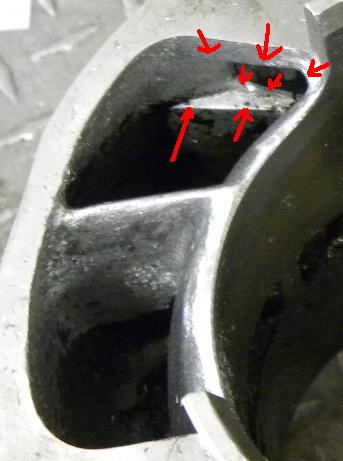

more clean up 3.JPG (21.84 KiB) Viewed 14727 times

Seems there is a lot of casting flaws back in that area...
This reminds me of playing Operation when I was a kid... Touch the edges... EEEEEEE!!!!!!

[Sandblaster]

Here's a few questions...


[Motorrad]

Will respond soon. Don't proceed

[Sandblaster]

You got it.
Thanks!

[Motorrad]

dont forget to take pics of half a case bolted to the jug ......



the port that edge hits the CYL wall .. you want that pretty sharp... and blend it down into the port.


I recall you sending me pics of the intake FLOOR ports. I cant find em... too many methods of communication (phone, text, email, and 2 websites forums, and 2 sets of PM's..). repost whatever question that was
