1C3-25181-10-00 FRONT AXLE

Post by Sandblaster »

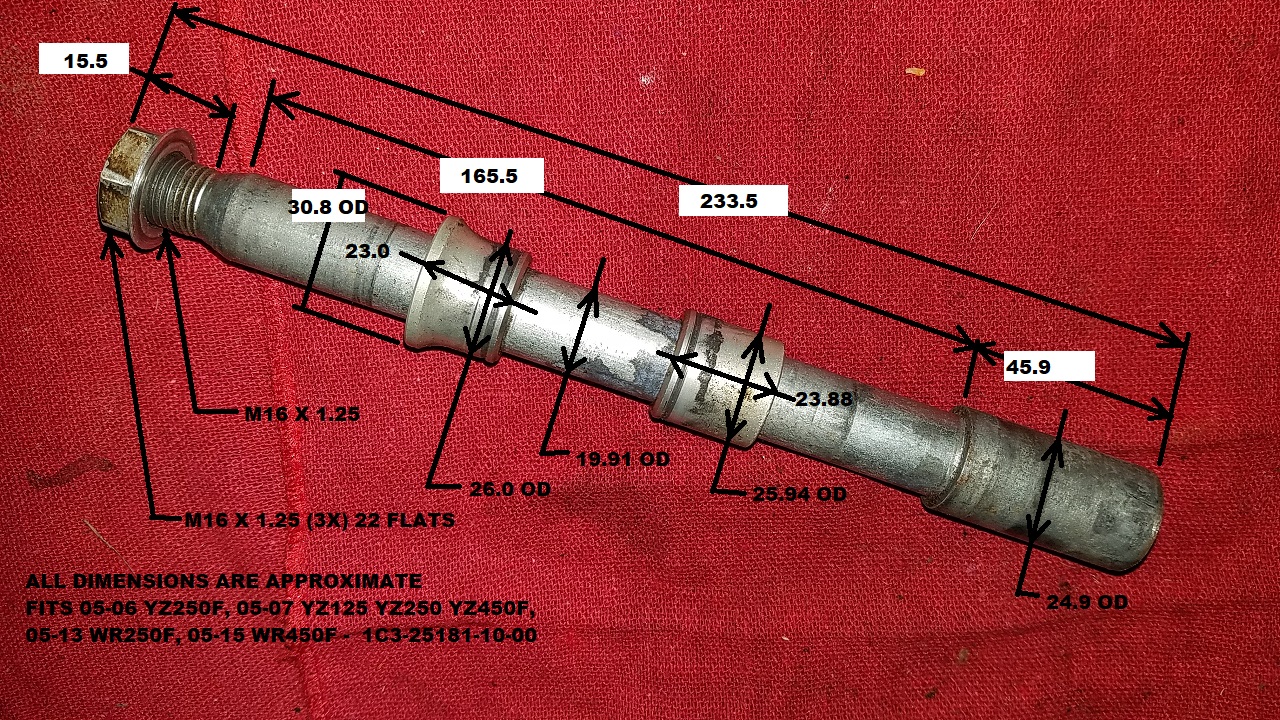

ALL DIMENSIONS ARE APPROXIMATE

FITS 05-06 YZ250F, 05-07 YZ125 YZ250 YZ450F, 05-13 WR250F, 05-15 WR450F - 1C3-25181-10-00
