13127-1162 88-89 KX250 INPUT TRANSMISSION SHAFT 15T MEASUREMENTS

Post by Sandblaster »

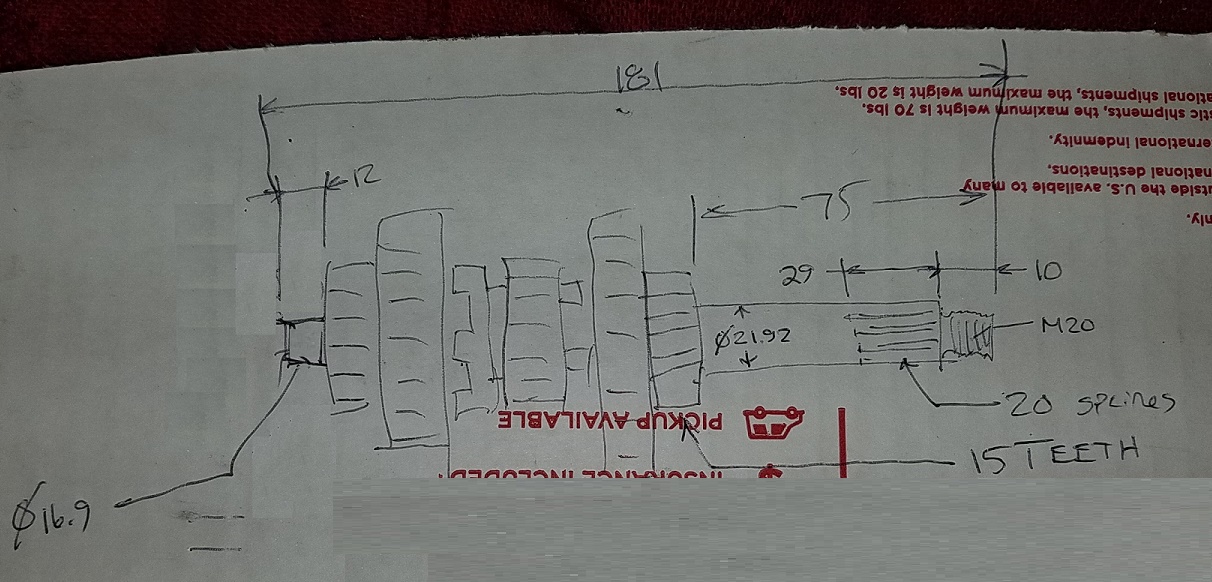

13127-1162 88-89 KX250 INPUT TRANSMISSION SHAFT 15T MEASUREMENTS

All dimensions are approximate...


If bikes are for kids I'll never grow up.
