CR500 Kart engine rebuilds

[Sandblaster]

Yup... We received a pair of CR500 engines to rebuild last night.
One, the customer needs back by the 5th so we are using his parts.
Also, it will not be a total rebuild.... Not ideal but I'm sure we can still put a smile on his face

Pics to follow...

[Sandblaster]

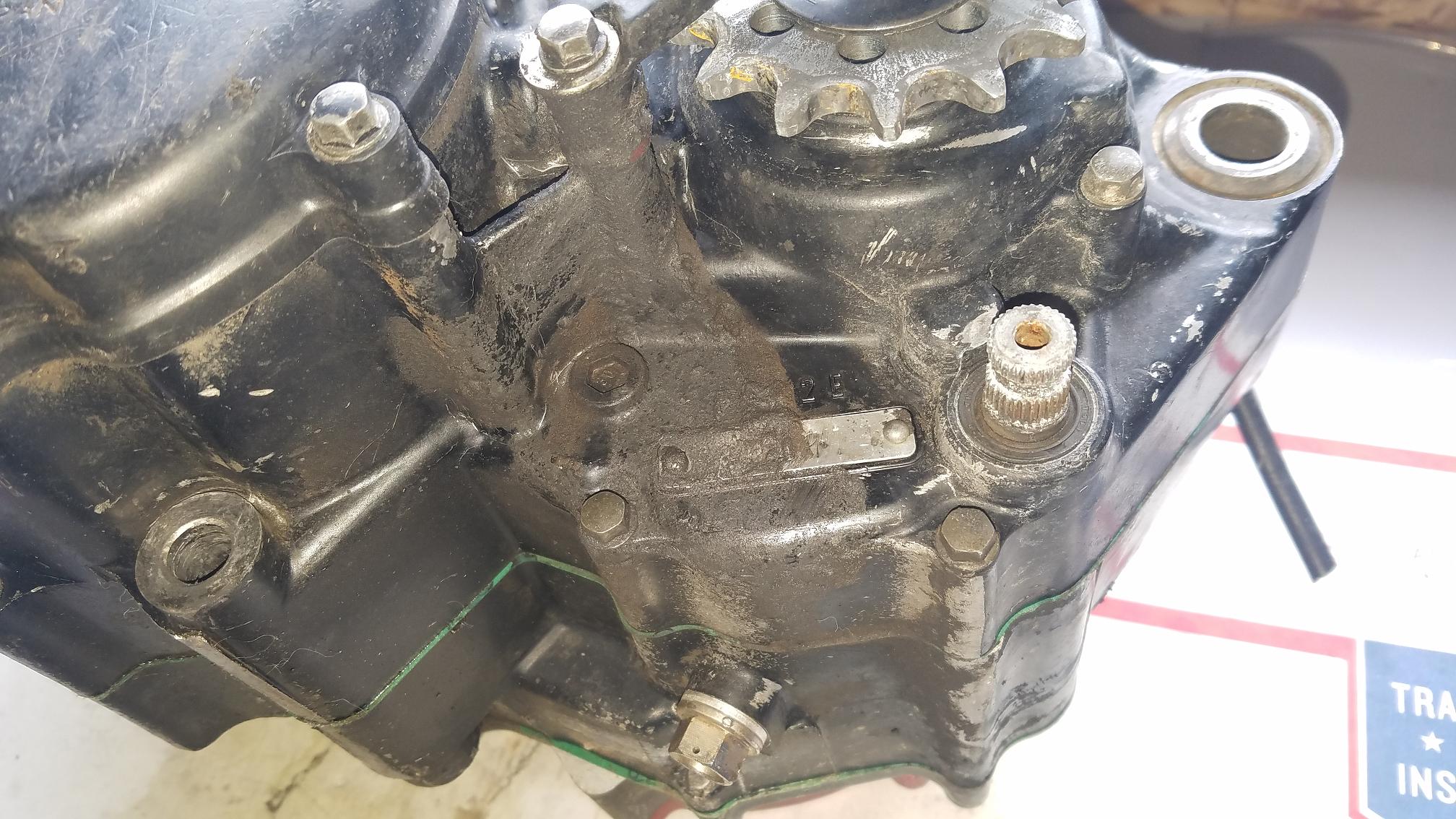

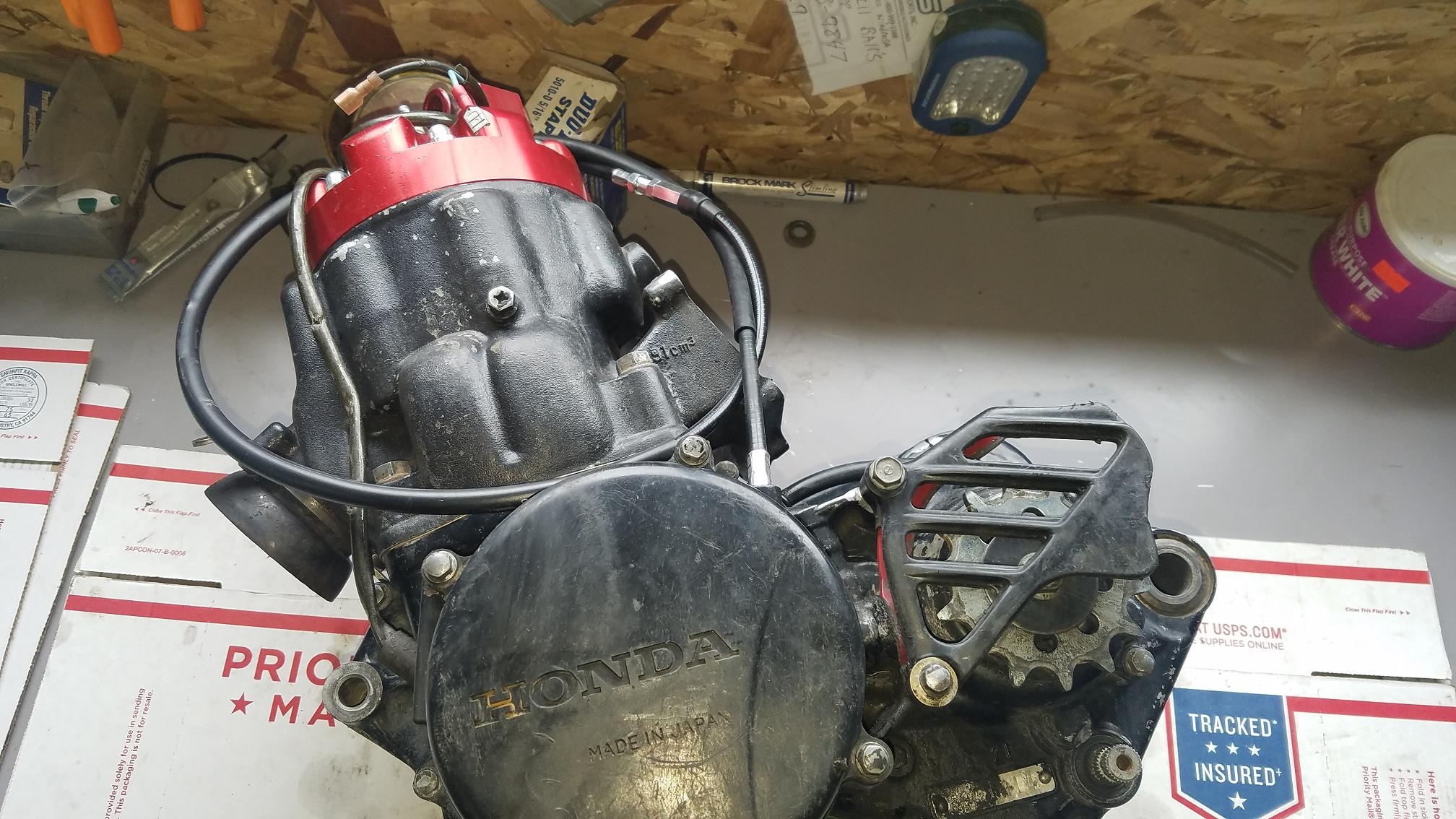

This is what we are starting with..

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 10.JPG (388.85 KiB) Viewed 16688 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 11.JPG (360.21 KiB) Viewed 16688 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 12.JPG (385.6 KiB) Viewed 16688 times

[Sandblaster]

So, the first thing we did was get out the Hot water pressure washer and get all the dirt and grease off this engine.
I hate cracking open a engine with dirt and grease on it...

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 13.JPG (374.07 KiB) Viewed 16687 times

Cracked open the stator cover and found a nice little surprise!
Light weight fly wheel... Yes!! and other goodies...

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 14.JPG (382.92 KiB) Viewed 16687 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 15.JPG (386.99 KiB) Viewed 16687 times

[Sandblaster]

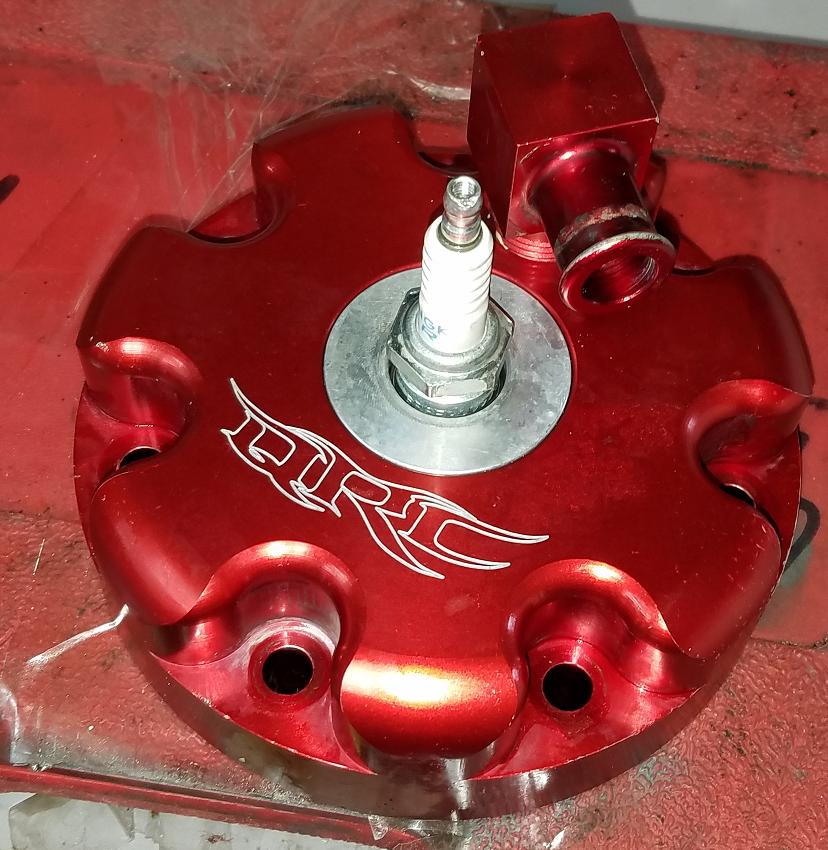

Cool head!

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 16.JPG (106.36 KiB) Viewed 16686 times

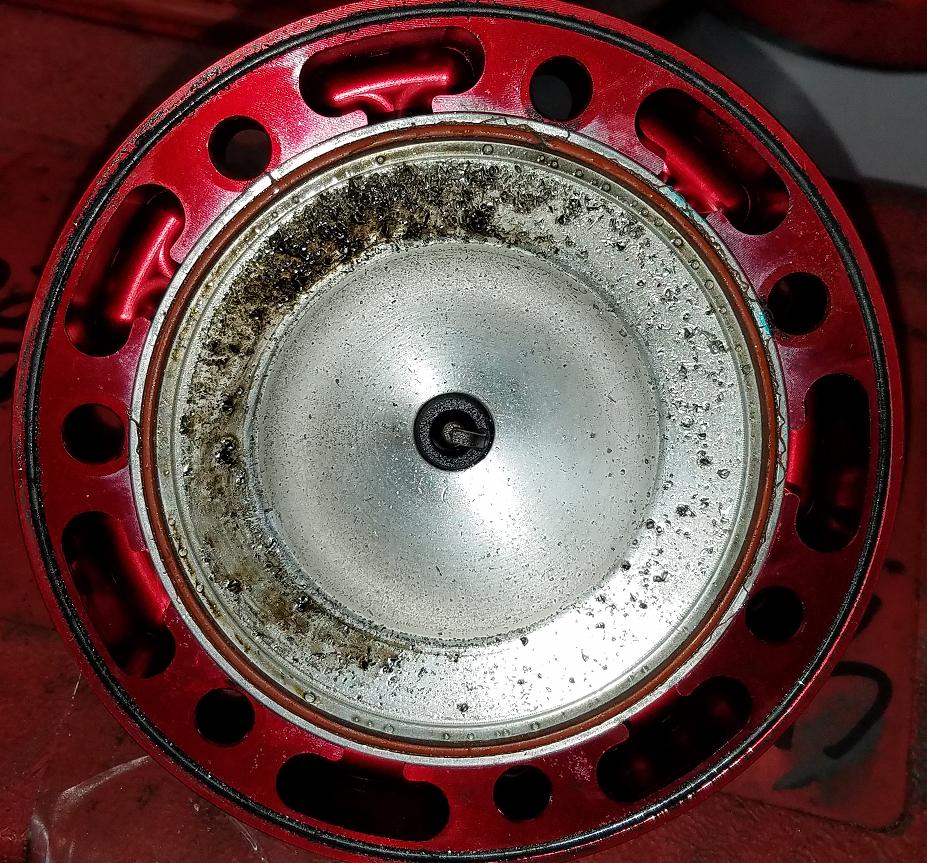

Ugh! Not so cool..

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 17.JPG (209.77 KiB) Viewed 16686 times

Oh no... A crack...

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 101.JPG (338.63 KiB) Viewed 16686 times

[Sandblaster]

I see some improvement to be had..

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 102.JPG (327.75 KiB) Viewed 16684 times

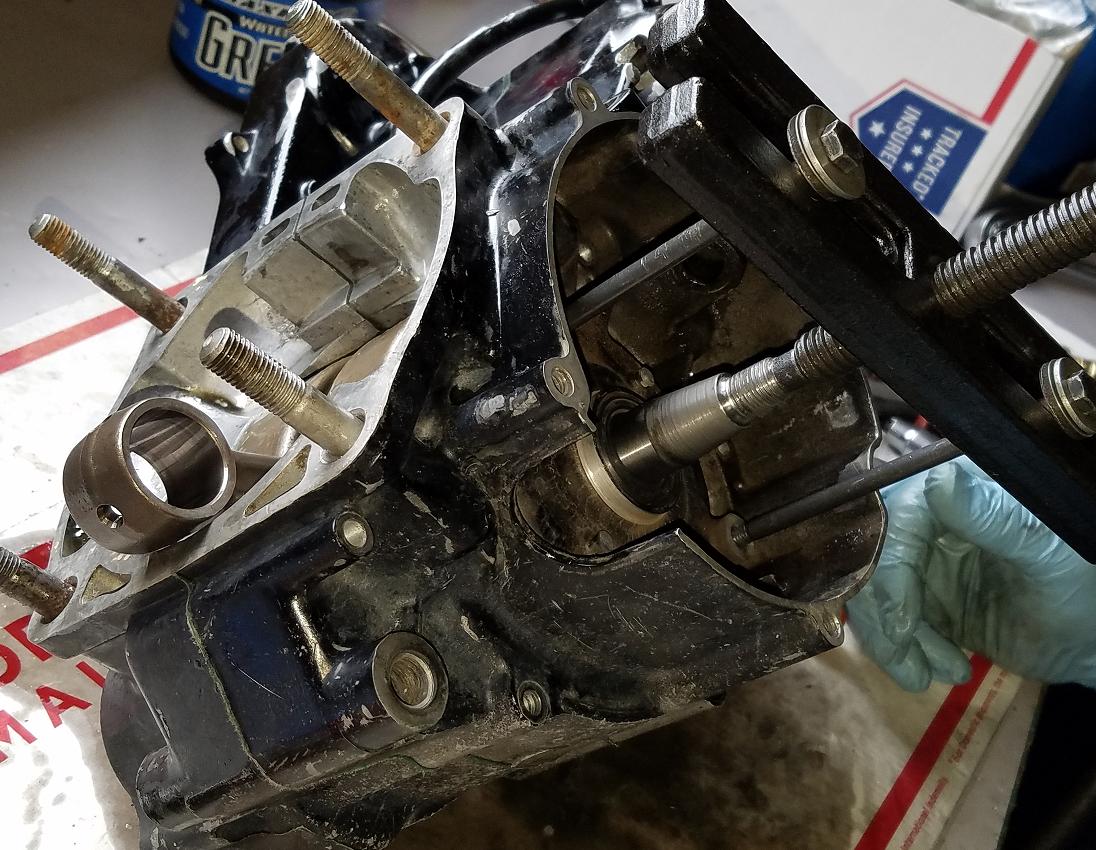

Looks good..

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 103.JPG (166.51 KiB) Viewed 16684 times

Not so fast...

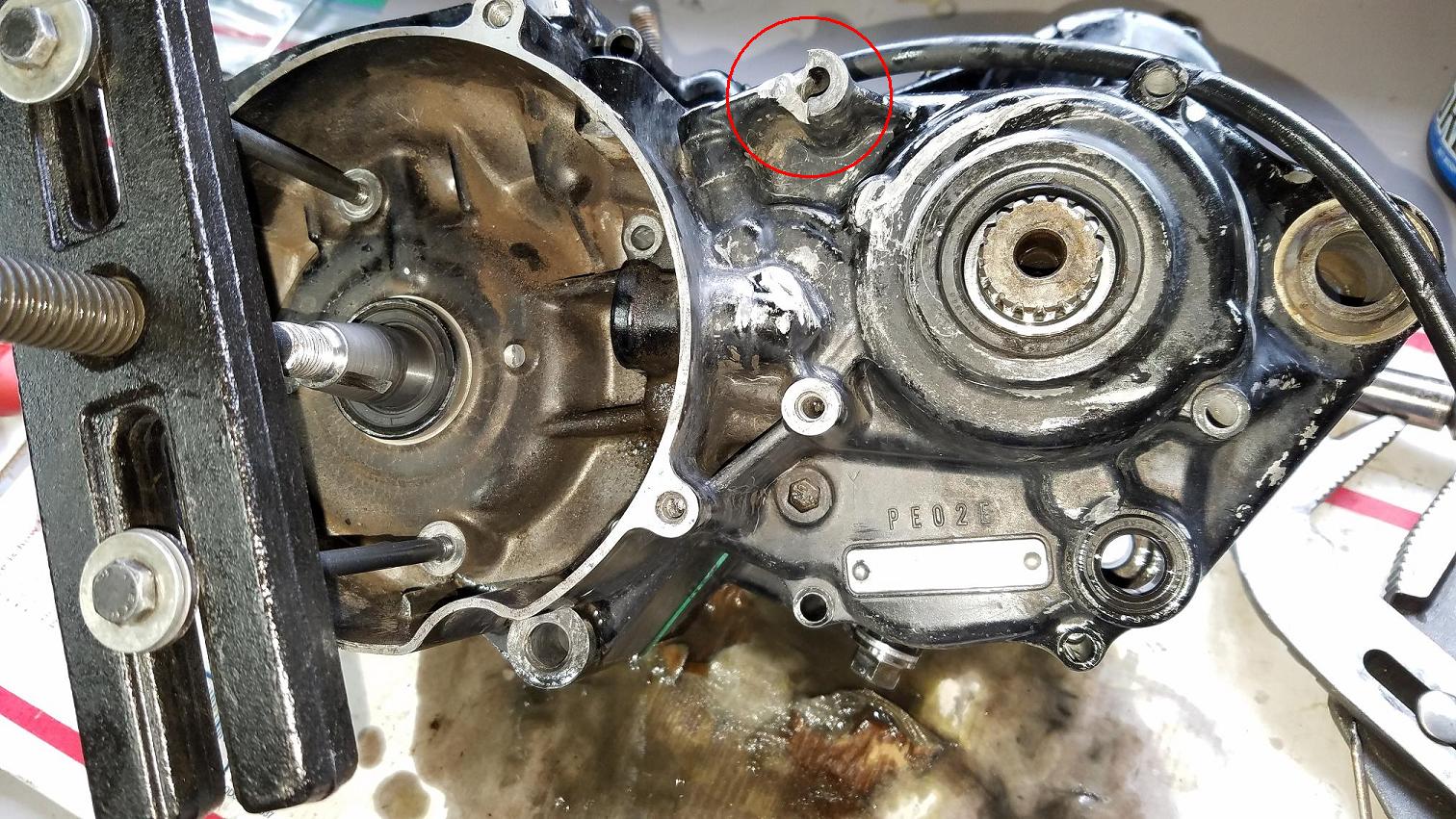

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 104.JPG (336.88 KiB) Viewed 16684 times

[Sandblaster]

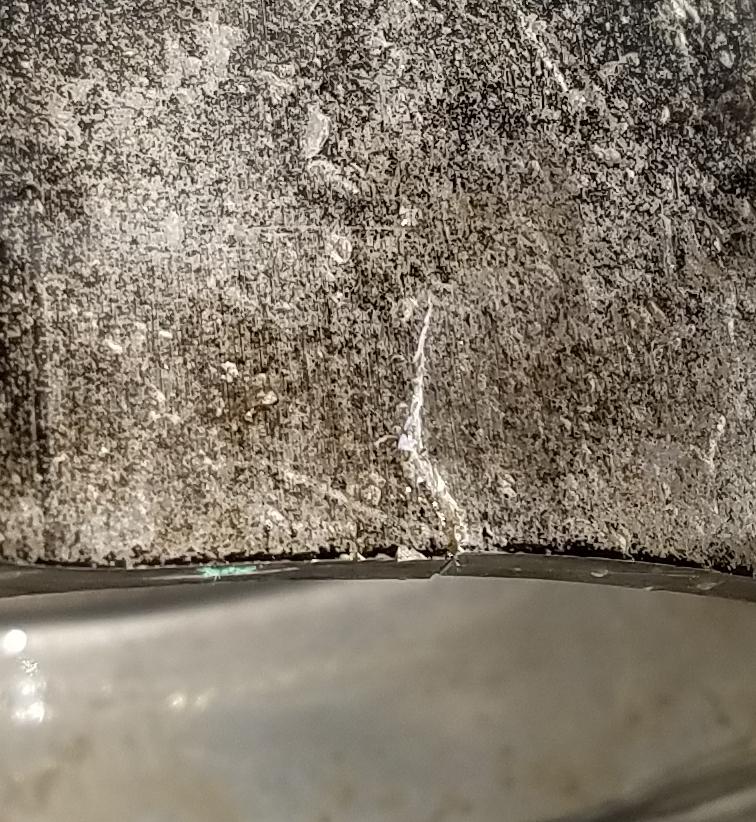

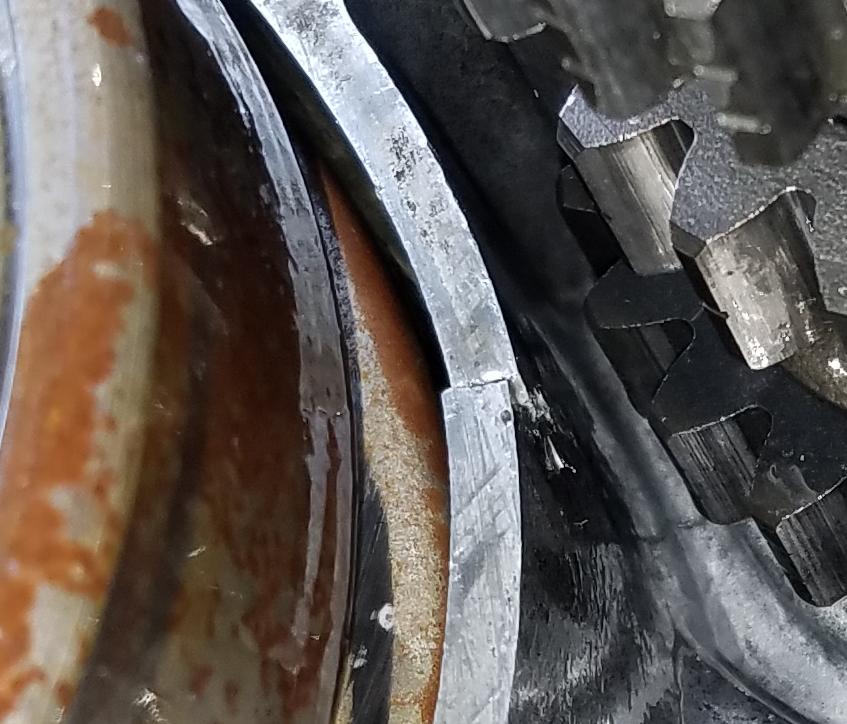

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 105.JPG (160 KiB) Viewed 16682 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 106.JPG (156.73 KiB) Viewed 16682 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 107.JPG (87.86 KiB) Viewed 16682 times

[Sandblaster]

So after tear down we know that we have out work cut out for us to get this engine done by the 5th... But we can do it and... Make it a bit faster

[Friar-Tuck]

Hey Blaster,
I work with a guy who builds cart engines for the guys who race around the Redding Ca. area.
One of the "tricks" they use on their CR5 kart engines is to remove all but third gear from the tranny. I guess that's all they need, and it frees
up recip. weight/drag. Hope you guys get swamped with work
Take Care,
Tuck\o/

[Sandblaster]

Yes, this guy runs a Mini Outlaw CR500.
He uses fourth only... So, I'm looking into what that will take...
Of course I have some cool ideas
I'm always busy... I just have to learn to pace myself and make money doing it

[Sandblaster]

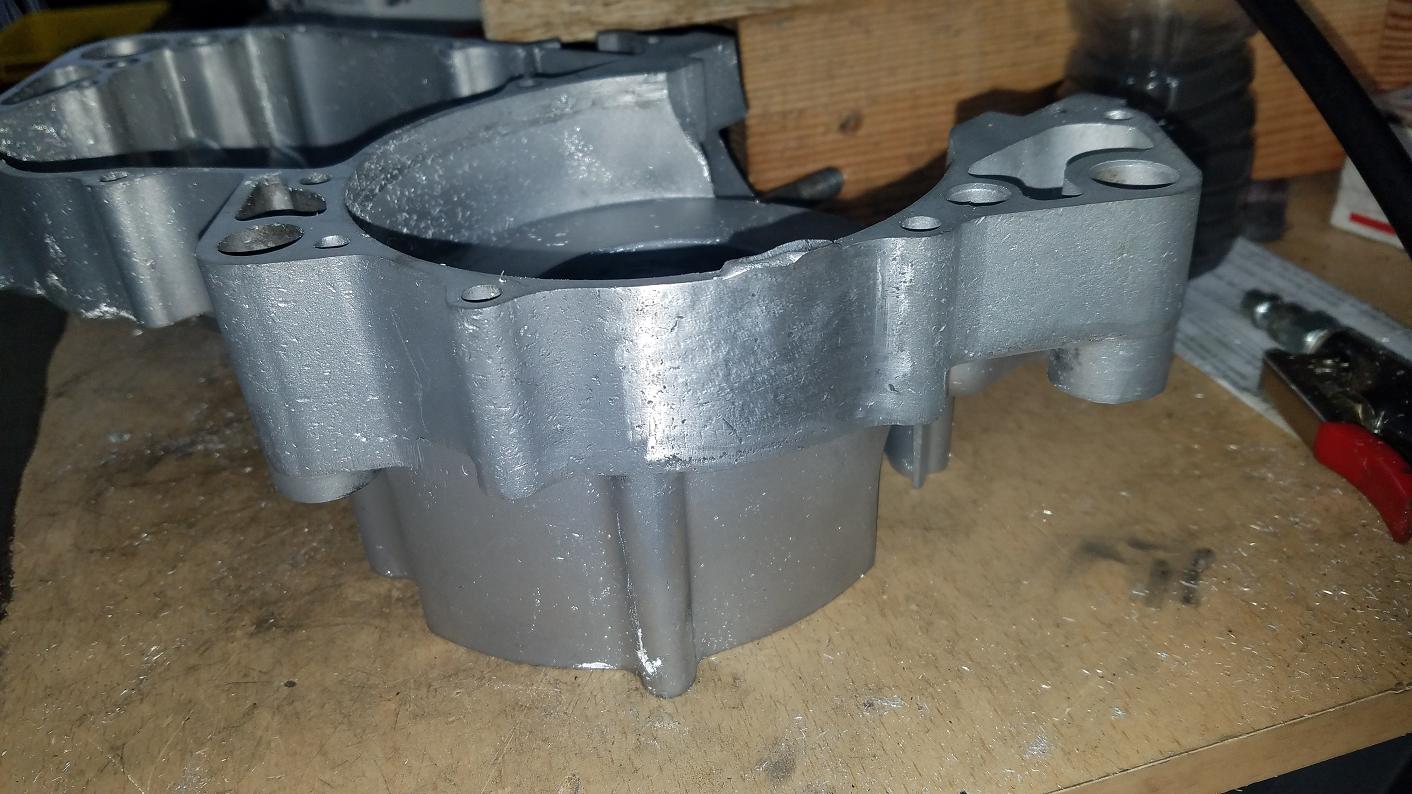

Cases are back from weld...

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 108.JPG (198.5 KiB) Viewed 16662 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 109.JPG (166.65 KiB) Viewed 16662 times

JT ENGINE WORKS 89 CR500 CART ENGINE BUILD 110.JPG (174.47 KiB) Viewed 16662 times
