YZ450F 2006 Yamaha budget engine build

[Sandblaster]

So, we had a customer come in with a lot of engine noise...
Sounded really bad.
Once we got the top end off we discovered that the piston and rod were trashed...
The customer has a tight budget so we decided that we would replace the piston with a Wossner, Millennium plating of the cylinder, Wossner rod kit, full Cometic gasket kit, counter shaft and trans bearings, timing chain and guides.

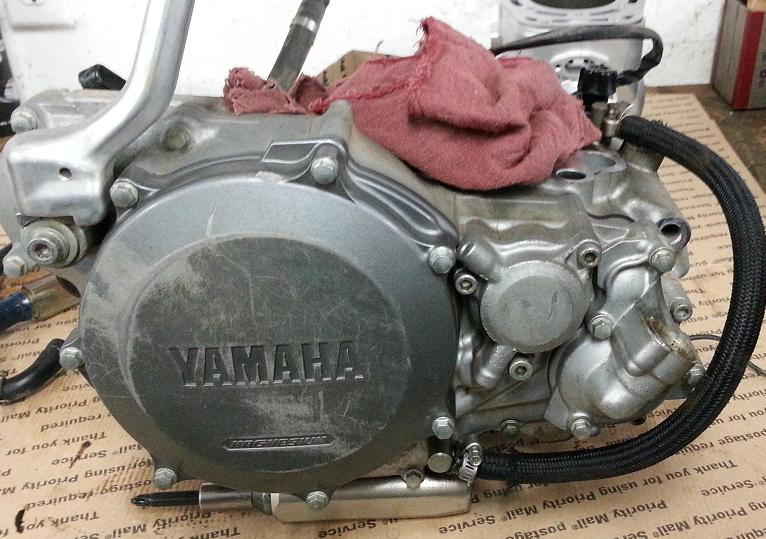

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 101.JPG (78.69 KiB) Viewed 8062 times

One of the things about the earlier YZ450F's is all the lower end engine noise that you just can't seem to get rid of.
With gear clearance like this it's no wonder..

https://www.youtube.com/watch?v=5VENjuK ... e=youtu.be

While he will have a solid and reliable engine when we are done we would like to replace nearly everything in the engine.
Unfortunately the budget forces us to ignore a lot we would like to replace..

[Sandblaster]

Here's some more tear down pics for your enjoyment

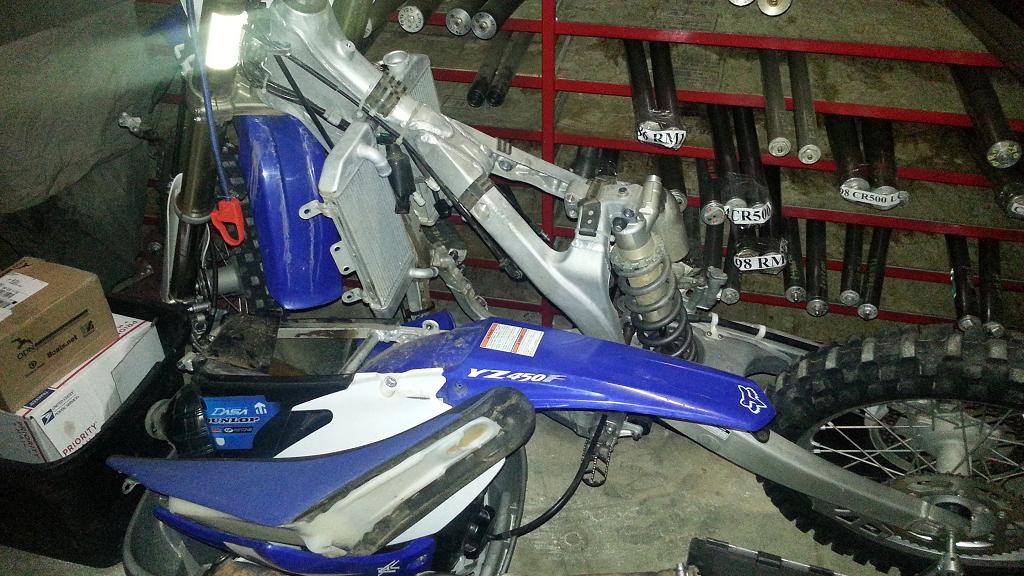

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 102.JPG (164.11 KiB) Viewed 8043 times

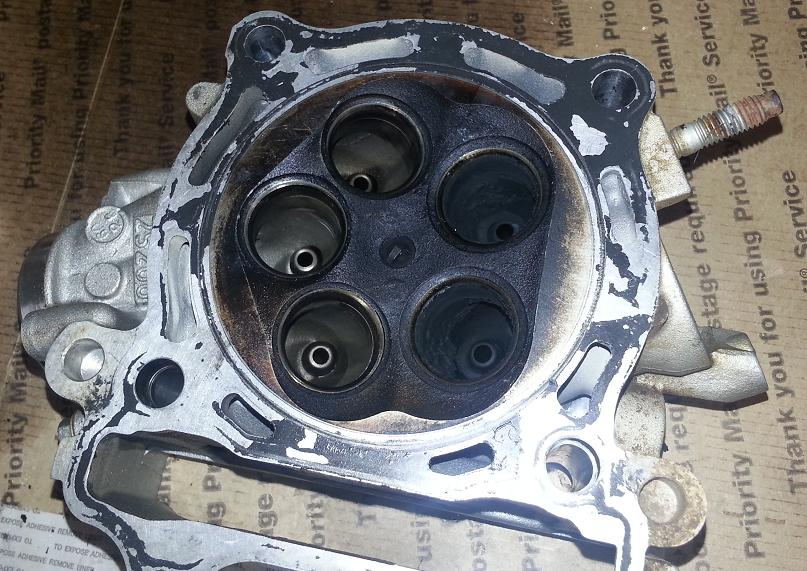

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 103.JPG (106.54 KiB) Viewed 8043 times

[Sandblaster]

Here is something you NEVER want to see in your motor.... SAND

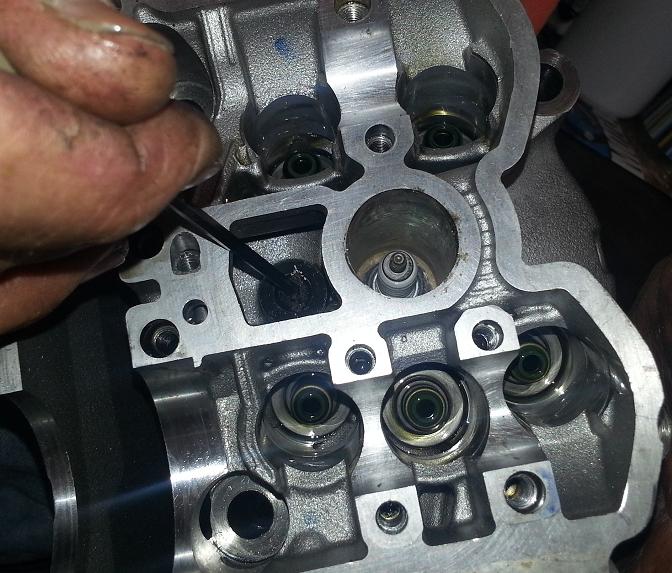

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 104.JPG (75.9 KiB) Viewed 8043 times

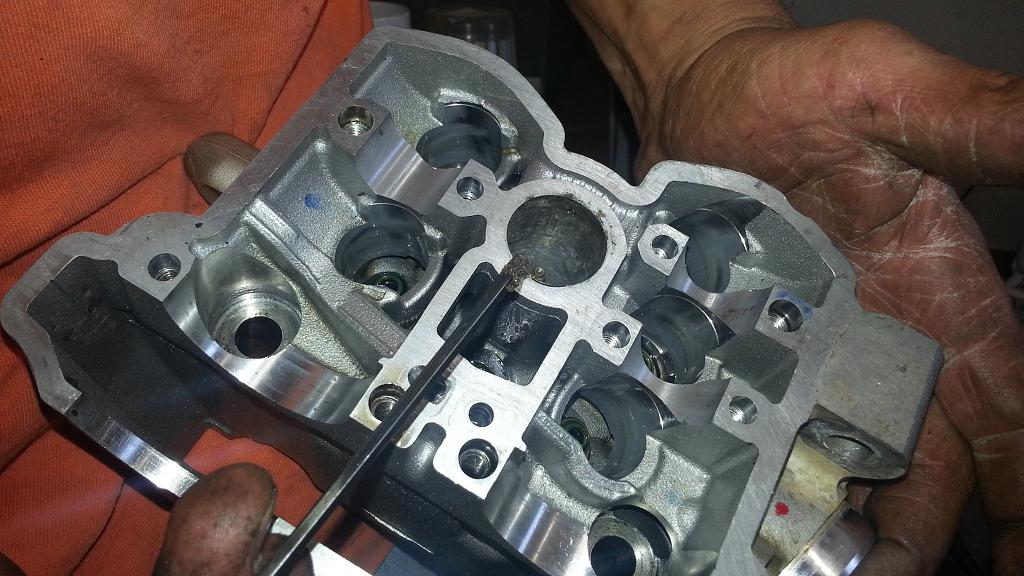

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 105.JPG (139.65 KiB) Viewed 8043 times

[Sandblaster]

After a bit of clean up..

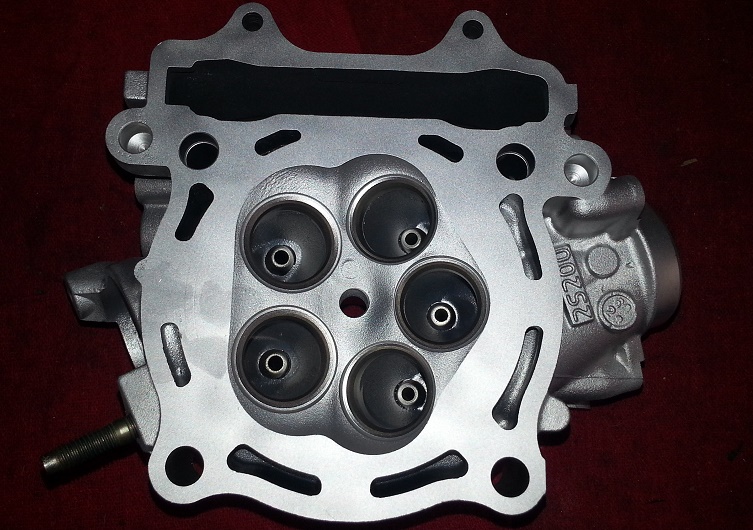

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 108.jpg (177.5 KiB) Viewed 8042 times

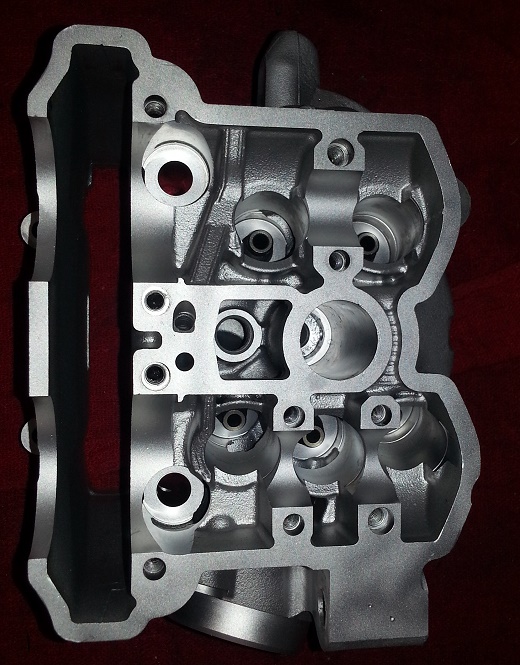

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 107.jpg (157.67 KiB) Viewed 8042 times

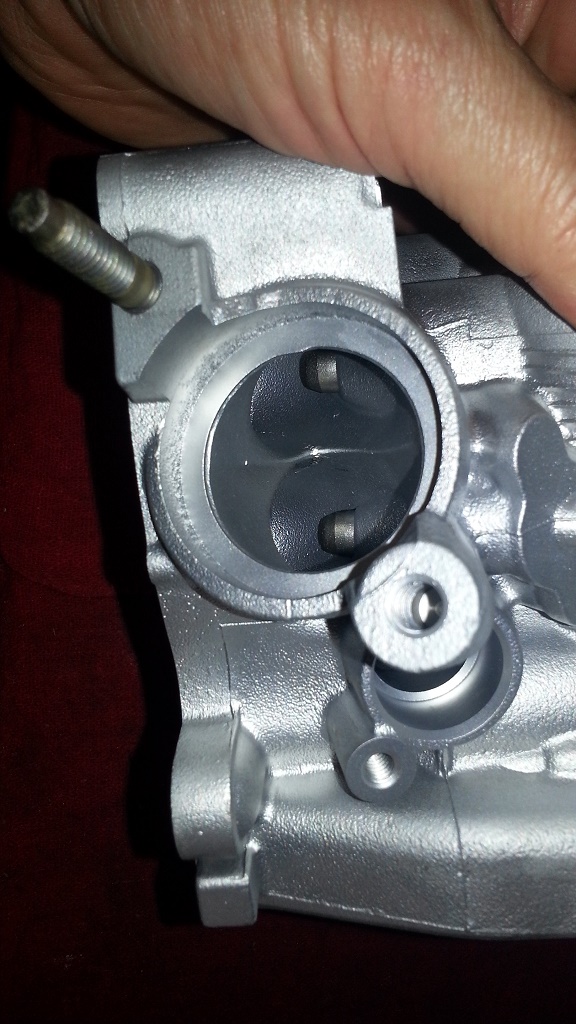

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 106.jpg (216.73 KiB) Viewed 8042 times

[Sandblaster]

Before

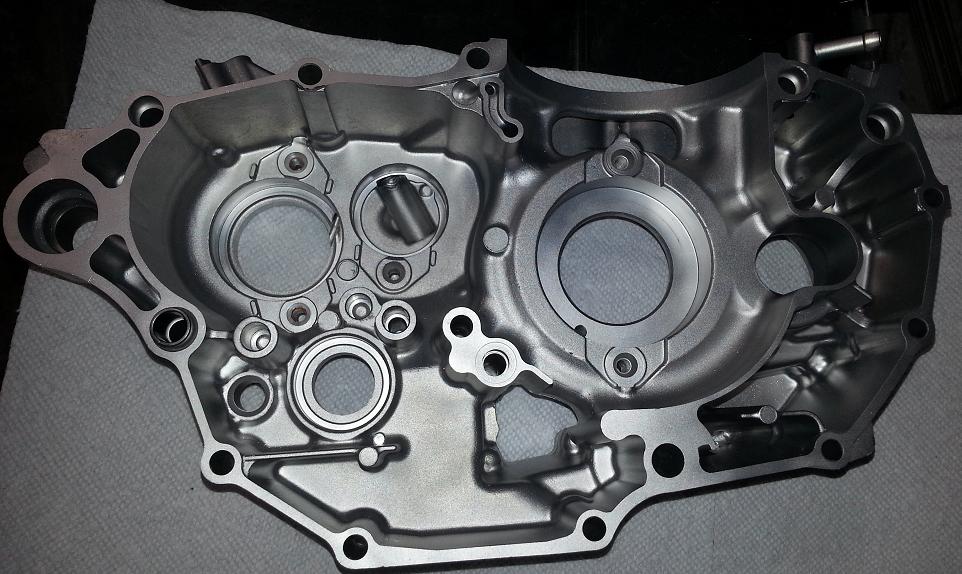

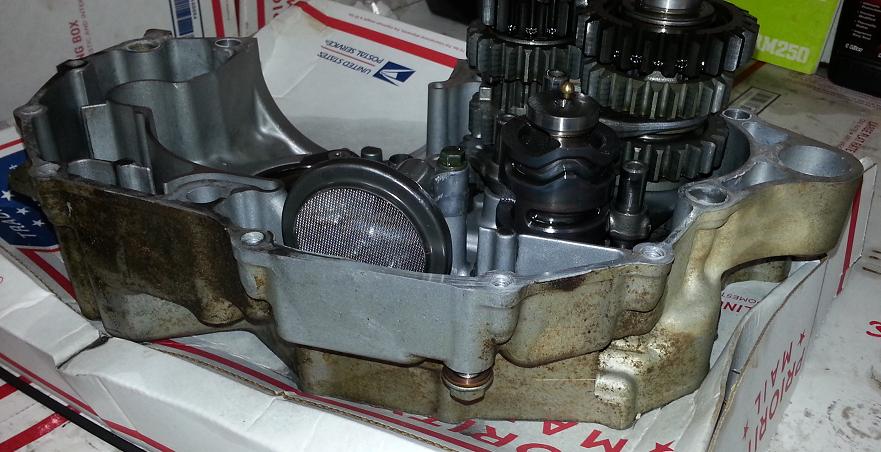

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 108.JPG (75.92 KiB) Viewed 8029 times

After

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 107.JPG (99.41 KiB) Viewed 8029 times

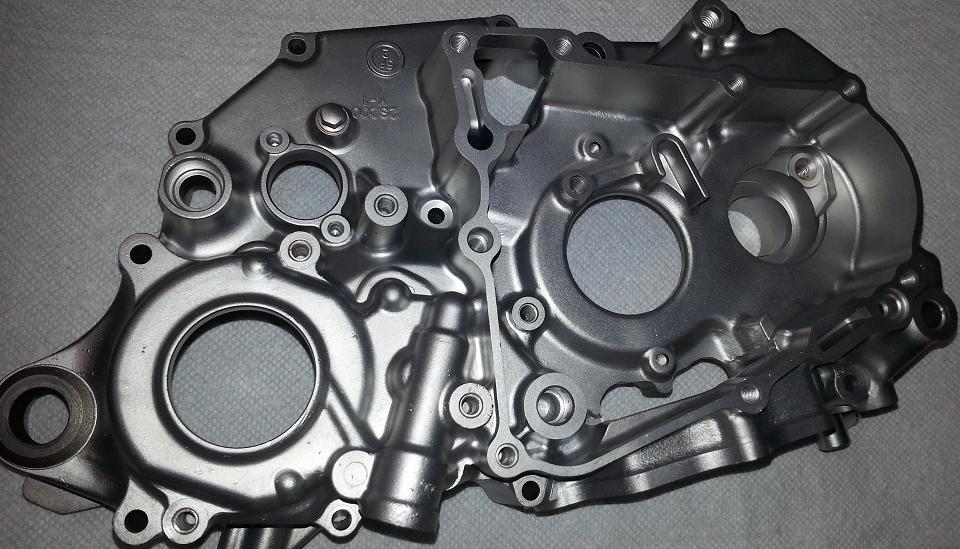

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 106.JPG (99.57 KiB) Viewed 8029 times

[Sandblaster]

After carefully sanding all the sharp edges a little clean up is in order..

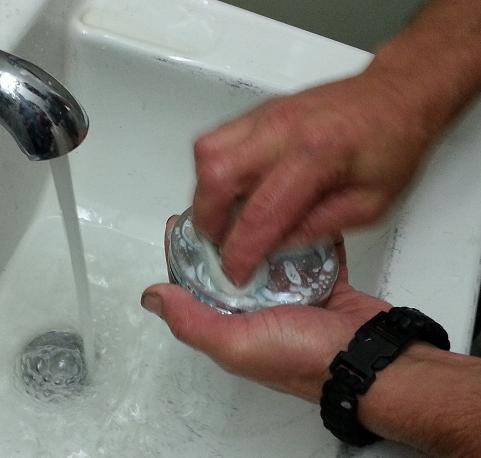

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 109.JPG (23.6 KiB) Viewed 8017 times

The last thing you want to do is put a piston into a cylinder with sharp edges as it will scrape the oil off the cylinder

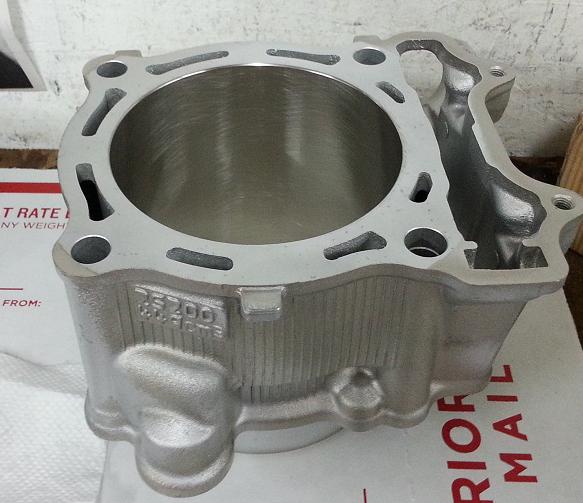

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 110.JPG (43.07 KiB) Viewed 8017 times

Millennium sure does a nice job plating and honing.

[Sandblaster]

Checking piston to cylinder clearance

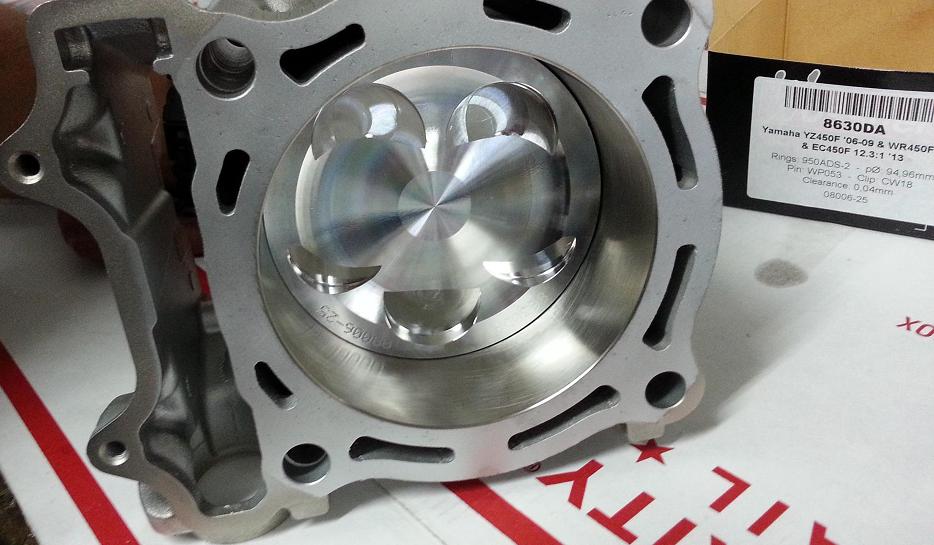

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 111.JPG (71.83 KiB) Viewed 8016 times

Looks great!

[Sandblaster]

Doing a test before assembly to make sure there are no issues..

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 111.JPG (135.31 KiB) Viewed 8014 times

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 112.JPG (251.72 KiB) Viewed 8014 times

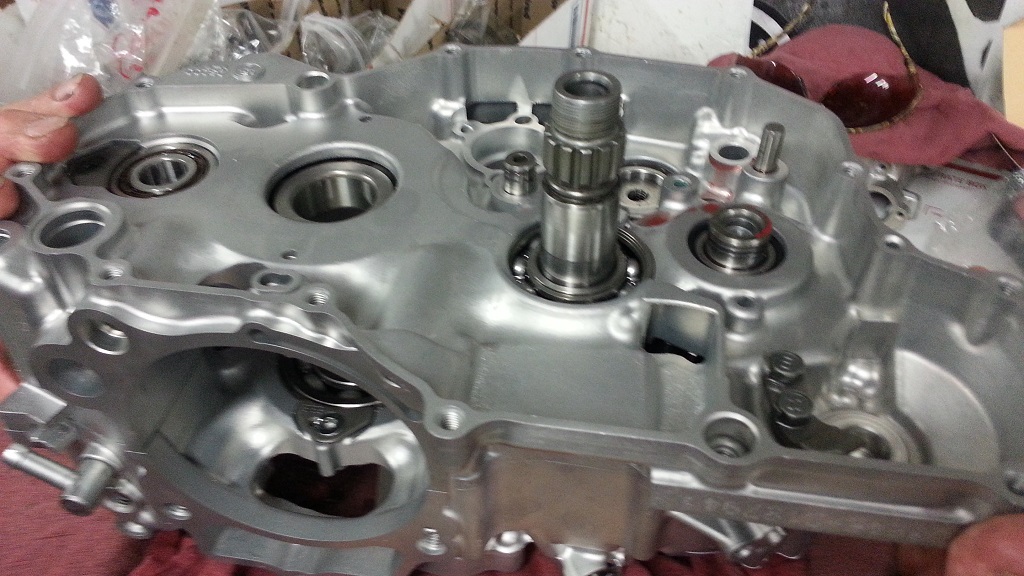

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 113.JPG (234.05 KiB) Viewed 8014 times

[Sandblaster]

A bit more progress today...

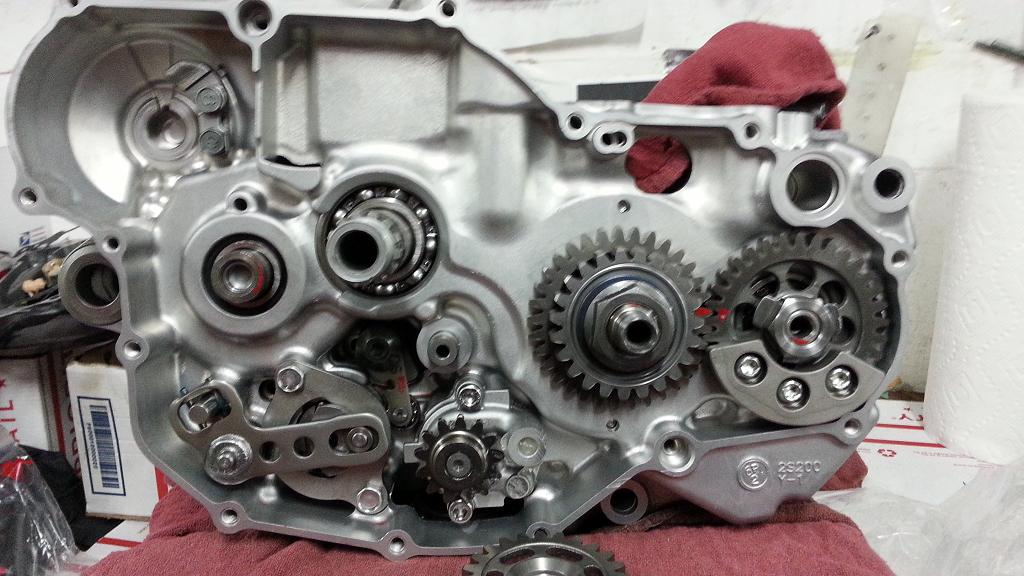

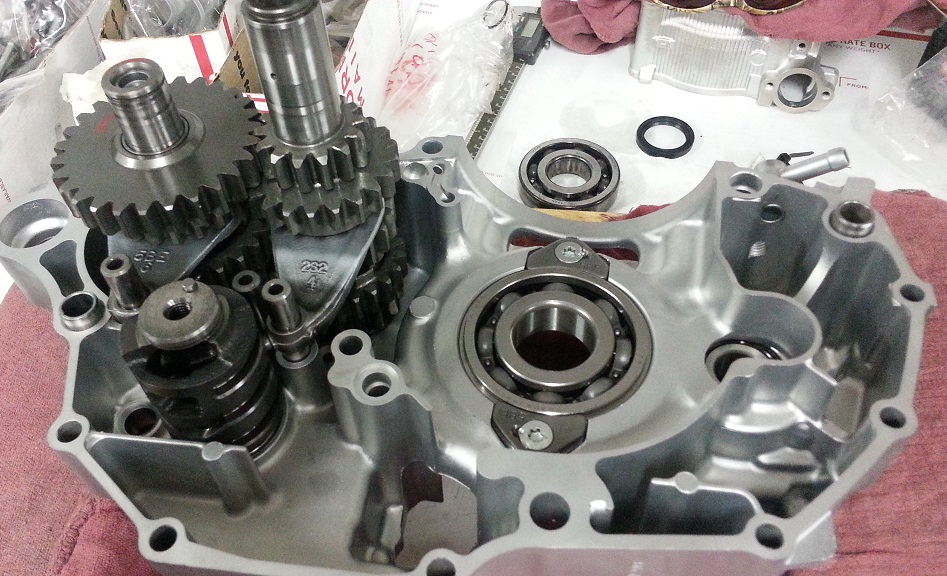

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 112.JPG (133.14 KiB) Viewed 7970 times

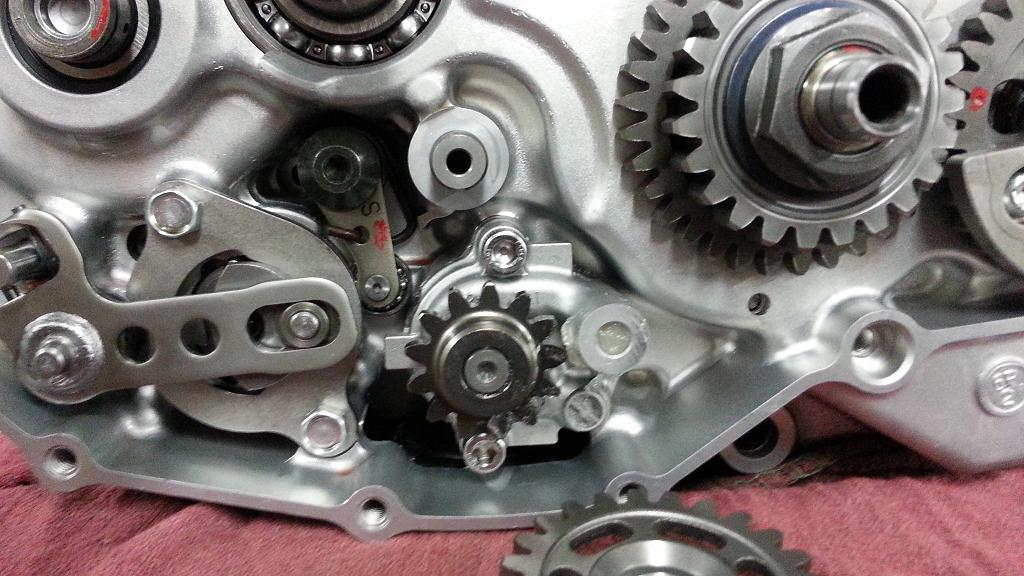

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 113.JPG (138.38 KiB) Viewed 7970 times

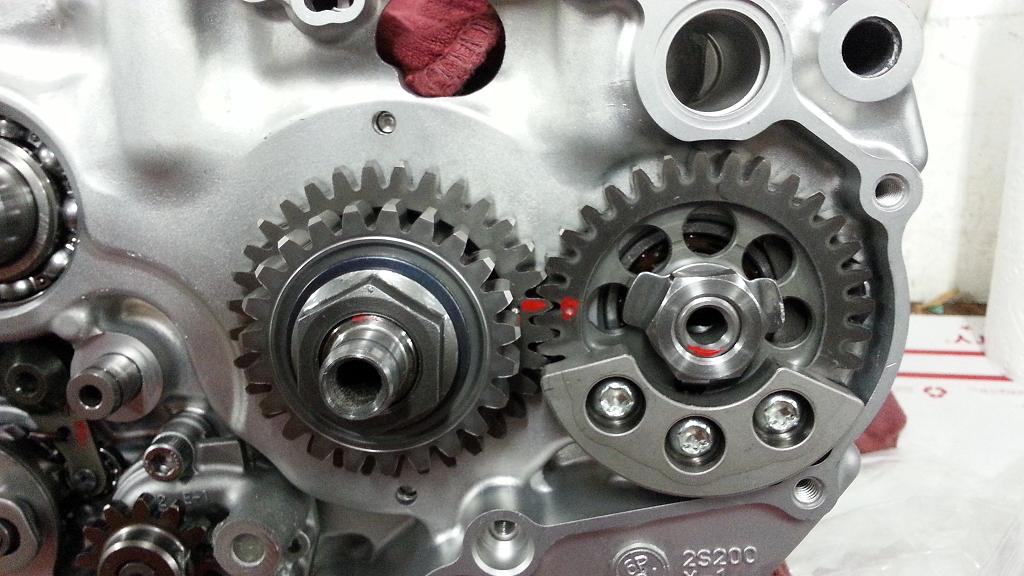

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 114.JPG (124.49 KiB) Viewed 7970 times

[Sandblaster]

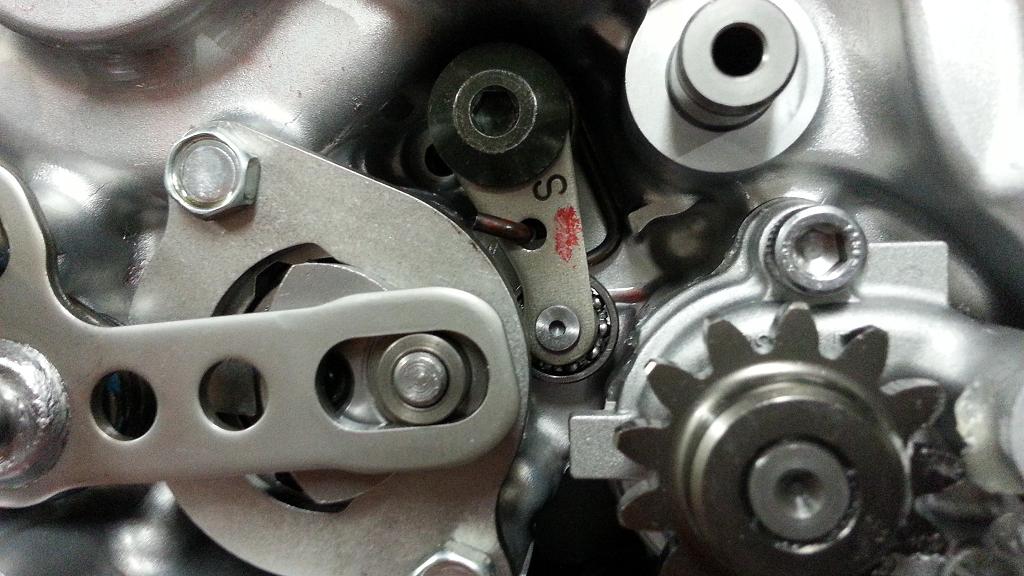

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 115.JPG (121.07 KiB) Viewed 7970 times

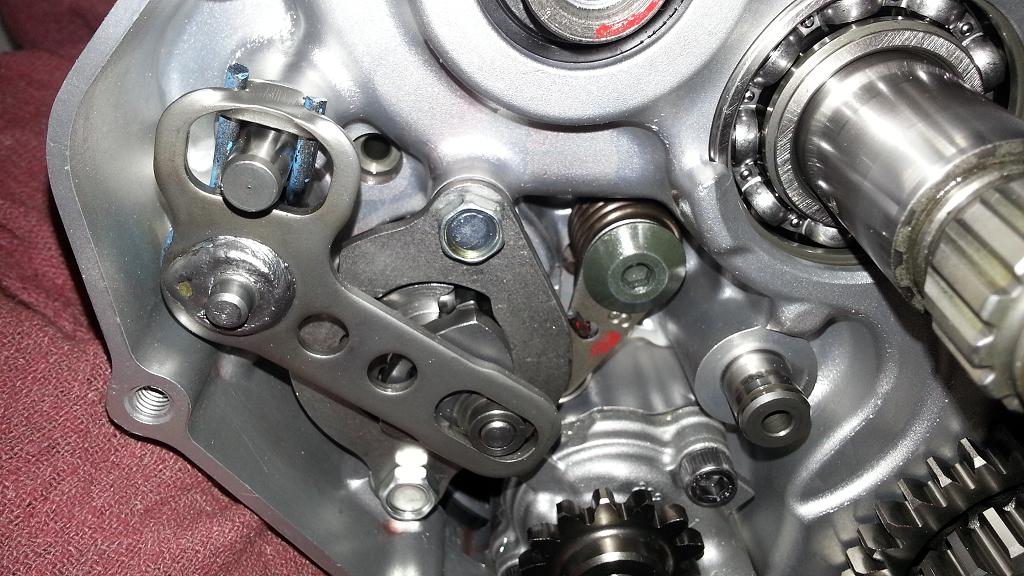

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 116.JPG (156.01 KiB) Viewed 7970 times

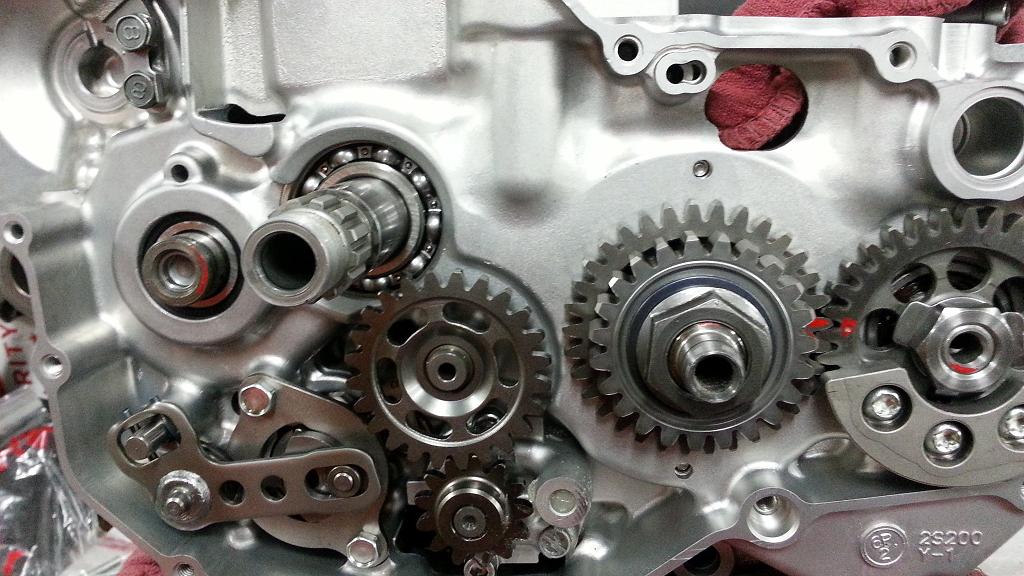

WWW.OEM-CYCLE.COM 2006 YAMAHA YZ450F BUDGET BUILD 117.JPG (146.11 KiB) Viewed 7970 times
