BOLT-FLANGED-SMALL
OLD NUMBER: 132G0620
NEW NUMBER: 132BA0620
FITS 89-04 KX500
Torque Specs:
60 inch lb or 5 ft lb
6.9 NM

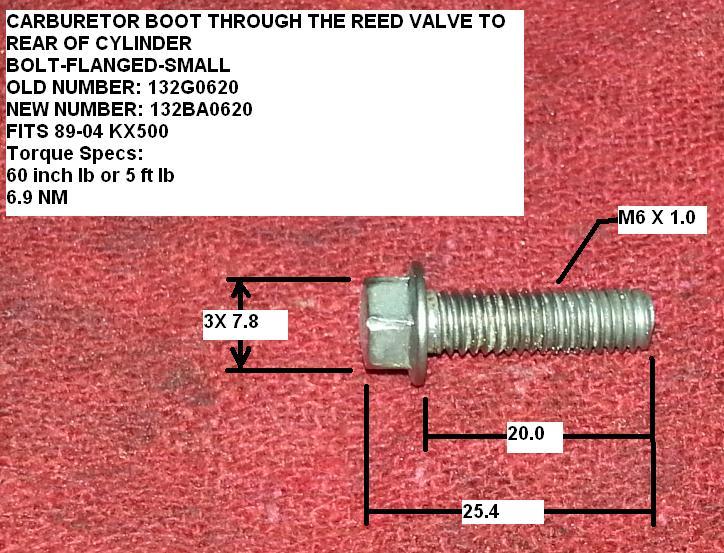

- 132BA0620 CARBURETOR BOOT BOLT.JPG (100.08 KiB) Viewed 6128 times
132BA0620 CARBURETOR BOOT BOLT
KX500 Kawasaki Measurements, Specs, pics
-
Sandblaster
- Posts: 6319
- Joined: Thu Jun 07, 2012 3:50 pm
- Location: Eugene, OR
- Contact:
132BA0620 CARBURETOR BOOT BOLT
Post by Sandblaster »
CARBURETOR BOOT THROUGH THE REED VALVE TO REAR OF CYLINDER
BOLT-FLANGED-SMALL
OLD NUMBER: 132G0620
NEW NUMBER: 132BA0620
FITS 89-04 KX500
Torque Specs:
60 inch lb or 5 ft lb
6.9 NM
BOLT-FLANGED-SMALL
OLD NUMBER: 132G0620
NEW NUMBER: 132BA0620
FITS 89-04 KX500
Torque Specs:
60 inch lb or 5 ft lb
6.9 NM
If bikes are for kids I'll never grow up.
