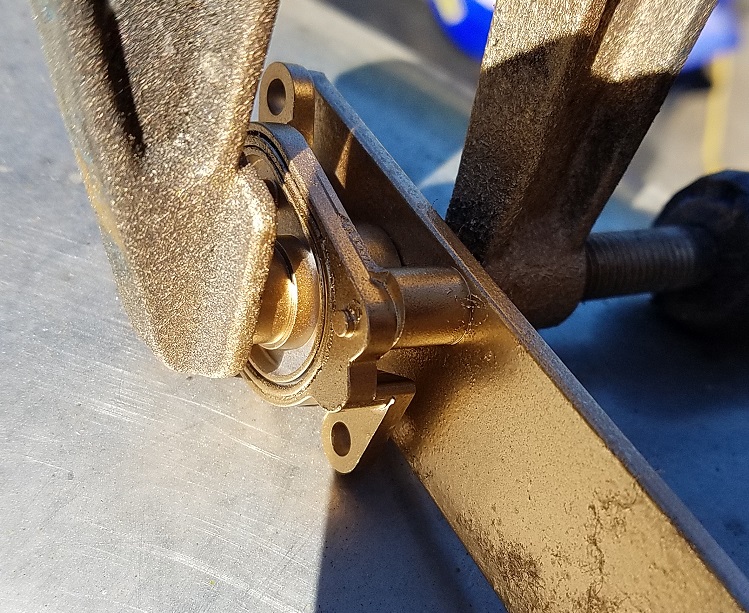

Ok... I didn't like how my last carb mod turned out so I started over

I decided to do it a bit different.
This time I grabbed that one color of spray paint that I bought years ago and have never used... G.O.L.D.

: KX GURU RACING KTX500E BUILD 113.jpg (244.41 KiB) Viewed 9472 times

Posted: **Sun Jul 30, 2017 1:17 am**

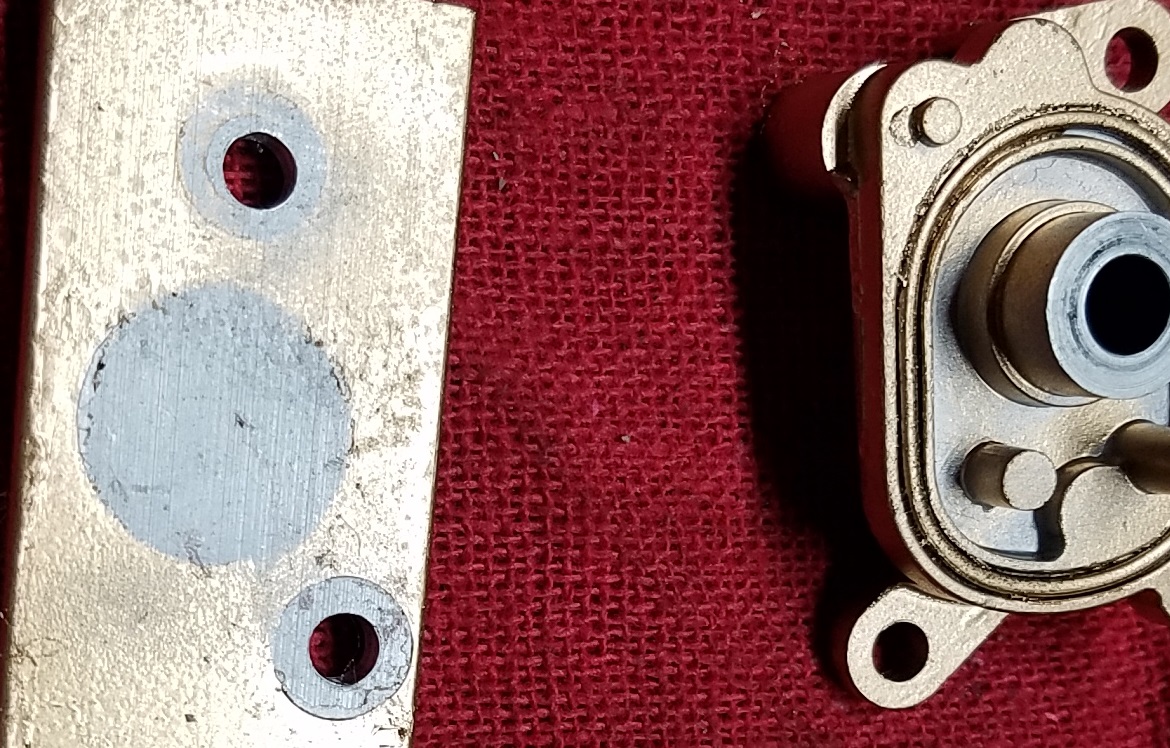

A quick shot leaves a nice template to follow..

: KX GURU RACING KTX500E BUILD 114.jpg (411.16 KiB) Viewed 9471 times

Posted: **Sun Jul 30, 2017 1:18 am**

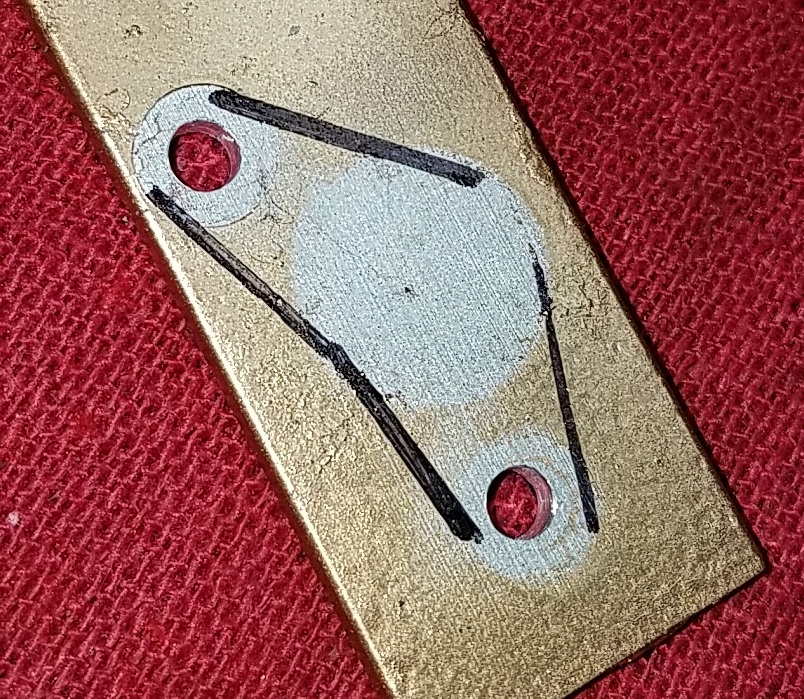

Added a few lines...

: KX GURU RACING KTX500E BUILD 116.jpg (382.55 KiB) Viewed 9470 times

Posted: **Sun Jul 30, 2017 1:19 am**

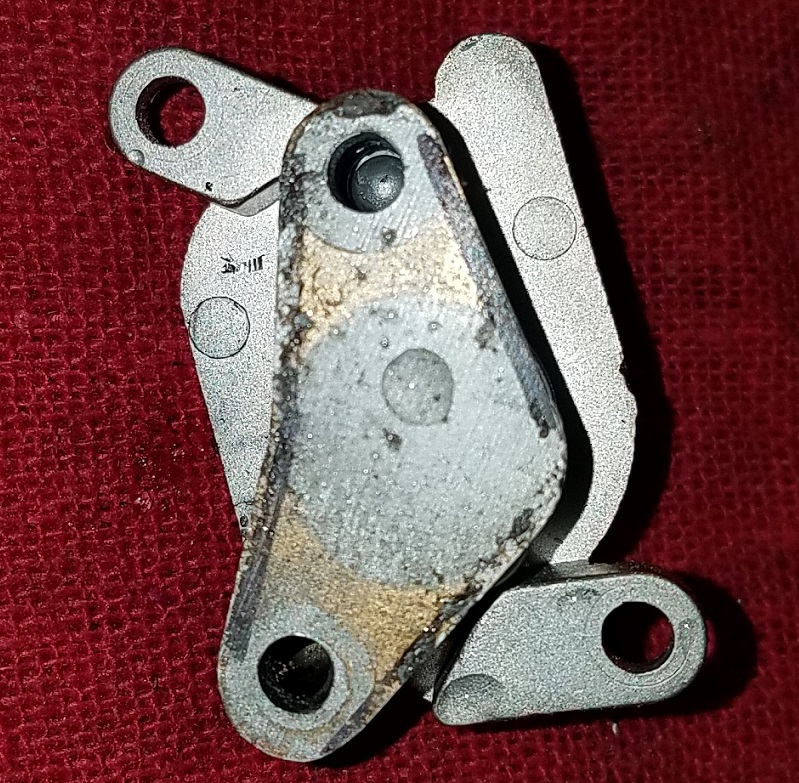

A little time on the bench grinder and one cut with the Sawsall and it's roughed out..

: KX GURU RACING KTX500E BUILD 118.jpg (317.68 KiB) Viewed 9469 times

Posted: **Sun Jul 30, 2017 1:20 am**

Almost ready...

: KX GURU RACING KTX500E BUILD 119.jpg (228.72 KiB) Viewed 9468 times

Posted: **Sun Jul 30, 2017 1:21 am**

Not perfect but good enough for who it's for

: KX GURU RACING KTX500E BUILD 120.jpg (276.57 KiB) Viewed 9467 times

: KX GURU RACING KTX500E BUILD 121.jpg (202.78 KiB) Viewed 9467 times

Posted: **Tue Aug 01, 2017 4:00 am**

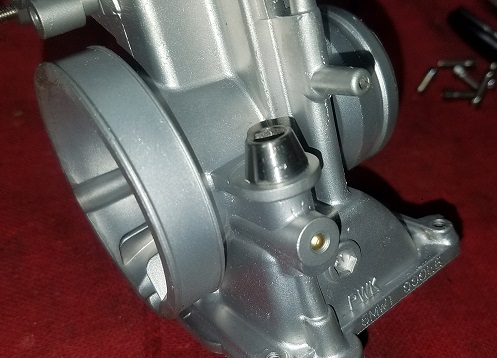

A little titanium and I plugged off the Solenoid... Don't need that for what I'm doing

: KX GURU RACING KTX500E BUILD 122.jpg (65.96 KiB) Viewed 9460 times

Posted: **Tue Aug 01, 2017 4:30 am**

I had to shorten then bolt about 1/4".
They just don't make a lot of bolt sizes in Titanium so your stuck with plan B

https://youtu.be/vmaHSJGQohU

Posted: **Sat Aug 05, 2017 4:45 pm**

After the welding was done I put a rattle can coat on to protect from rust.
I will have the frame powder coated once the final mock up has been finalized.

: KX GURU RACING KTX500E BUILD 123.jpg (514.91 KiB) Viewed 9449 times

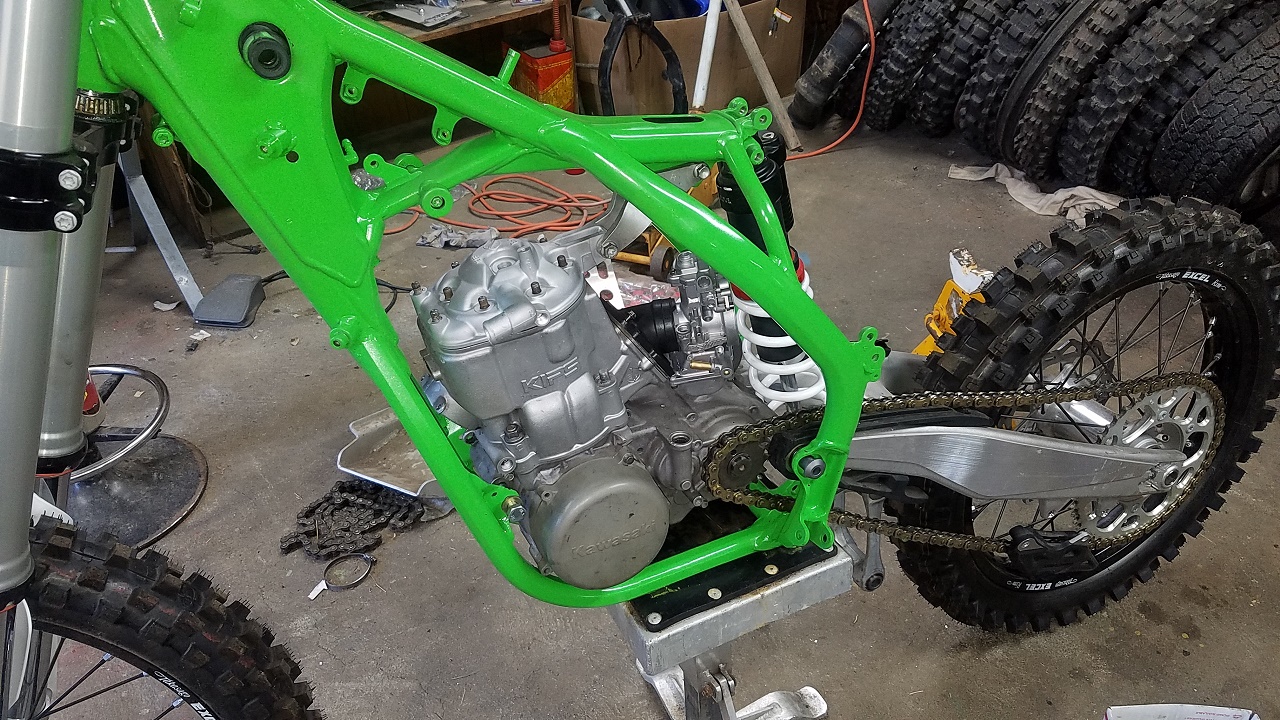

Next, I did a quick mock up to be sure everything was still perfect.

: KX GURU RACING KTX500E BUILD 124.jpg (519.95 KiB) Viewed 9449 times

Oh yeah... I'm smiling... Every bolt lined up perfectly.
A big shout out goes to Vince and Travis Brewer who did the welding and to Jason tanner from JT Engine Works who helped me a lot on the fabrication of the modded frame.

Posted: **Sat Aug 05, 2017 4:54 pm**

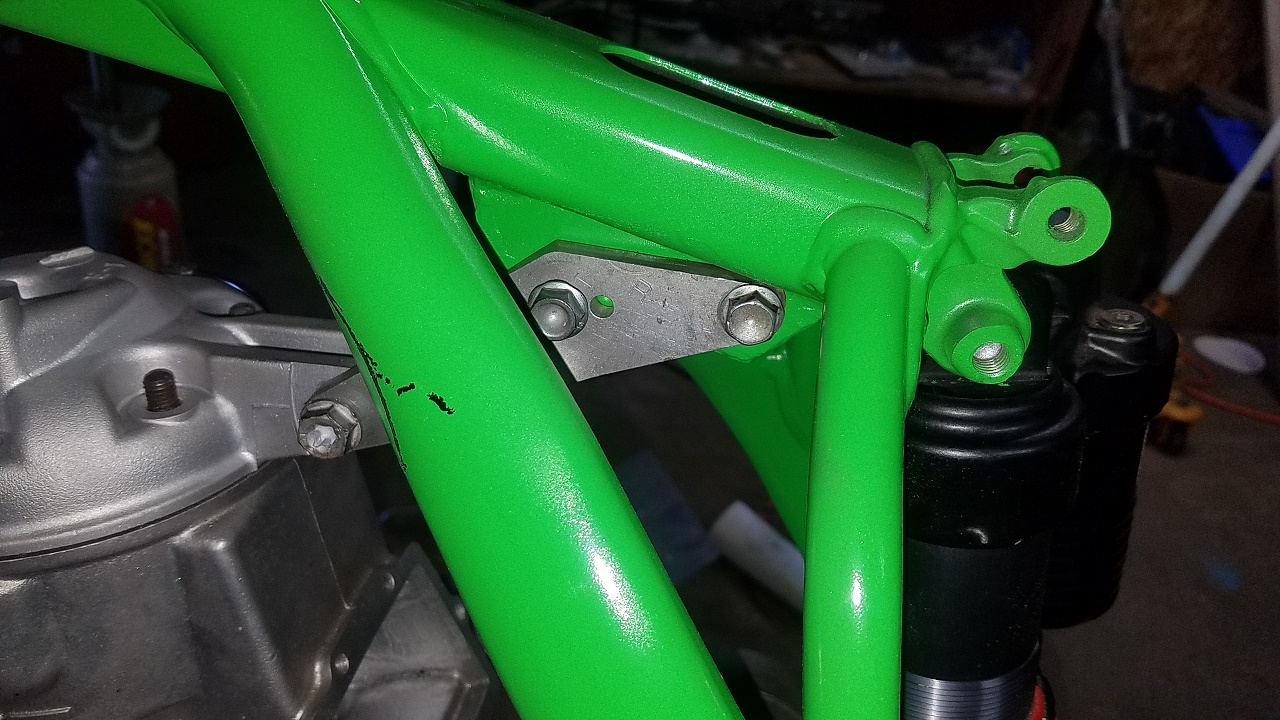

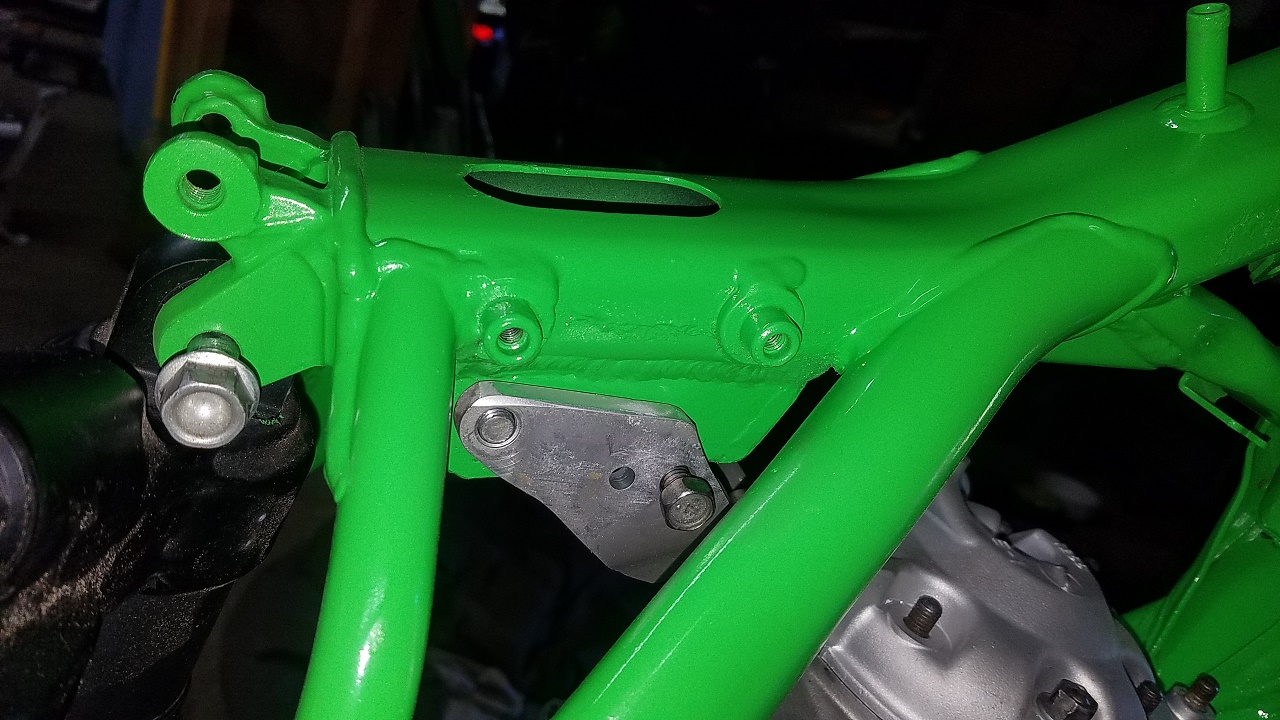

Now for some of the details..

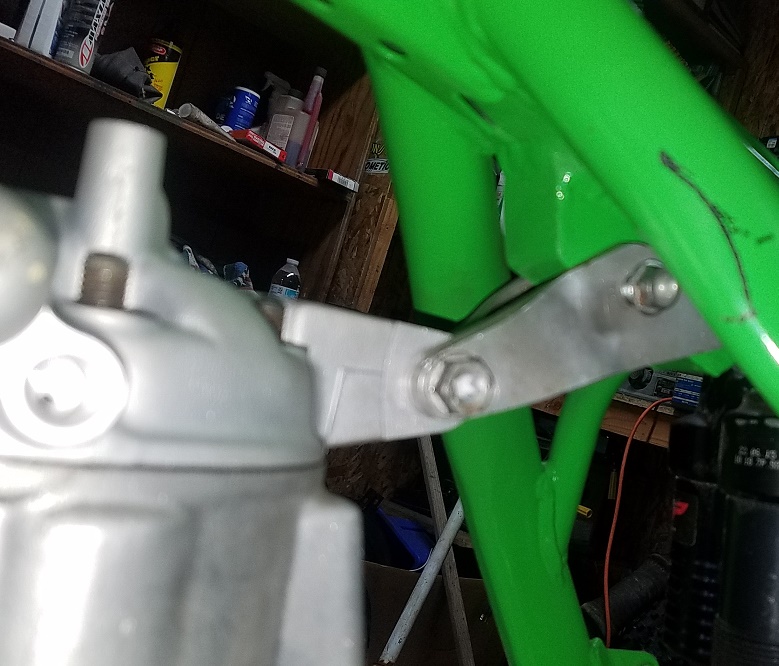

The issue with most conversions I have seen is the head stay.
It seems to me that a lot of guys don't understand how the energy is transferred through the frame.
I say this because a lot of guys build the head stay like a lever that is being pulled on instead of being under tension.
