Ok... I didn't like how my last carb mod turned out so I started over
I decided to do it a bit different.
This time I grabbed that one color of spray paint that I bought years ago and have never used... G.O.L.D.

KX GURU RACING KTX500E BUILD 113.jpg (244.41 KiB) Viewed 9468 times

[Sandblaster]

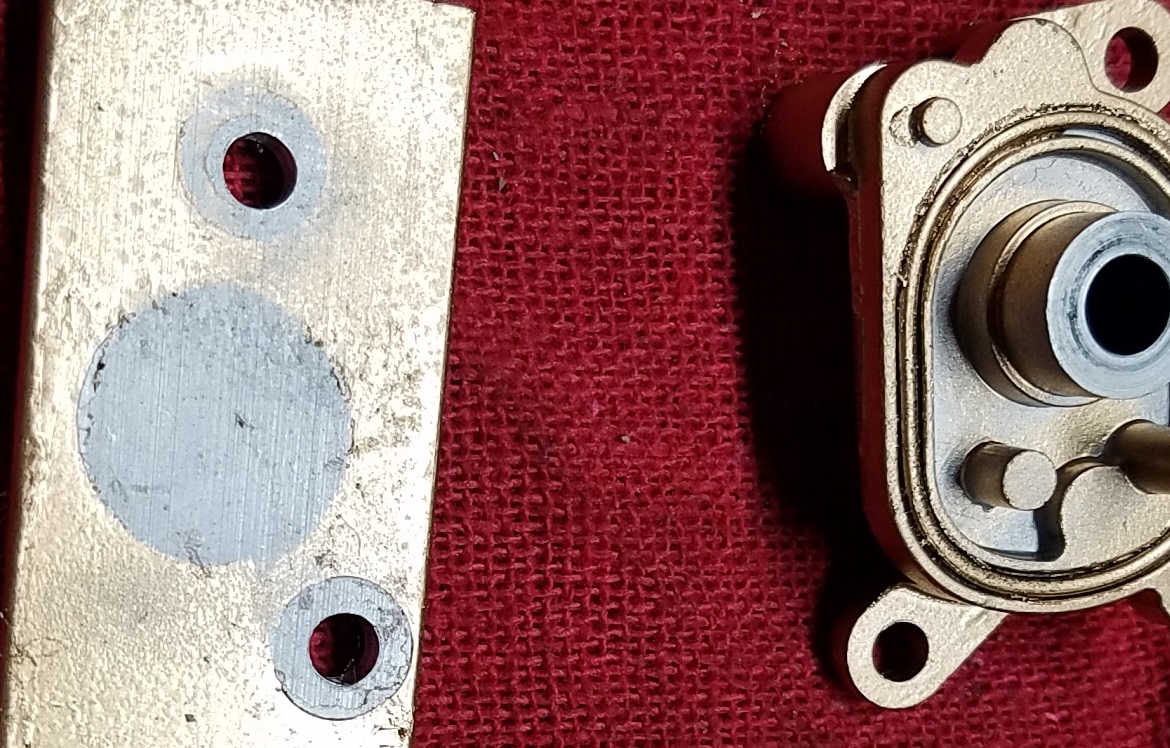

A quick shot leaves a nice template to follow..

KX GURU RACING KTX500E BUILD 114.jpg (411.16 KiB) Viewed 9467 times

[Sandblaster]

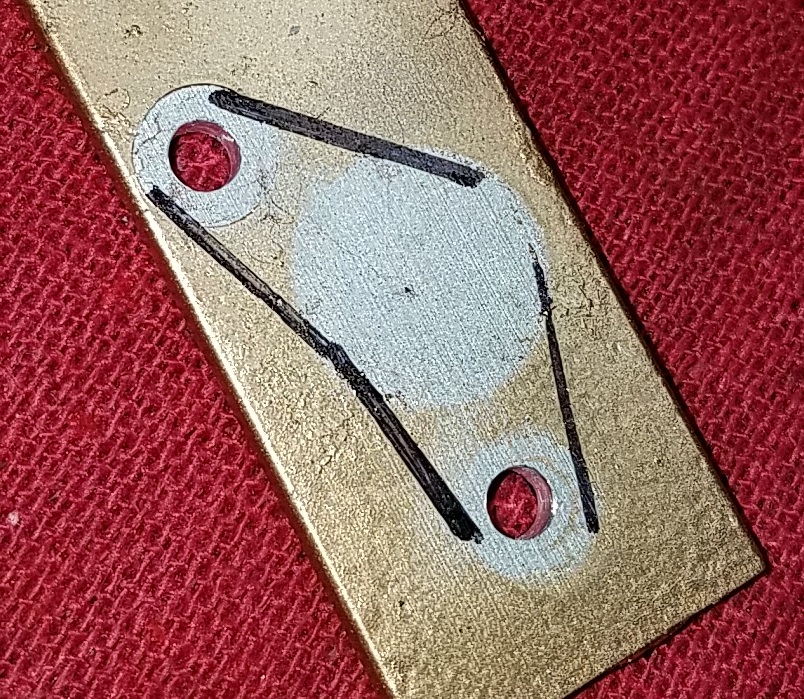

Added a few lines...

KX GURU RACING KTX500E BUILD 116.jpg (382.55 KiB) Viewed 9466 times

[Sandblaster]

A little time on the bench grinder and one cut with the Sawsall and it's roughed out..

KX GURU RACING KTX500E BUILD 118.jpg (317.68 KiB) Viewed 9465 times

[Sandblaster]

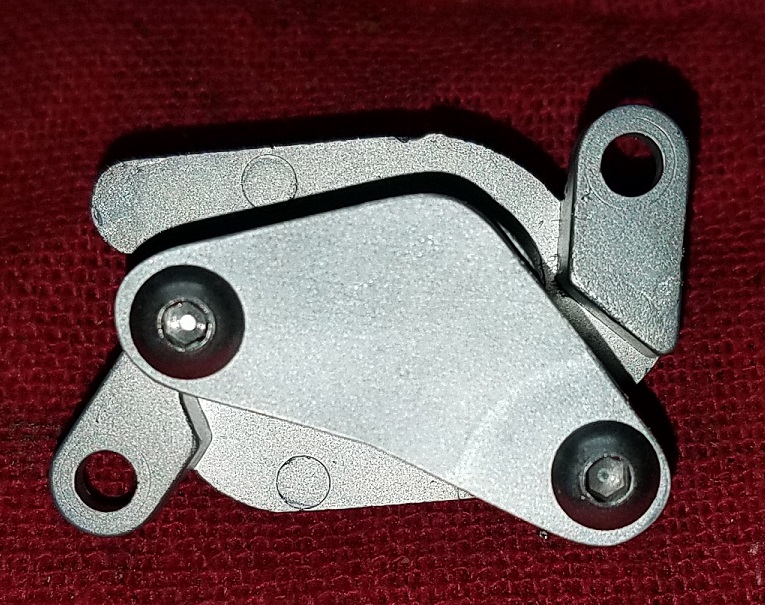

Almost ready...

KX GURU RACING KTX500E BUILD 119.jpg (228.72 KiB) Viewed 9464 times

[Sandblaster]

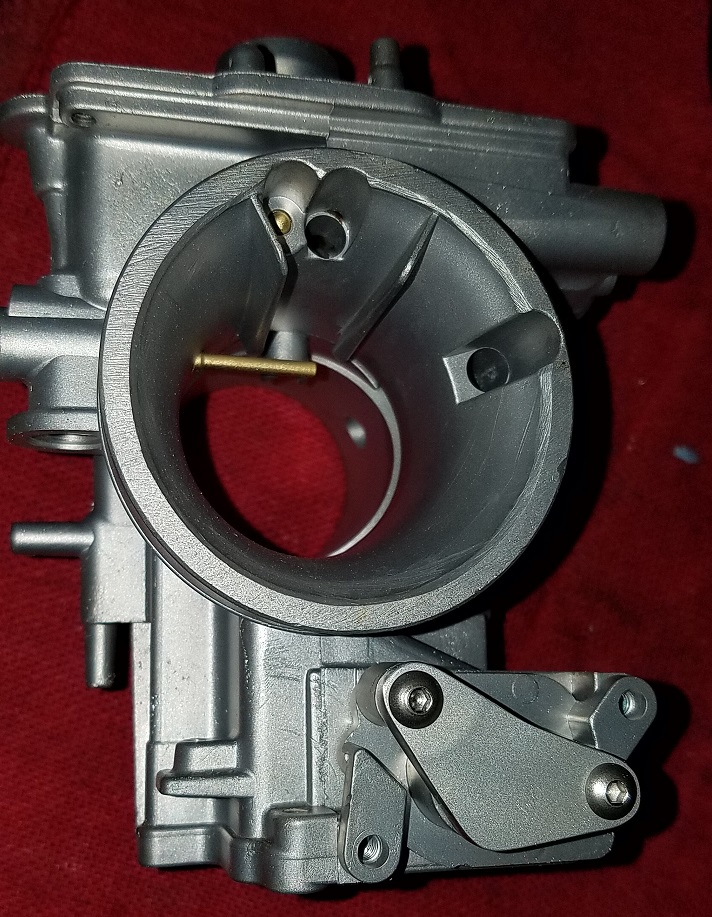

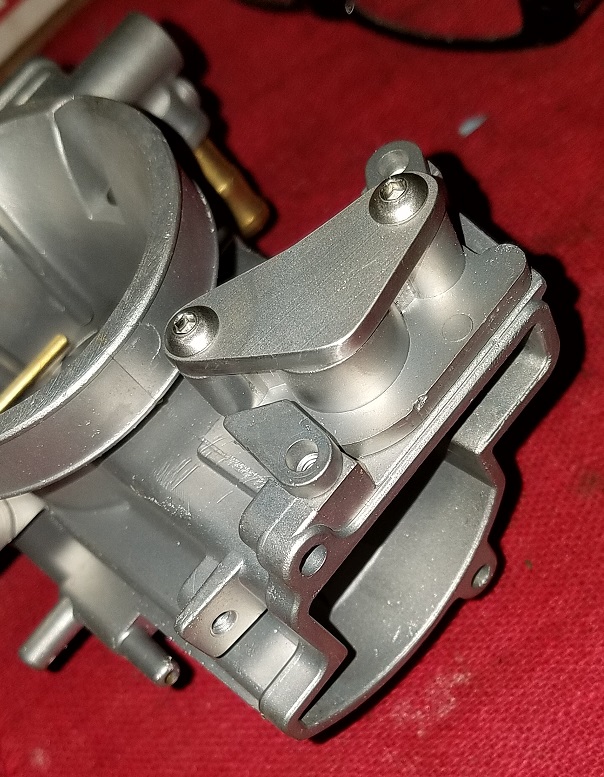

Not perfect but good enough for who it's for

KX GURU RACING KTX500E BUILD 120.jpg (276.57 KiB) Viewed 9463 times

KX GURU RACING KTX500E BUILD 121.jpg (202.78 KiB) Viewed 9463 times

[Sandblaster]

A little titanium and I plugged off the Solenoid... Don't need that for what I'm doing

KX GURU RACING KTX500E BUILD 122.jpg (65.96 KiB) Viewed 9456 times

[Sandblaster]

I had to shorten then bolt about 1/4".
They just don't make a lot of bolt sizes in Titanium so your stuck with plan B

https://youtu.be/vmaHSJGQohU

[Sandblaster]

After the welding was done I put a rattle can coat on to protect from rust.
I will have the frame powder coated once the final mock up has been finalized.

KX GURU RACING KTX500E BUILD 123.jpg (514.91 KiB) Viewed 9445 times

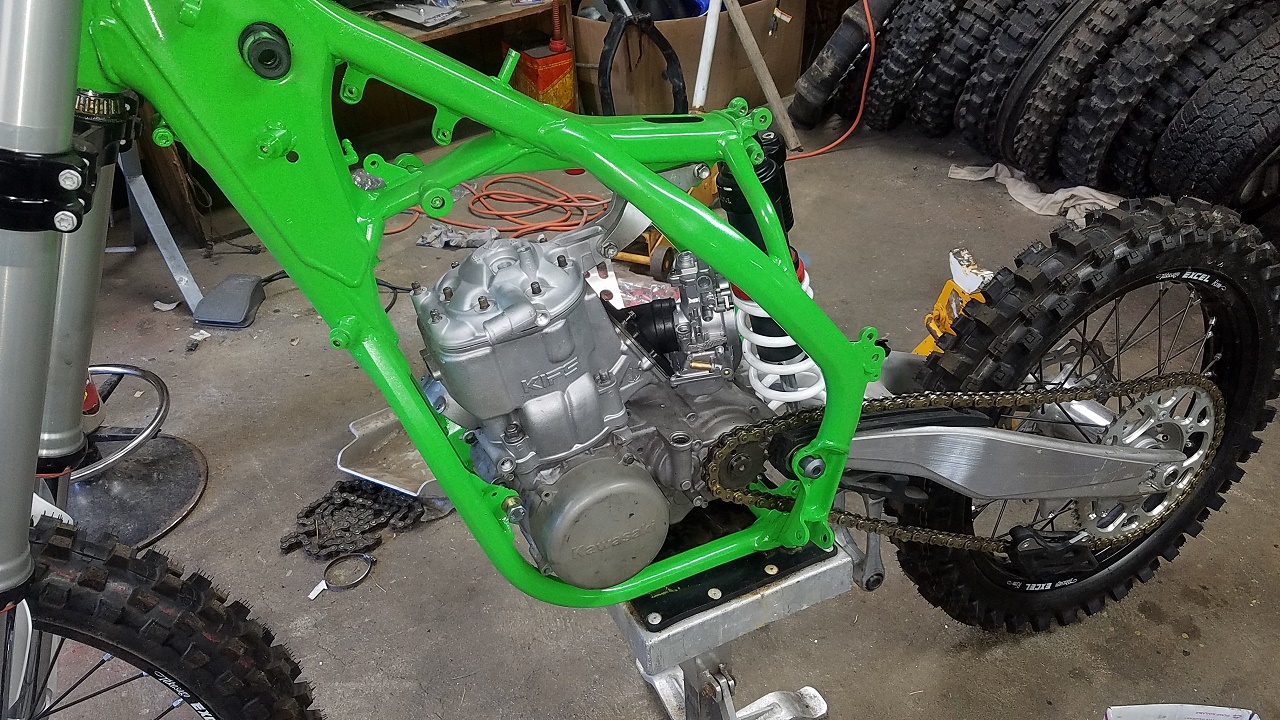

Next, I did a quick mock up to be sure everything was still perfect.

KX GURU RACING KTX500E BUILD 124.jpg (519.95 KiB) Viewed 9445 times

Oh yeah... I'm smiling... Every bolt lined up perfectly.
A big shout out goes to Vince and Travis Brewer who did the welding and to Jason tanner from JT Engine Works who helped me a lot on the fabrication of the modded frame.

[Sandblaster]

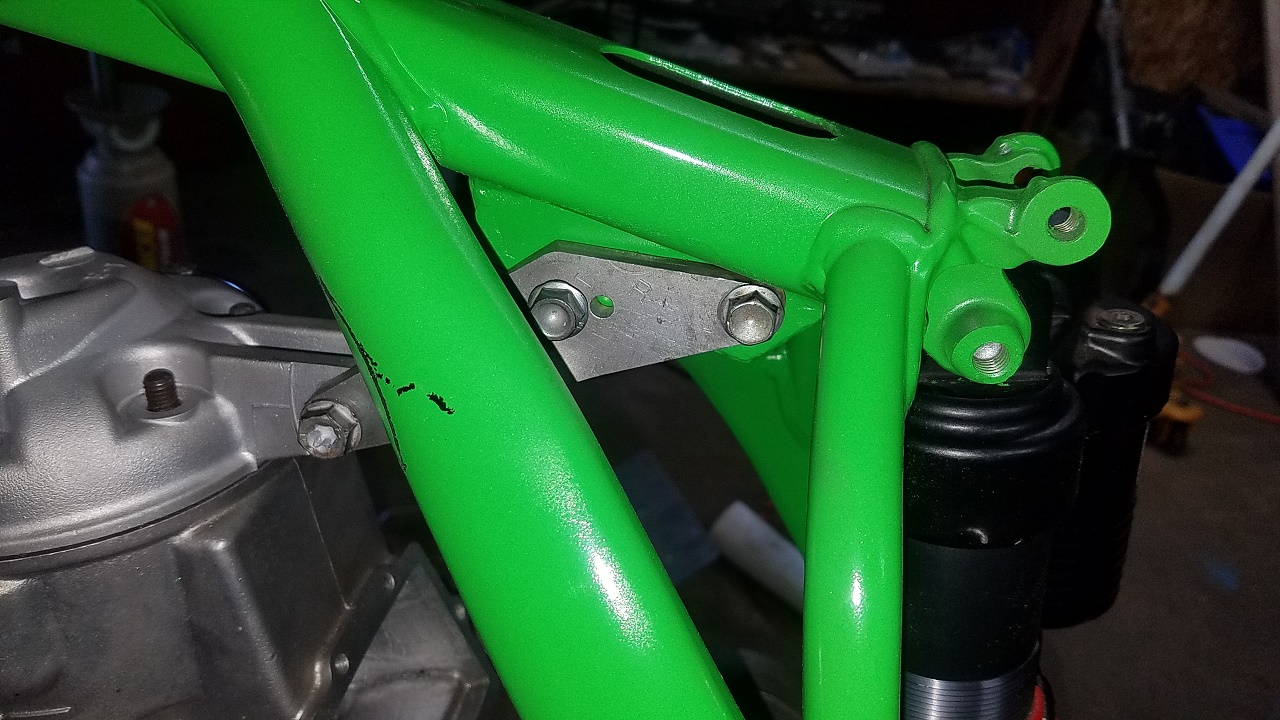

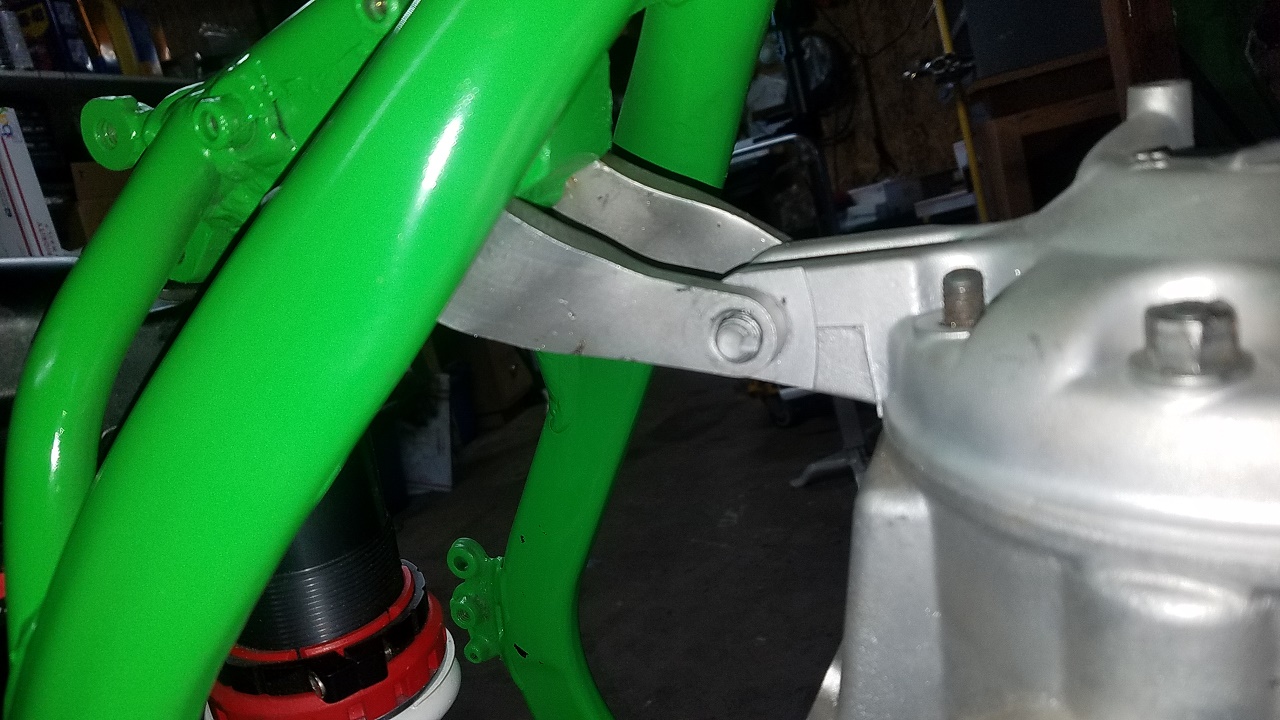

Now for some of the details..
The issue with most conversions I have seen is the head stay.
It seems to me that a lot of guys don't understand how the energy is transferred through the frame.
I say this because a lot of guys build the head stay like a lever that is being pulled on instead of being under tension.

KX GURU RACING KTX500E BUILD 125.jpg (368.83 KiB) Viewed 9556 times

KX GURU RACING KTX500E BUILD 126.jpg (175.82 KiB) Viewed 9556 times

KX GURU RACING KTX500E BUILD 127.jpg (341.17 KiB) Viewed 9556 times

KX GURU RACING KTX500E BUILD 128.jpg (311.01 KiB) Viewed 9556 times
