UPDATING KX500 SUSPENSION.

[Sandblaster]

KX500 WITH A KX450F REAR SHOCK 104.JPG (39.17 KiB) Viewed 45741 times

KX500 WITH A KX450F REAR SHOCK 105.JPG (37.14 KiB) Viewed 45741 times

[Sandblaster]

Here is the issue with the clevis..

KX500 WITH A KX450F REAR SHOCK 106.JPG (71.83 KiB) Viewed 45740 times

[Sandblaster]

OK... Sometimes you feel like a dummy...

I unscrewed the clevis off a 92 kx250 shock (Same as the KX500 clevis) and screwed it right on the KX450F shock..

KX500 WITH A KX450F REAR SHOCK 107.JPG (99.24 KiB) Viewed 45738 times

[Sandblaster]

Before I go any further, I need a mock up.
Turns out I just happen to have a few spares laying around...
Except for the stupid swingarm that I had to buy on eBay

WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 101.jpg (284.55 KiB) Viewed 45606 times

[Sandblaster]

Why not bolt the KX450F shock to the 88 chassis and be done with it?
It is simply too long.

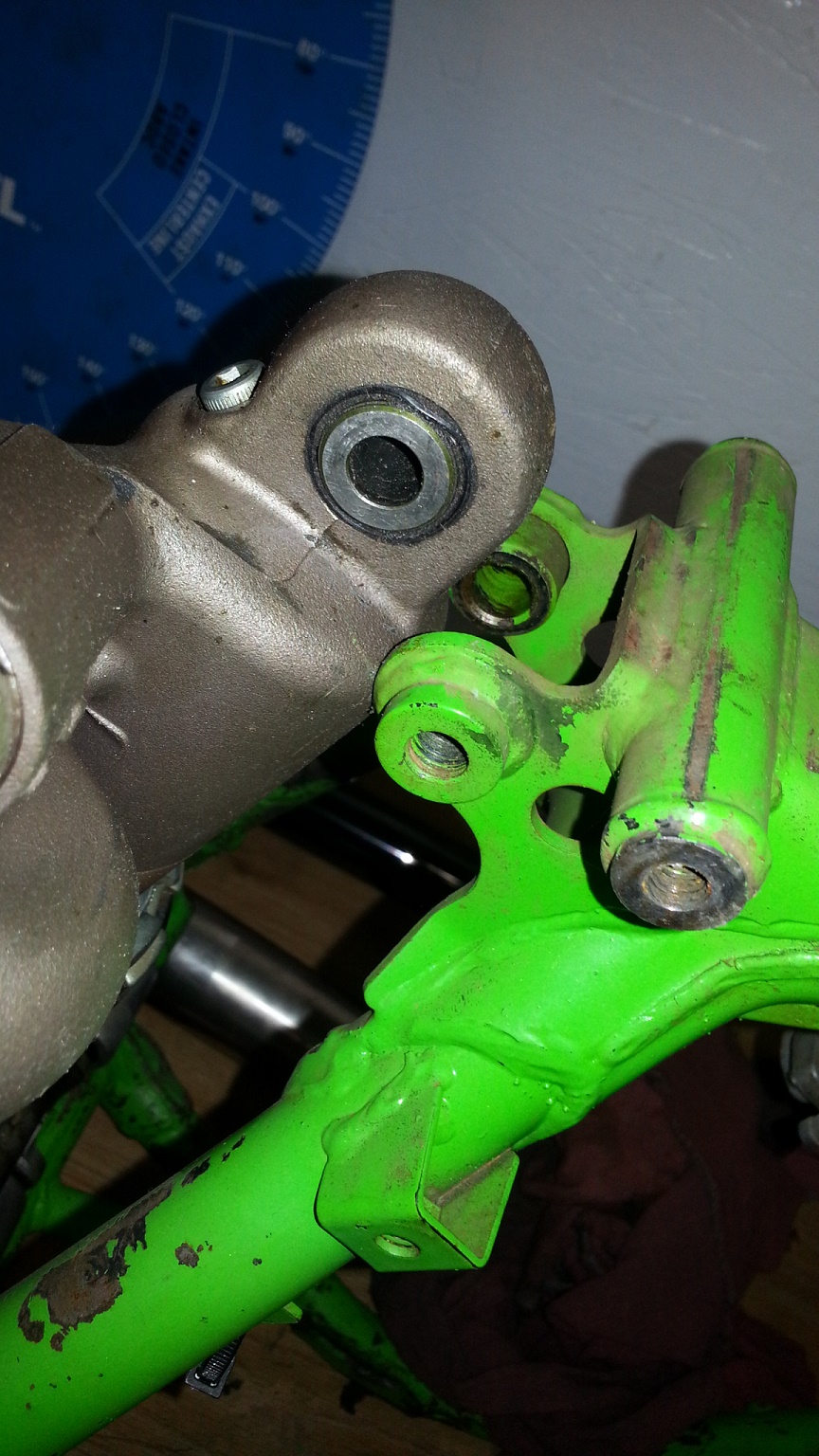

Here is a pic using the kx450f shock with it's stock clevis and bolted to the Uni Trak linkage

WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 103.jpg (414.73 KiB) Viewed 45577 times

[Sandblaster]

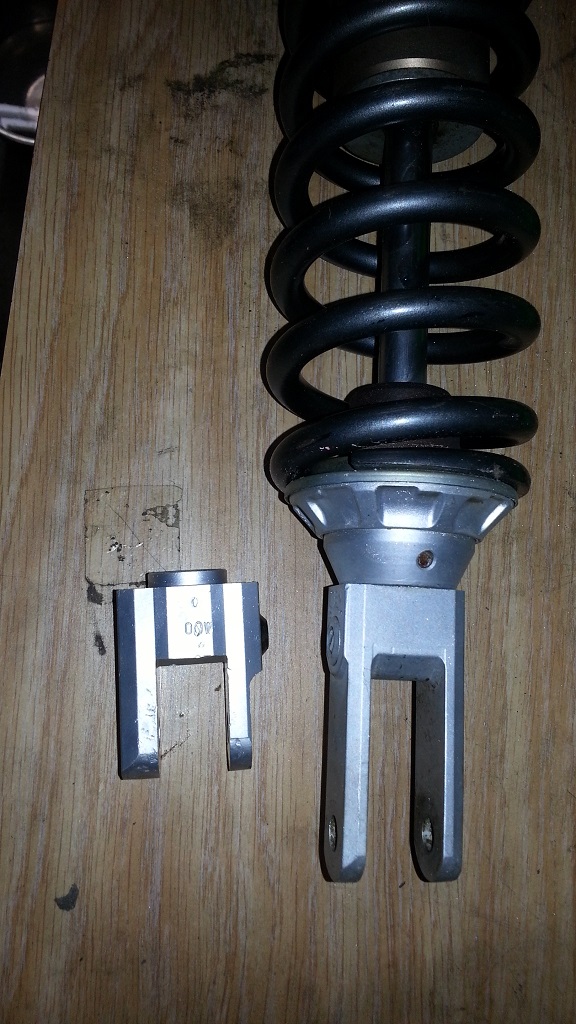

Again, note the difference in the clevis length

WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 104.jpg (229.42 KiB) Viewed 45577 times

[Sandblaster]

After swapping the clevis everything lines up perfectly

WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 105.jpg (208.76 KiB) Viewed 45577 times

WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 106.jpg (263.3 KiB) Viewed 45577 times

WWW.OEM-CYCLE.COM KX500 REAR SHOCK UPDATE 107.jpg (282.35 KiB) Viewed 45577 times

Looks great!
But it does not work
Note the location of the shock reservoir.
Note that the reservoir goes right through the middle of where the pipe is suppose to go.

[Sandblaster]

So the two choices I see is to reroute the pipe or move the reservoir...
More to come

[Sandblaster]

Here is a quick vid to help you better understand what I'm running into:

https://youtu.be/IKh9uMr2l8Y

[Ralow998]

Can I do this on my 91 KX 500 frame? Why does it look like the top bearing isn't pressed in? Can I use a shock from a KX 250F of the same year?
