BUILDING A STREET LEGAL KX500 SUPERMOTO

[Sandblaster]

I worked a bit today making a new muffler.
I took a FMF Power Core and shortened it 5.5"
In Oregon we can get a sound ticket for being too loud in the woods, sand dunes or any other state ran riding area.
On the street, you can run whatever.
Makes perfect sense to me

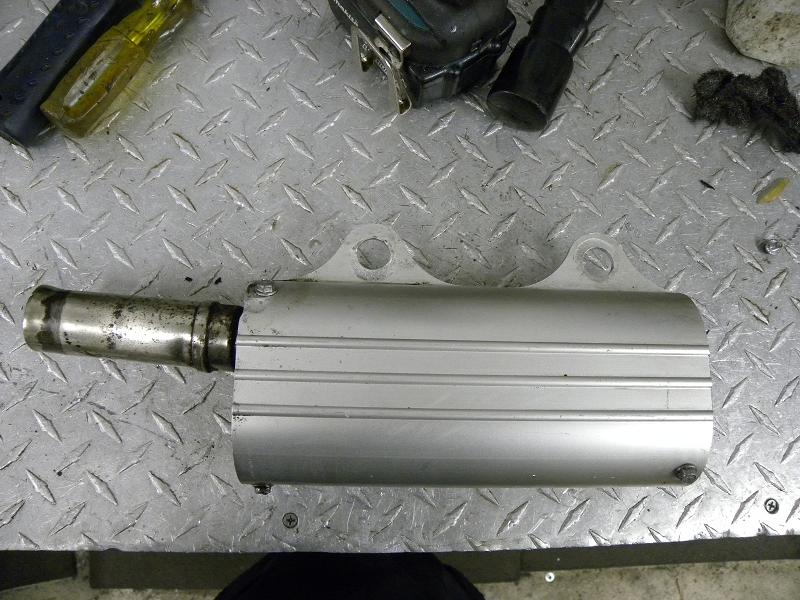

Here is what I started with:

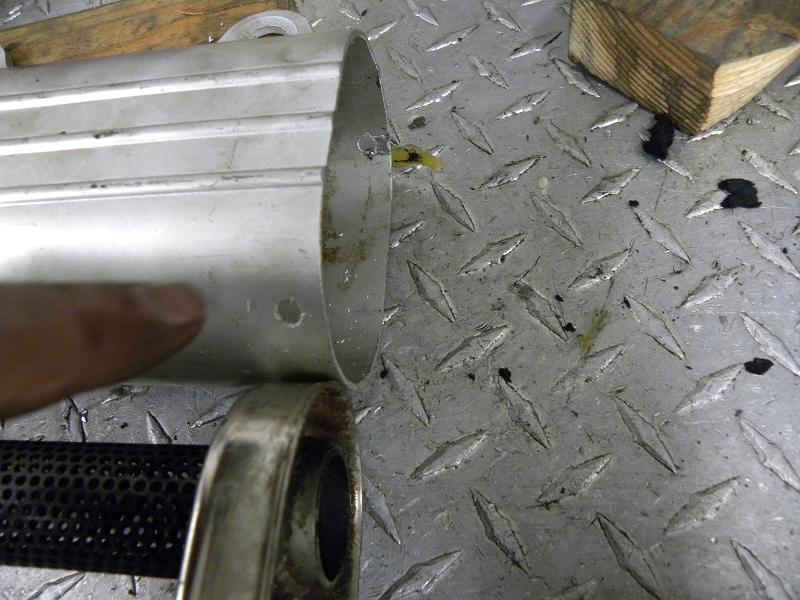

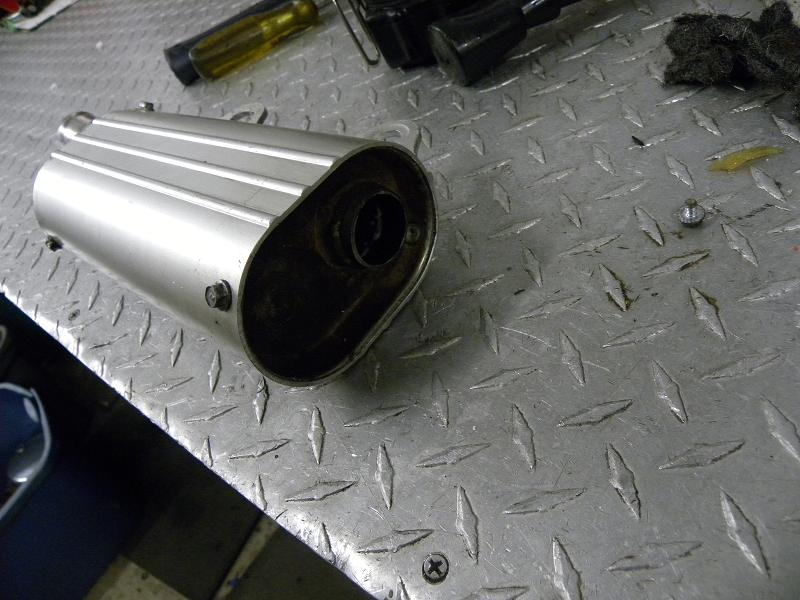

First step was disassembly.
Whoever owned this before replaced the packing and sealed both ends with silicone.
I would not recommend using silicone to seal your muffler ends if you ever plan on packing the muffler again as it was very difficult to get it apart.
Since I was cutting mine anyway it wasn't as big of a deal.

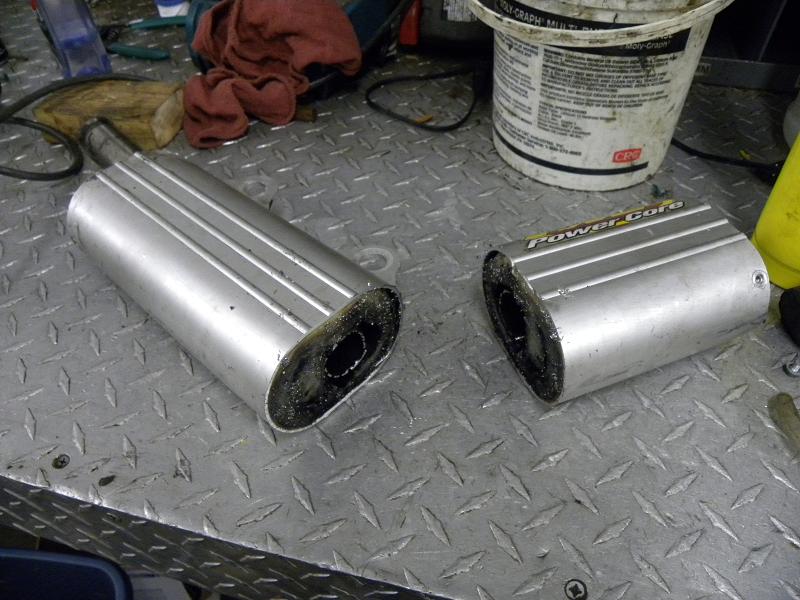

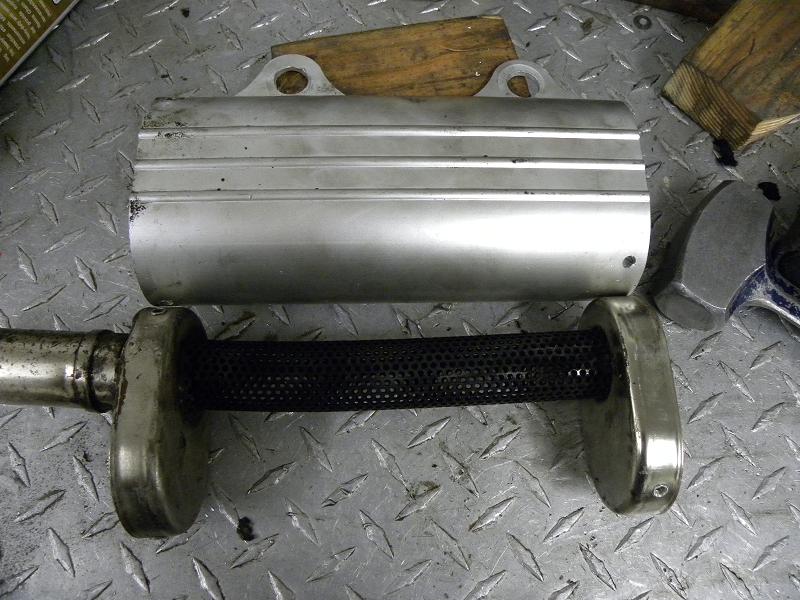

With the muffler cut I removed both end and the packing material.

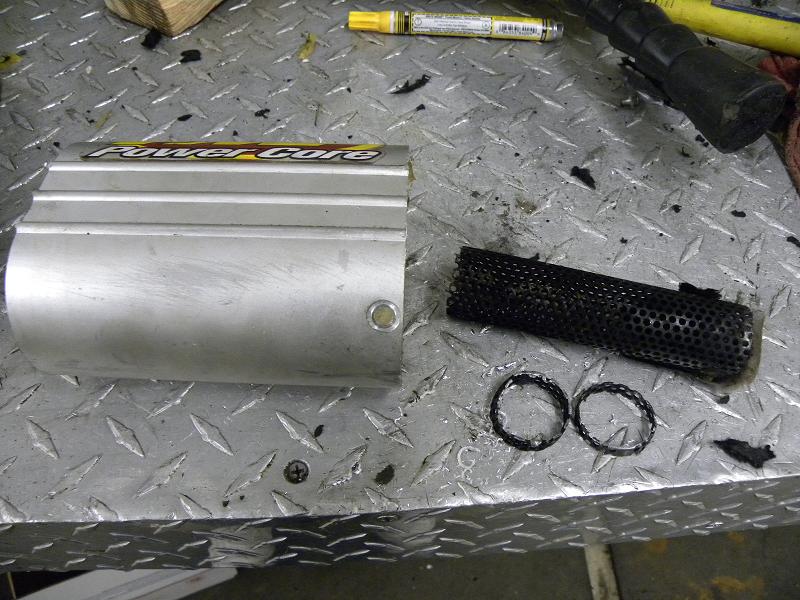

With all the material removed I cut the inner perforated tube to the correct length.


Then I drilled the new end cap holes.


New packing material....


Assembled it.




It took about an hour to do this because I had to go next door to a machine shop and borrow a water cooled band saw to cut the muffler in half.....
Sometimes it adds to your build time because you need to say hi to everyone, answer all their questions ect...
Still I am very happy with how this turned out.
Next, I am thinking about beveling the bottom....
So stay tuned....

[Sandblaster]

OK, I couldn't leave well enough alone.

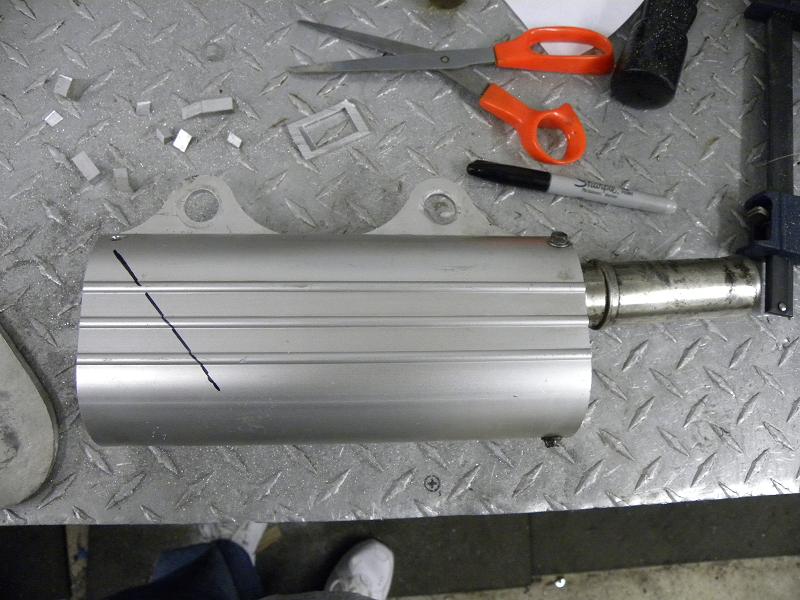

After marking out my cut lines I decided to start cutting

KX500 SM MUFFLER MOD1

KX500 SM MUFFLER MOD1.JPG (82.4 KiB) Viewed 14899 times

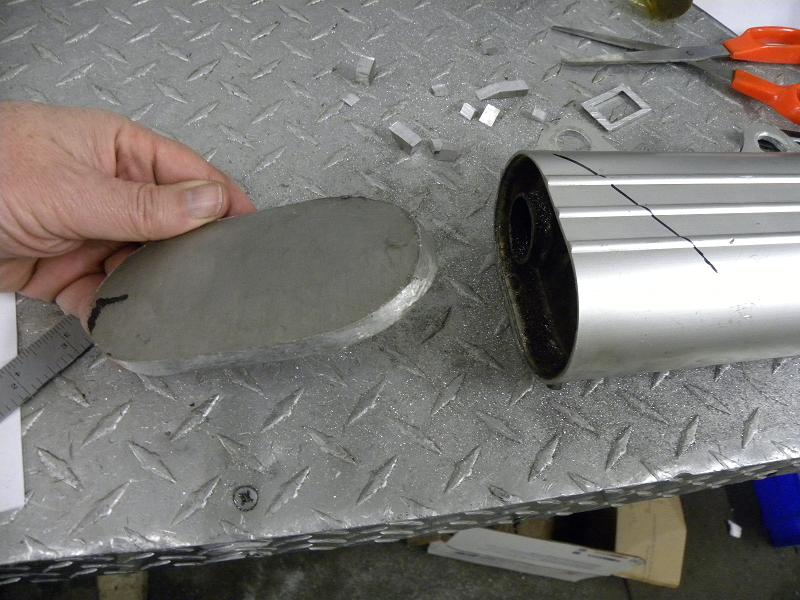

KX500 SM MUFFLER MOD2

KX500 SM MUFFLER MOD2.JPG (85.2 KiB) Viewed 14899 times

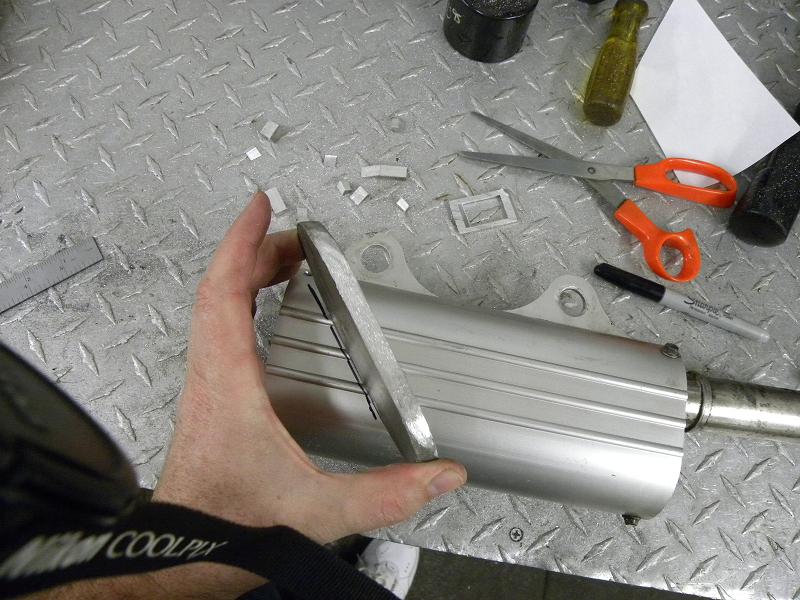

KX500 SM MUFFLER MOD3

KX500 SM MUFFLER MOD3.JPG (93.56 KiB) Viewed 14899 times

A few more tweaks and a trip to the weld shop and I'll have something a little different.

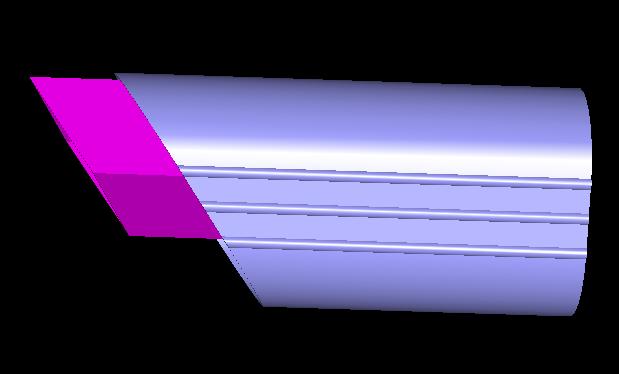

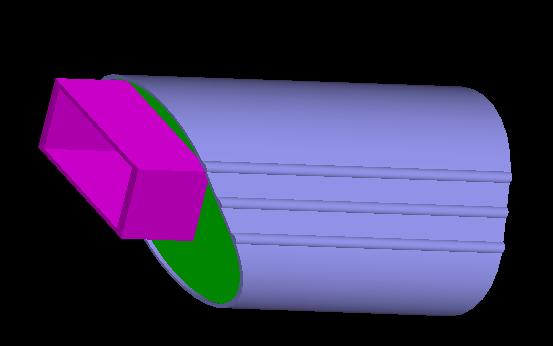

I also ordered some square tubing for the outlet....

KX500 SM MUFFLER MOD4.JPG (15.11 KiB) Viewed 14899 times

KX500 SM MUFFLER MOD5.JPG (11.82 KiB) Viewed 14899 times

More to come...

[Sandblaster]

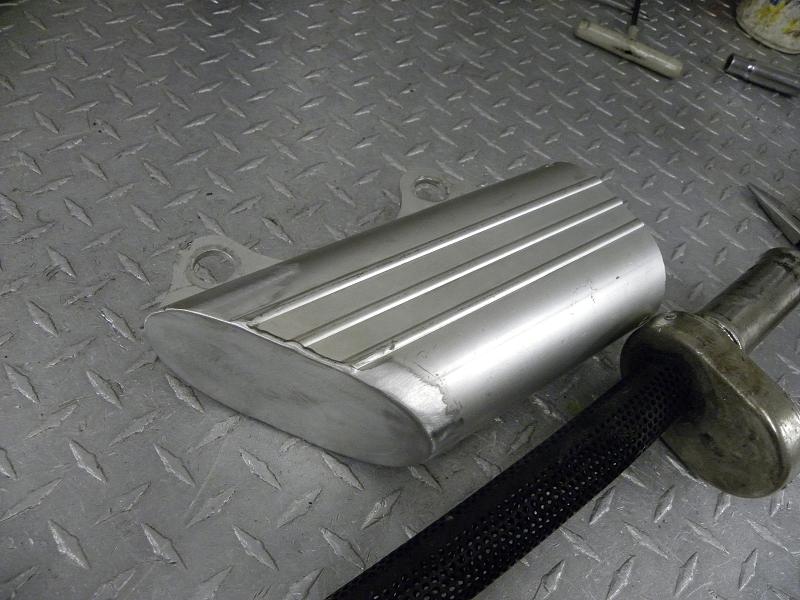

Here is the project after first stage welding.

KX500 SM MUFFLER MOD6.JPG (77.93 KiB) Viewed 14898 times

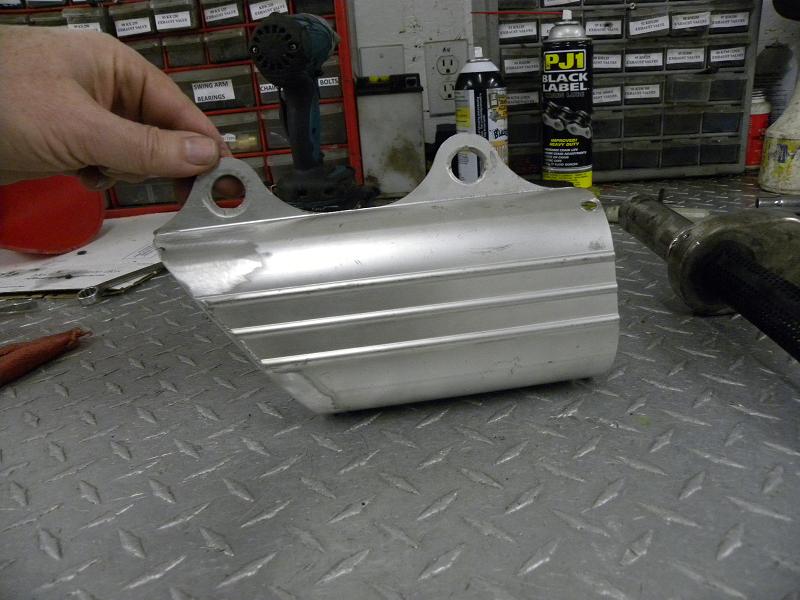

KX500 SM MUFFLER MOD7.JPG (78.08 KiB) Viewed 14898 times

More to come after I get my square tubing...

[Sandblaster]

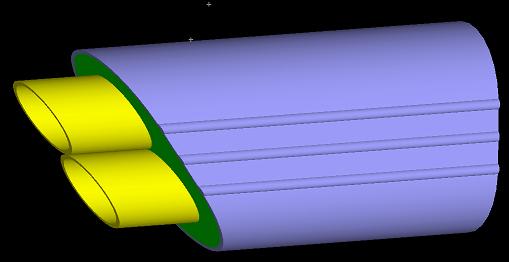

And then I started thinking about.....

KX500 SM MUFFLER MOD8.JPG (12.54 KiB) Viewed 14896 times

[Sandblaster]

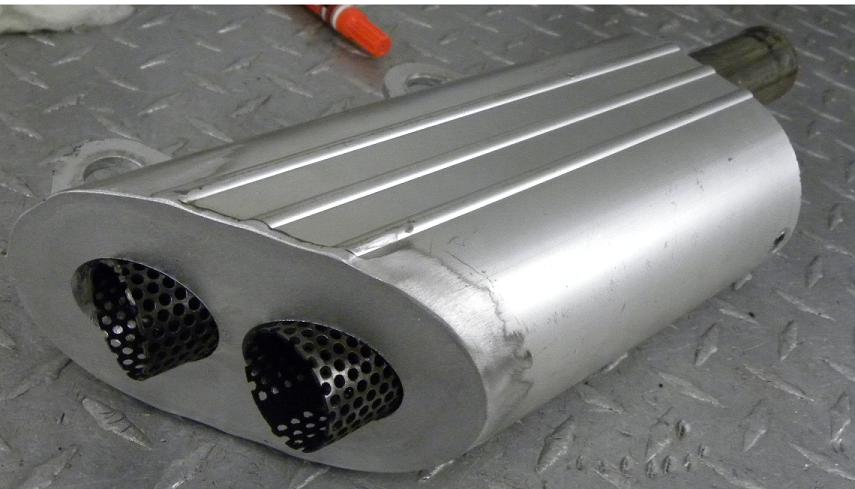

Here's where I am at tonight.

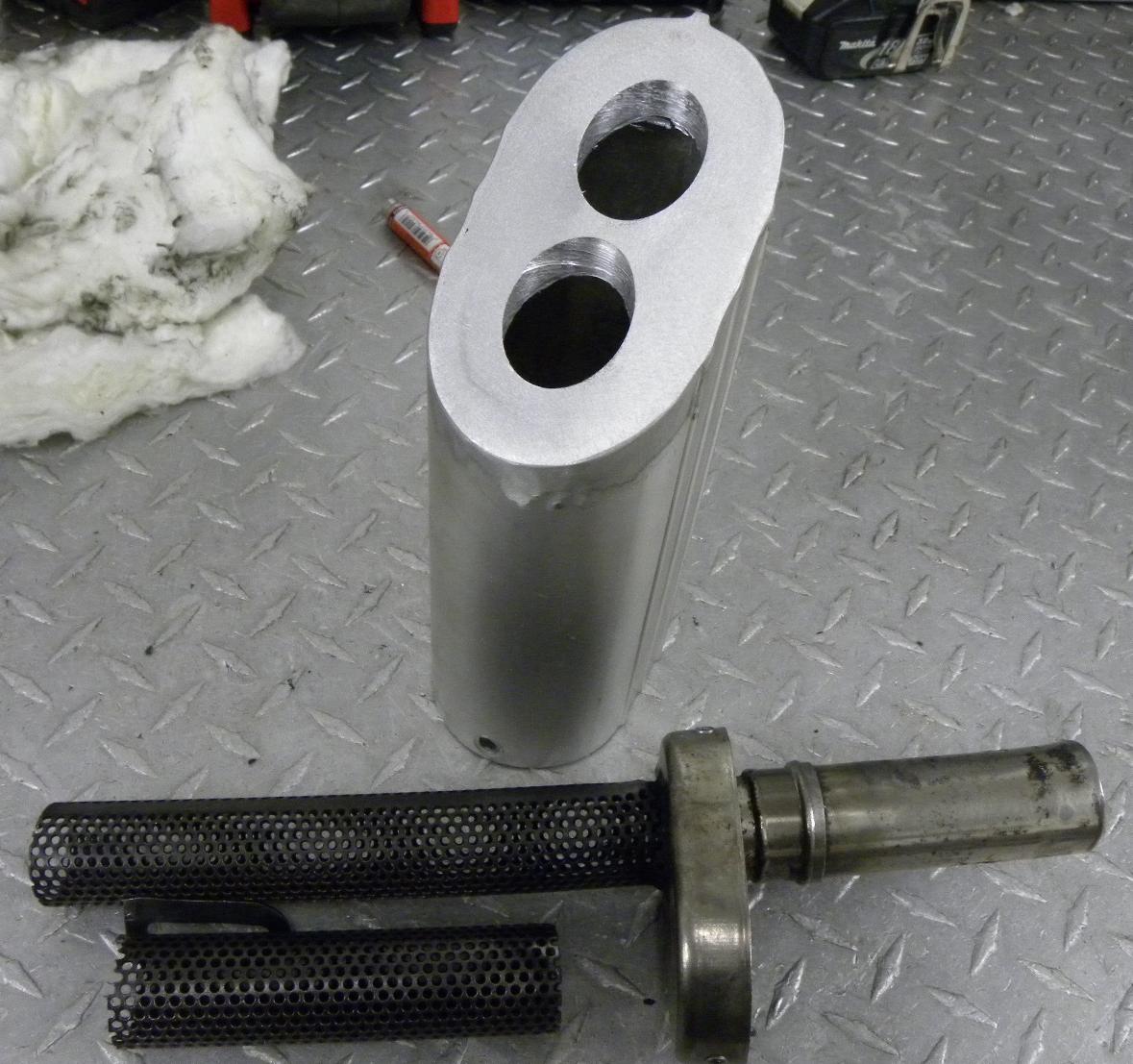

KX500 SM MUFFLER MOD8-1.JPG (162.64 KiB) Viewed 14895 times

KX500 SM MUFFLER MOD8-2.JPG (49.08 KiB) Viewed 14895 times

Now I'm waiting for the aluminum tubing to come in.

[Sandblaster]

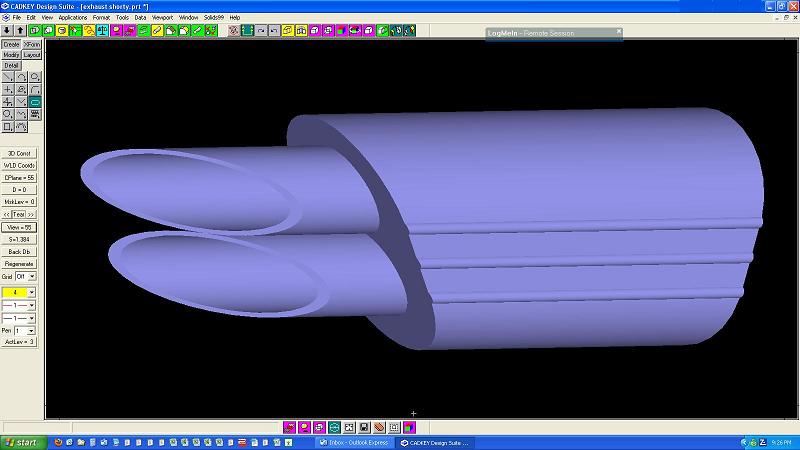

Or, perhaps I'll do something like this:

k5sm muffler.JPG (42.4 KiB) Viewed 14885 times

[Sandblaster]

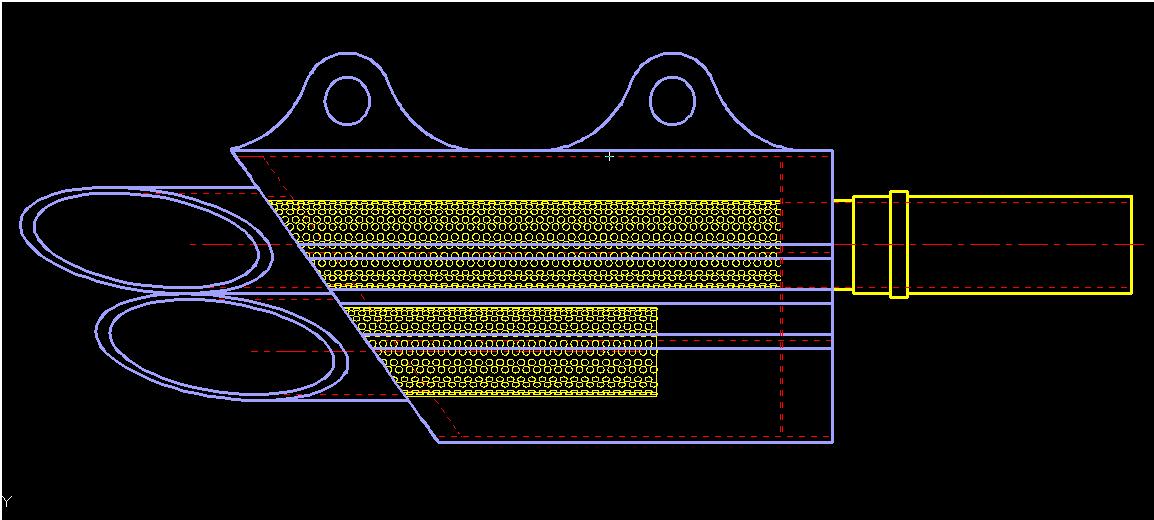

I was asked how I was going to make the internal baffling.
This is a rough idea.
I am tying the two pieces of internal baffling with some small pieces of plate not shown in the pics.
The lower tube will be functional but the upper tube will take the major volume of exhaust.

k5sm muffler baffel.JPG (95.38 KiB) Viewed 14873 times

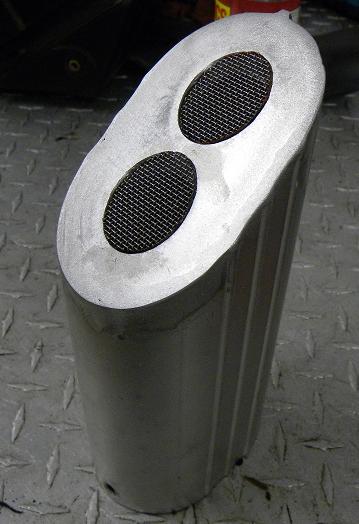

Even though this will be primarily for street use I am installing some stainless steel mesh for a spark arrestor.

KX500 SM MUFFLER MOD ARRESTOR.JPG (29.29 KiB) Viewed 14873 times

[Sandblaster]

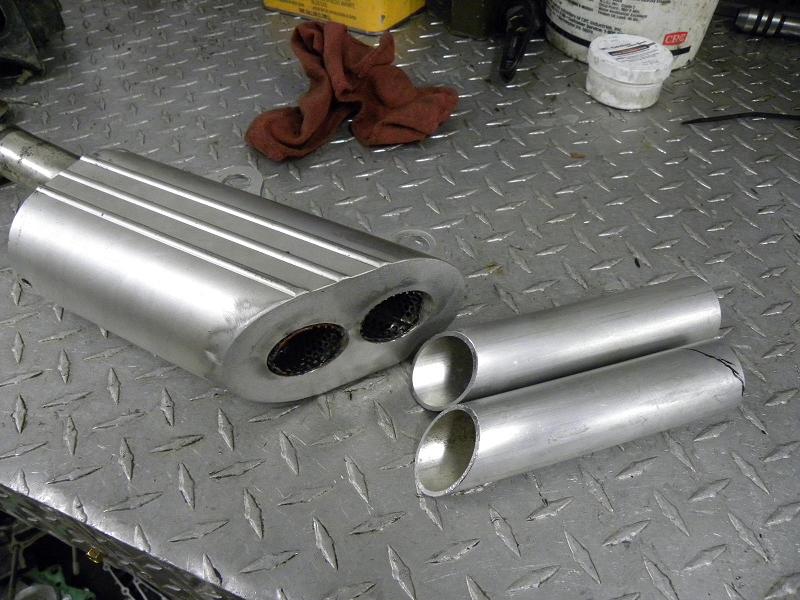

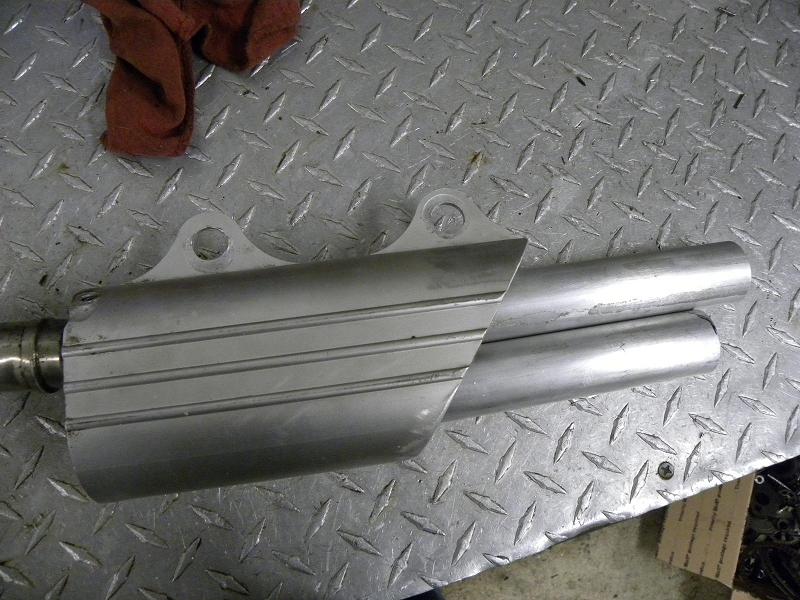

The aluminum tubing arrived today so I cut it in half at the approximate finish angle and took the pieces to have them tig welded.

KX500 SM MUFFLER MOD8-3.JPG (89.29 KiB) Viewed 14867 times

KX500 SM MUFFLER MOD8-4.JPG (92.44 KiB) Viewed 14867 times

Once the pieces are tigged together I will finish shaping them and then have them tigged to the muffler body.

[Steve O]

Now your just teasing us!

[Sandblaster]

Now your just teasing us!

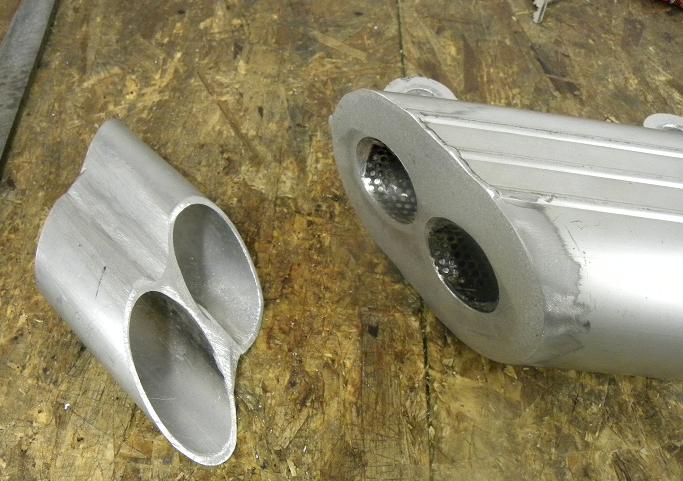

That's not teasing, this is

KX500 SM MUFFLER MOD8-5.JPG (59.32 KiB) Viewed 14264 times
