Post by **Sandblaster** » Mon Jun 25, 2018 2:56 pm

Ok... Finally, it's ready for some touch up welds, then off to sandblast, and finally Powder coat..
Unimpressive to say the least but it's a big step forward..

: 20180624_150251.jpg (484.51 KiB) Viewed 10409 times

Post by **Sandblaster** » Tue Jun 26, 2018 6:53 pm

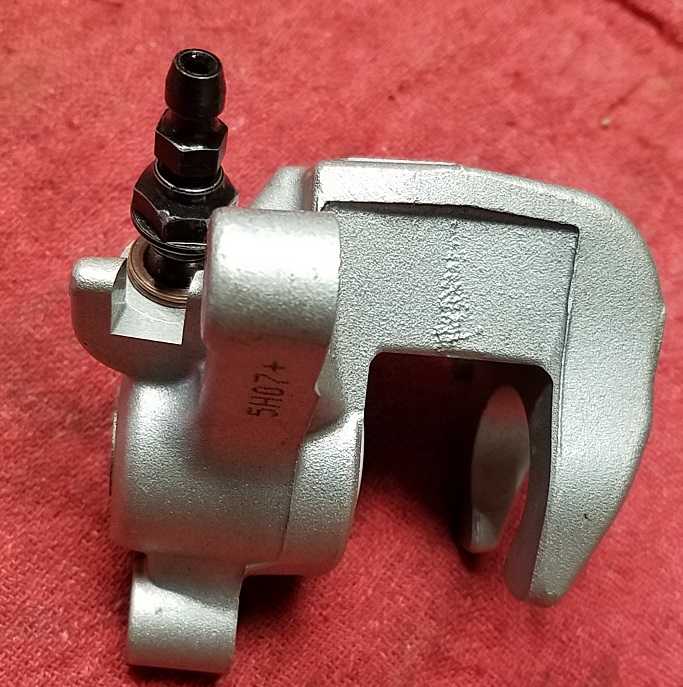

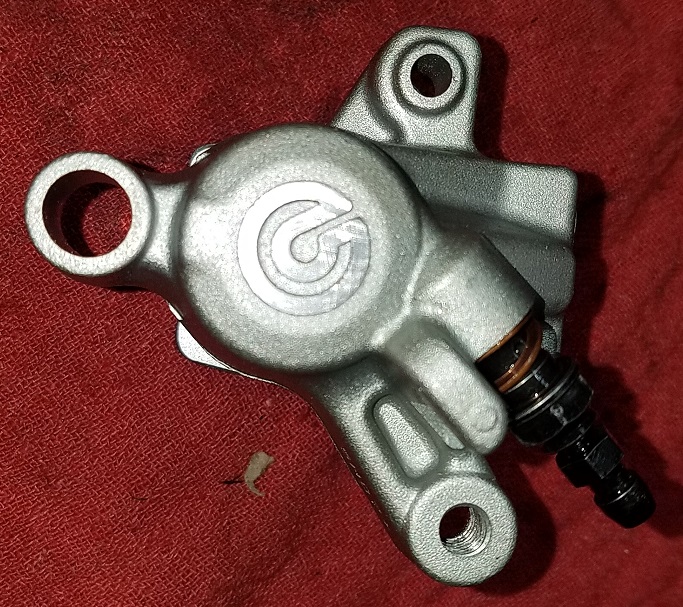

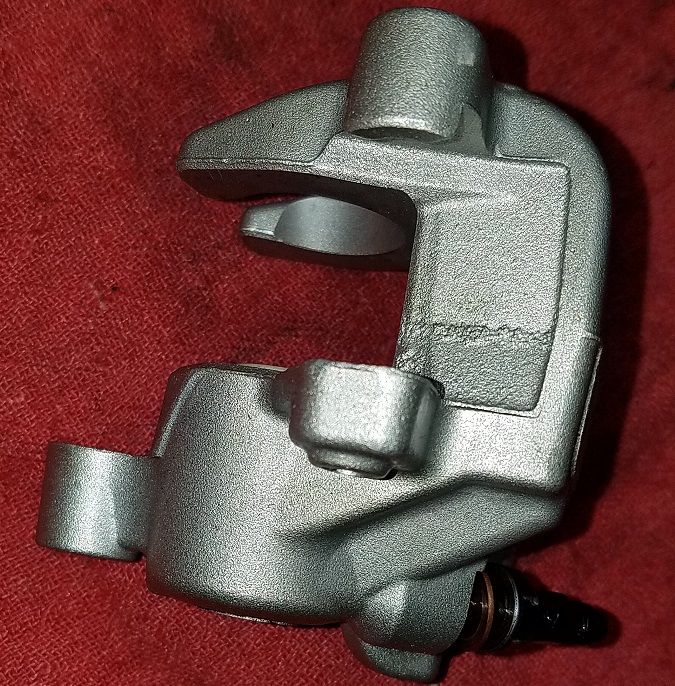

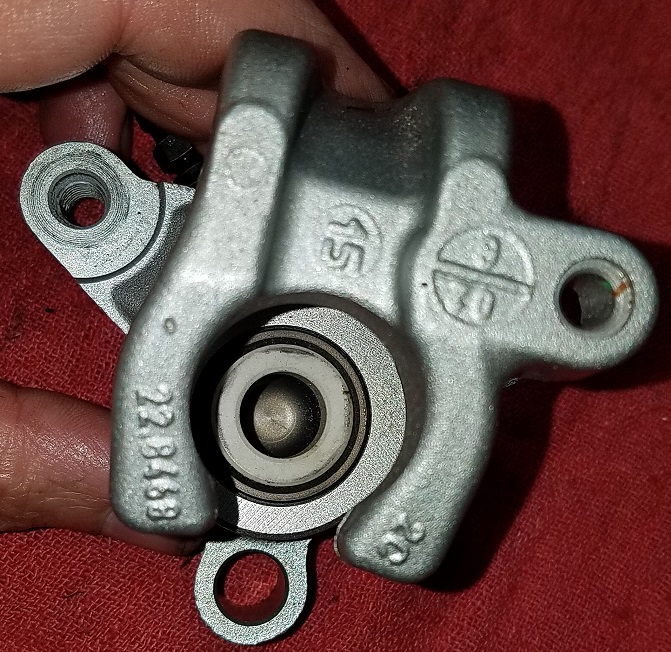

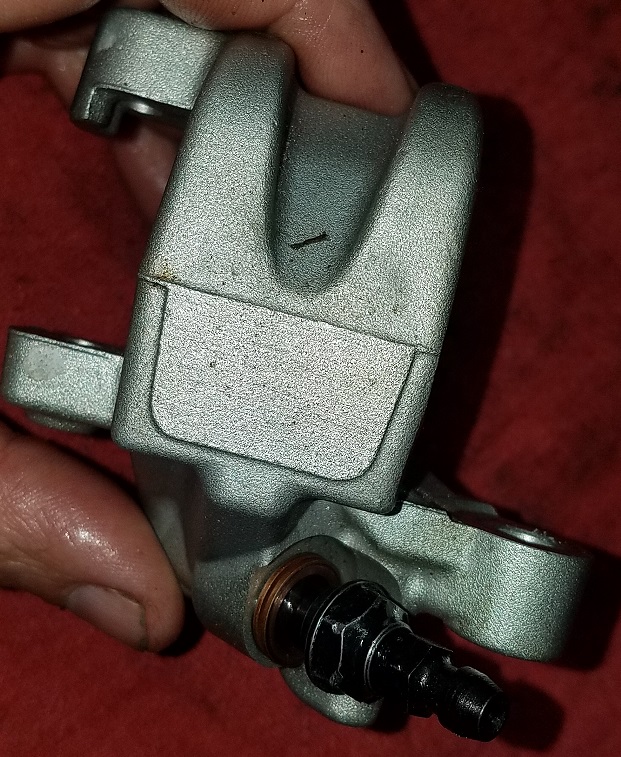

It's time to start working on the rear brake caliper..
Here is what I am starting with..
The goal is to get rid of all the casting flaws, markings, logos, ect.

: 20180625_194242.jpg (203.42 KiB) Viewed 10402 times

: 20180625_194249.jpg (230.13 KiB) Viewed 10402 times

: 20180625_194254.jpg (263.35 KiB) Viewed 10402 times

: 20180625_194257.jpg (216.73 KiB) Viewed 10402 times

: 20180625_194301.jpg (225.65 KiB) Viewed 10402 times

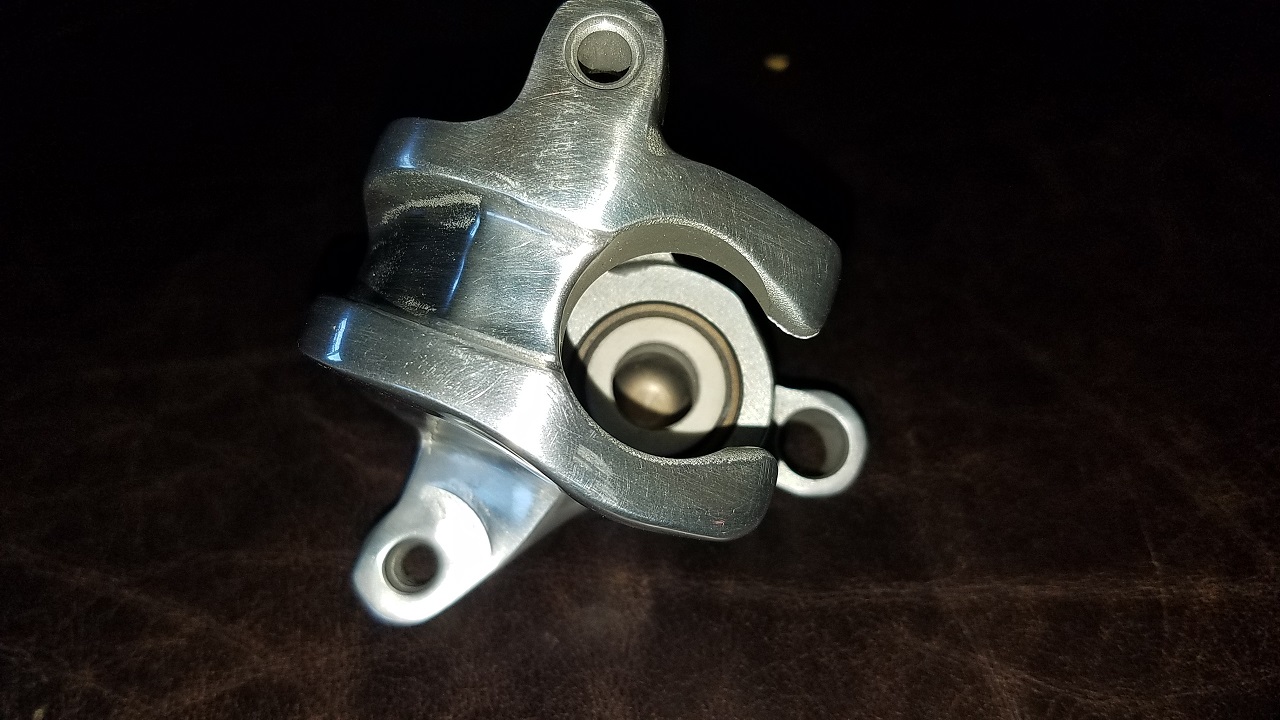

Post by **Sandblaster** » Thu Jul 12, 2018 2:23 am

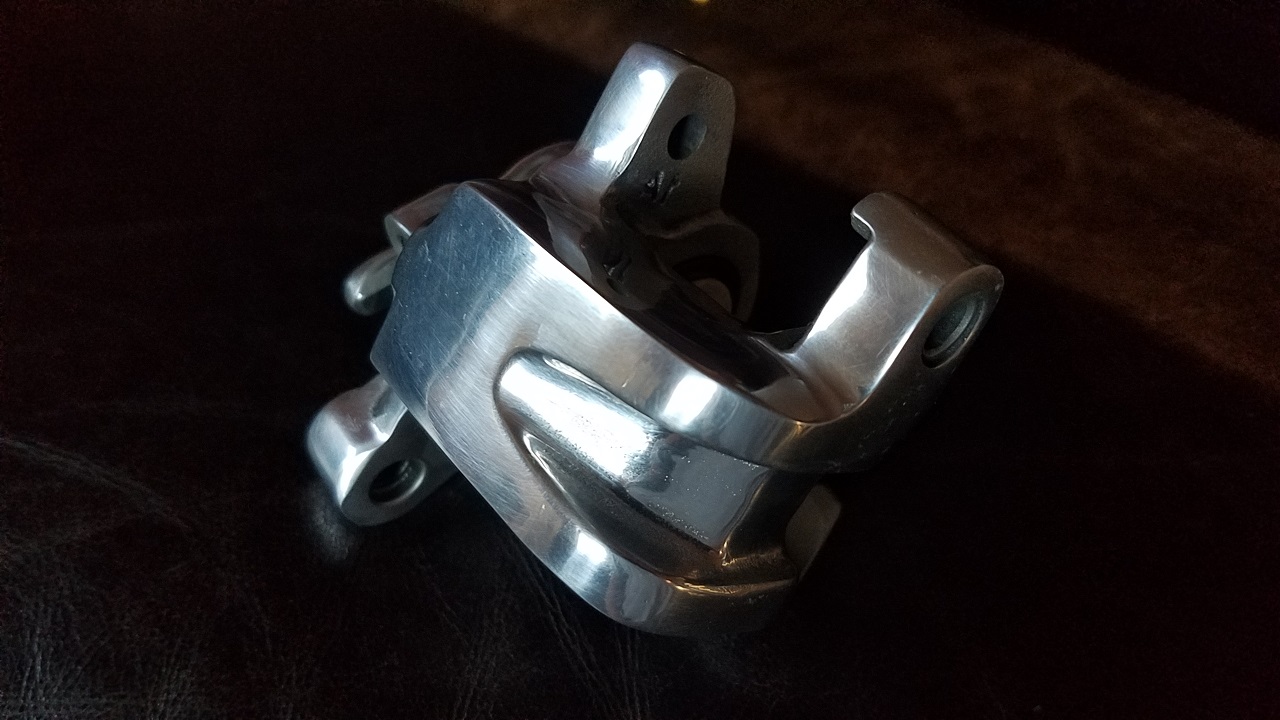

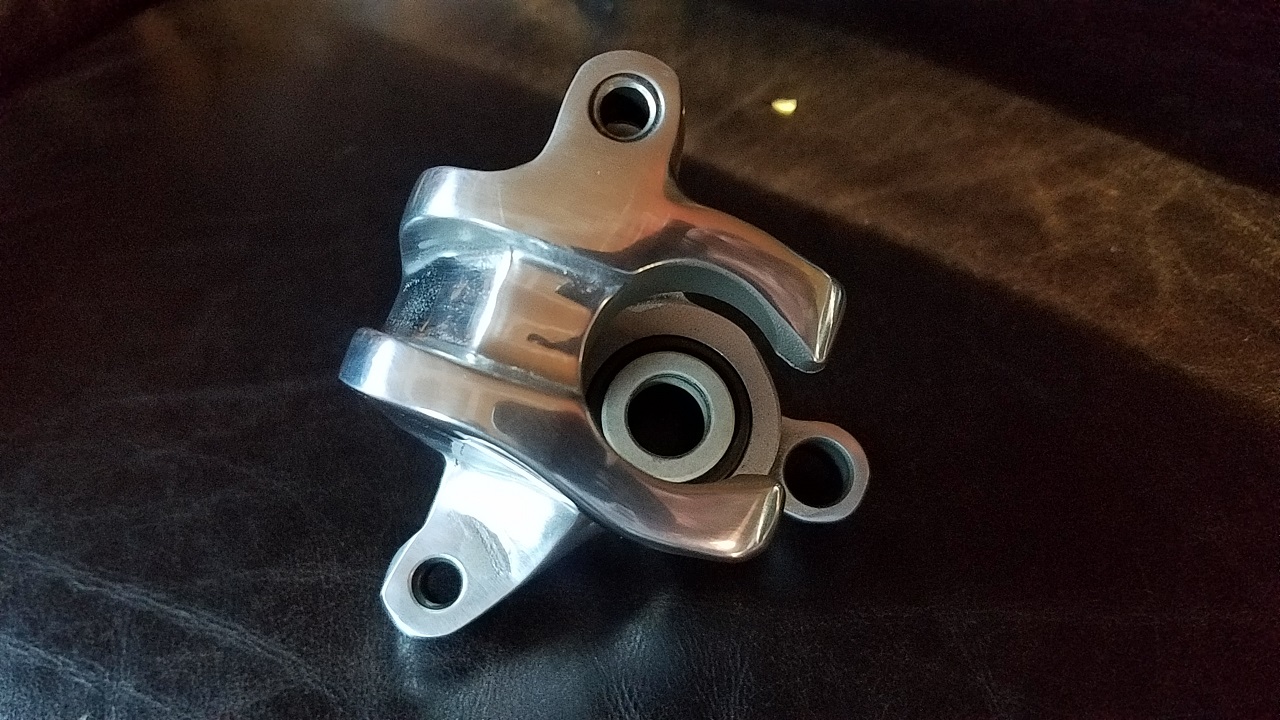

Not completely done... but you can get the idea..

: kx guru ktx500e 101.jpg (258.57 KiB) Viewed 10344 times

: kx guru ktx500e 102.jpg (350.38 KiB) Viewed 10344 times

: kx guru ktx500e 103.jpg (229.08 KiB) Viewed 10344 times

: kx guru ktx500e 104.jpg (361.21 KiB) Viewed 10344 times

Post by **Sandblaster** » Fri Jul 13, 2018 5:06 pm

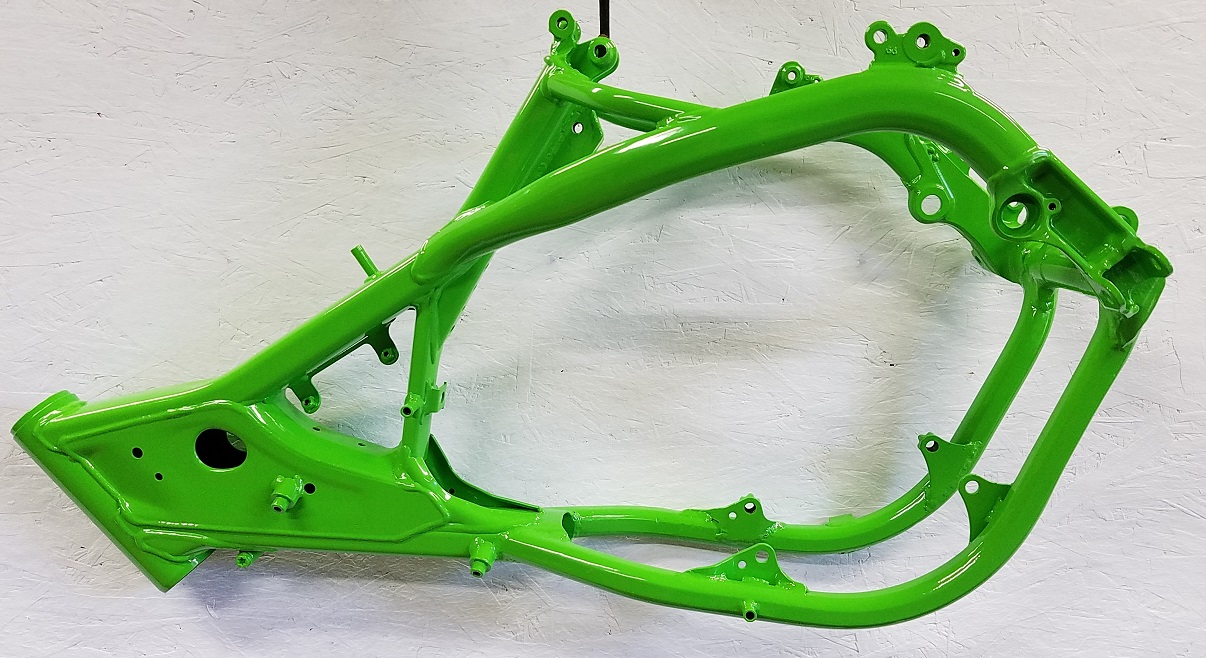

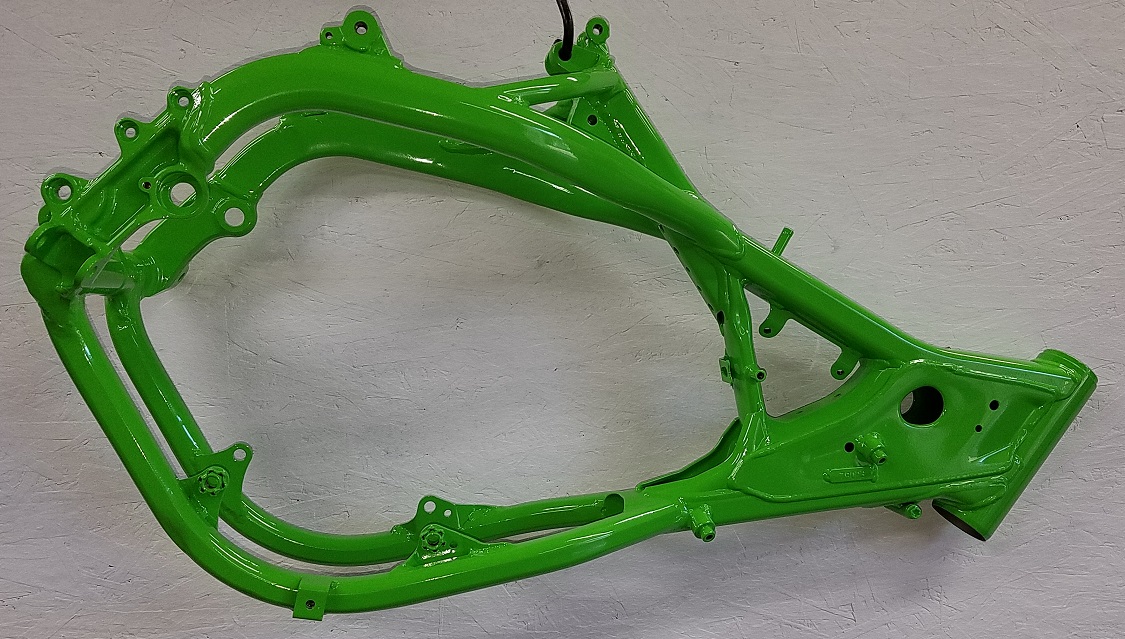

Back from Powder coating..

: KX GURU RACING POWDER COATING THE FRAME KTX500E 101.jpg (307.89 KiB) Viewed 10336 times

: KX GURU RACING POWDER COATING THE FRAME KTX500E 102.jpg (312.3 KiB) Viewed 10336 times

Post by **Sandblaster** » Fri Jul 13, 2018 5:07 pm

Upper mounts are done..

: KX GURU RACING UPPER ENGINE MOUNTS KTX500E 103.jpg (396.1 KiB) Viewed 10335 times

Post by **Sandblaster** » Thu Jul 19, 2018 3:26 am

This cylinder was beat...bad...
It was sleeved and whoever did it had the sleeve badly misaligned not only vertically but also on the radius

Because it was in such bad condition and I really don't like sleeves I never thought I would be using it.
But, I have some test I want to do and if I jack this cylinder up I don't really care...
Ok... I do care but not as much as some of the nicer cylinder I have

Before..

: KX GURU RACING KX500 CYLINDER 101.jpg (292.33 KiB) Viewed 10304 times

Before we sent it out to have it bored and decked we did a rough bore and then did some preliminary port work.
Then we sent it to Tom Morgan Racing to have it final bored and decked...
Tom does very nice work.
I have not checked the bore yet but I'm sure it will mic out perfectly... or close enough for this cylinder

After
