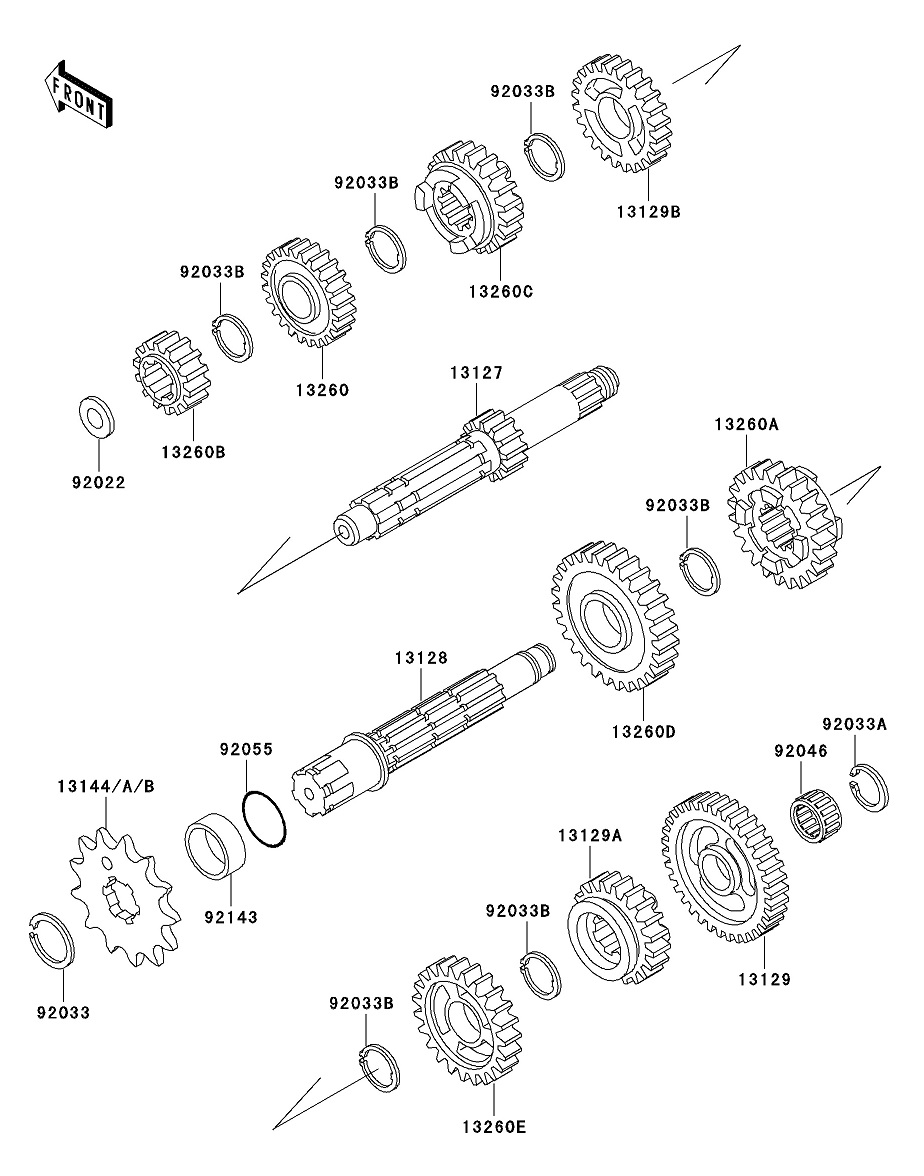

- WWW.OEM-CYCLE.COM KX500 TRANSMISSION PICTURE.jpg (202.19 KiB) Viewed 6190 times

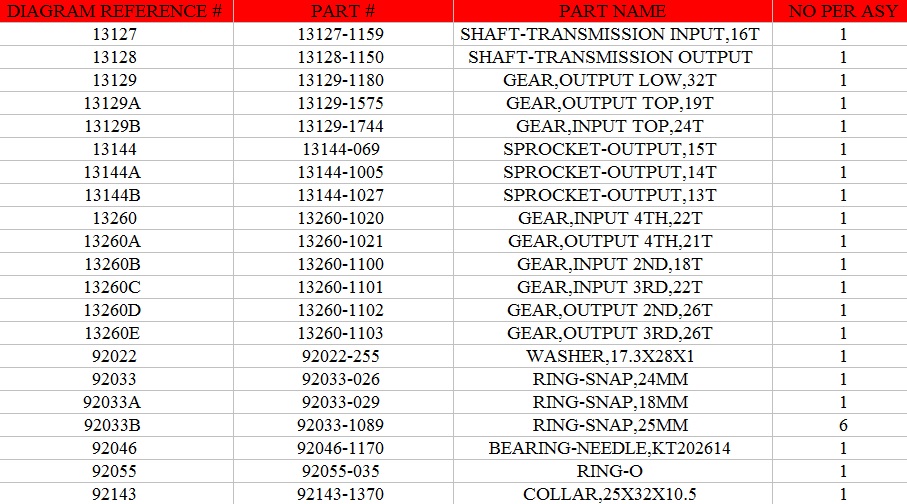

- WWW.OEM-CYCLE.COM KX500 TRANSMISSION PARTS NUMBERS.jpg (194.86 KiB) Viewed 6190 times
KX500 ENGINE PARTS DIAGRAMS
KX500 Kawasaki Measurements, Specs, pics
-
Sandblaster
- Posts: 6318
- Joined: Thu Jun 07, 2012 3:50 pm
- Location: Eugene, OR
- Contact:
Re: KX500 ENGINE PARTS DIAGRAMS
Post by Sandblaster »
If bikes are for kids I'll never grow up.
