Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sat Mar 25, 2017 1:50 am
by Sandblaster

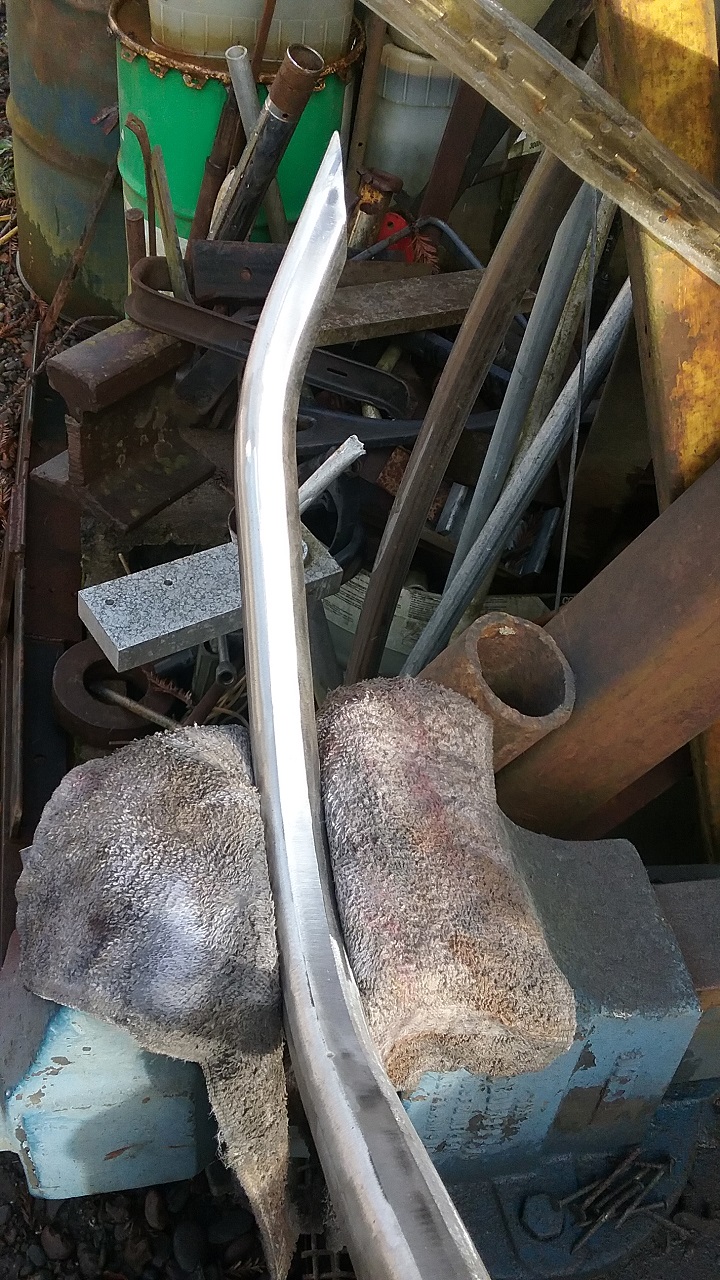

Jason has the 07 frame rails cleaned up and ready to start fitting on the 16 frame..
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 108.jpg (430.22 KiB) Viewed 10738 times
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 109.jpg (279.26 KiB) Viewed 10738 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Mon Apr 03, 2017 12:36 am
by Sandblaster

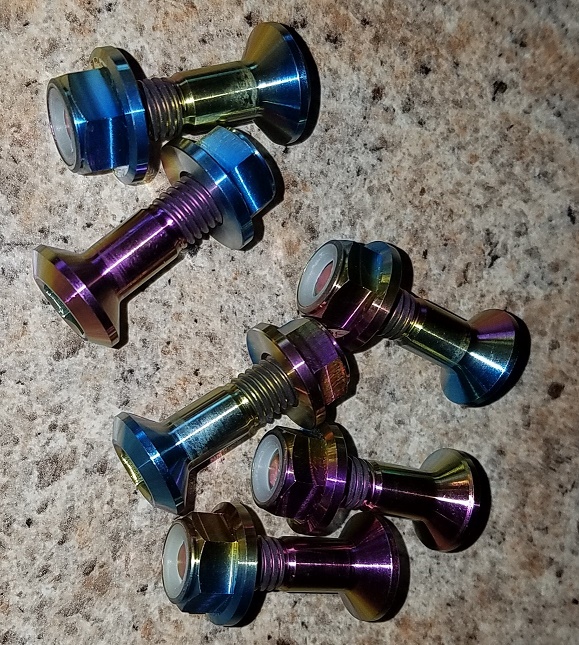

Just some small bits and pieces.. But when your trying to shave weight titanium has a lot of advantages..
- 1491175285072_5683897611_d38d5167.jpg (250.05 KiB) Viewed 10718 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sun Apr 09, 2017 9:24 pm
by Sandblaster

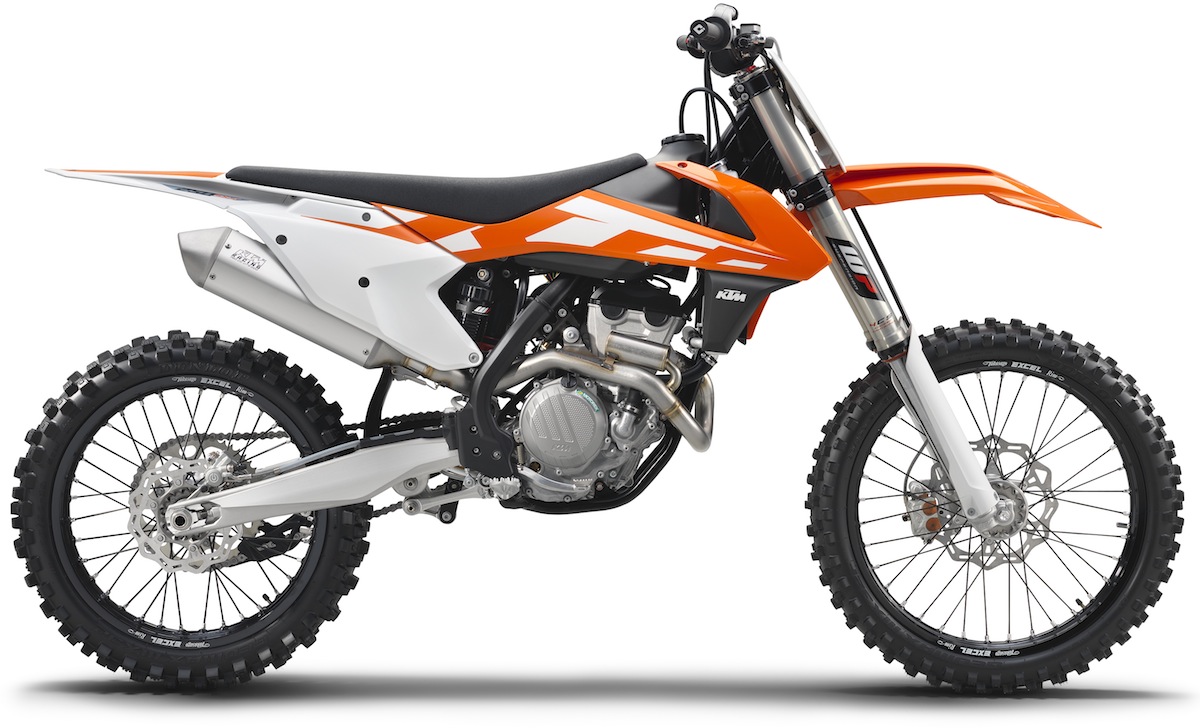

Remember what this use to look like...
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 111.jpg (206.86 KiB) Viewed 10697 times

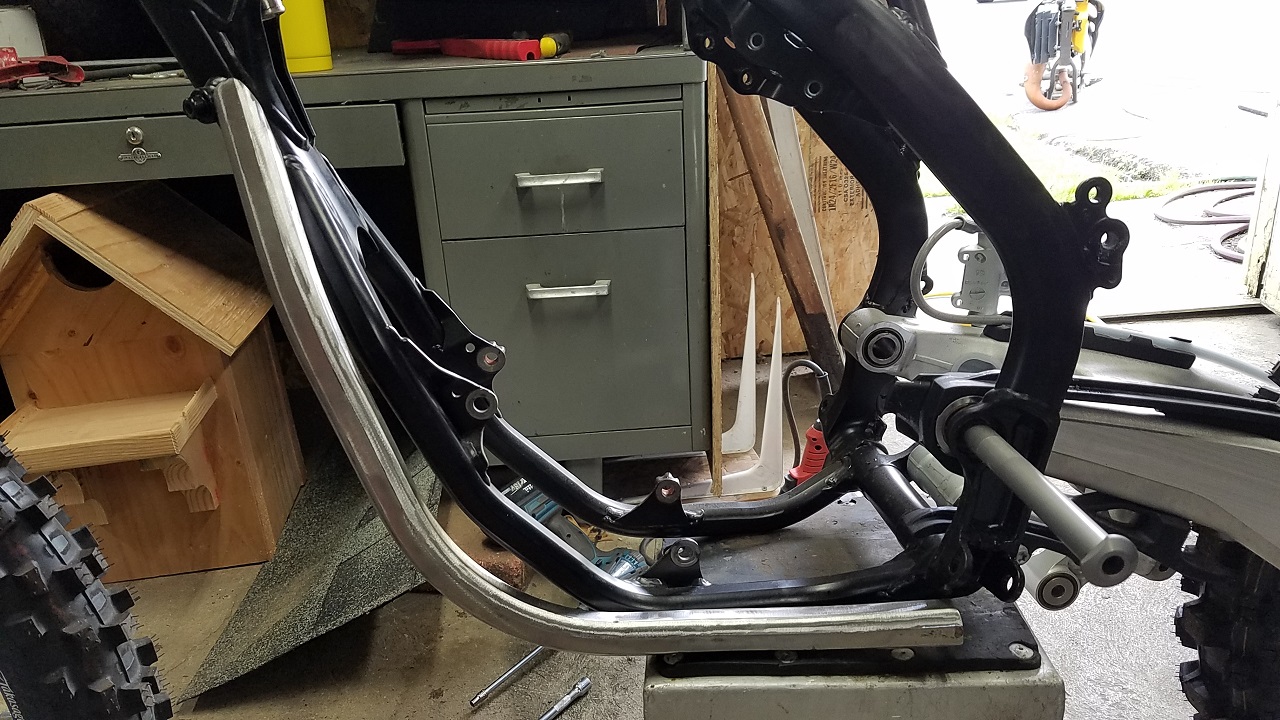

This pic shows why we decided to cut up a 450 frame in order to use the frame rails
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 112.jpg (365.68 KiB) Viewed 10697 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sun Apr 09, 2017 9:28 pm
by Sandblaster

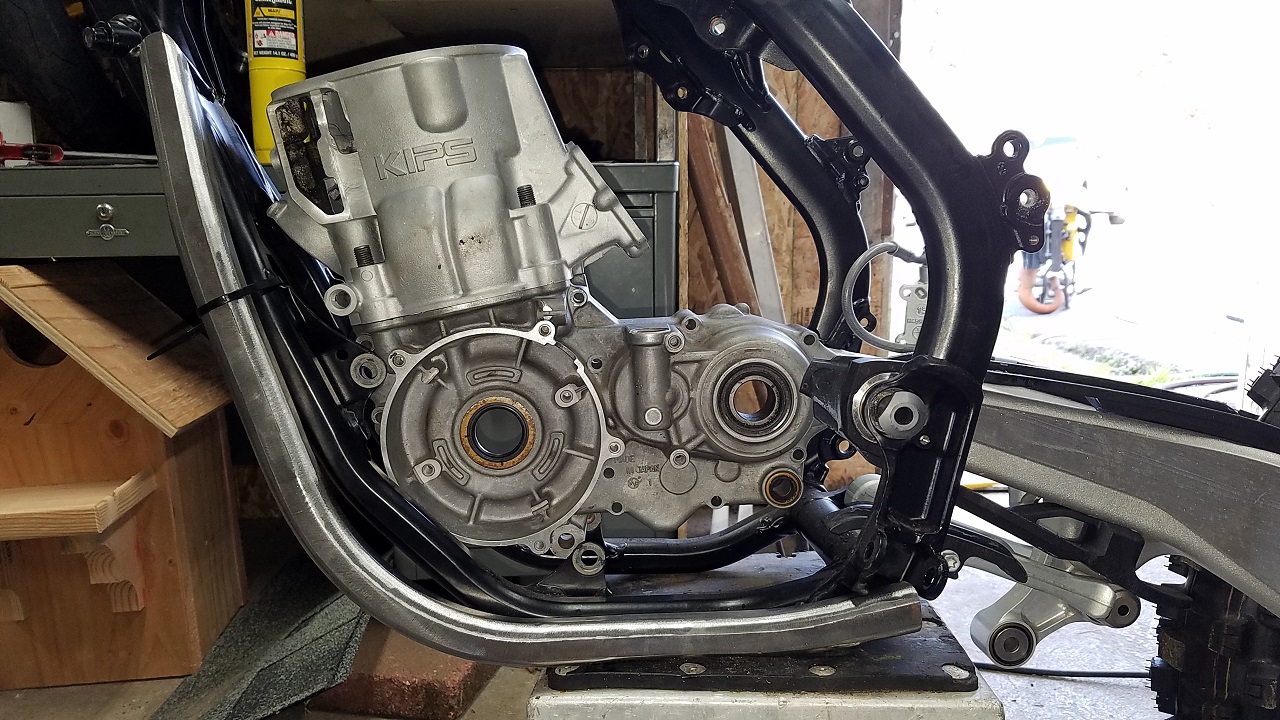

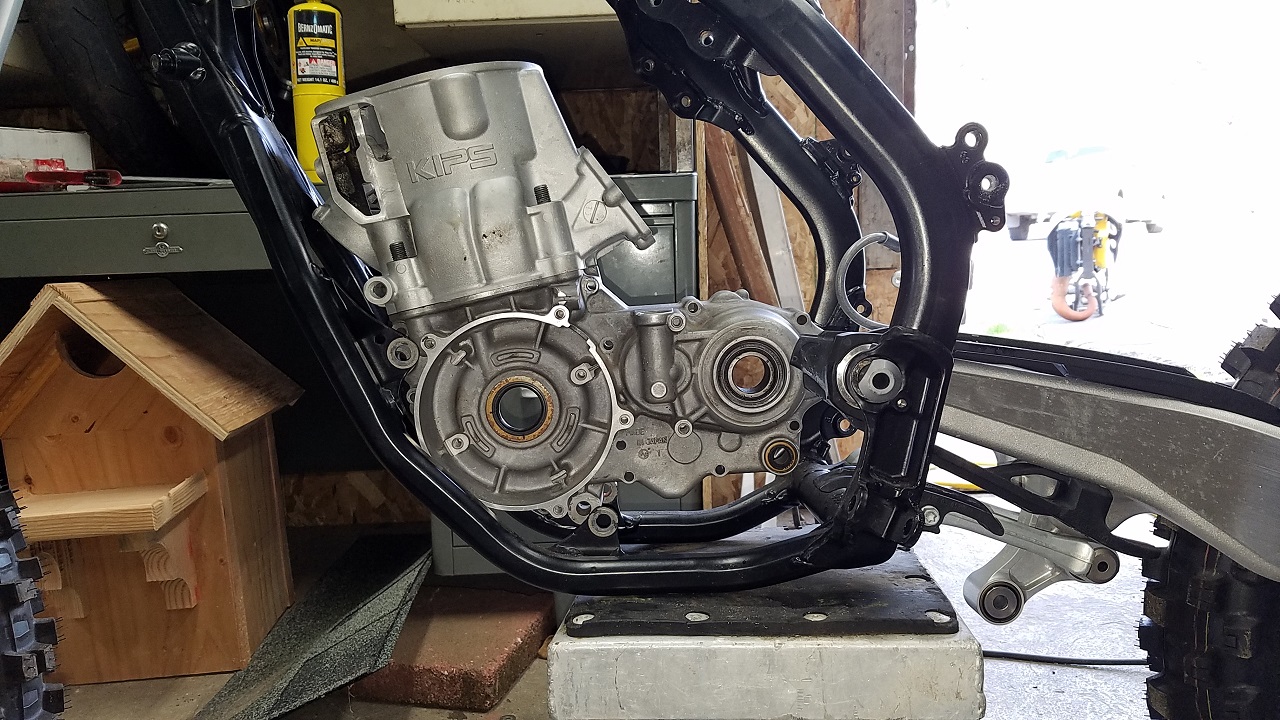

With a KX500 case drilled out to fit the KTM swingarm pin and my mock up cylinder we are checking the clearance and engine angle
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 113.jpg (393.98 KiB) Viewed 10696 times
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 114.jpg (399.75 KiB) Viewed 10696 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sun Apr 09, 2017 9:37 pm
by Sandblaster

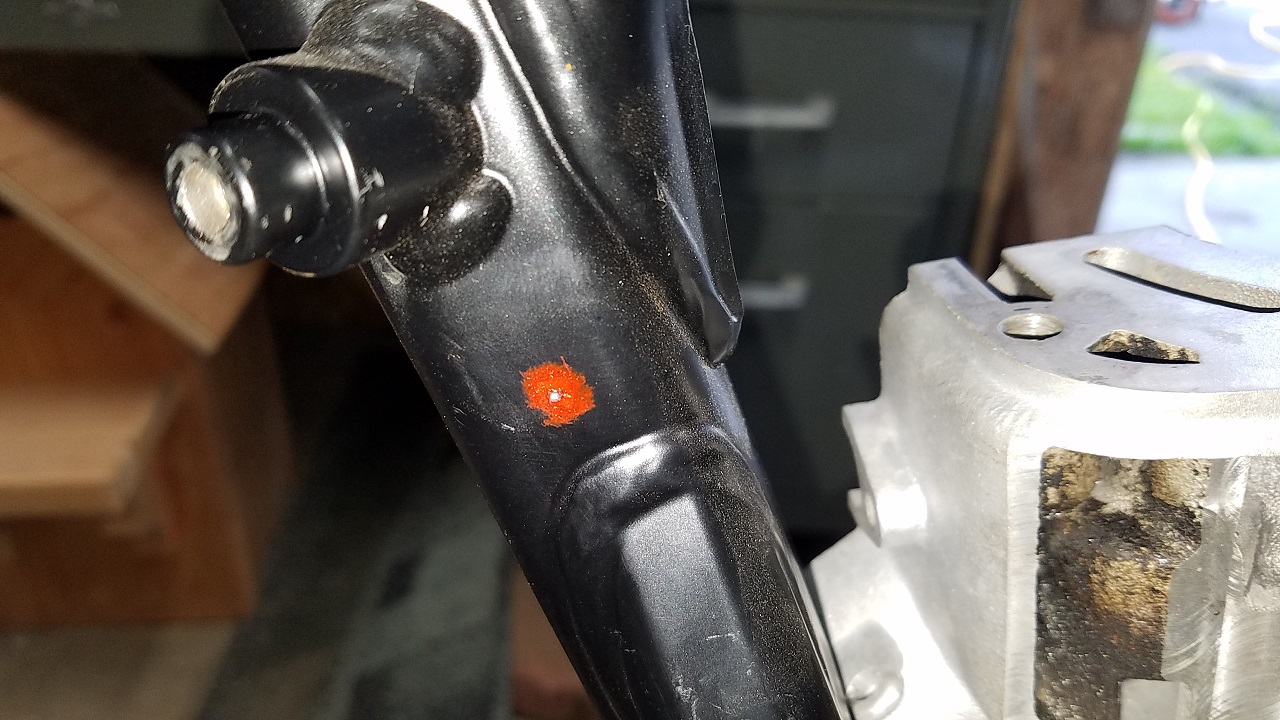

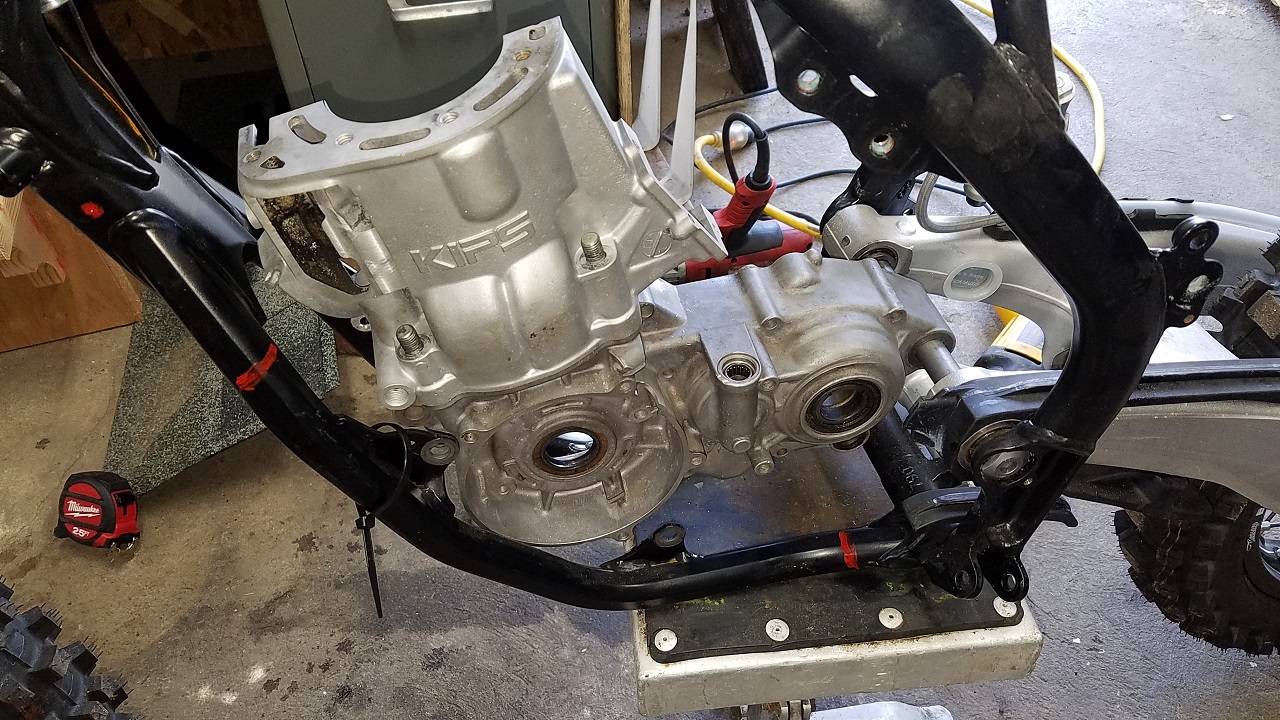

Before I cut the basket rails I'm making some control points on both sides of the frame
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 115.jpg (310.88 KiB) Viewed 10694 times
I placed the control points at approximately the same location on both sides of the frame and measured from there to the centerline of the swingarm pivot pin..
18" on the left
17 15/16" on the right
Then I rough marked the frame rails...
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 116.jpg (447.58 KiB) Viewed 10694 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sun Apr 09, 2017 9:40 pm
by Sandblaster
I have mixed emotions on cutting up a new chassis... Excitement, apprehension, revulsion, Joy, fear... It's cool
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 117.jpg (423.84 KiB) Viewed 10693 times

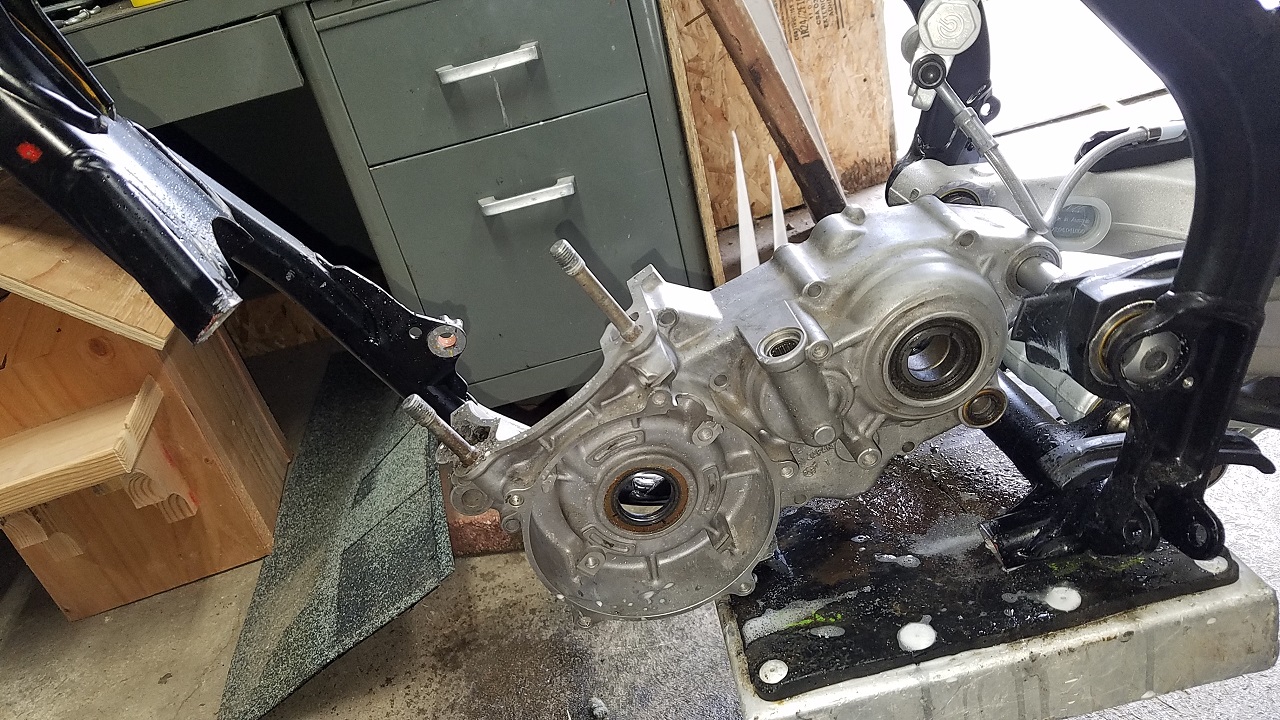

Game over, too late to back out now...
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 118.jpg (447.03 KiB) Viewed 10693 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sun Apr 09, 2017 9:41 pm
by Sandblaster

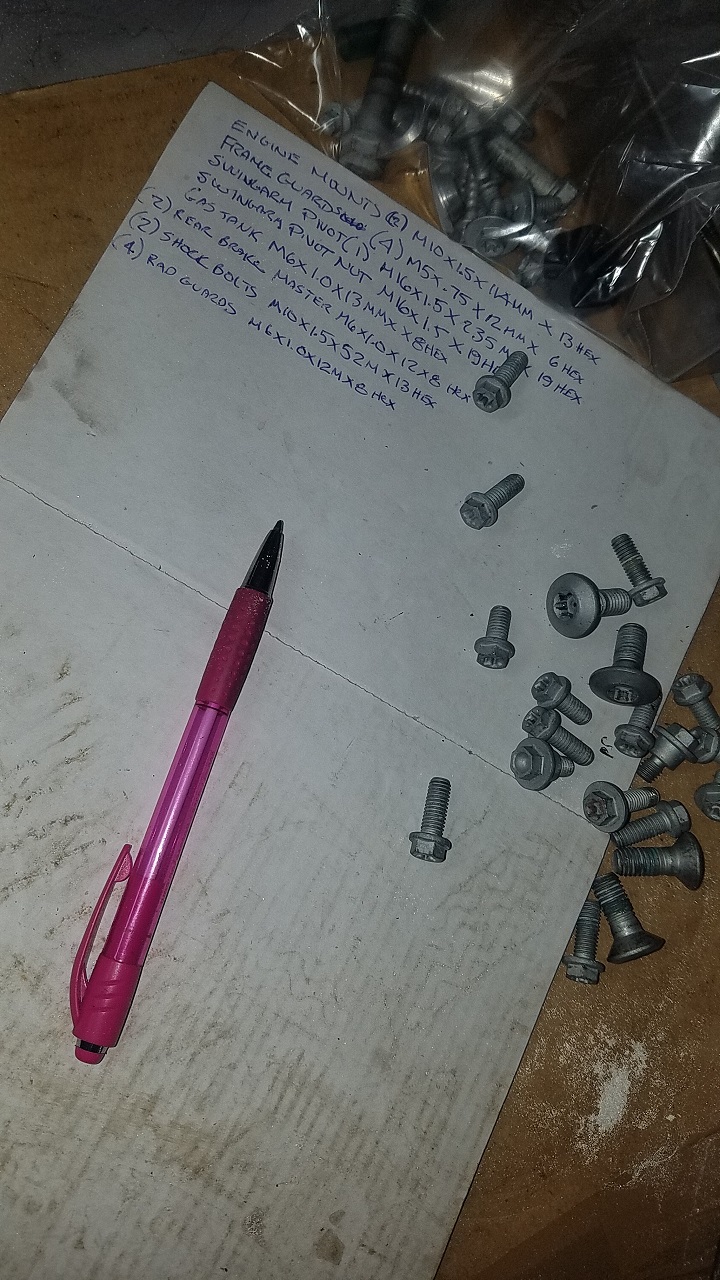

Meanwhile I'm recording all the bolt sizes for replacement titanium...
- KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 119.jpg (373.08 KiB) Viewed 10692 times
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Wed Apr 12, 2017 1:04 am
by Sandblaster
I wasn't able to get anything done on the bike the last few days other then wrapping all the plastics in bubble wrap and putting all the parts in storage.
I also managed to measure and order a bunch of titanium replacement fasteners..
I'm trying to keep the weight down for a few add-ons I'm working on
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Sat Apr 15, 2017 4:52 am
by Sandblaster
Re: KX GURU Racing 2016 KTM 250 SX PUMPKIN SEEDS BUILD
Posted: Fri Apr 21, 2017 6:22 am
by Sandblaster
