KX Guru Racing KtX500e Kawakaze electric start KX500 & KTM Chassis

[Sandblaster]

I'm waiting for the owner of this chassis to set up a time to meet.

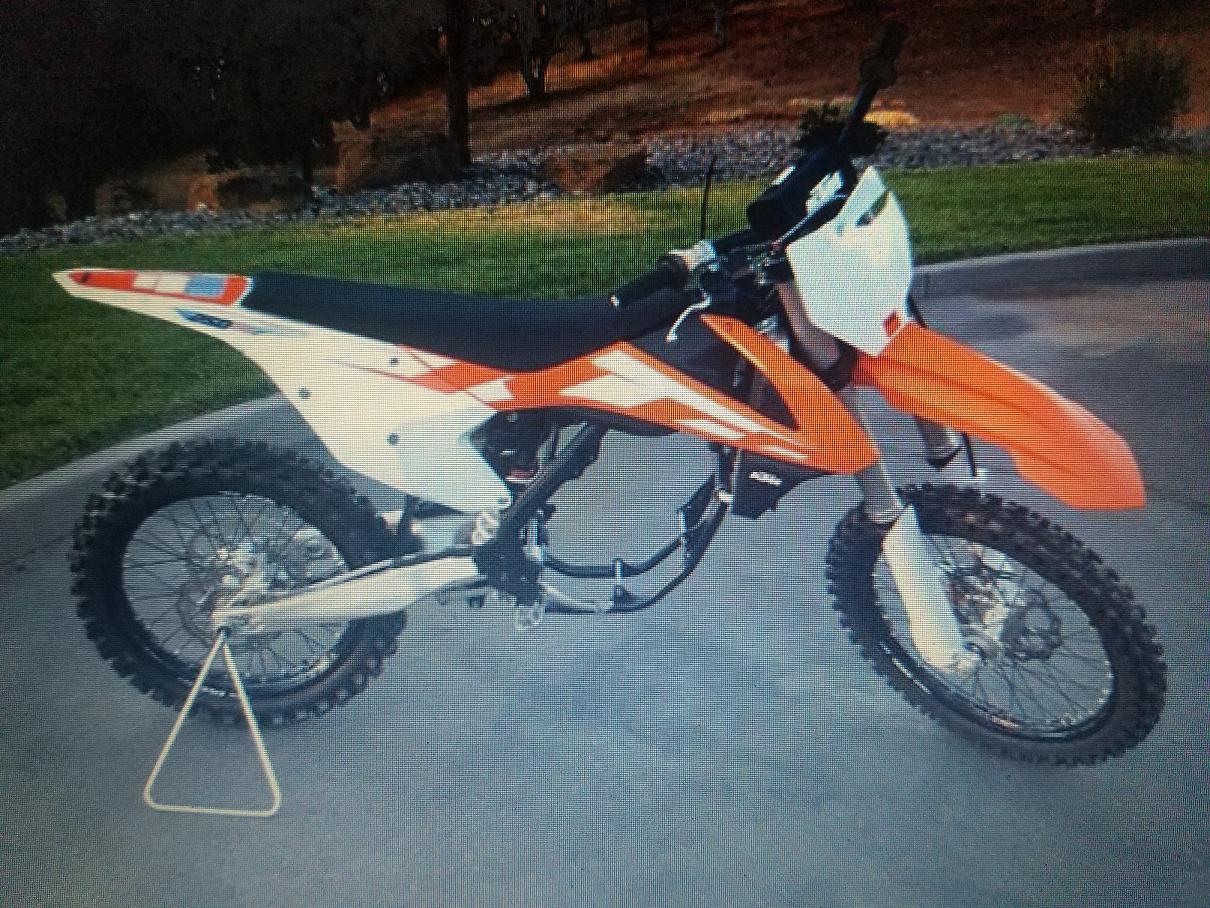

It is a 2016 KTM 250 SX chassis.
They used the motor for a Kart.
My intention is beat the pumpkin seeds out of it and drop in a woods built KX500 engine

2016 KTM 250SX PUMPKIN SEEDS.JPG (259.74 KiB) Viewed 23440 times

[Sandblaster]

So, you thought I was kidding
Drove down to Grants Pass and picked it up...

KX GURU RACING.COM 2016 KTX500 BUILD 101.JPG (339.72 KiB) Viewed 23403 times

[Sandblaster]

Home at last...

KX GURU RACING.COM 2016 KTX500 BUILD 102.JPG (99.47 KiB) Viewed 23402 times

[Sandblaster]

It's gonna require a fair amount of cradle modifications to work.

KX GURU RACING.COM 2016 KTX500 BUILD 103.JPG (194.08 KiB) Viewed 23401 times

KX GURU RACING.COM 2016 KTX500 BUILD 104.JPG (107.21 KiB) Viewed 23401 times

[Sandblaster]

So what's it gonna take?
First off you need your swing arm pivot pin hole in your KX500 cases drilled to 17mm.
Check! I still have my mock up cases for a AF project..
Then the engine mounts on the KTM frame have to be removed just so I can tilt the engine forward enough to see what all I need to do to the cradle..
More to come..

[Sandblaster]

More scheming and plotting tonight but no action

[Sandblaster]

Here is a 2007 KTM 450F frame.
That would be a very easy conversion... But I'm not into easy... I guess

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 101.jpg (212.23 KiB) Viewed 23151 times

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 102.jpg (340.24 KiB) Viewed 23151 times

Since I have this frame I think I will cut it up and use the cradle

[Sandblaster]

No turning back now...

https://www.youtube.com/watch?v=cbfAlU8PmHc

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 103.jpg (412.71 KiB) Viewed 23143 times

[Sandblaster]

I've got one side free'd up...

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 104.jpg (254.62 KiB) Viewed 23139 times

[Sandblaster]

Ok... I did the rough work and Jason came in and did some more clean up.
We are being very careful to remove as little material as possible.
These tubes are thin and we don't want to weaken them and more then required..

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 105.jpg (487.04 KiB) Viewed 23134 times

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 106.jpg (521.57 KiB) Viewed 23134 times

KX GURU RACING 2016 KTM 250SXF KX500 CONVERSION 107.jpg (555.73 KiB) Viewed 23134 times
