KX500 TIMING MARKS

Post by Sandblaster »

KX500 TIMING MARKS

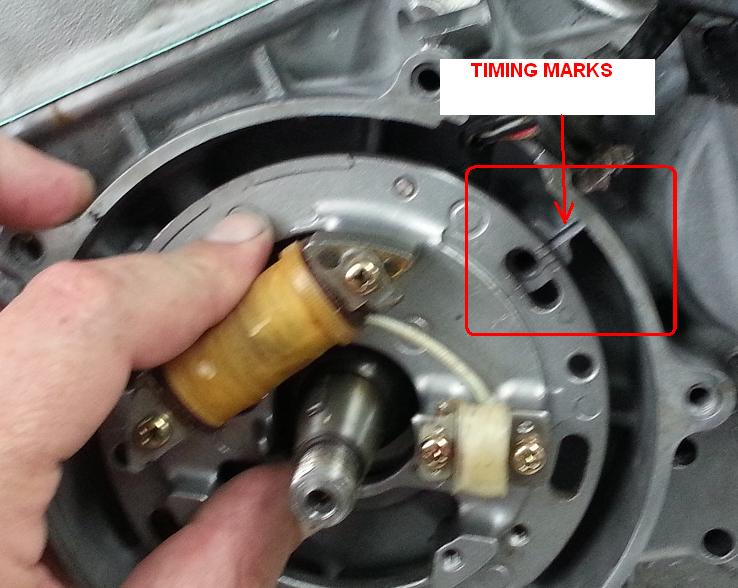

KX500 STATOR TIMING MARKS.JPG
KX500 STATOR TIMING MARKS.JPG (60.51 KiB) Viewed 8816 times
If bikes are for kids I'll never grow up.
Top
User avatar
Sandblaster
Posts: 6319
Joined: Thu Jun 07, 2012 3:50 pm
Location: Eugene, OR
Contact:
Contact Sandblaster

Re: KX500 TIMING MARKS

Post by Sandblaster »

Here is a better pic...
KX500 STATOR TIMING MARKS 2.JPG
KX500 STATOR TIMING MARKS 2.JPG (37.25 KiB) Viewed 8808 times
If bikes are for kids I'll never grow up.
Top
User avatar
Sandblaster
Posts: 6319
Joined: Thu Jun 07, 2012 3:50 pm
Location: Eugene, OR
Contact:
Contact Sandblaster

Re: KX500 TIMING MARKS

Post by Sandblaster »

Moving the stator plate clockwise advances timing and moving Counter clockwise retards timing.
