14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEA

Post by Sandblaster »

14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS

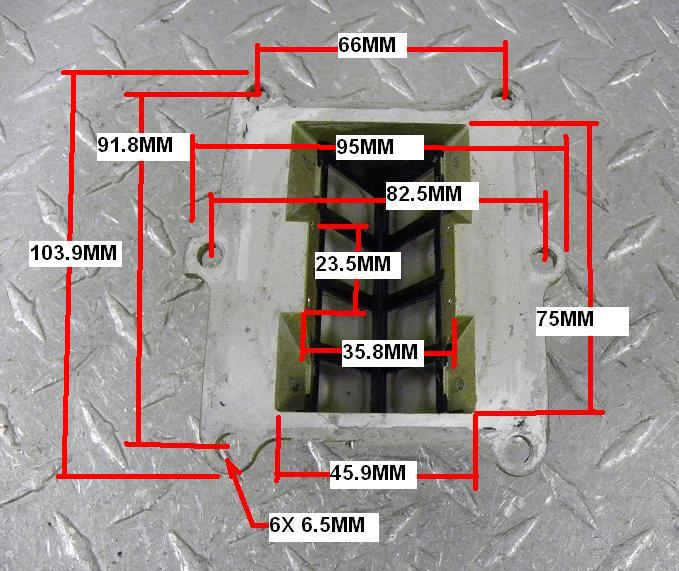

14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS - PIC 1
14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS - PIC 1
REED VALVE 1.JPG (79.12 KiB) Viewed 8962 times

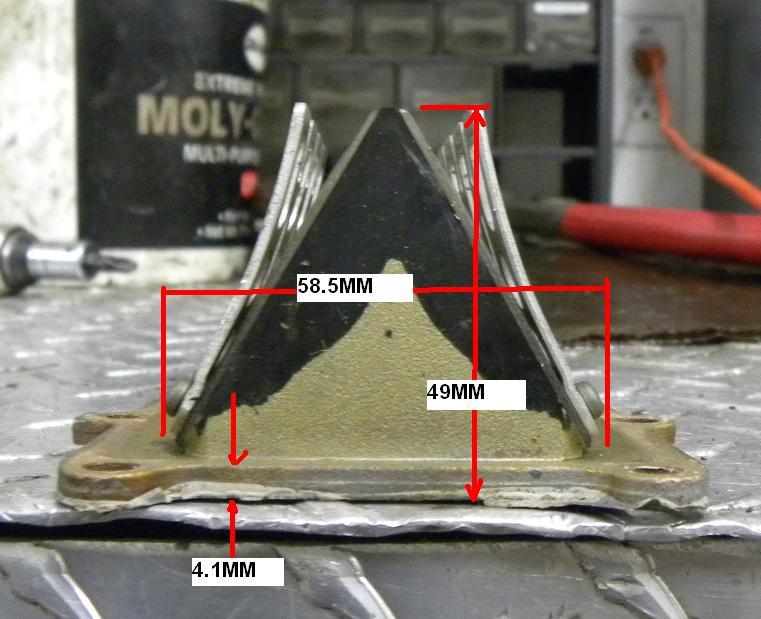

14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS - PIC 2
14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS - PIC 2
REED VALVE 2.JPG (66.39 KiB) Viewed 8962 times

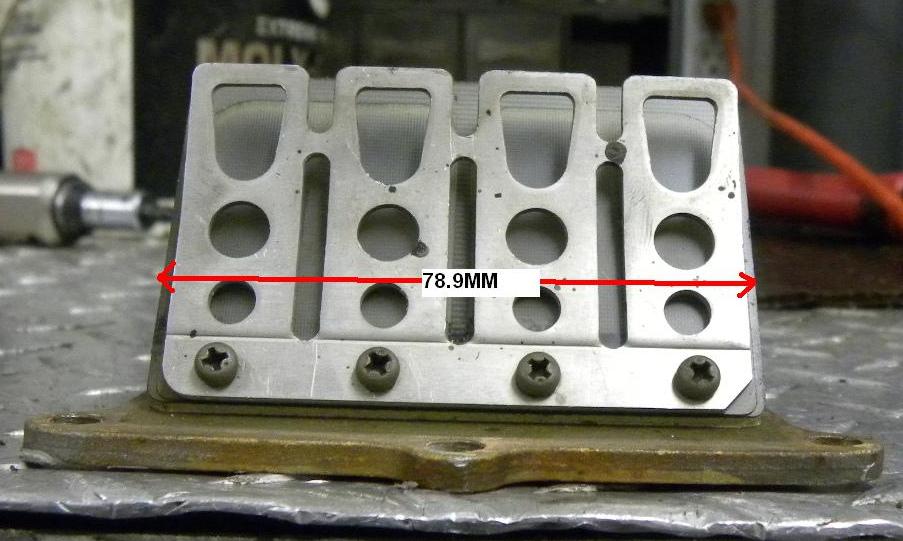

14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS - PIC 3
14100-ML3-681 - REED VALVE - FITS 89-01 CR500 - PICS AND MEASUREMENTS - PIC 3
REED VALVE 3.JPG (68.37 KiB) Viewed 8962 times
If bikes are for kids I'll never grow up.
