44037-1290 AND 44039-1218 TRIPLE TREE MEASUREMENTS AND PICS

Post by Sandblaster »

44037-1290 AND 44039-1218 TRIPLE TREE MEASUREMENTS AND PICS
TOP FITS 93-96 KLX650R (THE KLX650C WILL ALSO FIT BUT IT HAS THE IGNITION MOUNT) - 44039-1218
BOTTOM FITS 93-96 KLX650R, 91-94 KDX250 (I SEE VERY LITTLE DIFFERENCE IN THIS BOTTOM AND THE KLX650C 93-96) - 44037-1290
All measurements are approximate

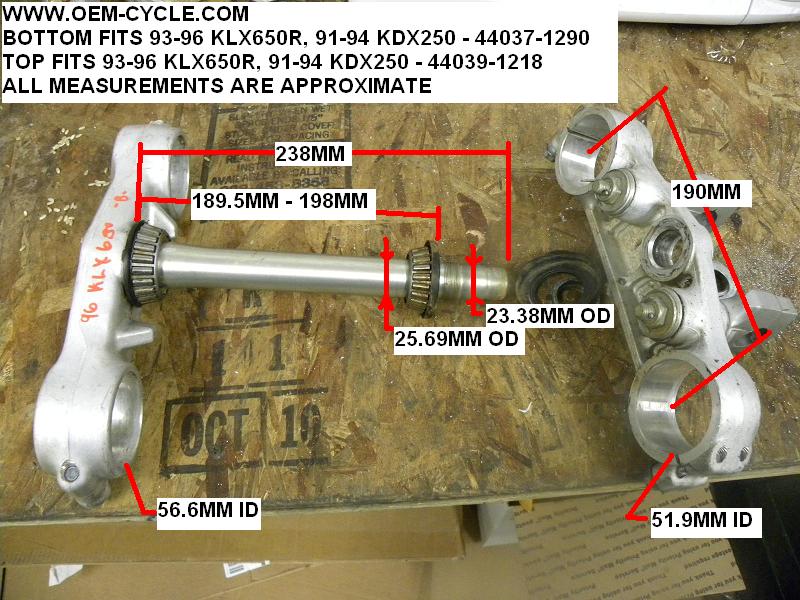

TRIPLE CLAMP MEASURMENTS AND PICS.JPG
TRIPLE CLAMP MEASURMENTS AND PICS.JPG (120.35 KiB) Viewed 6604 times
If bikes are for kids I'll never grow up.
