11001-1288 KX500 HEAD SPECS AND INTERCHANGE

Post by Sandblaster »

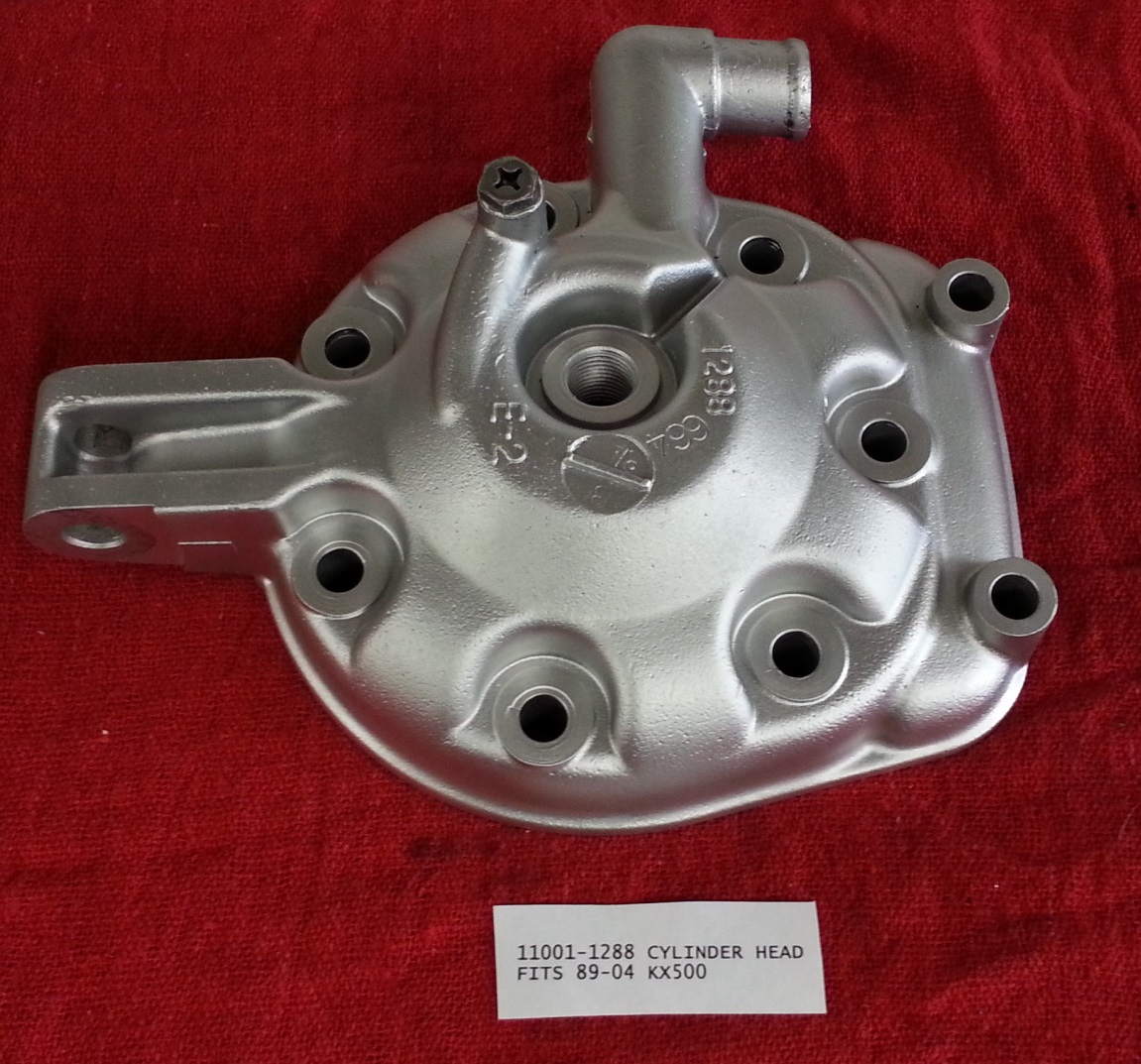

Head 11001-1288
FITS 89-04 1288 E-2 OR E-1, GASKET SURFACE TO NUT SURFACE .913"
If bikes are for kids I'll never grow up.
Top
User avatar
Sandblaster
Posts: 6318
Joined: Thu Jun 07, 2012 3:50 pm
Location: Eugene, OR
Contact:
Contact Sandblaster

Re: KX500 ENGINE PARTS PICS torque specs

Post by Sandblaster »

HEAD NUT 92015-1143 - FITS 83-04 KX500

92015-1143
FITS 83-04 KX500
TORQUE SPEC: 25 FT LB OR 35 NM
HEAD NUT.JPG
HEAD NUT.JPG (72.95 KiB) Viewed 7069 times
