FITS 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 KX500,
ALSO FITS 1993 1994 1995 1996 1997 1998 KX125 AND KX250

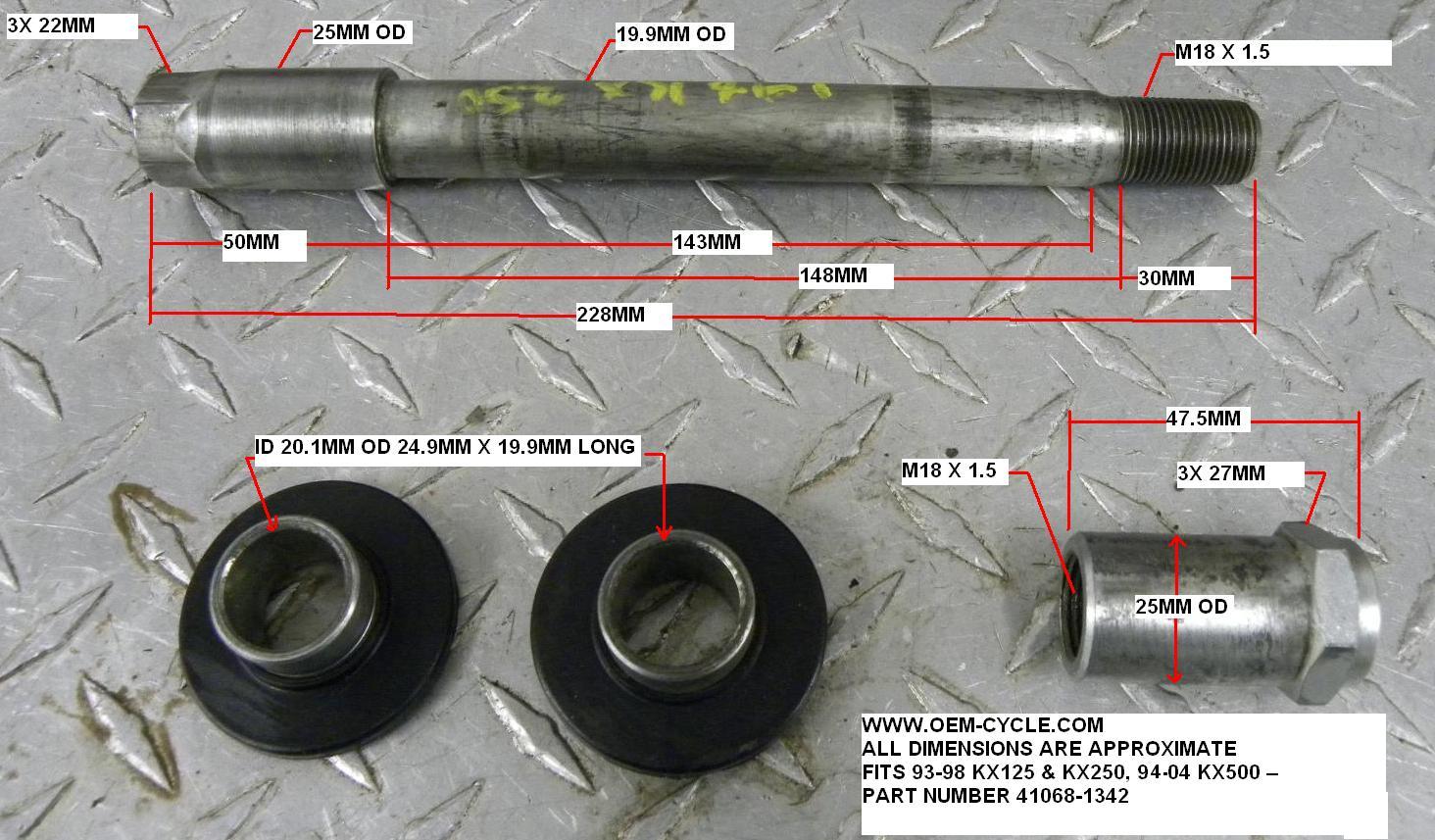

- 41068-1342 - FRONT AXLE MEASUREMENTS.JPG (200.08 KiB) Viewed 7205 times
Questions?
Post or PM.
Thanks!
SB
94-04 KX500 FRONT AXLE – 41068-1342 MEASUREMENTS AND PICS
-
Sandblaster
- Posts: 6320
- Joined: Thu Jun 07, 2012 3:50 pm
- Location: Eugene, OR
- Contact:
94-04 KX500 FRONT AXLE – 41068-1342 MEASUREMENTS AND PICS
KAWASAKI FRONT AXLE – 41068-1342 MEASUREMENTS AND PICS
FITS 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 KX500,
ALSO FITS 1993 1994 1995 1996 1997 1998 KX125 AND KX250
All dimensions are approximate.
Questions?
Post or PM.
Thanks!
SB
FITS 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 KX500,
ALSO FITS 1993 1994 1995 1996 1997 1998 KX125 AND KX250
All dimensions are approximate.
Questions?
Post or PM.
Thanks!
SB
