1986 KX125 ENGINE COLOR MATCHING

[Sandblaster]

I stumbled upon this by accident.
I had a 1986 kx125 head that I wanted to clean up.
So I vapor blasted it, dried it and painted it with some High head black that I had sitting on the shelf, and baked it at 200 degrees F for 1 hour.
Looked great, but I didn't have a clue about the color until I set the head on the cylinder..

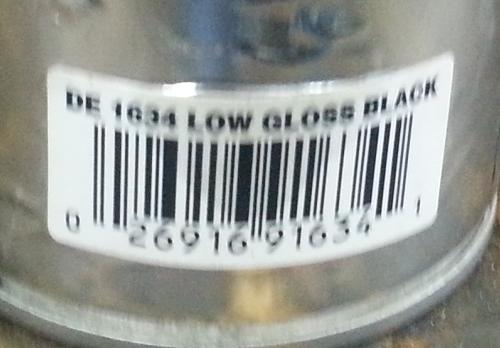

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 1.JPG (24.06 KiB) Viewed 9683 times

Yeah yeah it's a bad pic..
It says DE 1634 LOW GLOSS BLACK

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 2.JPG (56.47 KiB) Viewed 9683 times

And the results..

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 3.JPG (135.92 KiB) Viewed 9683 times

It's not a perfect match but if you painted the entire engine you would have a hard time ever knowing that it wasn't factory

[Sandblaster]

So, I'm thinking the 85-87 KX250's and KX500's may be the same..
I'll have to do some research on that...

[Sandblaster]

So... Digging around in my junk piles..... I find a 1986 KX500 engine case

I cleaned one section really good...

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 4.JPG (59.81 KiB) Viewed 9681 times

Taped it off...

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 5.JPG (55.09 KiB) Viewed 9681 times

Nice and clean....

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 6.JPG (46.26 KiB) Viewed 9681 times

[Sandblaster]

Painted and baked.

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 7.JPG (29.84 KiB) Viewed 9681 times

Removed the tape and?????

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 8.JPG (40.76 KiB) Viewed 9681 times

Not exactly what I had hoped for.

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 9.JPG (78.02 KiB) Viewed 9681 times

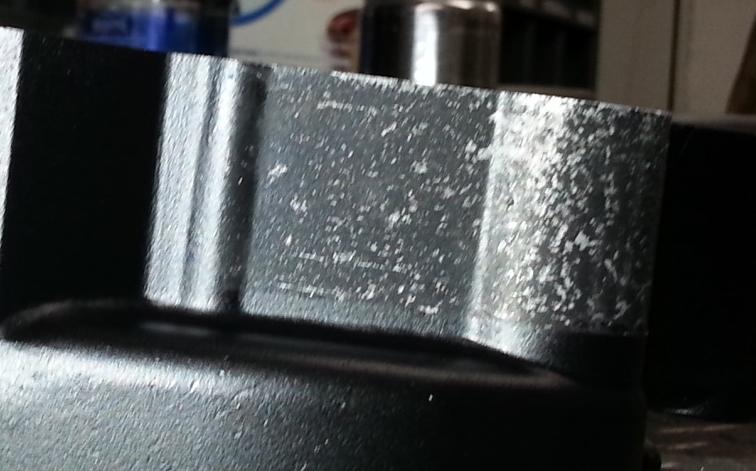

OEM-CYCLE.COM ENGINE PAINT FOR 85-87 KX125 9 9.JPG (47.15 KiB) Viewed 9681 times

All things being equal... the case paint is in really bad shape so it really isn't a definitive test...

If I was going to build a earlier KX I'd consider using it.

Unless of course some of you Guru's out there have a better alternative that you would like to share
