13615-KA5-740 84-01 CR500 PRIMARY CRANK GEAR PICS AND MEASUR

Post by Sandblaster »

84-01 CR500 PRIMARY CRANK GEAR 13615-KA5-740 PICS AND MEASUREMENTS
ALL DIMENSIONS ARE APPROXIMATE AND SHOULD BE USED FOR REFERENCE ONLY
21 SPLINES 25 TEETH FITS 84-01 CR500 13615-KA5-740

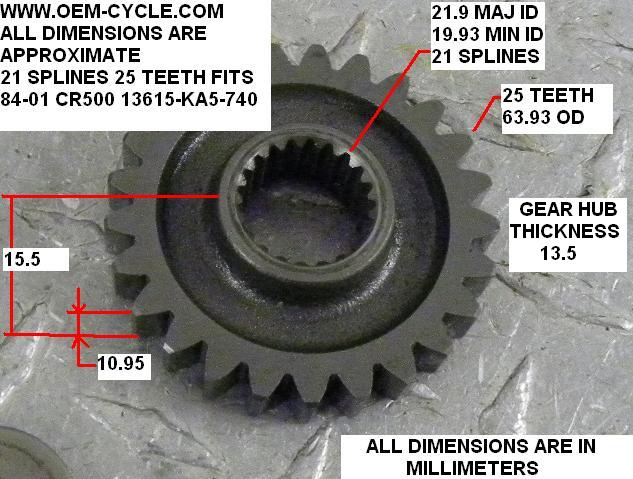

84-01 CR500 PRIMARY CRANK GEAR 13615-KA5-740.JPG
84-01 CR500 PRIMARY CRANK GEAR 13615-KA5-740.JPG (66.21 KiB) Viewed 8643 times
If bikes are for kids I'll never grow up.
