89-94 RM125 STATOR SPECS
- 89-94 RM125 STATOR SPECS.JPG (17.73 KiB) Viewed 6820 times
- 89-95 RM125 CDI SPECS.JPG (83.28 KiB) Viewed 6820 times
- 89-95 RM125 COIL SPECS.JPG (39.02 KiB) Viewed 6820 times
RM125 ENGINE SPECIFICATIONS
SUZUKI RM125 Measurements, Specs, pics
-
Sandblaster
- Posts: 6320
- Joined: Thu Jun 07, 2012 3:50 pm
- Location: Eugene, OR
- Contact:
RM125 ENGINE SPECIFICATIONS
Post by Sandblaster »
RM125 ENGINE SPECIFICATIONS

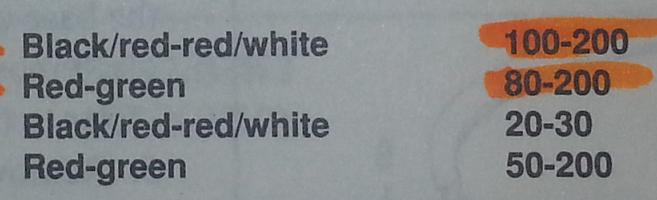

89-94 RM125 STATOR SPECS

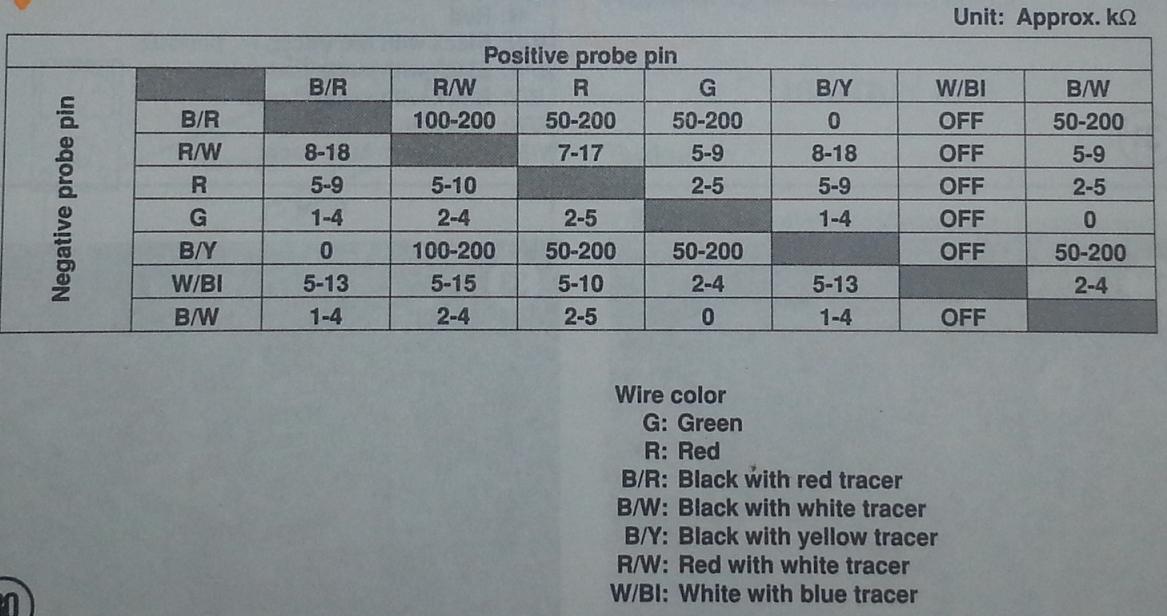

89-95 RM125 CDI SPECS

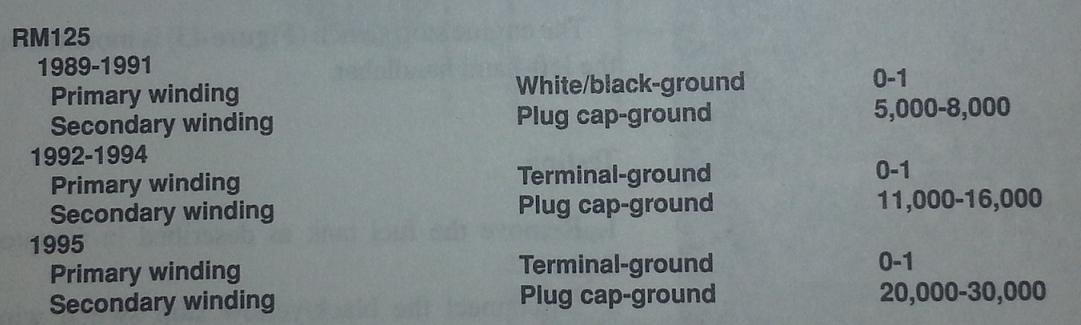

89-95 COIL SPECS
89-94 RM125 STATOR SPECS
If bikes are for kids I'll never grow up.
