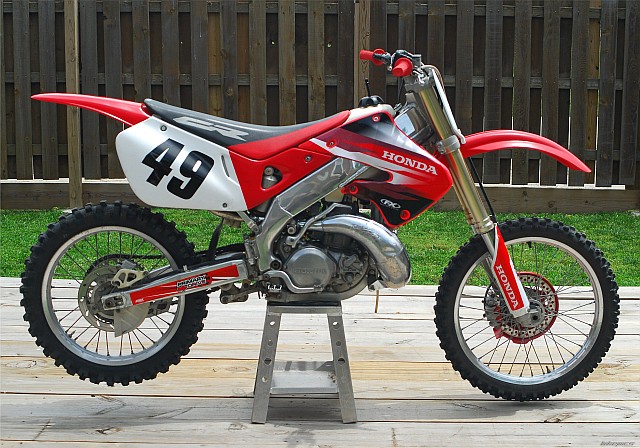

Picture for 1997 Honda CR250R
Specs for Honda CR250R 1997
Engine
Configuration Liquid-cooled single cylinder two-stroke
with power-port system Lubrication
Bore & Stroke 66.4mm x 72mm Ignition Solid-state CD with electronic advance
Capacity 249cc Charging system
Compression Ratio 8:7:1 Starter
Maximum Power Transmission #520 chain; 13T/50T
Maximum Torque Gearbox Five-speed box
Fuel 38.3mm flat-slide
Four-petal reed valve Clutch
Chassis
Frame Wheels
Dimensions Weight: 213.8 pounds
Wheelbase: 58.4 inches
Length:
Seat Height: 36.7 inches
Ground Clearance: 12.8 in. Tyres Front: 80/100-21
Rear: 110/90-19
Front Suspension 47mm inverted Showa cartridge fork with 18-position rebound and 20-position
compression damping adjustability; 12.2 inches travel Brakes Front: Single disc with twin-piston calipers
Rear: disc
Rear suspension Pro-Link Showa single shock
with spring preload; 20-position rebound damping adjustability, and compression damping adjustability separated into low-speed (8 position) and high-speed (2 turns); 12.5 inches travel Fuel Capacity 2.0 gallons
Configuration Liquid-cooled single cylinder two-stroke
with power-port system Lubrication
Bore & Stroke 66.4mm x 72mm Ignition Solid-state CD with electronic advance
Capacity 249cc Charging system
Compression Ratio 8:7:1 Starter
Maximum Power Transmission #520 chain; 13T/50T
Maximum Torque Gearbox Five-speed box
Fuel 38.3mm flat-slide
Four-petal reed valve Clutch
Chassis
Frame Wheels
Dimensions Weight: 213.8 pounds
Wheelbase: 58.4 inches
Length:
Seat Height: 36.7 inches
Ground Clearance: 12.8 in. Tyres Front: 80/100-21
Rear: 110/90-19
Front Suspension 47mm inverted Showa cartridge fork with 18-position rebound and 20-position
compression damping adjustability; 12.2 inches travel Brakes Front: Single disc with twin-piston calipers
Rear: disc
Rear suspension Pro-Link Showa single shock
with spring preload; 20-position rebound damping adjustability, and compression damping adjustability separated into low-speed (8 position) and high-speed (2 turns); 12.5 inches travel Fuel Capacity 2.0 gallons
