Husaberg ENGINE,
PARTS, AND FRAME Identification page
In an effort to help fellow bikers properly ID their bike I
have provided the following information on VIN ( Vehicle Identification Number )
, Engine ID and part identification.
All the information provided is to the best of my knowledge correct.
As we part more bikes out we will add more information to this chart.
If you find something that is not accurate, please let us know and we will fix
it.
This information is not intended for use outside of this web site or for
publication.
In other words, use this information at your own risk.
For Husaberg parts, click here
| YEAR | TYPE | ENGINE ID | VIN FRAME USA ONLY | CARBURETOR | CARBURETOR BOOT | YEAR | TYPE | CLUTCH BASKET | ENGINE MOUNTS | FLY WHEEL – ROTOR | YEAR | TYPE | FORK INFO | YEAR | TYPE | PRIMARY CRANK GEAR | REAR HUB | YEAR | TYPE | REAR BRAKE ROTOR | FRONT HUB | YEAR | TYPE | FRONT BRAKE ROTOR | STATOR | SWING ARM | YEAR | TYPE |

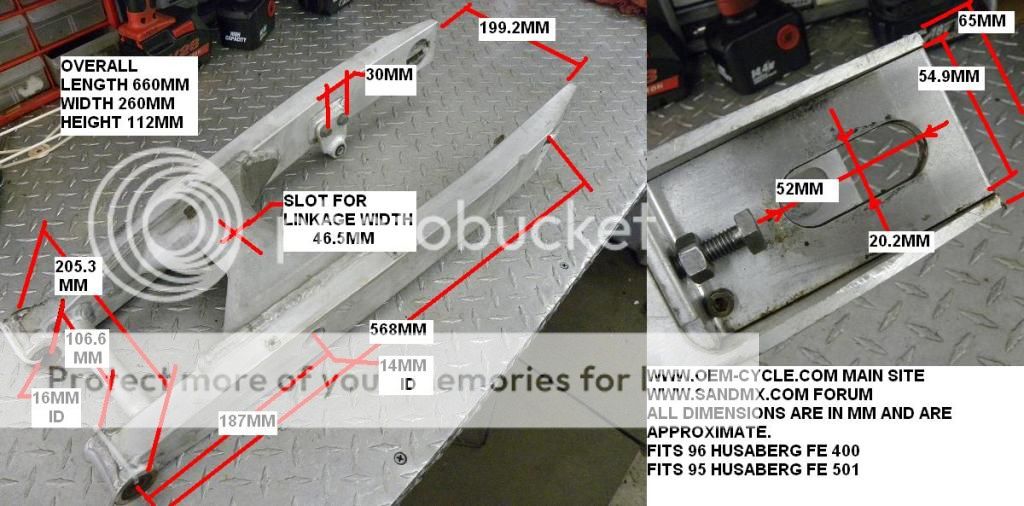

| 1996 | 400FE | Dellorto VHSB38 OS | CLICK HERE FOR MEASRUEMENTS | 1996 | 400FE | CLICK HERE FOR MEASRUEMENTS | 1996 | 400FE | USD - 40 MM CHROME OD | 1996 | 400FE | 1996 | 400FE | 1996 | 400FE | UP TO 98 CLICK HERE | CLICK HERE FOR MEASUREMENTS | 1996 | 400FE | |||||||||

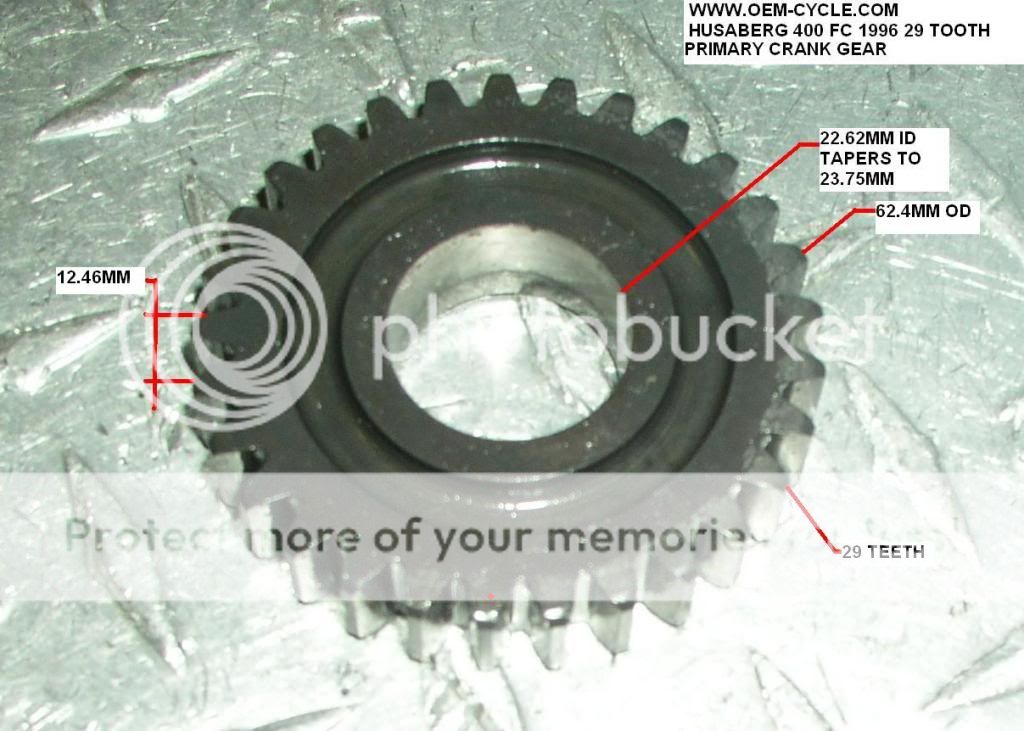

| 1996 | 400 FC | DelLorto VHSB 38 QS | 1996 | 400 FC | 1996 | 400 FC | USD - 40 MM CHROME OD | 1996 | 400 FC | CLICK HERE FOR MEASUREMENTS PRIMARY CRANK GEAR | AXLE OD 20MM - OUTSIDE TO OUTSIDE OF BRG CAPS 175-176MM - ROTOR OD 220MM, ID 112MM, 6 ON 130MM BC - SPROCKET 6 ON 138MM, ID 119MM | 1996 | 400 FC | 1996 | 400 FC | UP TO 98 CLICK HERE | 1996 | 400 FC | ||||||||||
| 1994 | 501FE | 2X DIA 5.5MM - C/L to C/L is 70MM - CARB END 44MM ID | 1994 | 501FE | 1994 | 501FE | 10.94 HUS4TE94 – 40MM CHROME OD – C/L 36 1/4” - UPPER 53.9MM – LOWER 56.9MM – BRAKE MOUNT 60MM – AXLE 20MM & 15MM | 1994 | 501FE | 1994 | 501FE | 1994 | 501FE | UP TO 98 CLICK HERE | CLICK HERE FOR MEASUREMENTS | 1994 | 501FE | |||||||||||

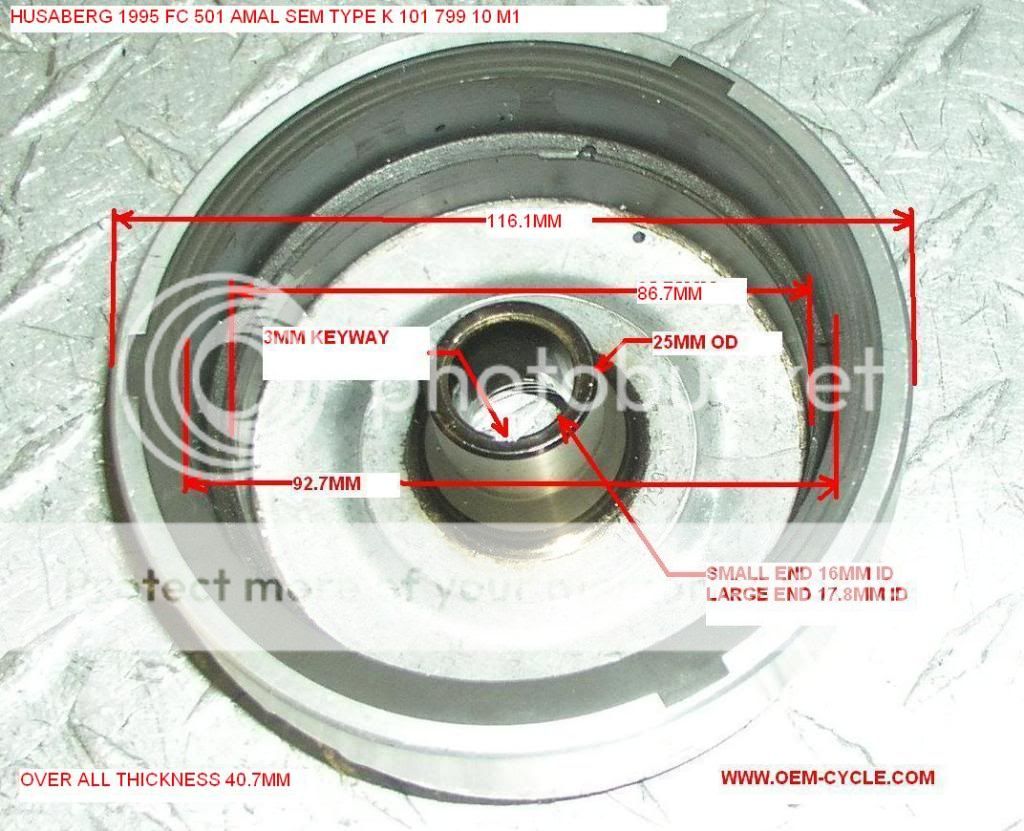

| 1995 | 501FE | 1995 | 501FE | AMAL SEM TYPE K MEASUREMENTS | 1995 | 501FE | 17.95 HUS4TE95 - 40MM CHROME OD - C/L 36 1/4" - UPPER 53.9MM - LOWER 56.9MM - BRAKE MOUNT 60MM - AXLE 20MM & 15MM | 1995 | 501FE | AXLE OD 25MM - BRG TO BRG 130-131MM - SPROCKET MOUNT 6 ON 130MM | 1995 | 501FE | 220MM OD - 112MM ID - MOUNT 6 ON 130MM | AXLE OD 15MM - BRG TO BRG 78-79MM - ROTOR MOUNT 6 ON 135MM | 1995 | 501FE | 260MM OD - 120MM ID - MOUNT 6 ON 135MM | UP TO 98 CLICK HERE | CLICK HERE FOR MEASUREMENTS | 1995 | 501FE | |||||||
| 1999 | 501FC | 1999 | 501FC | 1999 | 501FC | 12.98 945S713 - 50MM CHROME OD - C/L 36 5/8" (930MM) BRAKE MOUNT 60MM - AXLE CLAMPS 21MM & 17MM | 1999 | 501FC | 1999 | 501FC | 1999 | 501FC | UP TO 98 CLICK HERE | CLICK HERE FOR MEASUREMENTS | 1999 | 501FC | ||||||||||||
| 1996 | 600FC | DelLorto VHSB 38 QS | 1996 | 600FC | 1996 | 600FC | 25.95HUS4TMX94 - 40MM CHROME OD - C/L 36 3/4" (933MM) - UPPER 54MM - LOWER 57MM - BRAKE MOUNT C/L 60MM - AXLE 20MM & 15MM | 1996 | 600FC | AXLE OD 25MM - BRG TO BRG 130-131MM - ROTOR MOUNT 6 ON 130MM - SPROCKET MOUNT 6 ON 138MM | 1996 | 600FC | 220MM OD - | 1996 | 600FC | UP TO 98 CLICK HERE | 1996 | 600FC | ||||||||||
| 2000 | 501FC | 2000 | 501FC | CLICK HERE FOR HOLE MEASUREMENTS | 2001 | 501FC | UP TO 98 CLICK HERE | |||||||||||||||||||||
| YEAR | TYPE | ENGINE ID | VIN FRAME USA ONLY | CARBURETOR | CARBURETOR BOOT | YEAR | TYPE | CLUTCH BASKET | ENGINE MOUNTS | FLY WHEEL – ROTOR | YEAR | TYPE | FORK INFO | YEAR | TYPE | PRIMARY CRANK GEAR | REAR HUB | YEAR | TYPE | REAR BRAKE ROTOR | FRONT HUB | YEAR | TYPE | FRONT BRAKE ROTOR | STATOR | SWING ARM | YEAR | TYPE |
| 99-03 CLICK HERE | ||||||||||||||||||||||||||||
| 99-03 CLICK HERE | ||||||||||||||||||||||||||||
| 99-03 CLICK HERE | ||||||||||||||||||||||||||||
| 99-03 CLICK HERE | ||||||||||||||||||||||||||||
| 99-03 CLICK HERE | ||||||||||||||||||||||||||||
| cdi info | ||||||||||||||||||||||||||||
| Red to black should be 2,700 ohms and the green to black it is 165 ohms. | ||||||||||||||||||||||||||||
| YEAR | TYPE | ENGINE ID | VIN FRAME USA ONLY | CARBURETOR | CARBURETOR BOOT | YEAR | TYPE | CLUTCH BASKET | ENGINE MOUNTS | FLY WHEEL – ROTOR | YEAR | TYPE | FORK INFO | YEAR | TYPE | PRIMARY CRANK GEAR | REAR HUB | YEAR | TYPE | REAR BRAKE ROTOR | FRONT HUB | YEAR | TYPE | FRONT BRAKE ROTOR | STATOR | SWING ARM | YEAR | TYPE |
